Extron CableCover F55 (part number 70-1366-01) — a fitted under-table cable wrap that mounts at the base of Cable Cubby F55 and Cable Cubby F55 Edge enclosures.

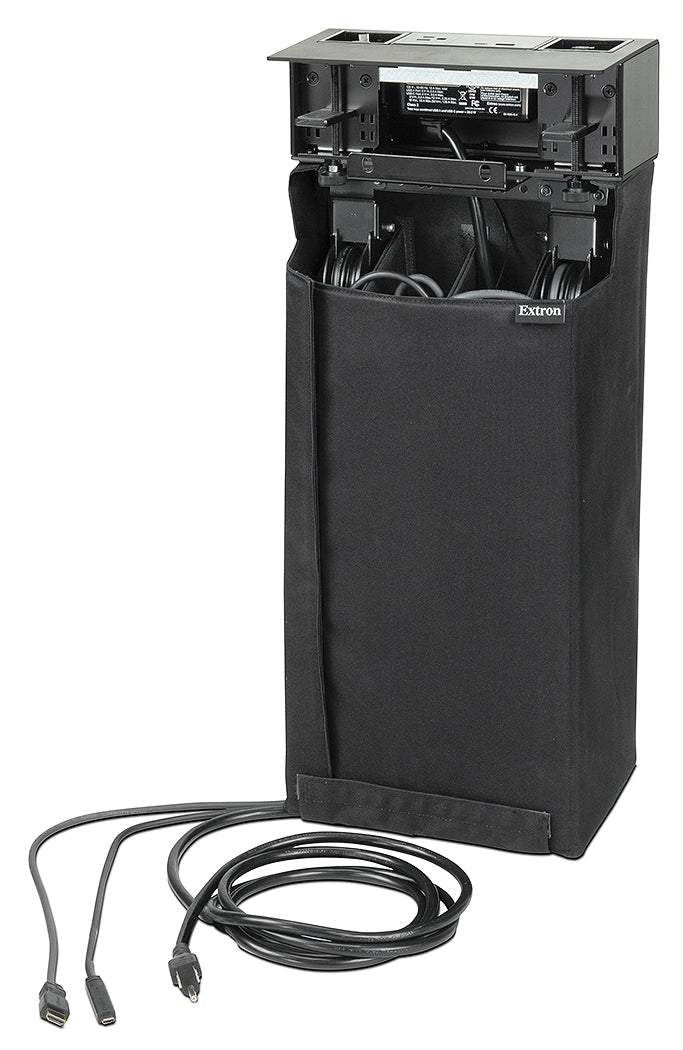

Under a well-installed enclosure there is still a bundle of service loops, power leads and retracting cables that nobody has solved for. CableCover F55 wraps around the base of the enclosure and gives that bundle a shape. Four separate channels each take up to four AV cables or one standard Retractor module, so cables are separated rather than bunched, which is what actually prevents the tangles and the accidental disconnects. A covered exterior channel provides tie-down openings for cables and for Extron PS Series power supplies or other compact Extron devices, and pass-through openings top and bottom let the assembly work with floor boxes and wall outlets.

Key Capabilities

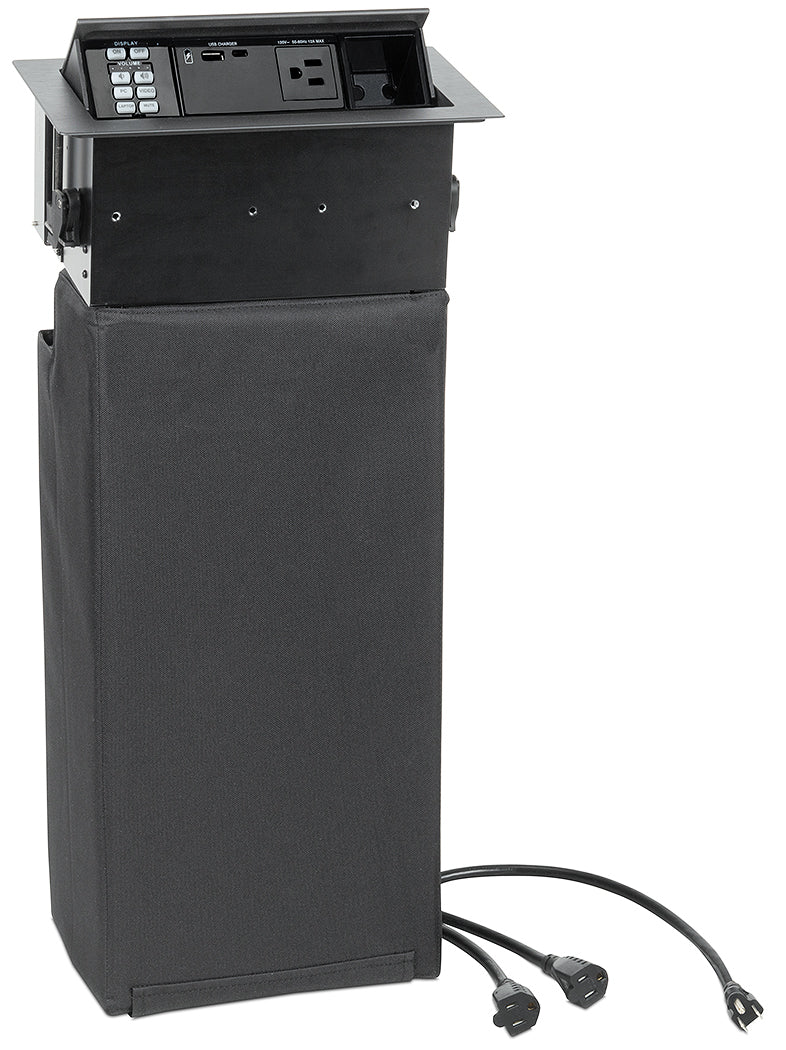

• Mounts at the base of Cable Cubby F55 and Cable Cubby F55 Edge enclosures

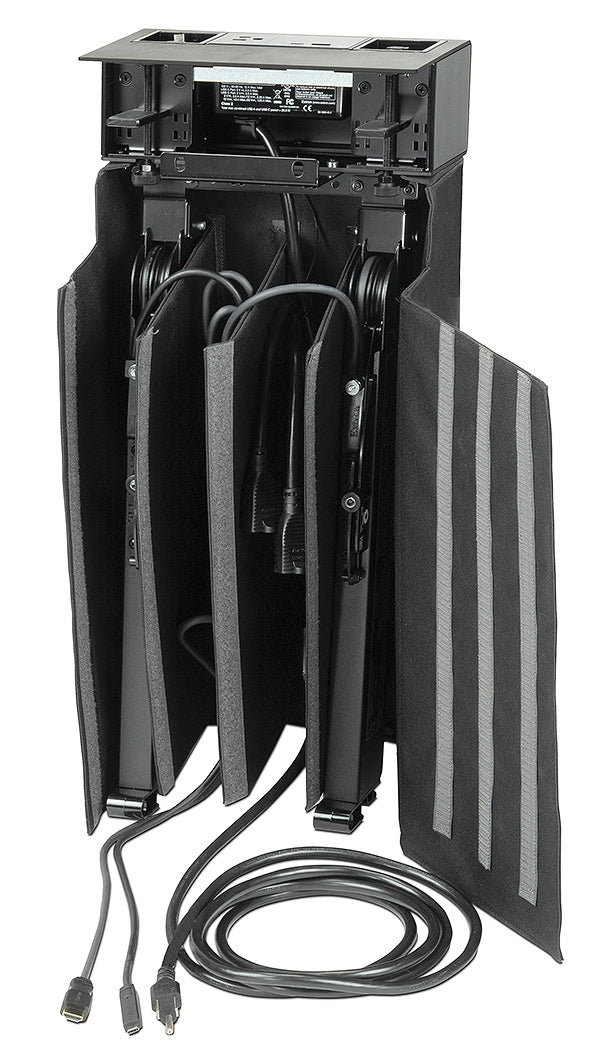

• Four individual channels, each holding up to four AV cables or one Retractor module

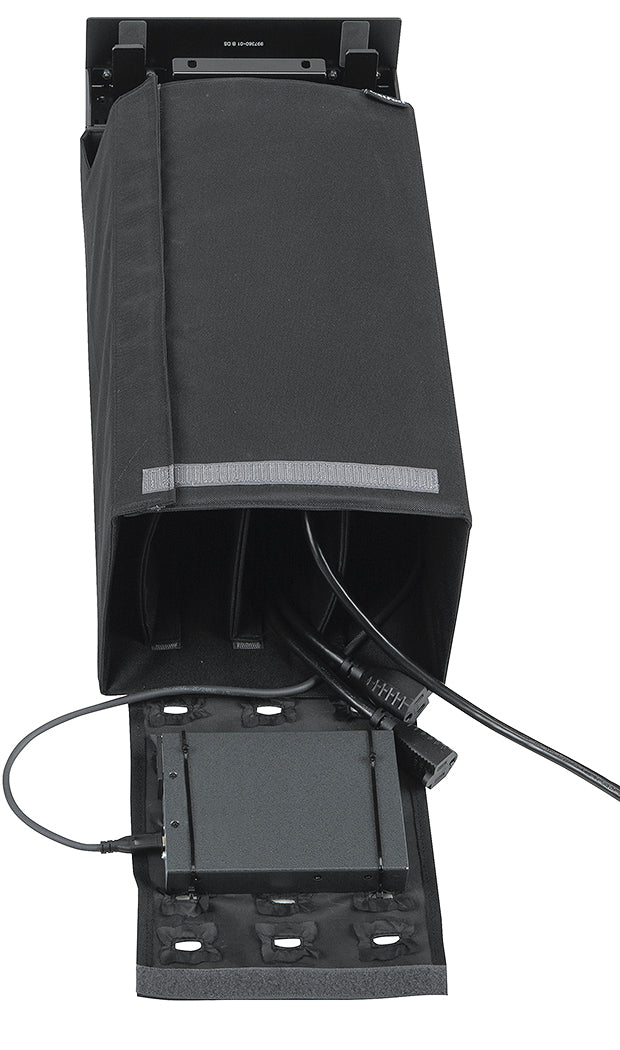

• Tie-down openings for cables and Extron PS Series power supplies
• Cable pass-through openings suit floor boxes and outlets
• Reduces tangles and prevents cables being pulled loose accidentally
• Polyester fabric with PVC coating over polypropylene inserts
• Weighs only 3 lbs and adds no rigid structure under the table

Where It Is Used

Conference and boardroom tables, training rooms, lecterns and clinical or laboratory benches where a Cable Cubby F55 is already fitted and the cabling below it is visible to anyone seated at the table or is being knocked by knees and chairs.

Specifications at a Glance

• Dimensions: 19.2 in H x 9.2 in W x 7.5 in D (488 x 233 x 190 mm)
• Weight: 3 lbs (1.4 kg)
• Materials: polyester fabric with PVC coating, polypropylene inserts; polycarbonate and Nylon 6 fasteners
• Safety: meets the relevant requirements of California Technical Bulletin No. 117-2013, Section 1
• Warranty: 3 years parts and labor

Also referenced as Extron CableCoverF55, CableCover-F55, part number 70136601.
