Extron Cable Cubby Retractor Bracket Kit – Double (part number 70-1040-04) — a pair of two-retractor brackets covering the current wide and under-table Cable Cubby enclosures.

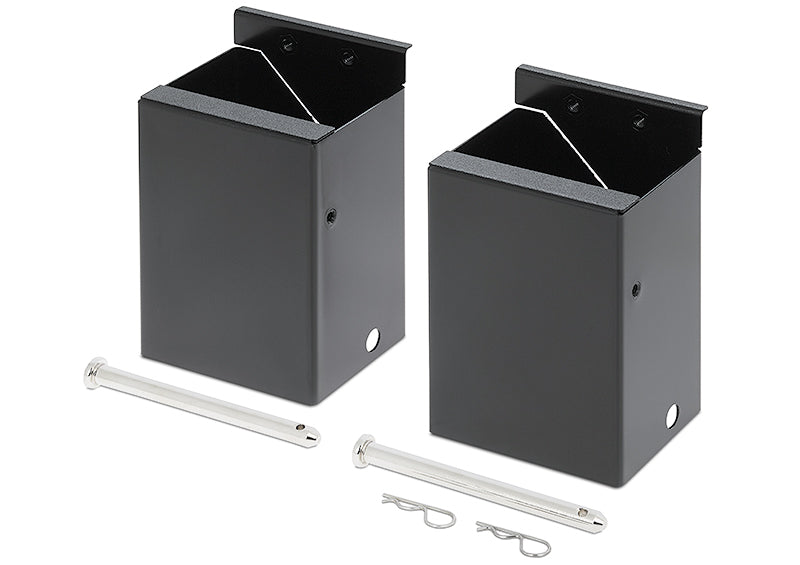

Same bracket concept as the earlier double kit, but this is the order code Extron lists for the enclosures still in production. It puts two Retractor Series cable retraction modules at each outer edge of the enclosure, leaving the middle free for the AC or AC+USB power module. Retractors drop into the bracket, a mounting pin runs through the assembly, and a clip holds the pin — so the finished stack is fixed rather than merely resting in place.

Key Capabilities

• Two Retractor Series cable retraction modules per bracket, sold as a pair
• Listed for Cable Cubby 650 UT, 1202, 1252 MS and 1402
• Also covers EBP 1200C, NBP 1200C and TLP Pro 725C enclosures
• Keeps the enclosure centre clear for the power module
• Mounting pin and clip secure the retractor assembly
• Supplements the retractor brackets included with the enclosure

Where It Is Used

Modern conference and training tables that mix guest power with retracting HDMI, USB-C and network tails; under-table 650 UT builds in bespoke furniture; and touchpanel tables using the TLP Pro 725C where the retractors have to stay clear of the panel body.

Specifications at a Glance

• Kit type: Retractor Bracket Kit – Double, supplied as a pair
• Retractor capacity: two Retractor Series modules
• Compatible enclosures: Cable Cubby 650 UT, 1202, 1252 MS, 1402, EBP 1200C, NBP 1200C, TLP Pro 725C
• Manufacturer part number: 70-1040-04

Also referenced as Extron CableCubbyRetractorBracketKitDouble, Cable-Cubby-Retractor-Bracket-Kit-Double, part number 70104004.
