Extron Cable Cubby F55 Edge (part number 70-1296-02) — black edge-mounted cable access enclosure that adds AV connectivity, control and power to a table without cutting into it.

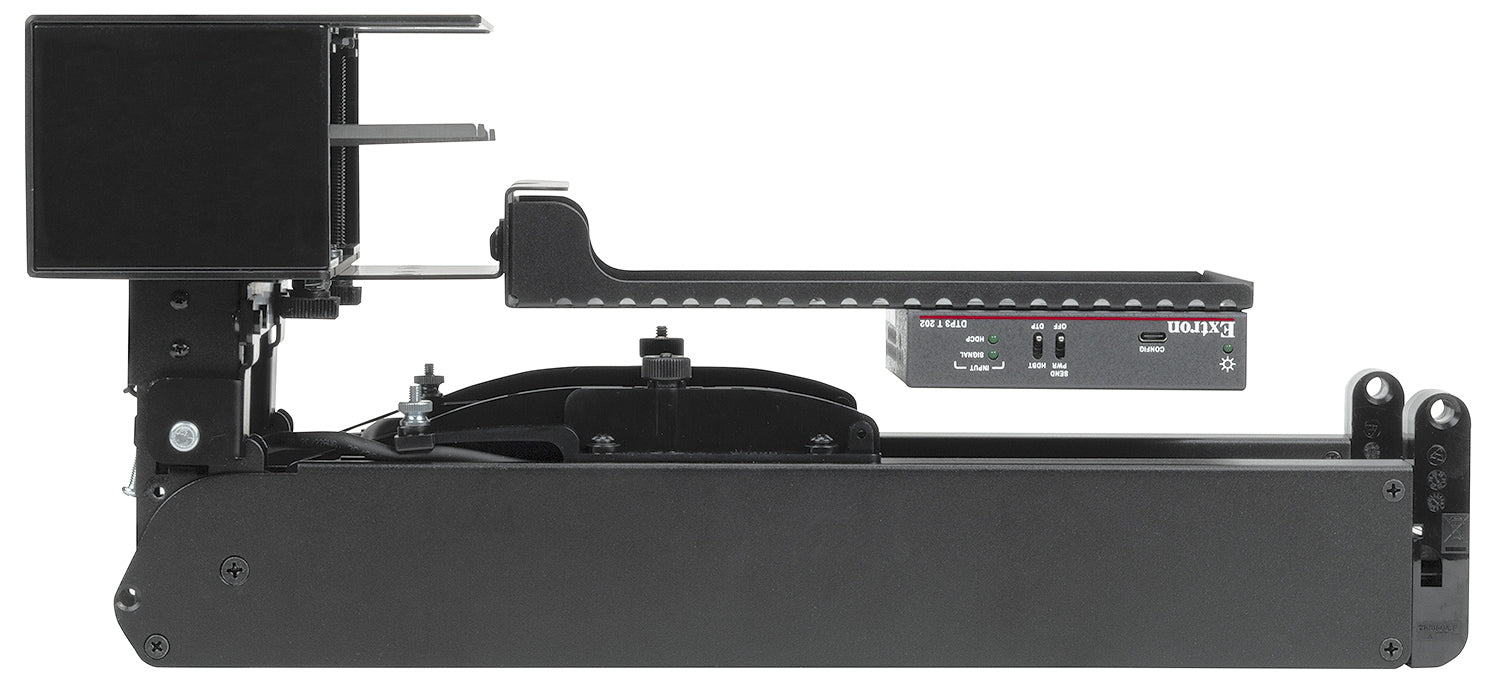

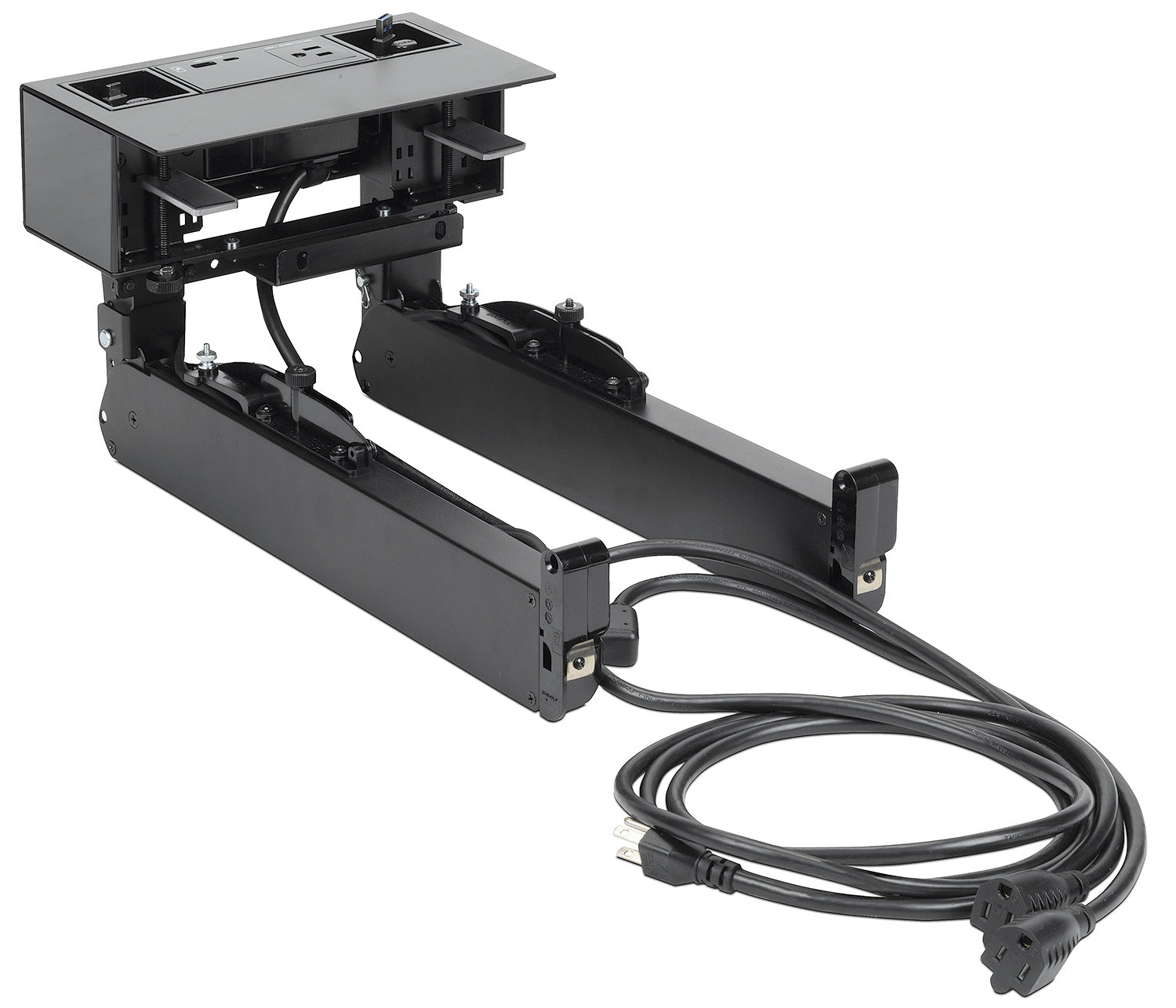

The distinguishing feature is that nothing is routed, drilled or sawn. An integrated tool-less clamp grips the edge of the furniture, so a table that could not otherwise be modified — a leased fit-out, a veneered boardroom top, a room that has to revert — still gains a proper connectivity point. Inside, the bay takes up to four full-size Flex55 or EU modules, and half-size through double-size modules can be mixed in. The same enclosure will instead carry four Retractor or Retractor XL cable retraction modules.

Key Capabilities

• Clamps to the furniture edge with no cutting and no tools required

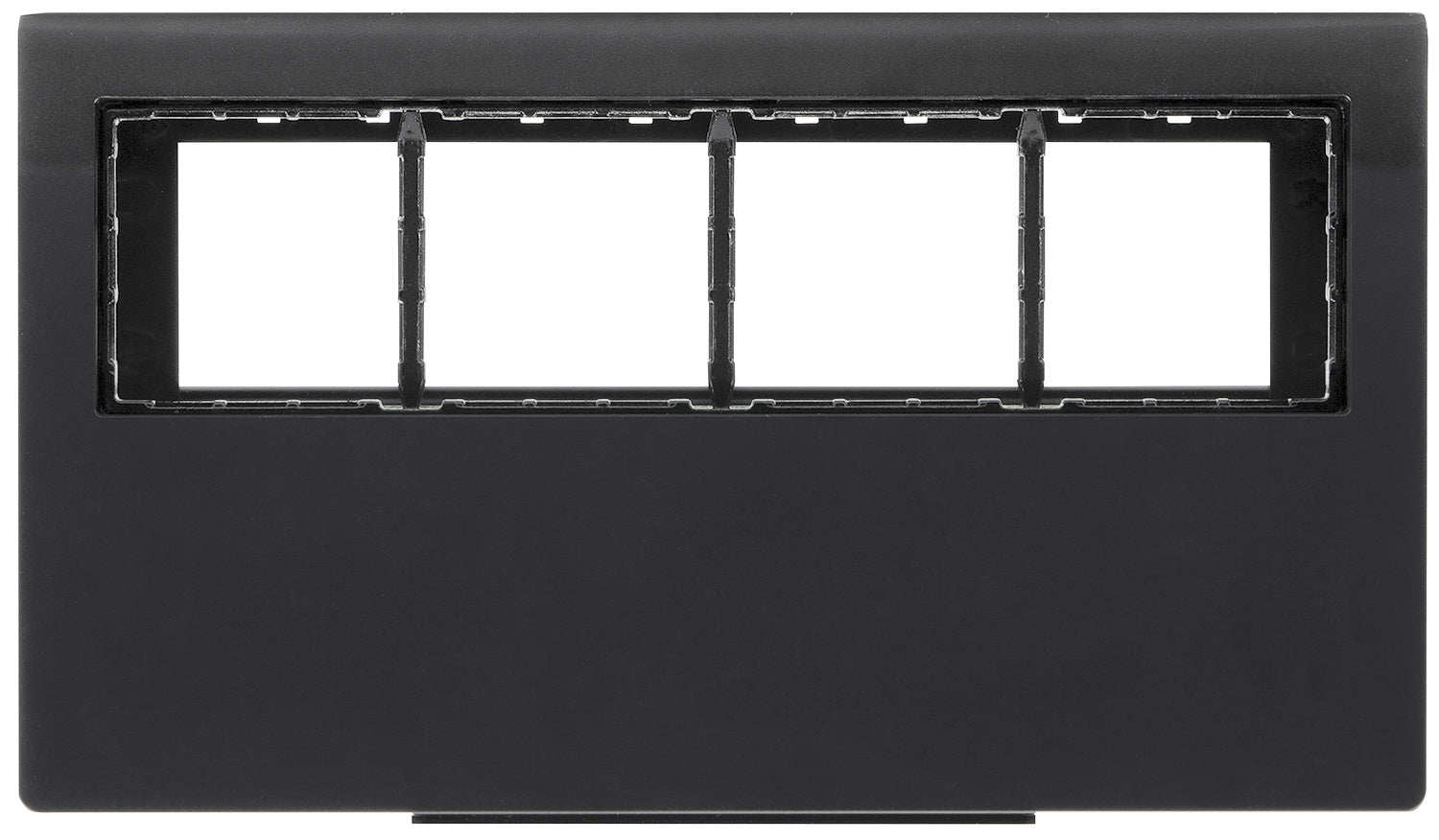

• Takes up to four full-size Extron Flex55 or EU modules
• Half-size to double-size modules can be combined in the same enclosure
• Alternatively supports four Retractor or Retractor XL modules

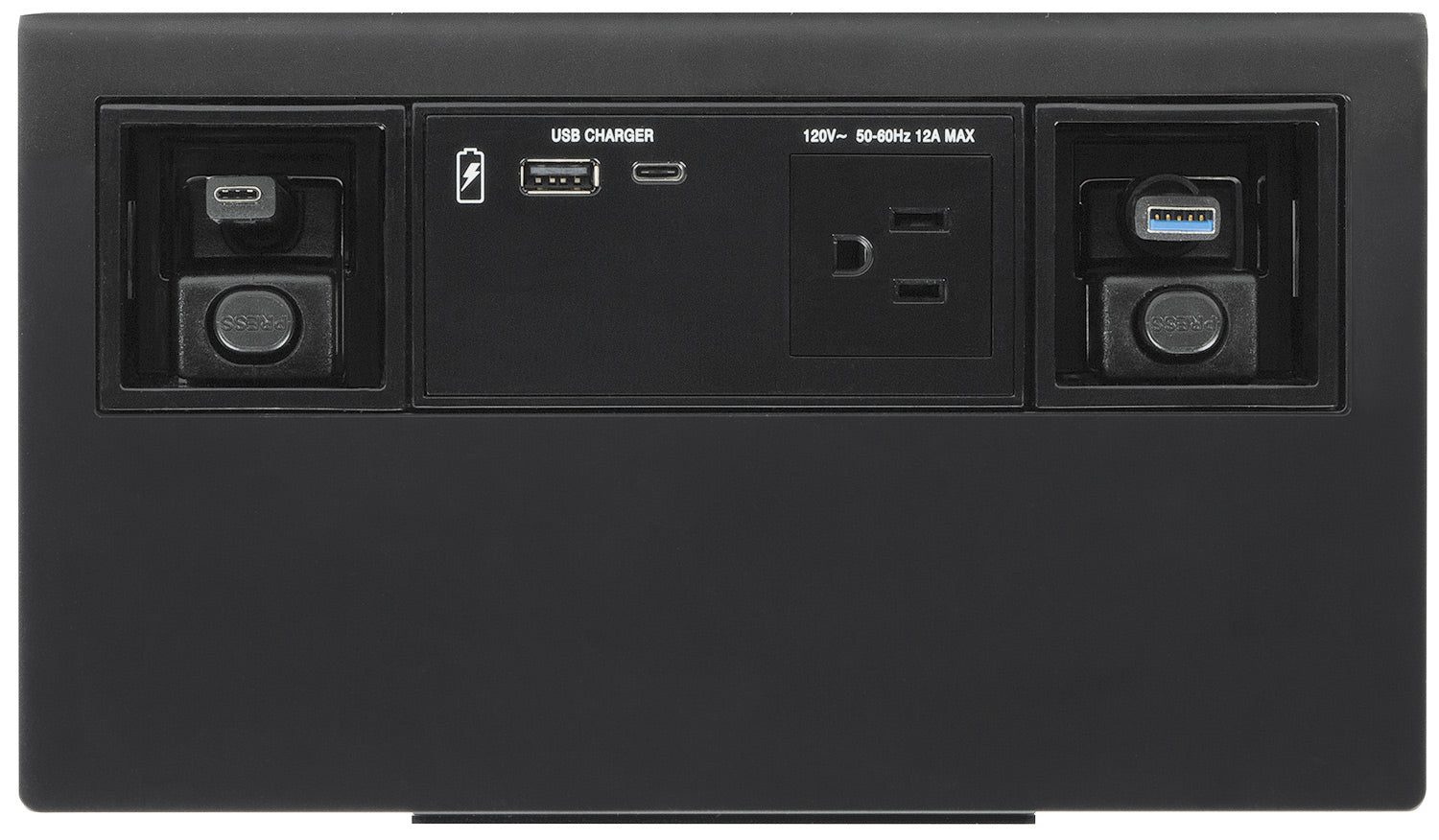

• Suits Flex55 AC power outlets for the US, Europe and other major markets

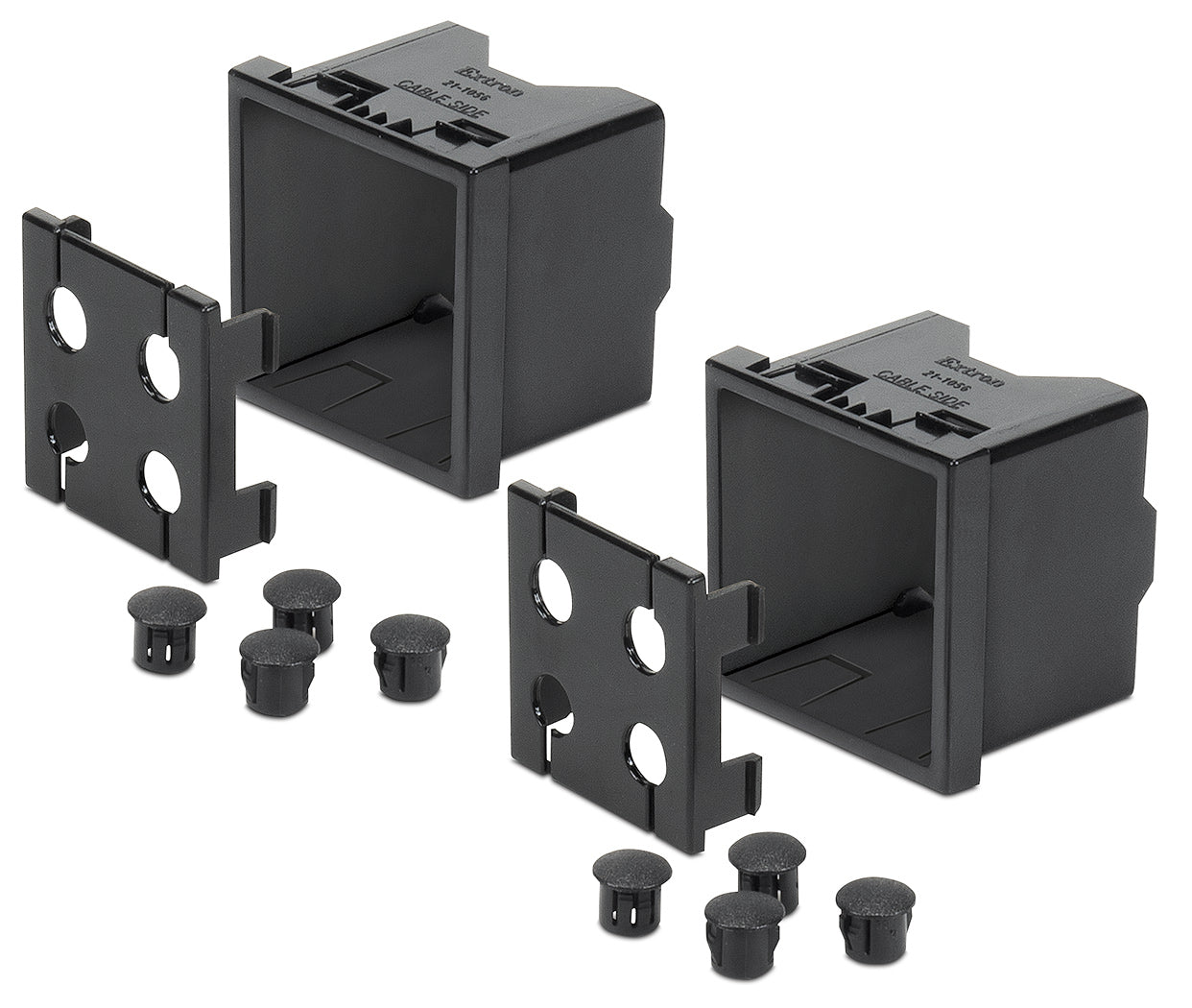

• Two Captive Cable Kits included, holding up to four AV cables
• Optional Retractor Mounting Bracket Kit 70-1354-02 adds one retraction module

Where It Is Used

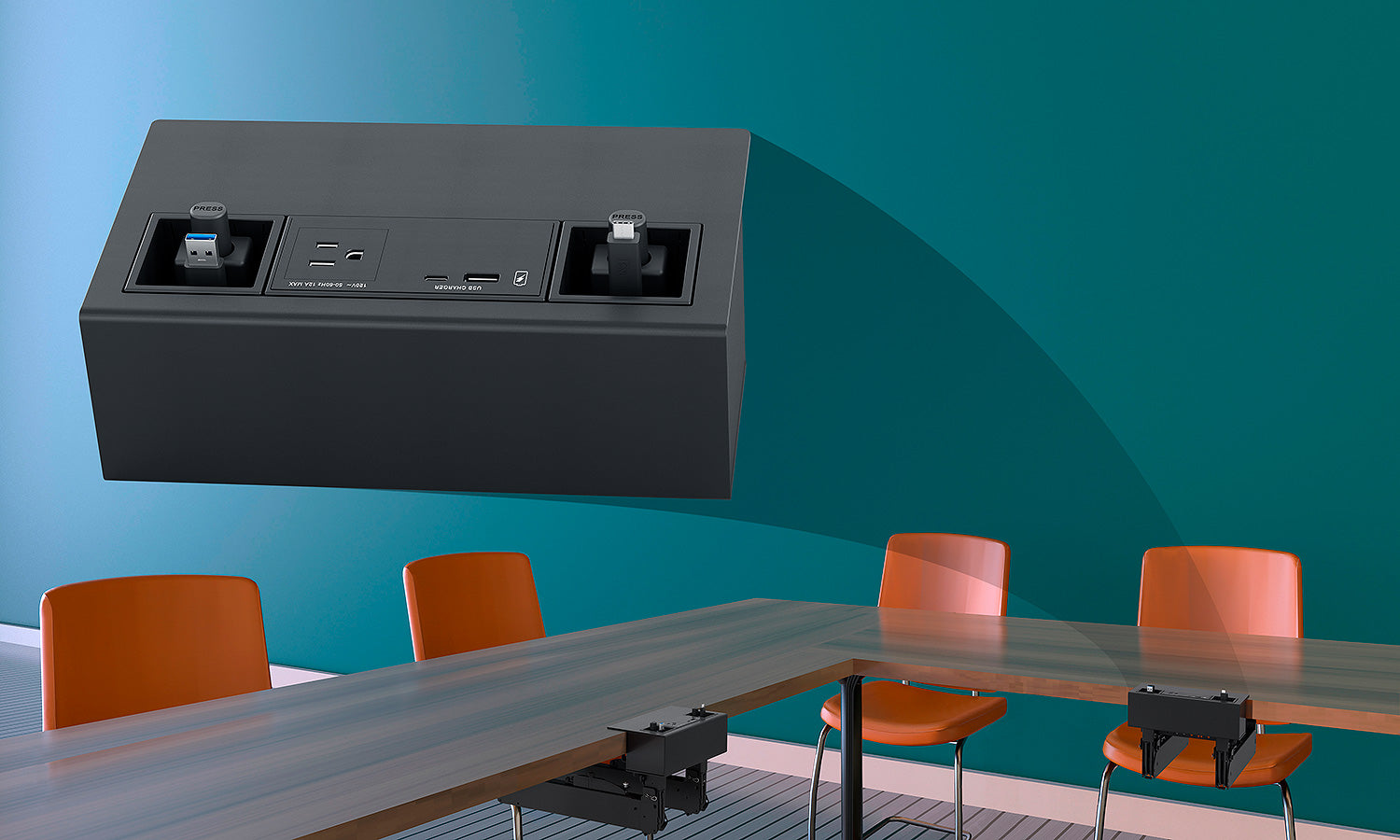

Reconfigurable meeting rooms, flexible learning spaces, leased offices and heritage or high-value furniture where cutting the surface is not an option. Also common on temporary or seasonal room builds that must be struck and returned to their original state.

Specifications at a Glance

• Top enclosure: 9.87 in W x 5.62 in D (251 mm x 143 mm)
• Enclosure height: 4.14 in (105 mm)
• Table thickness range: 0.50 in to 2.00 in (13 mm to 51 mm)
• Weight: 3.4 lbs (1.5 kg)
• Compliance: CE, RoHS, WEEE; 3-year parts and labor warranty

Also referenced as Extron CableCubbyF55Edge, Cable-Cubby-F55-Edge, part number 70129602.
