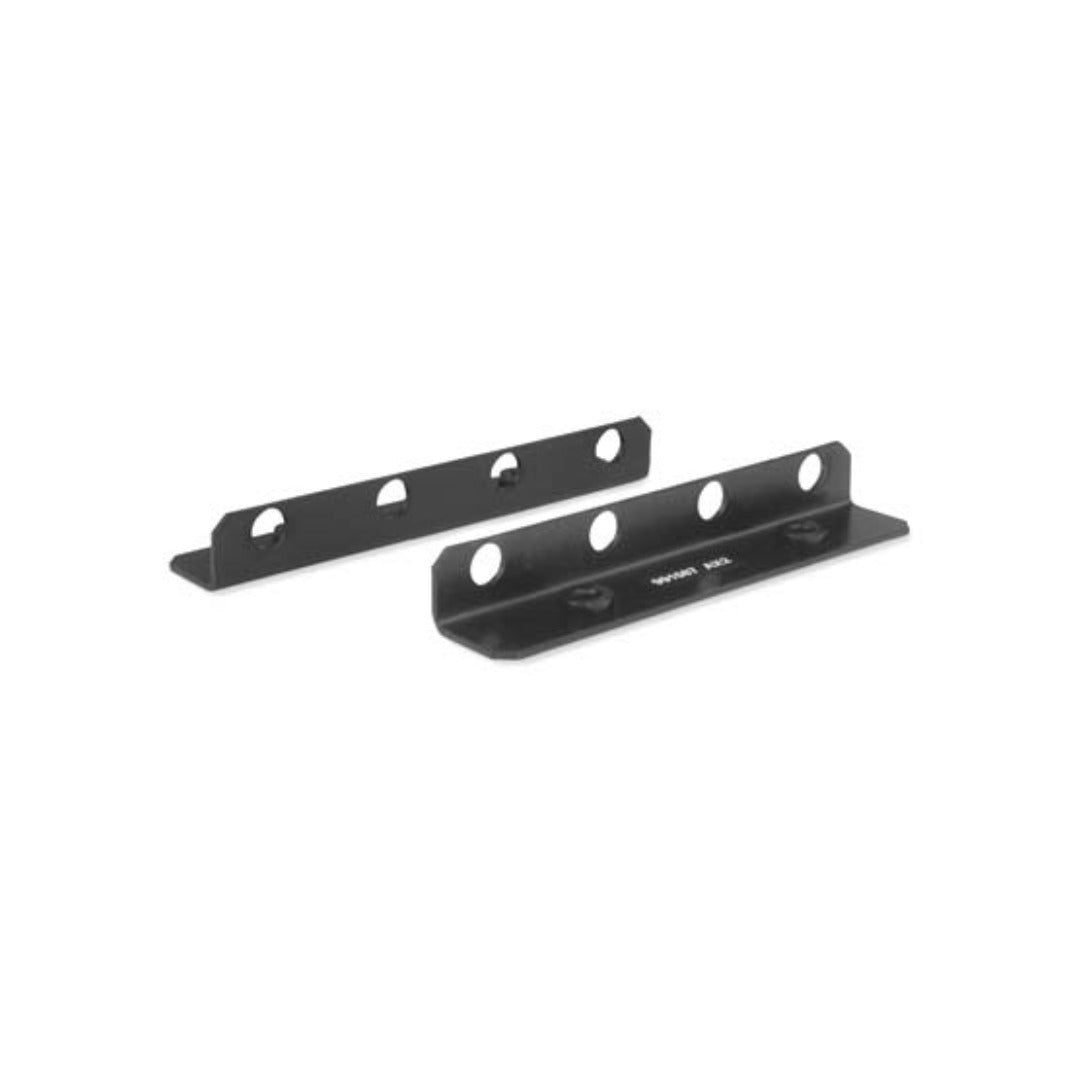

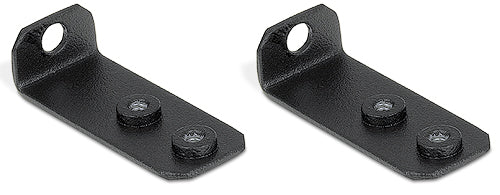

Extron Cable Cubby AAP Brackets (part number 70-271-01) — the two-space version, supplied as a pair, for mounting AAP AV Connectivity Modules inside a Cable Cubby enclosure.

A Cable Cubby leaves the factory in a standard internal arrangement. The moment a project calls for a different mix of connectors, that arrangement has to change, and these brackets are the parts that make the change possible. They fit inside the enclosure and become the anchor points that single-space AAP modules screw onto, so an integrator can re-plan the connector layout instead of ordering a different enclosure. This order code covers the two-space size and ships as a pair.

Key Capabilities

• Two-space bracket format, sold in pairs under a single part number
• Creates flexible AAP AV Connectivity Module mounting points inside the enclosure
• Intended for use when the standard Cable Cubby configuration is altered
• Holds single-space AAP modules for HDMI, VGA, audio, network or control
• Works with Cable Cubby 200, Cable Cubby 300C, Cable Cubby 600 and Cable Cubby 800
• Also compatible with the TLP Pro 320C and TLE 350

Where It Is Used

Conference and boardroom tables, lecterns, training-room desks, courtroom benches and clinical review stations where an existing Cable Cubby has to gain HDMI, VGA, audio, network or control connectors after the furniture is already built and the enclosure is already cut in.

Specifications at a Glance

• Version: two space, sold in pairs
• Module type supported: single-space AAP AV Connectivity Modules
• Compatible enclosures: Cable Cubby 200, 300C, 600, 800, TLP Pro 320C, TLE 350
• Manufacturer part number: 70-271-01

Also referenced as Extron CableCubbyAAPBrackets, Cable-Cubby-AAP-Brackets, part number 7027101.
