Extron Cable Cubby 700 (part number 70-1046-08) — brushed aluminum finish of the mid-size cable access enclosure, ordered without a power module.

Finish is the reason this order code exists. Where a light-toned veneer, maple laminate or aluminum trim would make a black lid stand out, the brushed aluminum top plate reads as part of the furniture instead of hardware bolted into it. Function is unchanged from the rest of the family: a metal body 6.46 in deep, integrated side clamps that bite into surfaces between 0.50 in and 2.50 in thick, and a modular interior serviced from above once the shell is set.

Key Capabilities

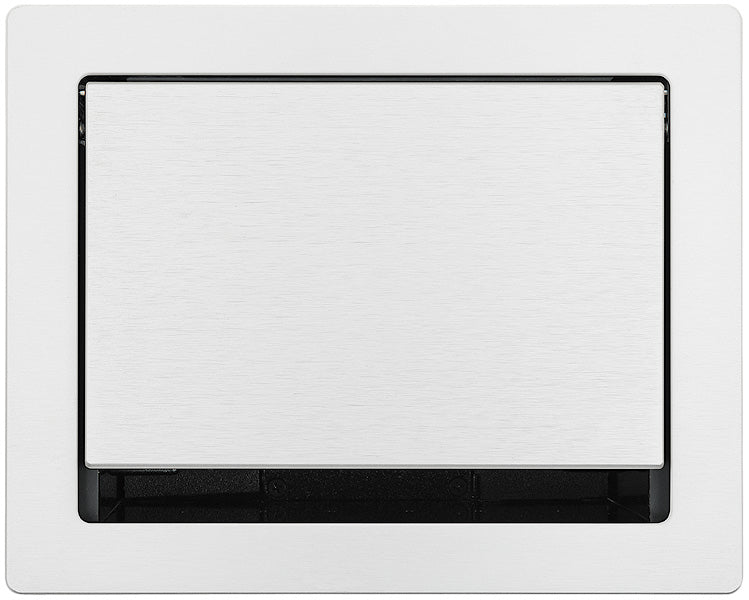

• Brushed aluminum top plate for light-finish tables and lecterns

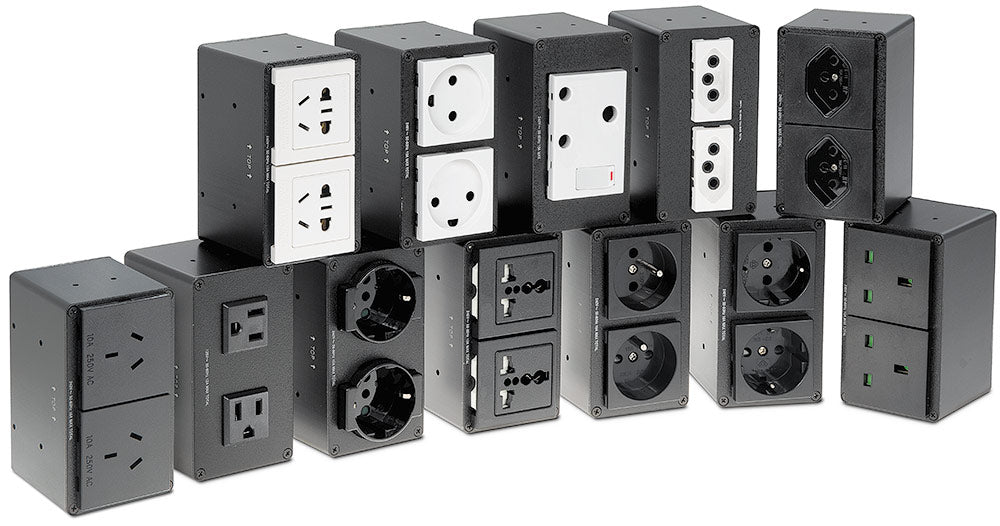

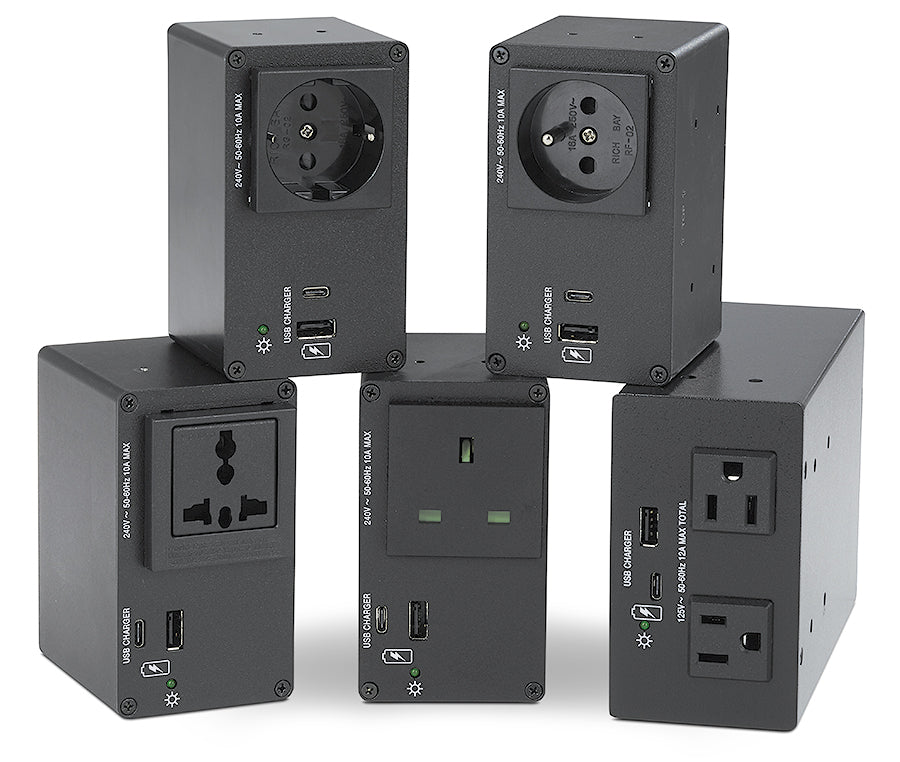

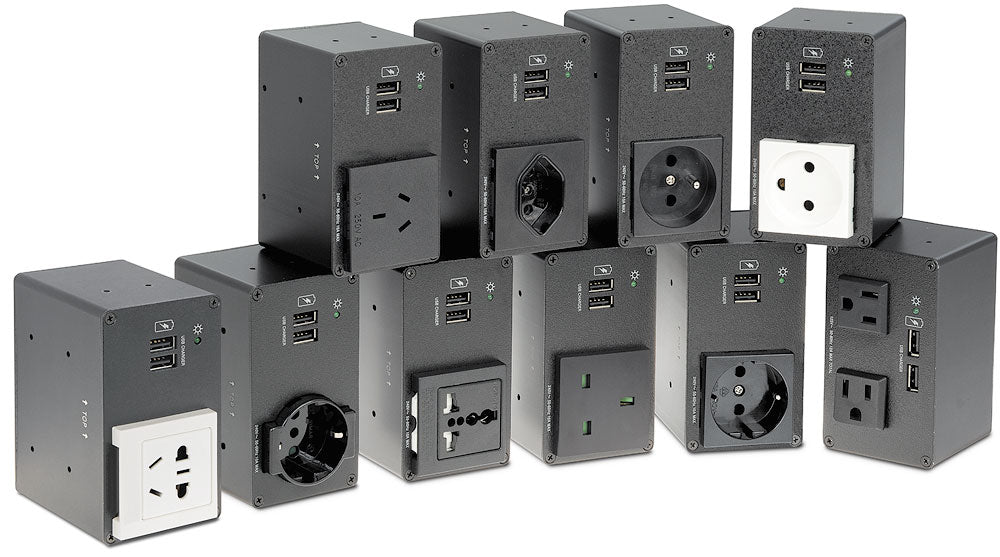

• Power module is ordered separately, so the outlet standard stays flexible
• Carries one power module plus two connectivity brackets
• Accommodates six Retractor modules, eight AV cables, or four AAP modules

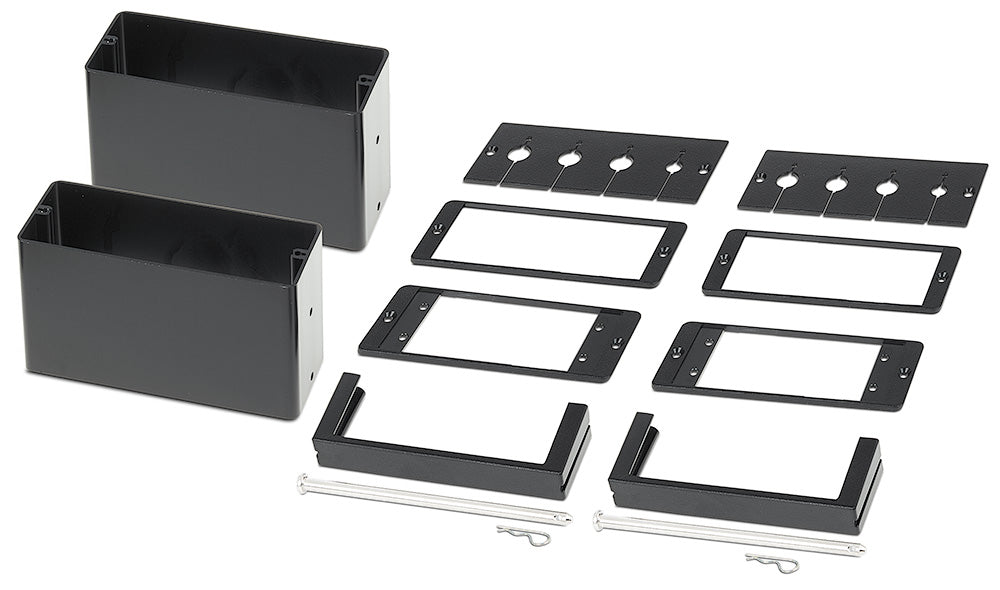

• Retractor, Cable Pass-Through and AAP brackets supplied, two sets
• Optional US AC module runs 125 VAC, 50-60 Hz at 12 A maximum total

Where It Is Used

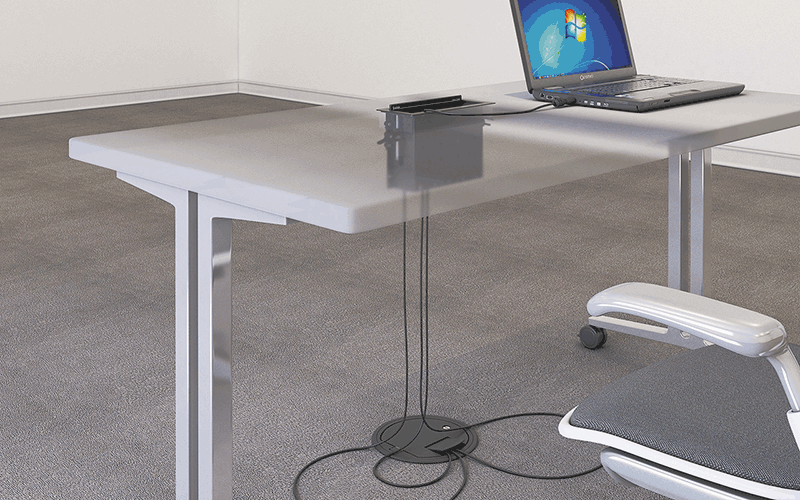

Executive boardrooms, university seminar tables, hotel meeting furniture, medical conference suites and design-led collaboration spaces where finish continuity is part of the brief. It is also the go-to when an existing room already standardised on brushed aluminum Cable Cubby lids and a matching unit is needed.

Specifications at a Glance

• Top plate (outer rim): 7.79 in W x 6.38 in D (198 mm x 162 mm)
• Surface cutout (inside rim): 7.13 in W x 5.75 in D (181 mm x 146 mm)
• Enclosure depth: 6.46 in H (164 mm)
• Weight: 2.5 lbs bare enclosure
• Compliance: CE, NOM, RoHS, WEEE

Also referenced as Extron CableCubby700, Cable-Cubby-700, part number 70104608.
