Extron Cable Cubby 700 (part number 70-1046-02) — black anodized mid-size cable access enclosure, supplied without a power module so the integrator can specify the right outlet type.

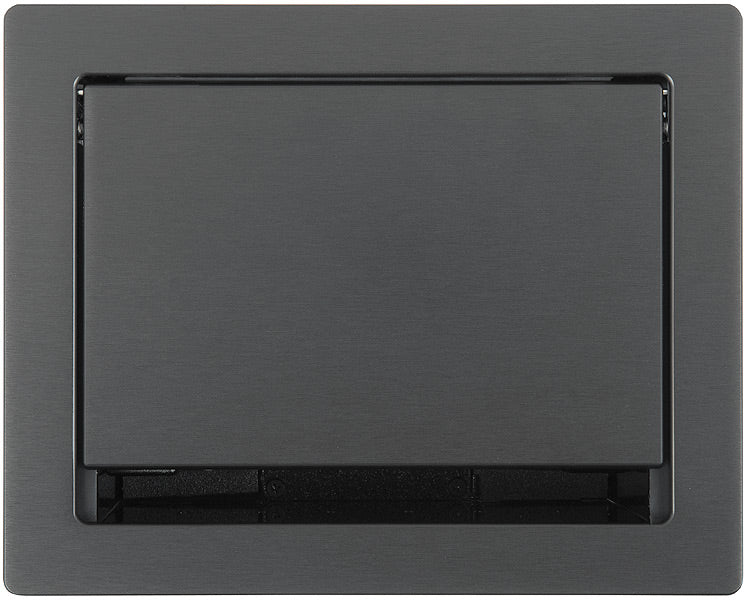

This is the enclosure-only order code. Buyers reach for it when the AC or AC+USB module has to be chosen separately, whether that is a non-US outlet standard, a conduit-fed module, or a USB-charging variant. Everything else about the shell is identical to the powered order code: a metal body that clamps into surfaces from 0.50 in to 2.50 in thick using integrated side clamps, a lid that closes nearly flush, and a modular interior reachable from the top after installation.

Key Capabilities

• Enclosure ships without a power module, leaving the outlet standard open to specification

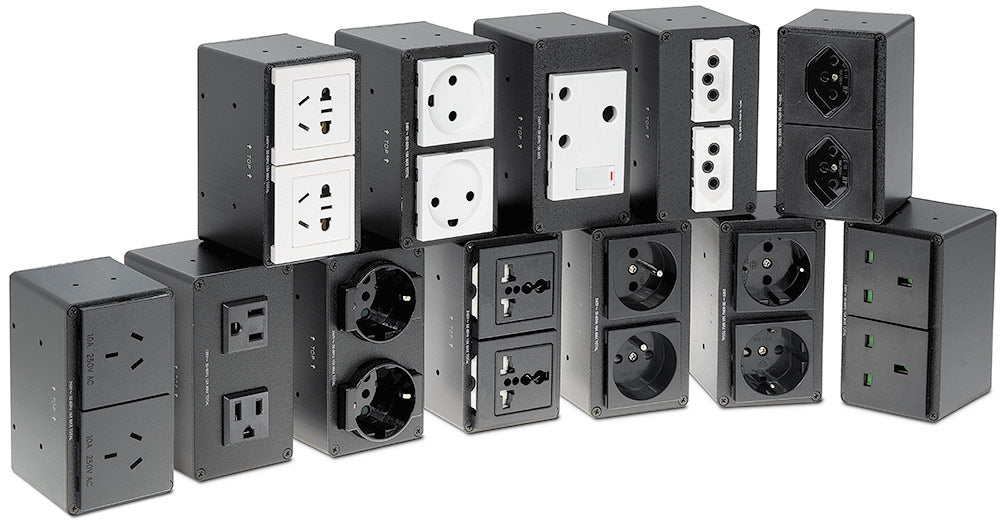

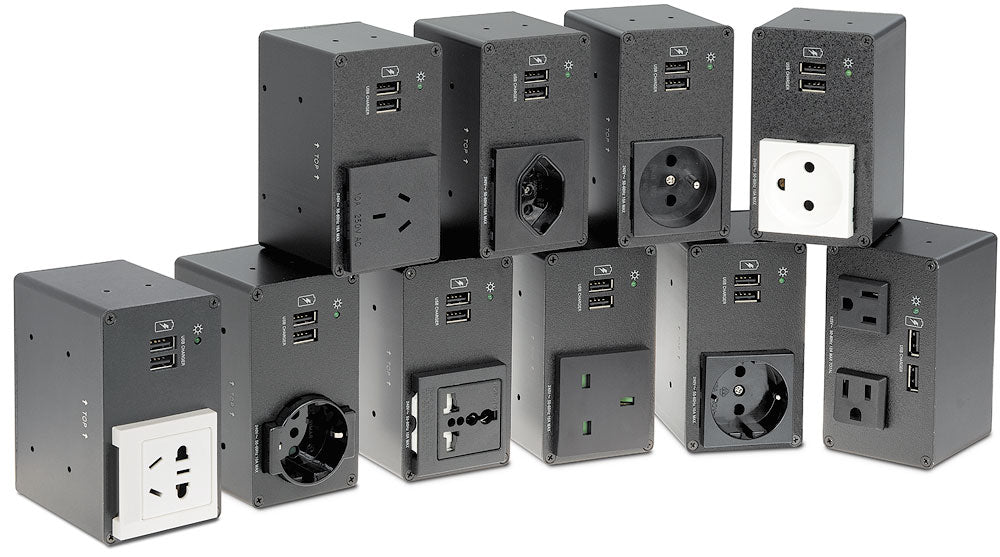

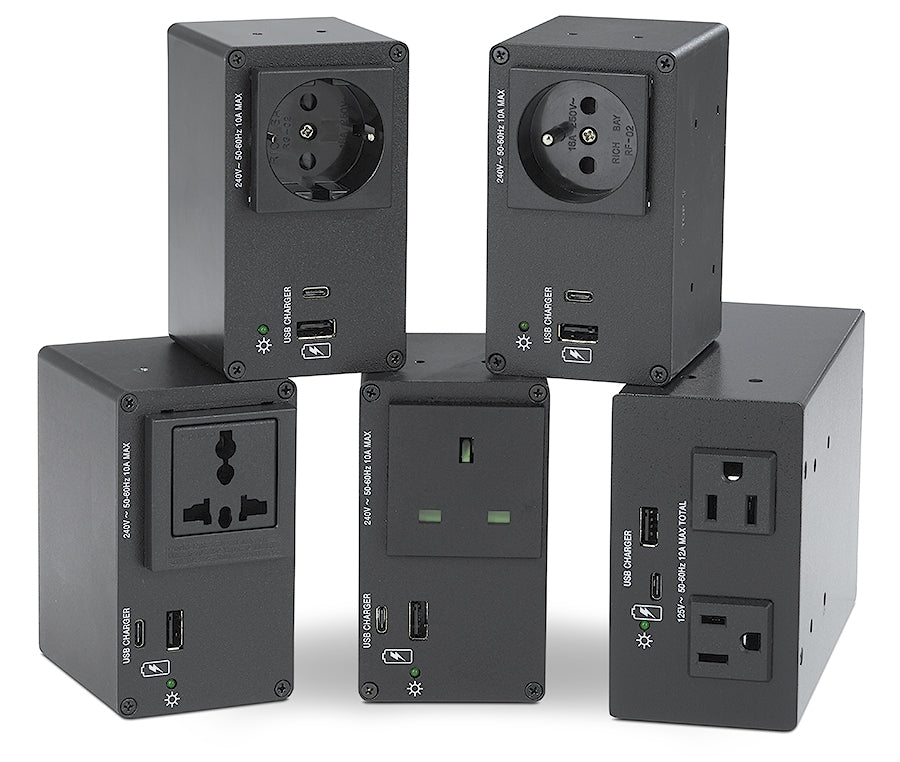

• Bay for one AC or AC+USB power module plus two connectivity brackets

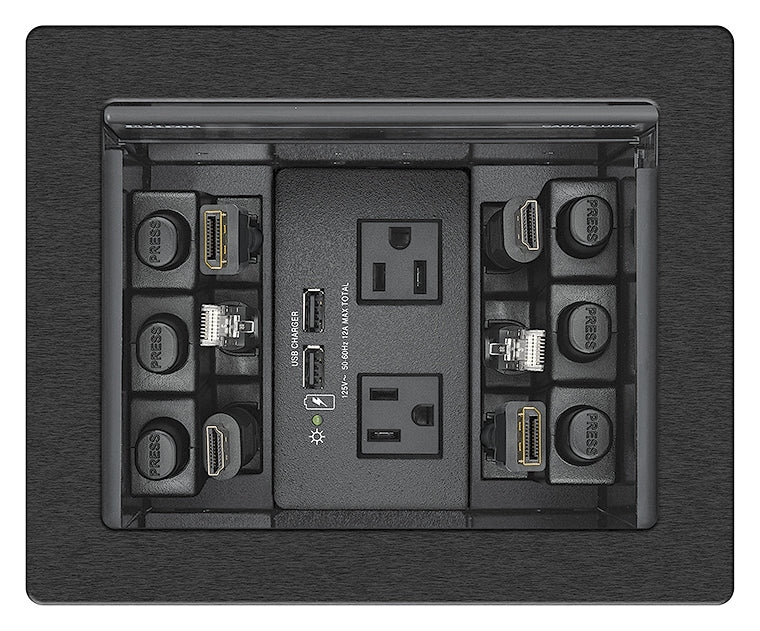

• Holds up to six Retractor modules, eight AV cables, or four AAP modules

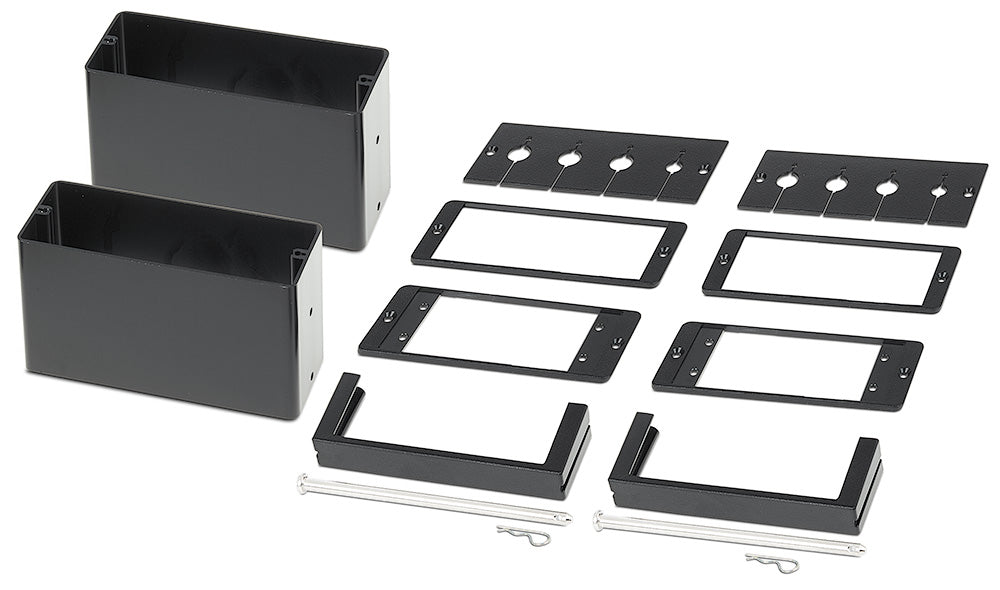

• Includes two sets of Retractor, Cable Pass-Through and AAP brackets
• Table cutout of 7.13 in W x 5.75 in D with a 6.46 in deep body below the surface
• Black anodized metal, 2.5 lbs bare, CE / NOM / RoHS / WEEE compliant

Where It Is Used

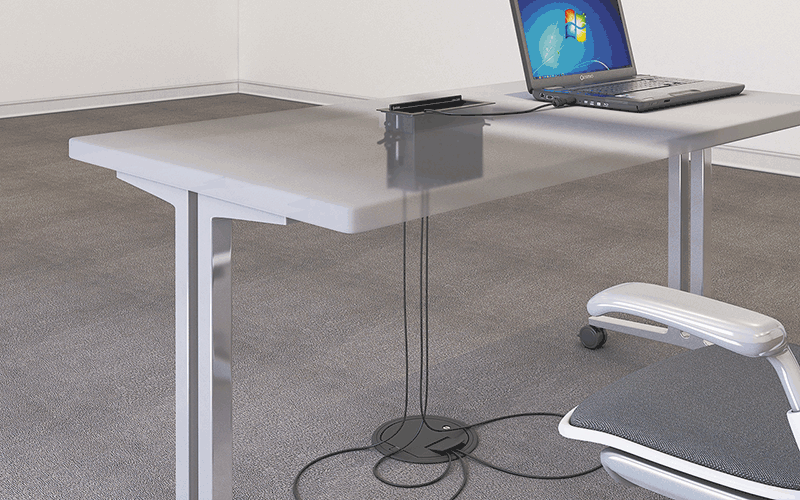

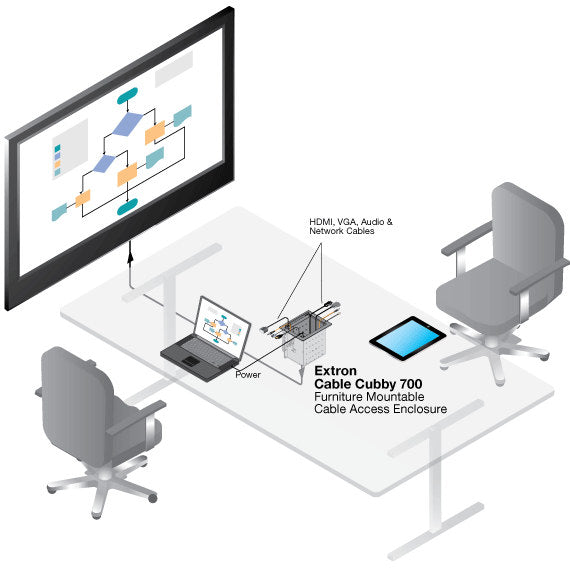

Specified across conference and boardroom tables, training rooms, lecterns, courtroom furniture and multipurpose spaces where the power module is sourced regionally or reused from an existing standard. The black finish is the usual pick when the table laminate is dark or the AV kit is meant to disappear.

Specifications at a Glance

• Top plate (outer rim): 7.79 in W x 6.38 in D (198 mm x 162 mm)
• Surface cutout (inside rim): 7.13 in W x 5.75 in D (181 mm x 146 mm)
• Enclosure depth: 6.46 in H (164 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Warranty: 3 years parts and labor

Also referenced as Extron CableCubby700, Cable-Cubby-700, part number 70104602.
