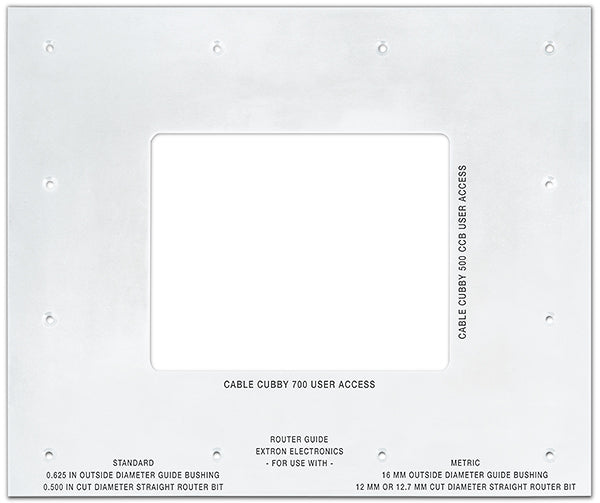

Extron Cable Cubby 500 CCB & Cable Cubby 700 Routing Template (part number 70-1049-80) — a reusable aluminum routing guide covering two enclosures that share the same surface opening.

The Cable Cubby 500 CCB and the Cable Cubby 700 use a common aperture, so Extron supplies one template for both. That is useful on a mixed project: the same guide travels between positions fitted with either enclosure and every cut still matches. The template is machined from industrial-grade aluminum, clamps to the work surface, and gives the router a fixed edge to follow, which keeps the opening square and repeatable across a run of tables.

Key Capabilities

• One guide serves both the Cable Cubby 500 CCB and the Cable Cubby 700.
• Overall size 12.0 in L x 14.0 in W (304.8 mm x 355.6 mm).
• Reusable throughout a project rather than consumed by one cut.
• Industrial-grade aluminum construction for repeated router passes.
• Product weight 2.9 lbs.
• Covered by Extron's 3-year parts and labor warranty.

Where It Is Used

Mixed-specification fit-outs where some positions take a 500 CCB and others a 700, joinery shops producing tables to an AV drawing, and integrators cutting into installed furniture where a mis-sized opening cannot be undone.

Specifications at a Glance

• Dimensions: 12.0 in L x 14.0 in W (304.8 mm L x 355.6 mm W)
• Product weight: 2.9 lbs
• Material: aluminum
• Compatible enclosures: Cable Cubby 500 CCB, Cable Cubby 700
• Warranty: 3 years parts and labor

Enclosures are ordered separately. Also referenced as Extron CableCubby500CCB-CableCubby700RoutingTemplate, part number 70104980.
