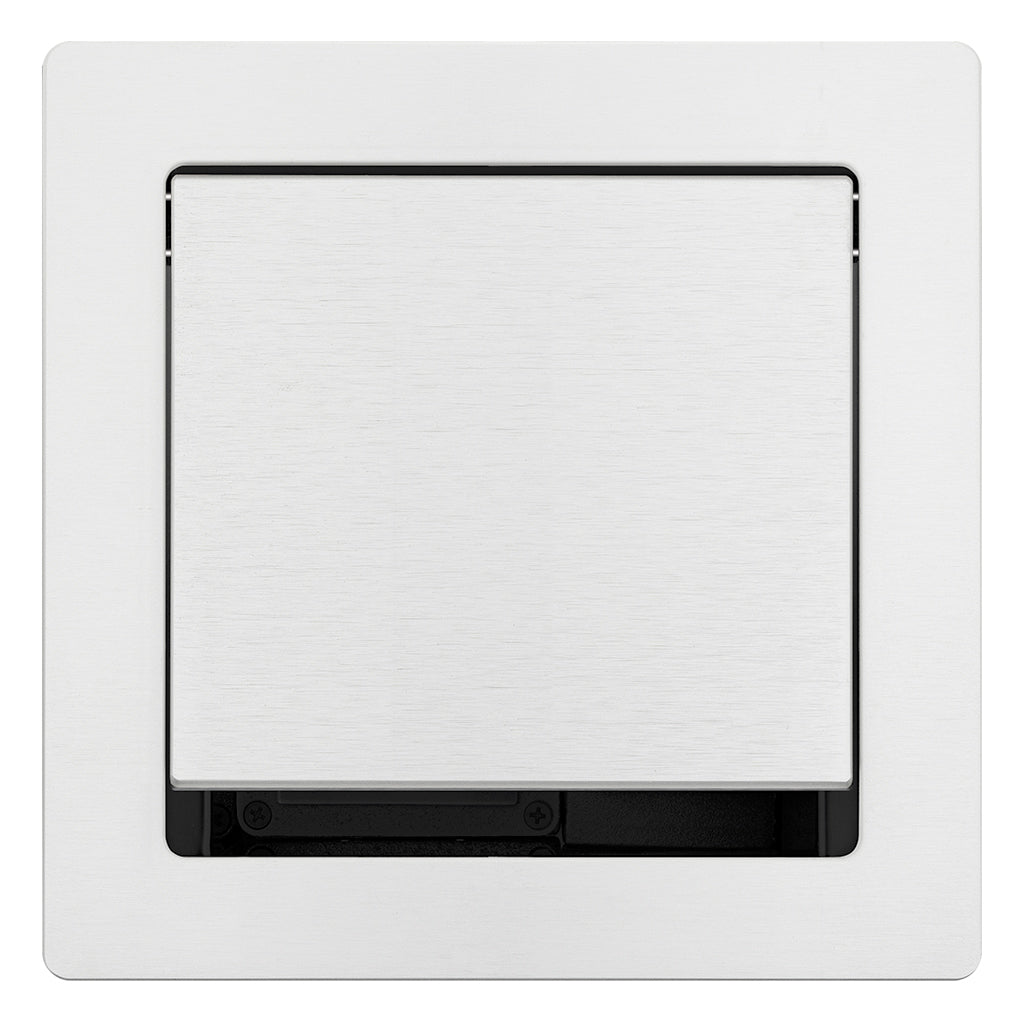

Extron Cable Cubby 500 (part number 70-1045-08) — the brushed aluminum finish of the compact square enclosure, supplied without an AC power module.

Finish is usually decided by the furniture, not the AV drawing. On light timber, laminate or metal tabletops a brushed aluminum lid disappears where a black plate would not. Everything else matches the black version: the same square cutout, the same clamp-and-cam installation, and the same internal capacity for three Retractor modules, four AV cables, or two single-space AAP AV Connectivity Modules. All three brackets ship in the box.

Key Capabilities

• Brushed aluminum top surface for lighter furniture finishes.

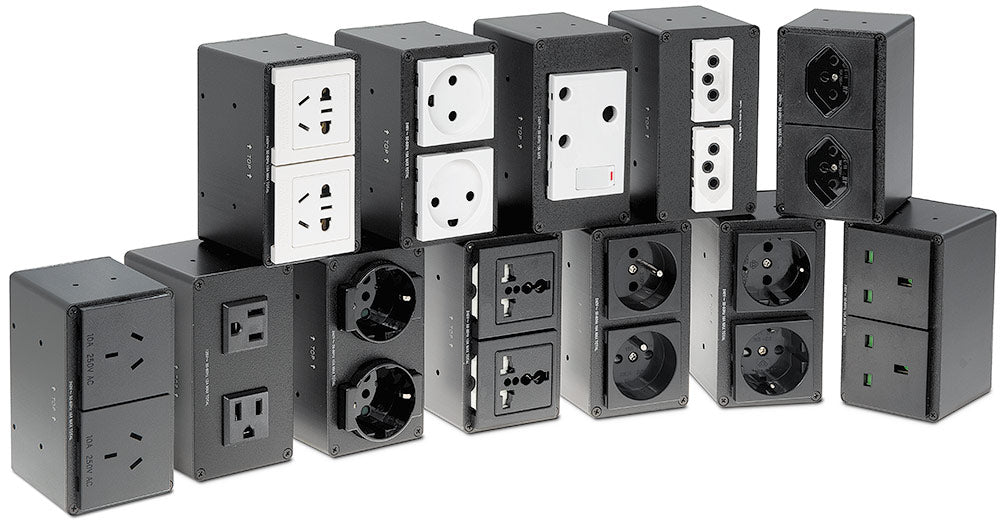

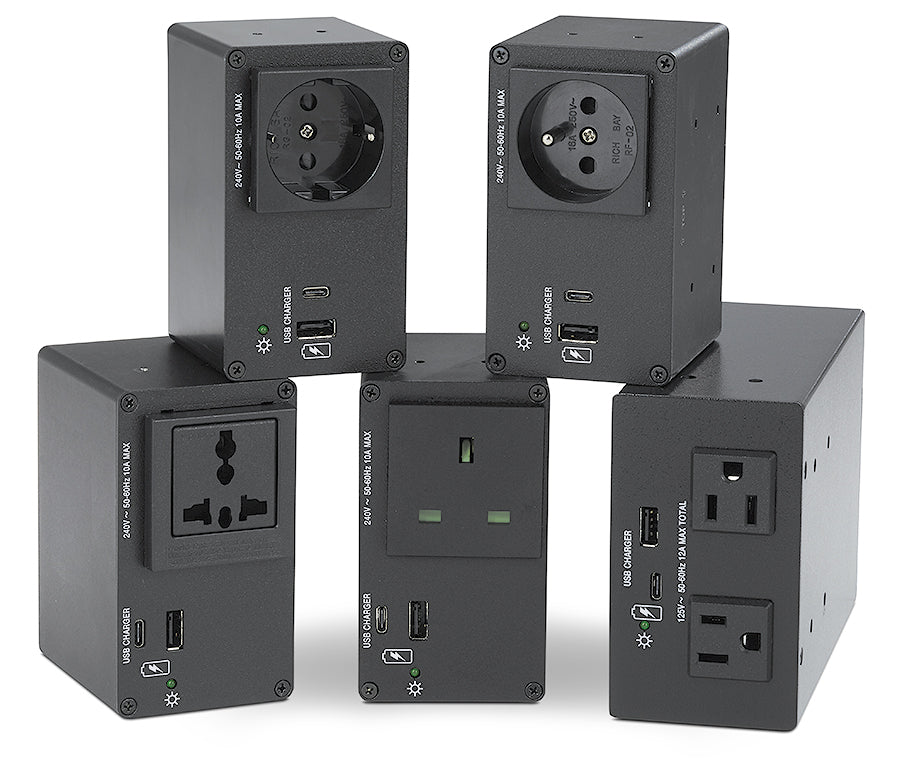

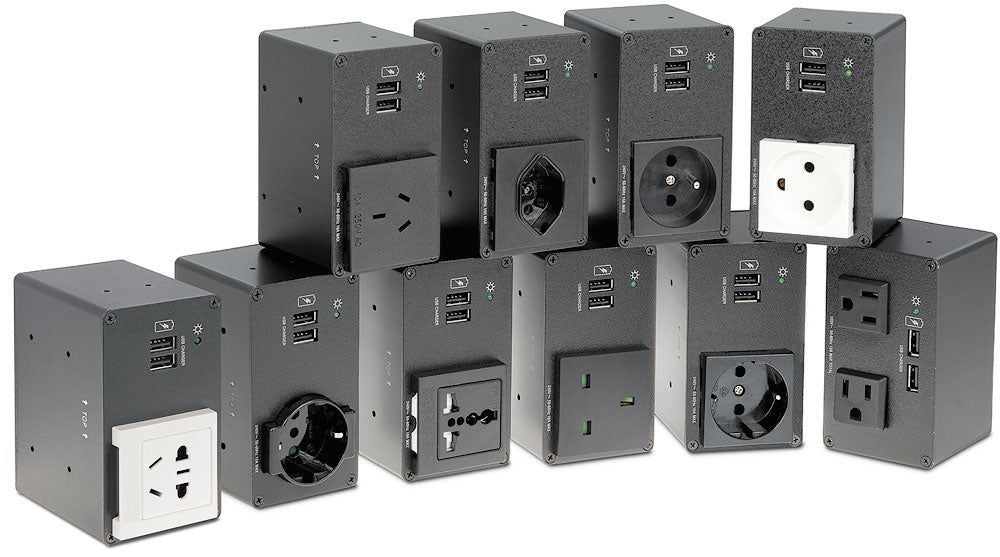

• AC module not included, so the power option is chosen separately.
• Three Retractor modules, four AV cables, or two AAP modules.

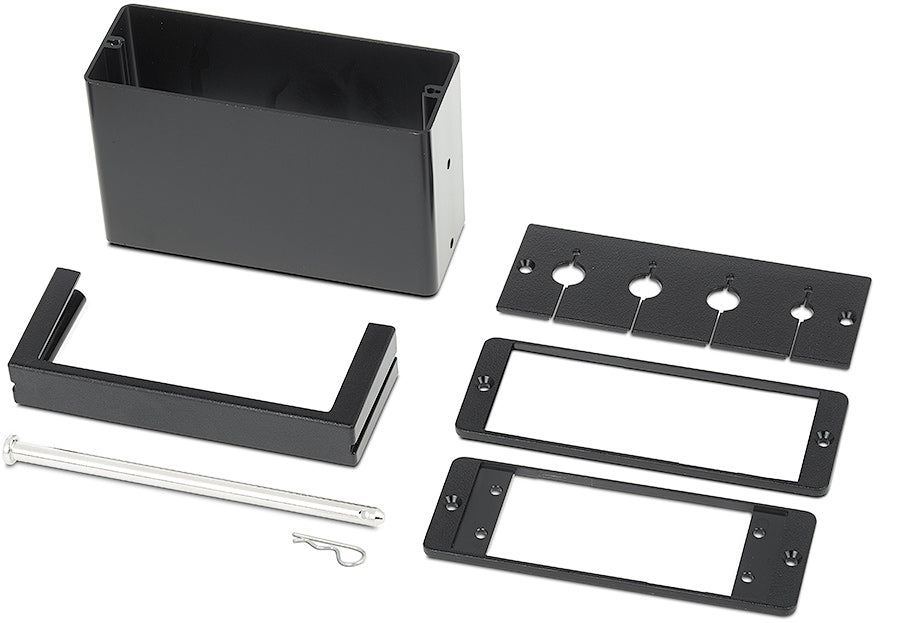

• Retractor, Cable Pass-Through and AAP brackets supplied as standard.
• Square 5.75 in x 5.75 in (146 mm) surface cutout.

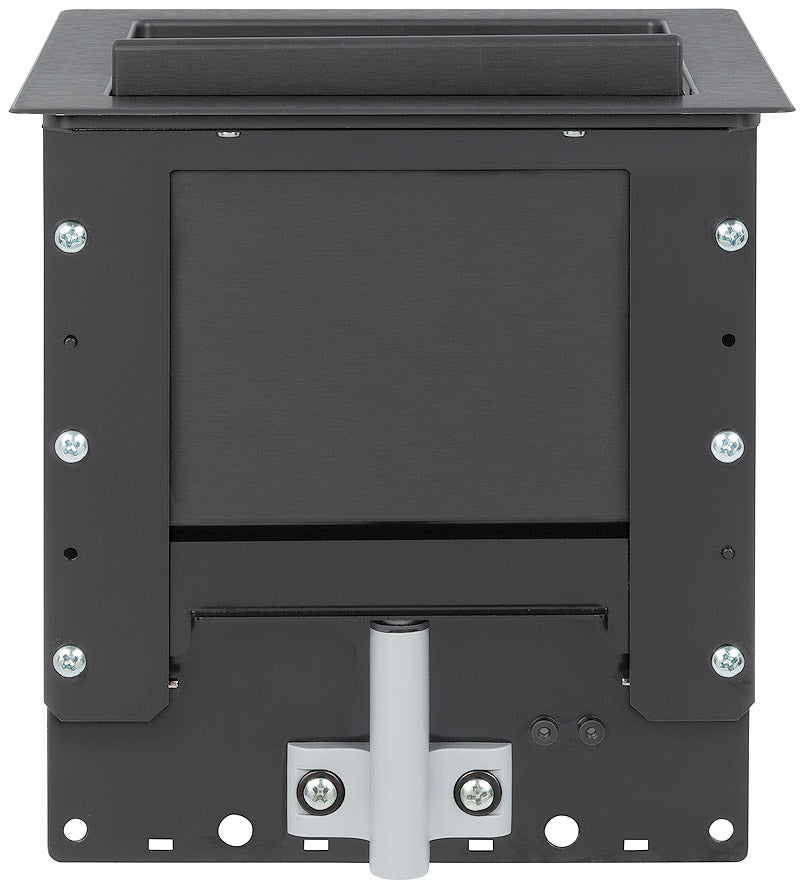

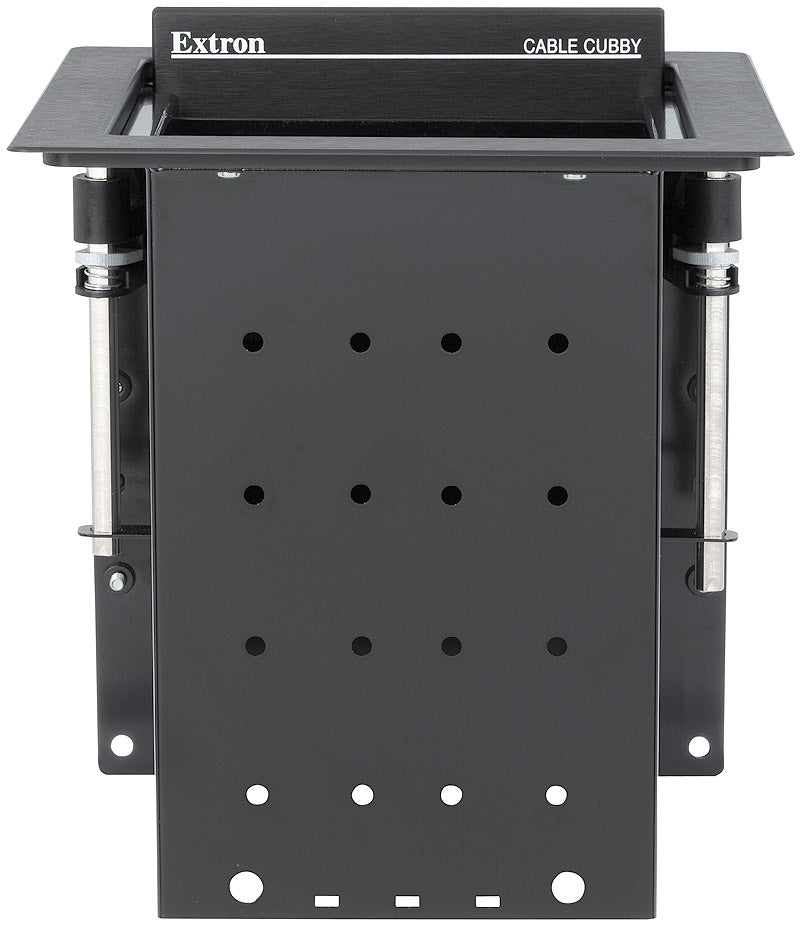

• Integrated clamp system installs without additional parts or tools.

Where It Is Used

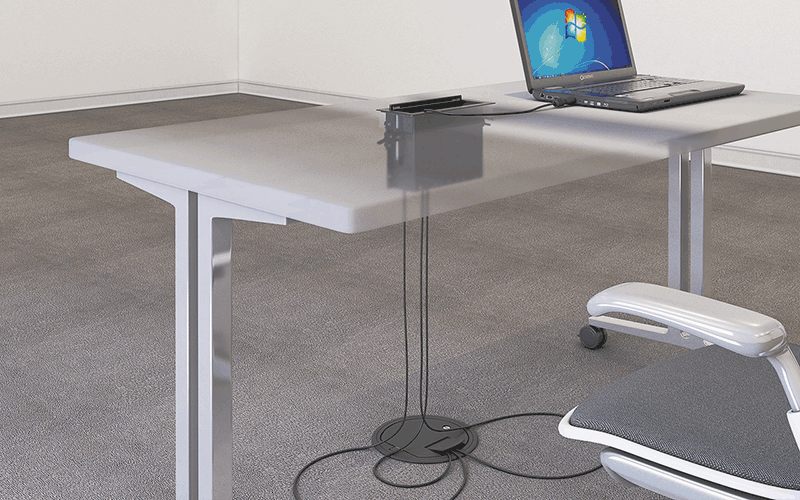

Executive meeting rooms with pale or metallic tabletops, architectural fit-outs working to a furniture schedule, design studios, and hospitality or conference-centre furniture where appearance is part of the specification.

Specifications at a Glance

• Top plate (outer rim): 6.38 in W x 6.38 in D (162 mm x 162 mm)
• Surface cutout: 5.75 in W x 5.75 in D (146 mm x 146 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Enclosure type: metal, brushed aluminum top surface
• Warranty: 3 years parts and labor

Retractor modules, cables and AAP modules are ordered separately. Also referenced as Extron CableCubby500, Cable-Cubby-500, part number 70104508.
