Extron Cable Cubby 500 Black Table Enclosure No AC Module 70-1045-02
Extron Cable Cubby 500 Black Table Enclosure No AC Module 70-1045-02
Extron Cable Cubby 500 Black Table Enclosure
- • Black anodized enclosure supplied without an AC power module

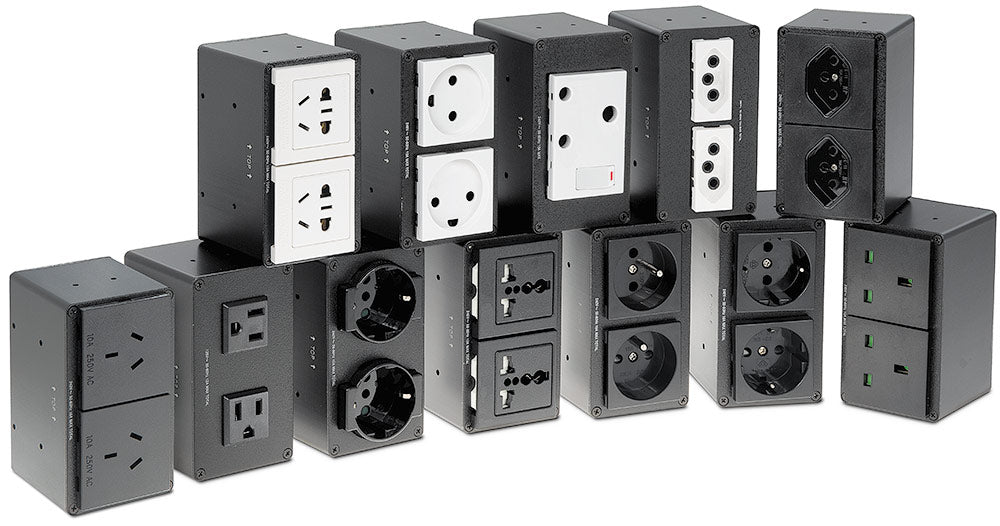

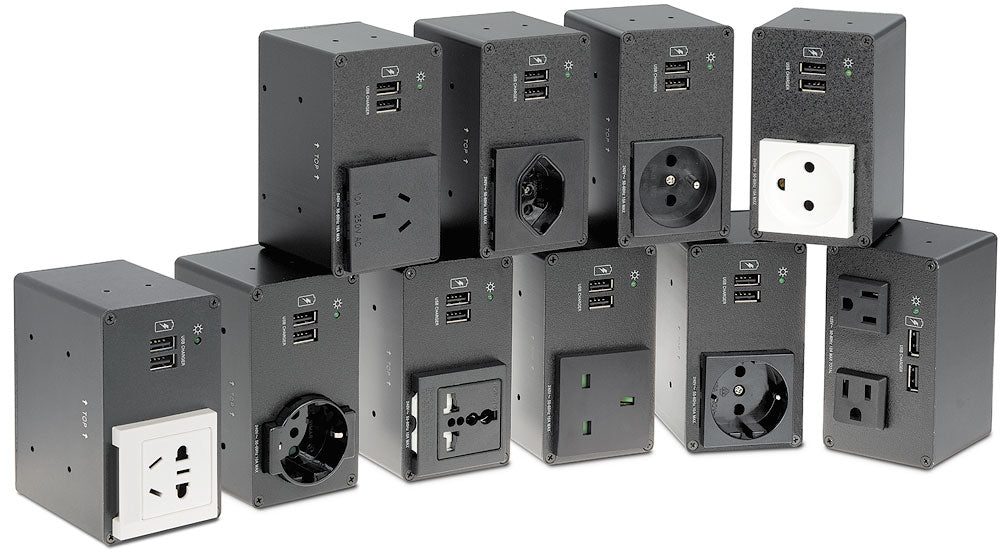

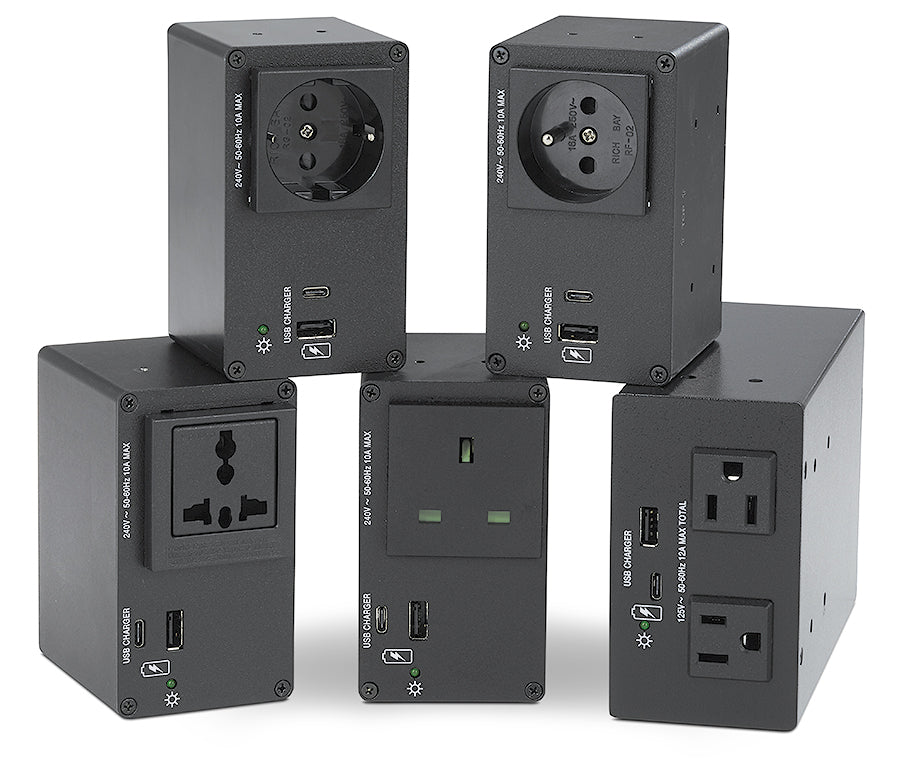

- • Accepts one AC or AC+USB series power module of your choice
- • Holds three Retractor modules, four AV cables, or two AAP modules

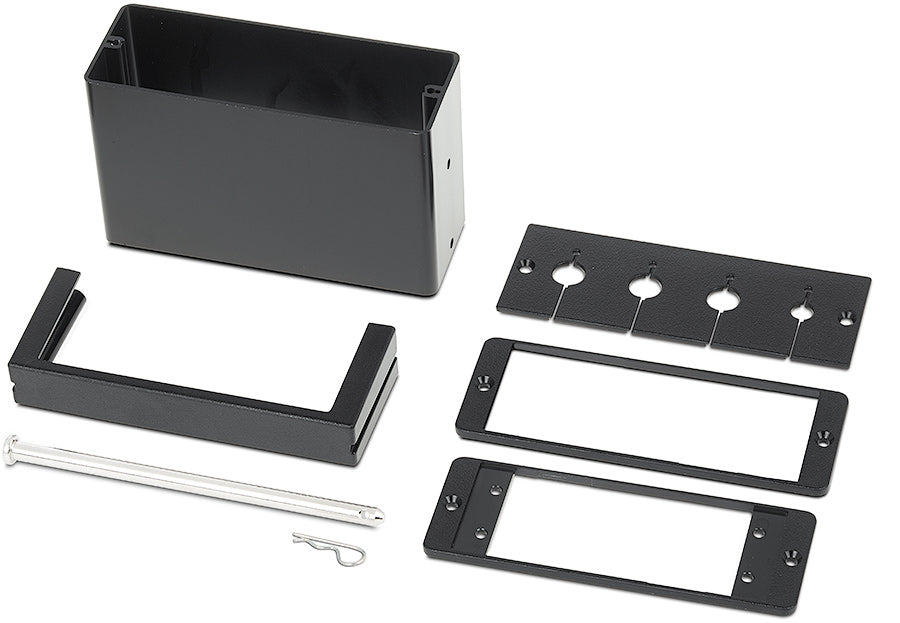

- • Retractor, Cable Pass-Through and AAP brackets included
- • Integrated side clamps secure it without additional parts or tools
- • 5.75 in square surface cutout, 6.38 in square top plate
- • CE, RoHS and WEEE compliant; 3-year Extron warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

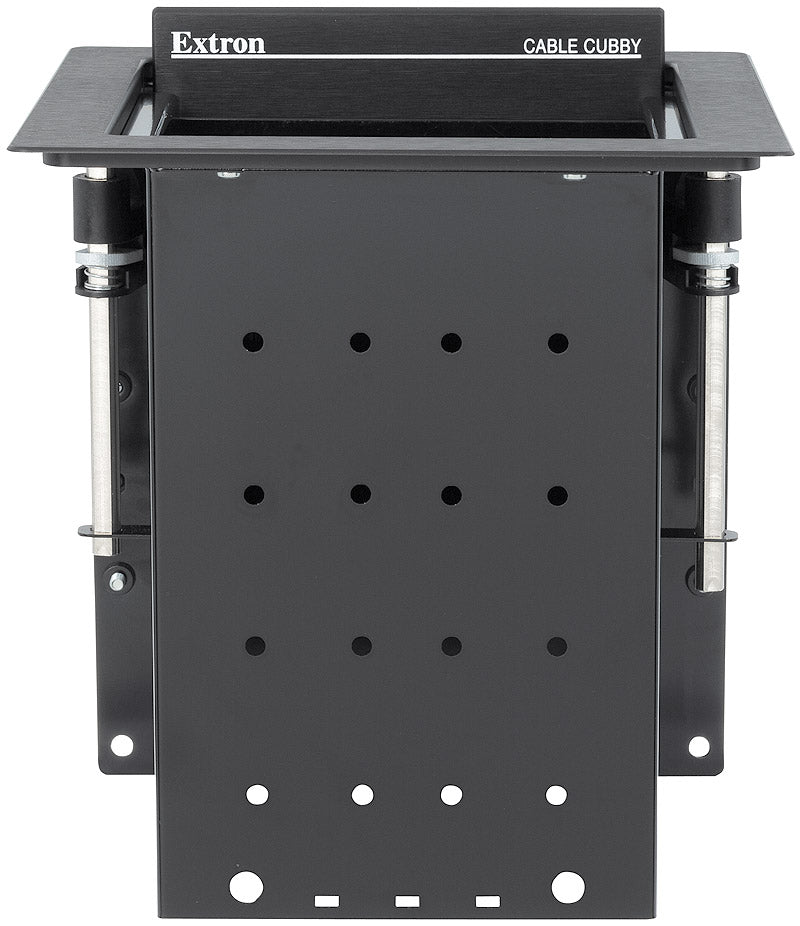

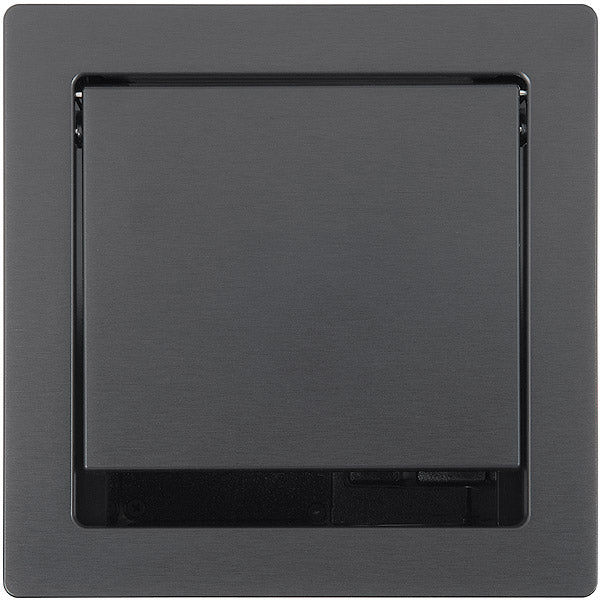

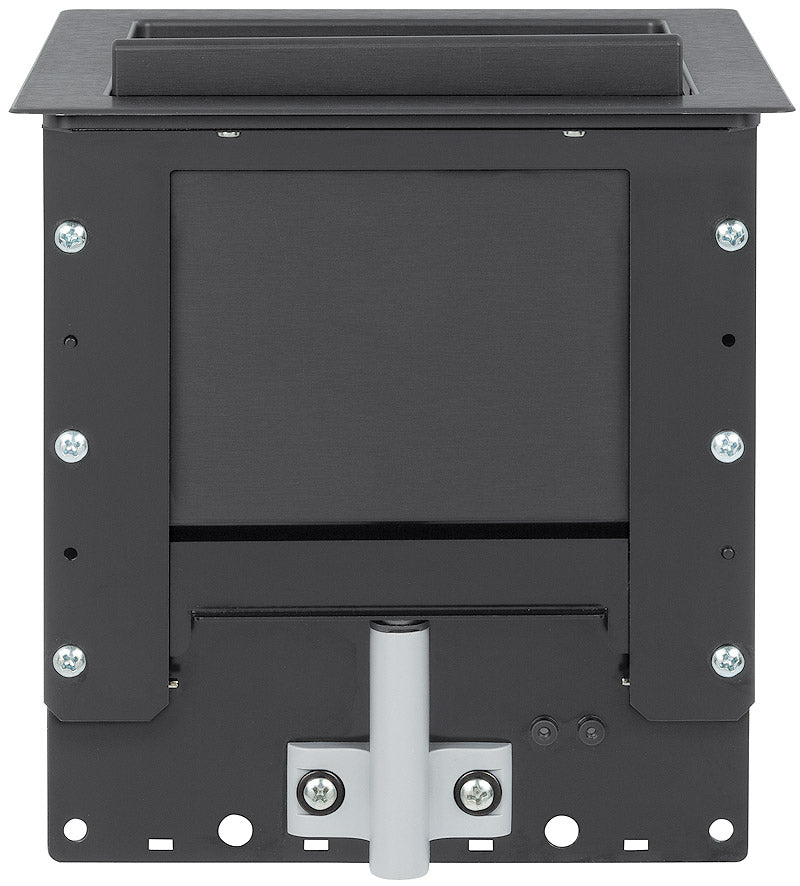

Extron Cable Cubby 500 (part number 70-1045-02) — the black anodized version of the compact square enclosure, supplied without an AC power module.
Ordering the enclosure and the power module separately is standard practice on projects that cross borders: one body part number for the whole estate, then the right AC or AC+USB module per country. This part covers the black 500 enclosure with all three connectivity brackets included. Installation is a square cut, then the integrated side clamps slide up and cam over to grip the surface. Once fitted, the patented modular layout keeps cables and AAP modules reachable from the tabletop.
Key Capabilities
- Black anodized top surface; AC power module not included.
- Accepts one AC or AC+USB series power module when one is added.
- Holds three Retractor modules, four AV cables, or two AAP modules.
- Retractor, Cable Pass-Through and AAP brackets included.
- Integrated side clamps secure it without additional parts or tools.
- Metal enclosure; CE, RoHS and WEEE compliant.
Where It Is Used

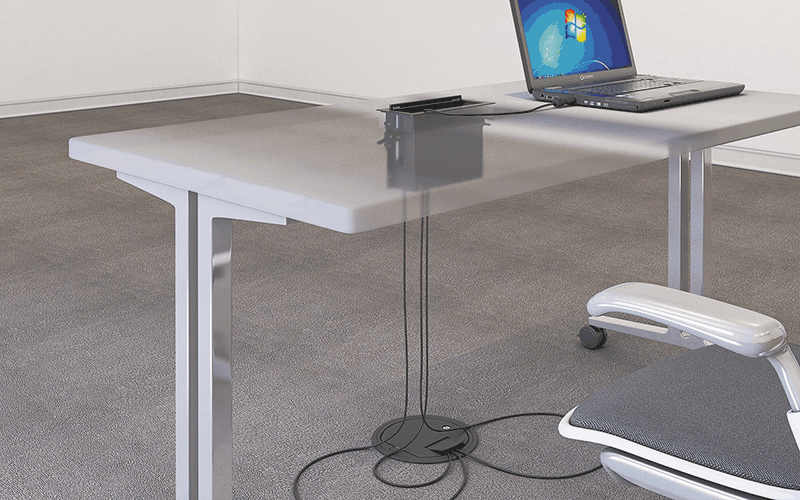

Multi-country meeting-room rollouts, training suites, classroom and lab benches, and any project where the AV enclosure is specified before the electrical detail is settled. The compact square footprint suits small tables and shared desks.
Specifications at a Glance
- Top plate (outer rim): 6.38 in W x 6.38 in D (162 mm x 162 mm)
- Surface cutout: 5.75 in W x 5.75 in D (146 mm x 146 mm)
- Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
- Enclosure type: metal; mounting: furniture mount
- Regulatory: CE, RoHS, WEEE
The Cable Cubby 500 Routing Template is part 70-1048-80. Also referenced as Extron CableCubby500, Cable-Cubby-500, part number 70104502.
