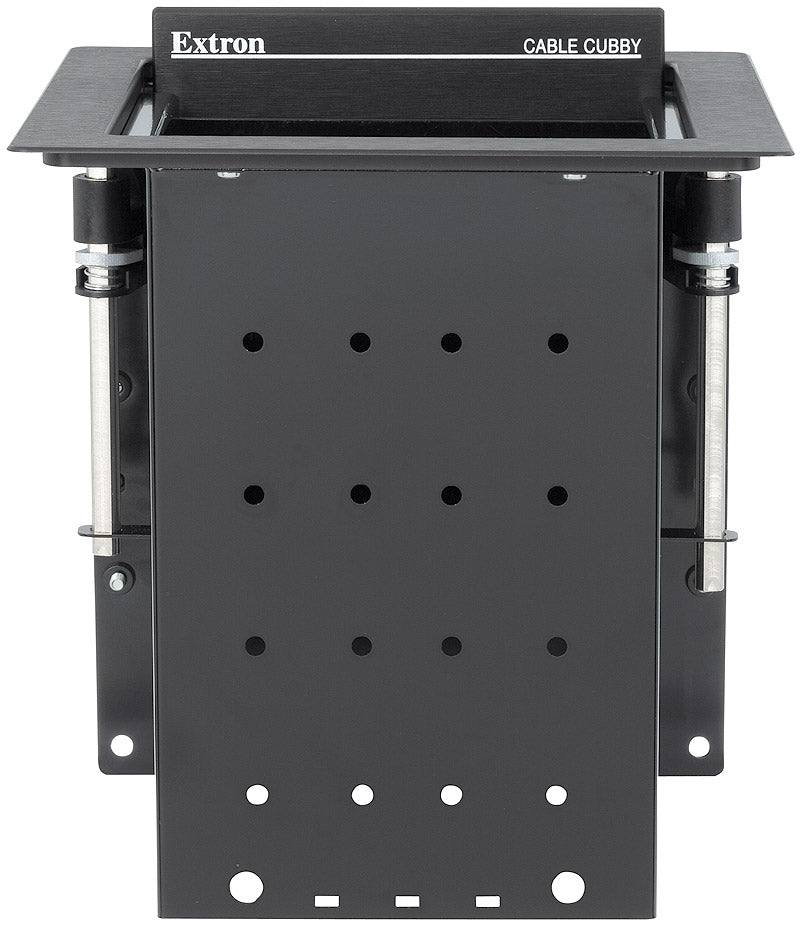

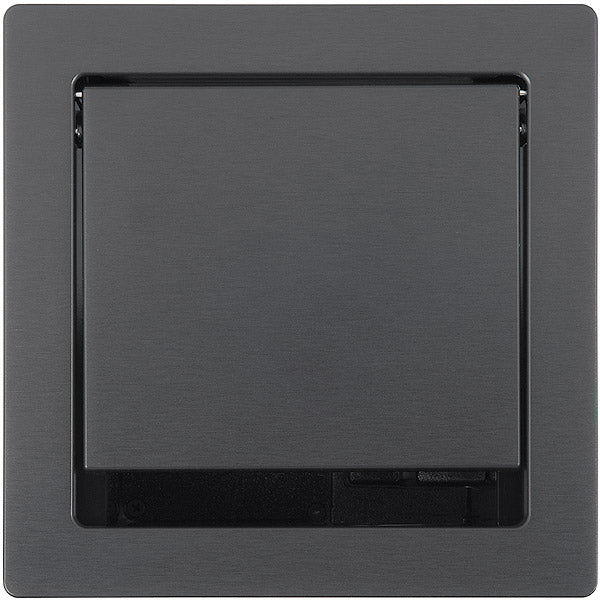

Extron Cable Cubby 500 (part number 60-1892-02) — the black-finish enclosure supplied with a two-outlet US AC module, a 12 A breaker and two outlets underneath.

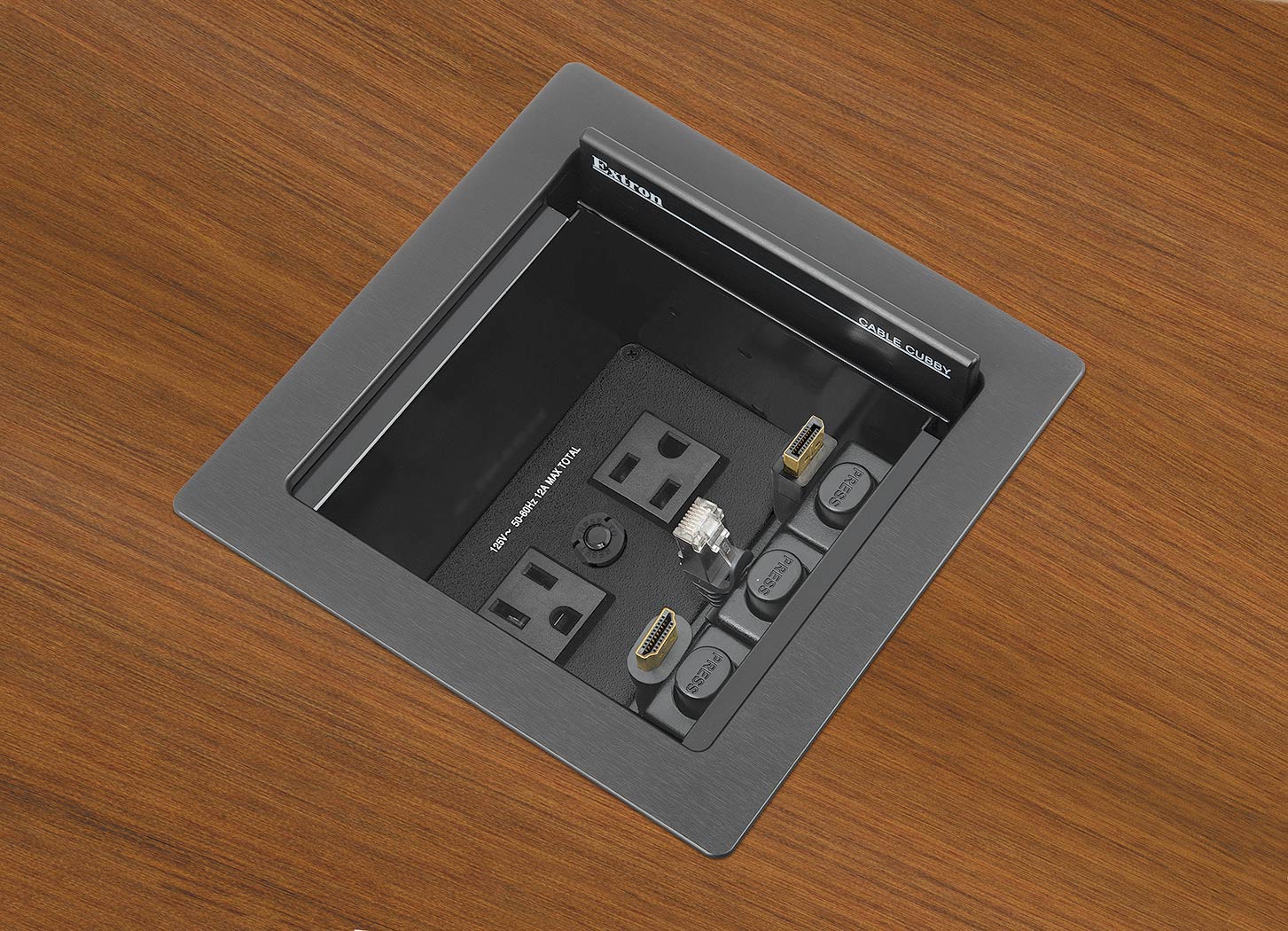

The 500 is the compact square member of the Cable Cubby family, sized for training rooms and conference tables where connectivity has to be within reach but the surface cannot give up much area. This part number arrives with the US power module already fitted, so the installer cuts one square opening, slides the integrated clamp up to the surface and rotates the cam to lock the body in place — no separate brackets and no tools for that step. Retractor, Cable Pass-Through and AAP brackets are all in the box.

Key Capabilities

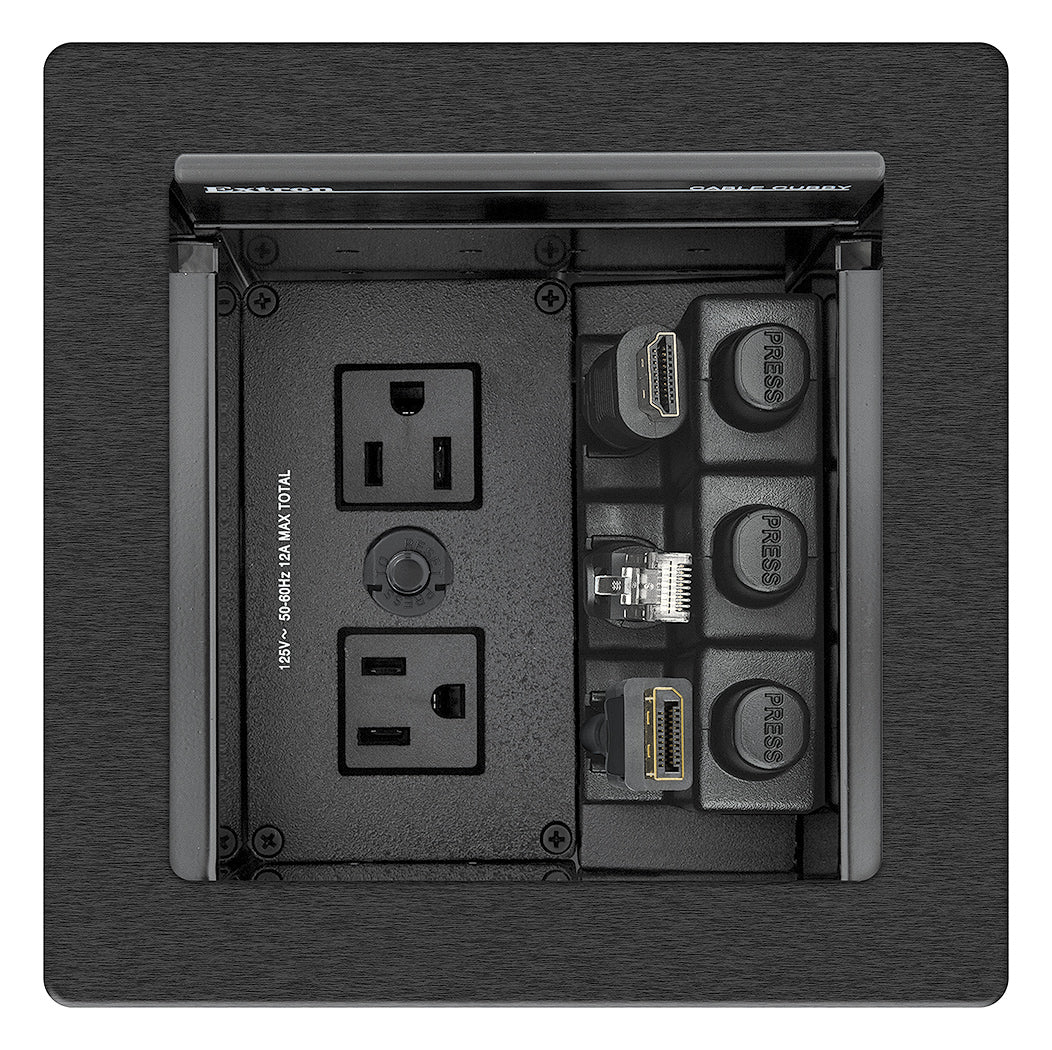

• Two US AC outlets with a 12 A breaker, plus two outlets under the table.
• Takes three Retractor modules, four AV cables, or two single-space AAP modules.

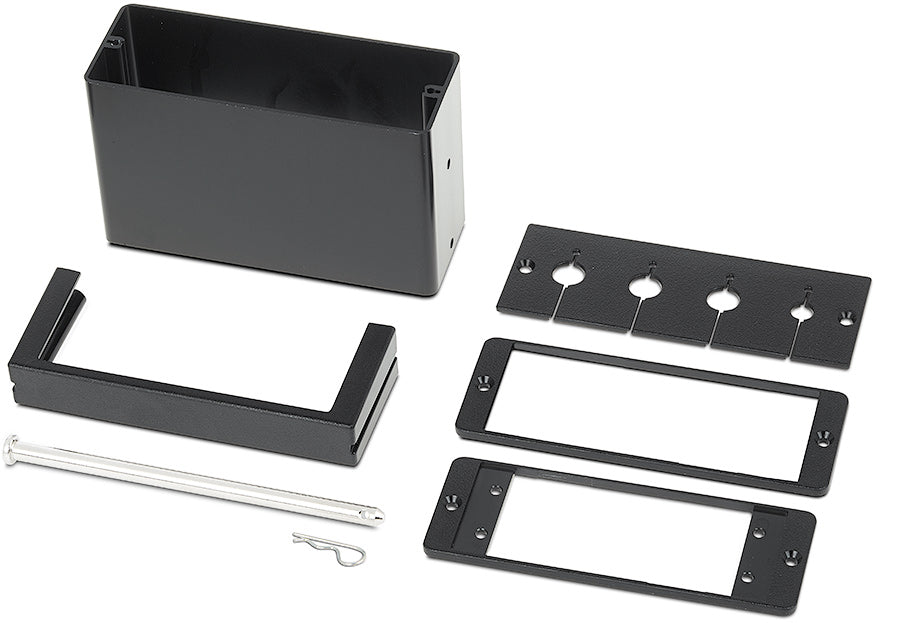

• Retractor, Cable Pass-Through and AAP brackets supplied as standard.

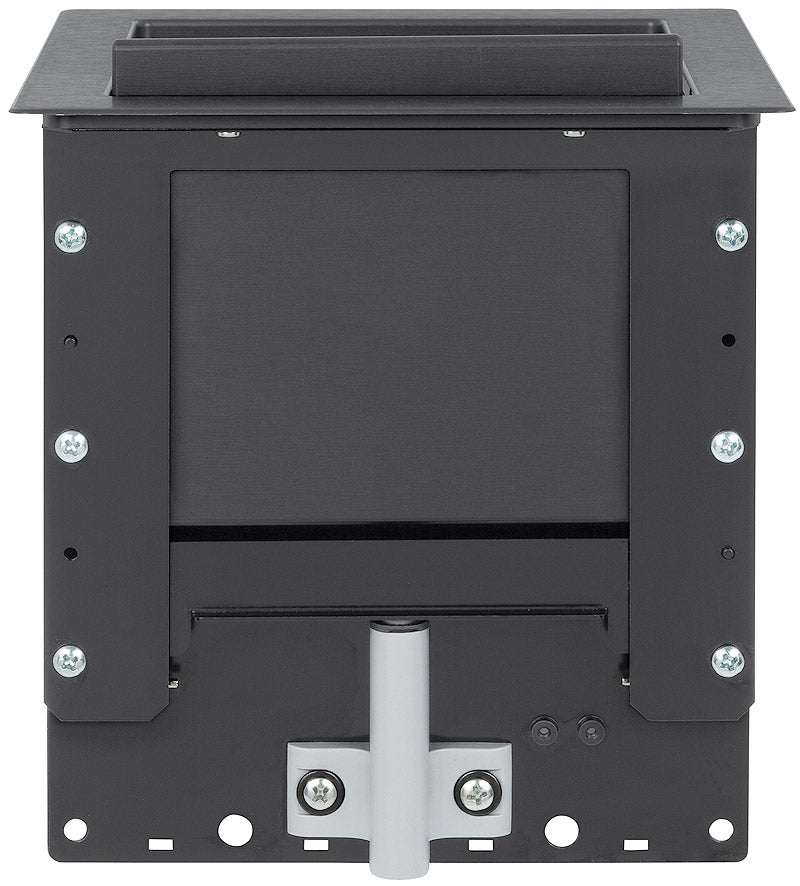

• Integrated side clamps lock the enclosure with a cam, no extra parts needed.
• Patented modular design lets cables and AAP modules be serviced from the top.
• UL and c-UL listed in the US configuration; CE, RoHS and WEEE compliant.

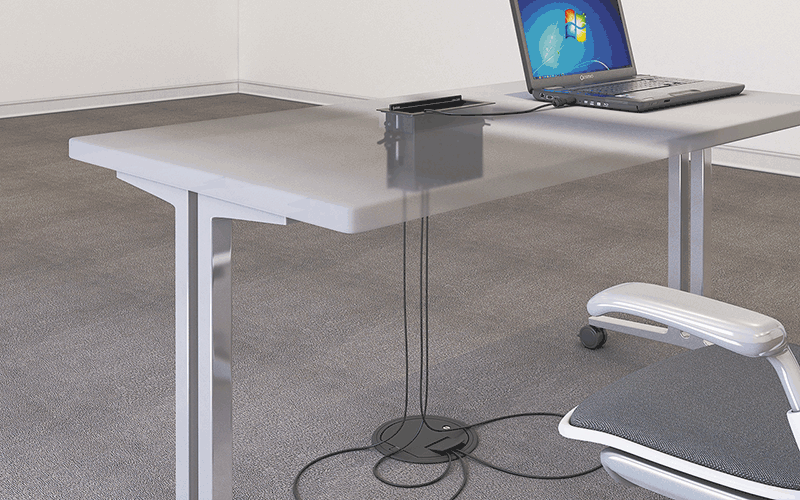

Where It Is Used

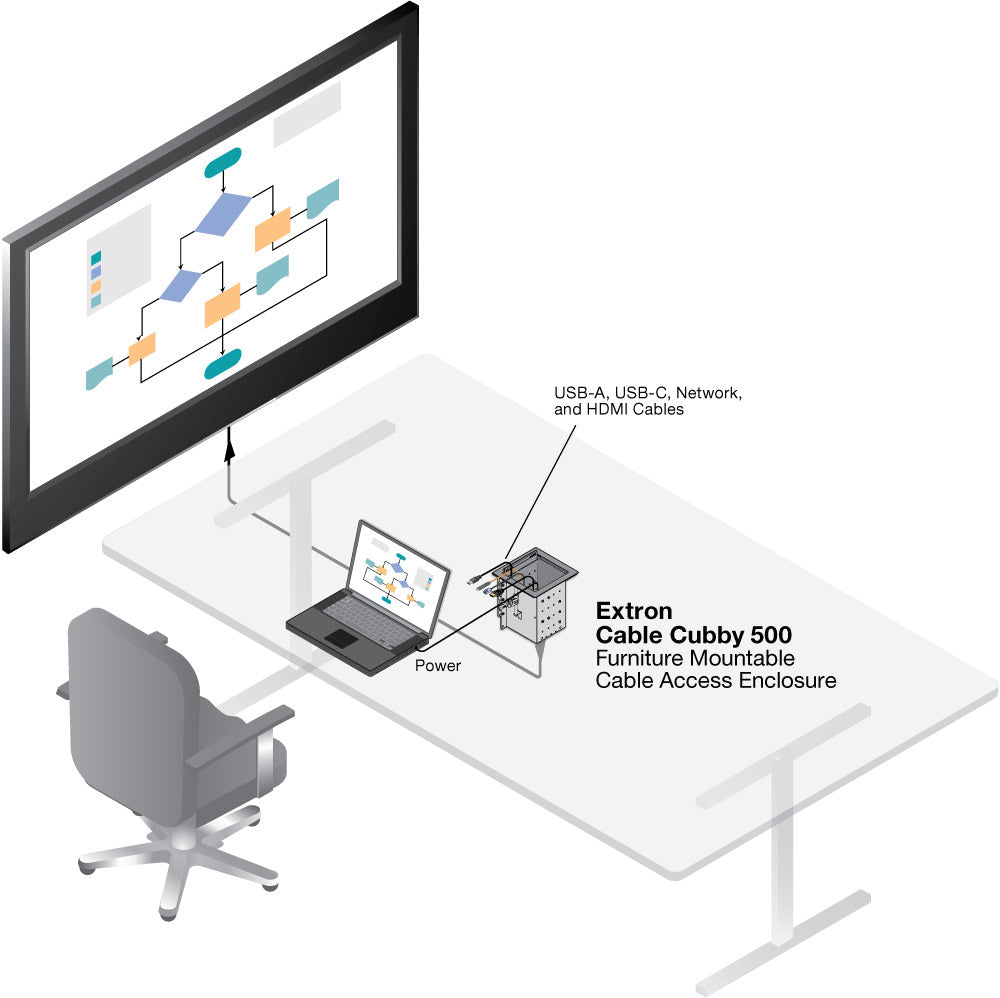

Training rooms, conference tables, classroom desks and huddle spaces where a small square table box is preferred to a long rectangular one. It also suits reception and touchdown positions that need power and one or two AV connections only.

Specifications at a Glance

• Top plate (outer rim): 6.38 in W x 6.38 in D (162 mm x 162 mm)
• Surface cutout: 5.75 in W x 5.75 in D (146 mm x 146 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• US AC module: 125 VAC, 50-60 Hz, 12 A max total
• Warranty: 3 years parts and labor

Retractor modules, cables and AAP modules are ordered separately. Also referenced as Extron CableCubby500, Cable-Cubby-500, part number 60189202.
