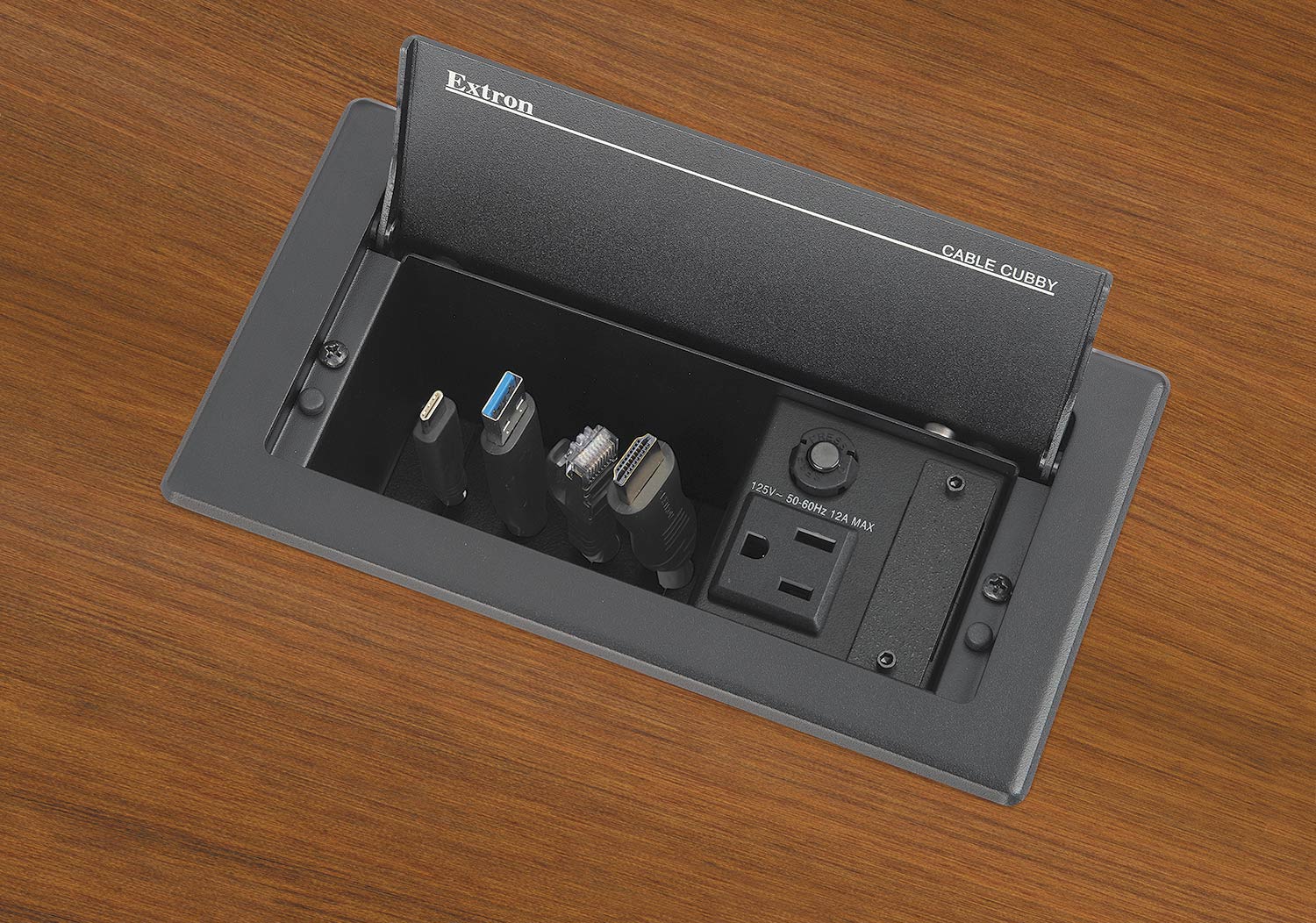

Extron Cable Cubby 222 US (part number 60-1927-02) — the current US-market build in the Cable Cubby 200 family, adding a circuit breaker and two under-table outlets to the compact enclosure.

What separates this part number from the rest of the 200 series is what happens below the surface. As well as the unswitched AC outlet a presenter sees, the enclosure carries a 12 A circuit breaker and two further US AC outlets underneath, intended for the display, the codec or whatever else is mounted out of sight. An attached power cord means the electrical connection is made once, at one point, rather than distributed around the furniture. Up to four AV cables pass through the same body on the Cable Pass-Through Bracket.

Key Capabilities

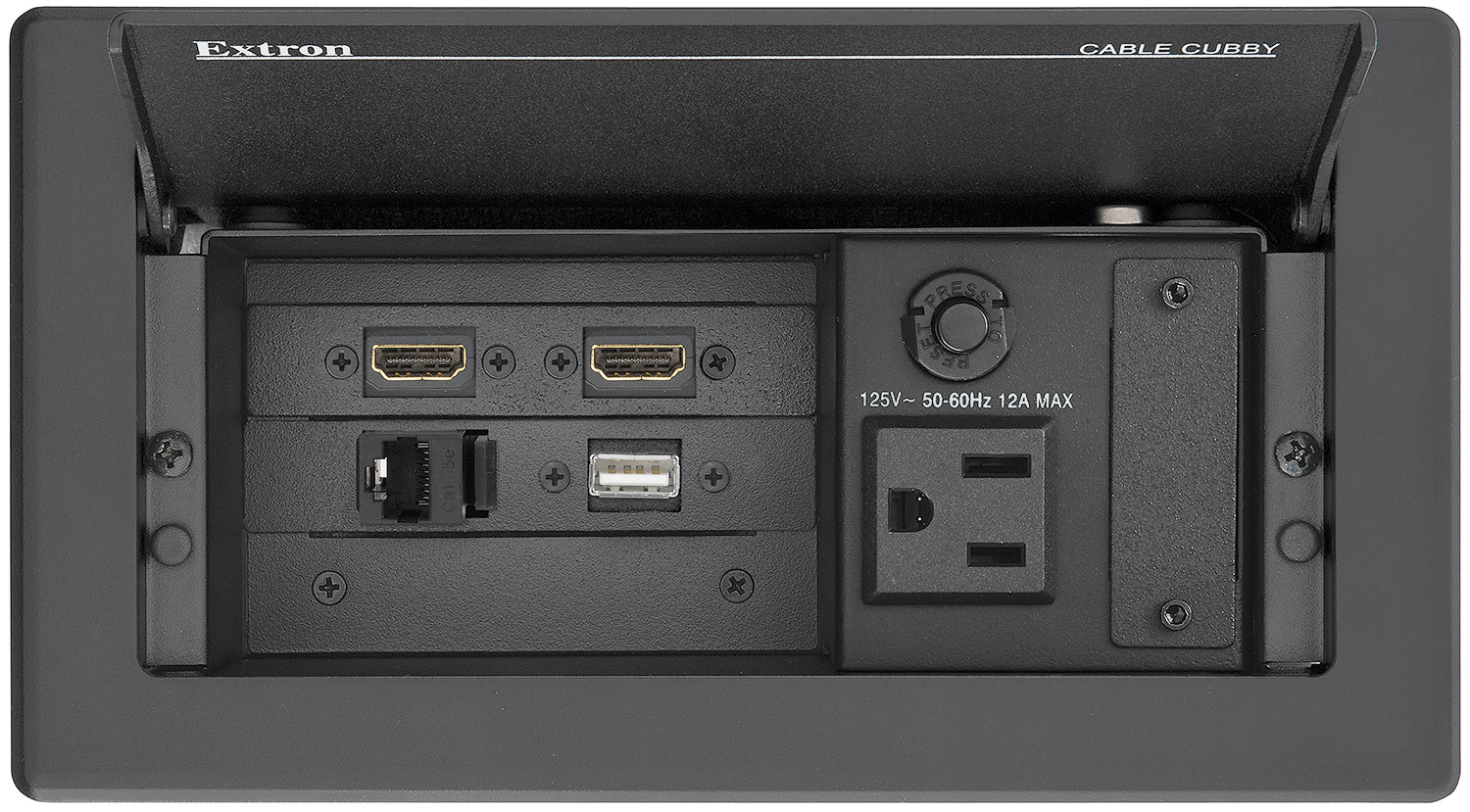

• One unswitched US AC outlet at the surface, 125 VAC, 50-60 Hz, 12 A max total.
• 12 A circuit breaker built into the enclosure.
• Two additional US AC outlets under the table for local AV equipment.

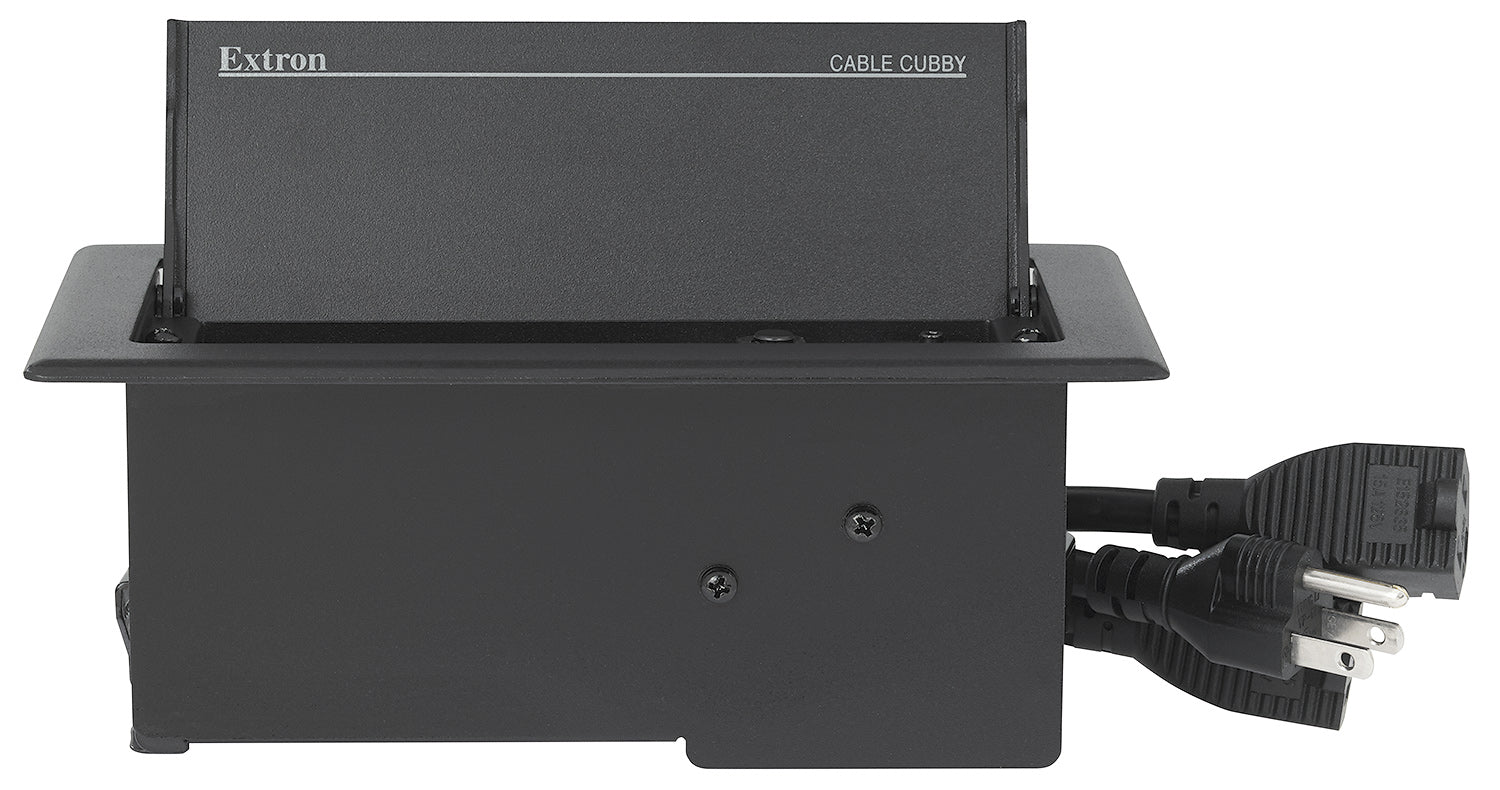

• Attached AC power cord; Cable Pass-Through Bracket for up to four AV cables.
• Split-ring bracket allows cables to be fitted or serviced from above.
• UL and c-UL listed; 2.5 lbs (1.1 kg) metal enclosure.

Where It Is Used

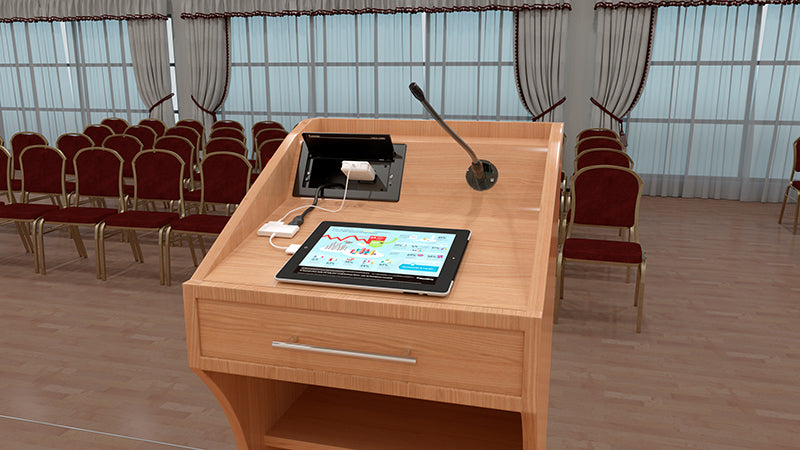

North American conference tables and lecterns where a display or codec sits under the surface and needs its own protected supply, plus training rooms and clinical review desks that must present a single tidy outlet on top.

Specifications at a Glance

• Power output: 125 VAC, 50-60 Hz, 12 A max total
• Top plate (outer rim): 7.99 in W x 4.39 in D (203 mm x 112 mm)
• Surface cutout: 7.00 in W x 3.25 in D (178 mm x 82 mm)
• Product weight: 2.5 lbs (1.1 kg)
• Regulatory: CE, NOM, RoHS, WEEE, UL, c-UL

Optional Retractor and AAP bracket kits are ordered separately. Also referenced as Extron CableCubby222US, Cable-Cubby-222-US, part number 60192702.
