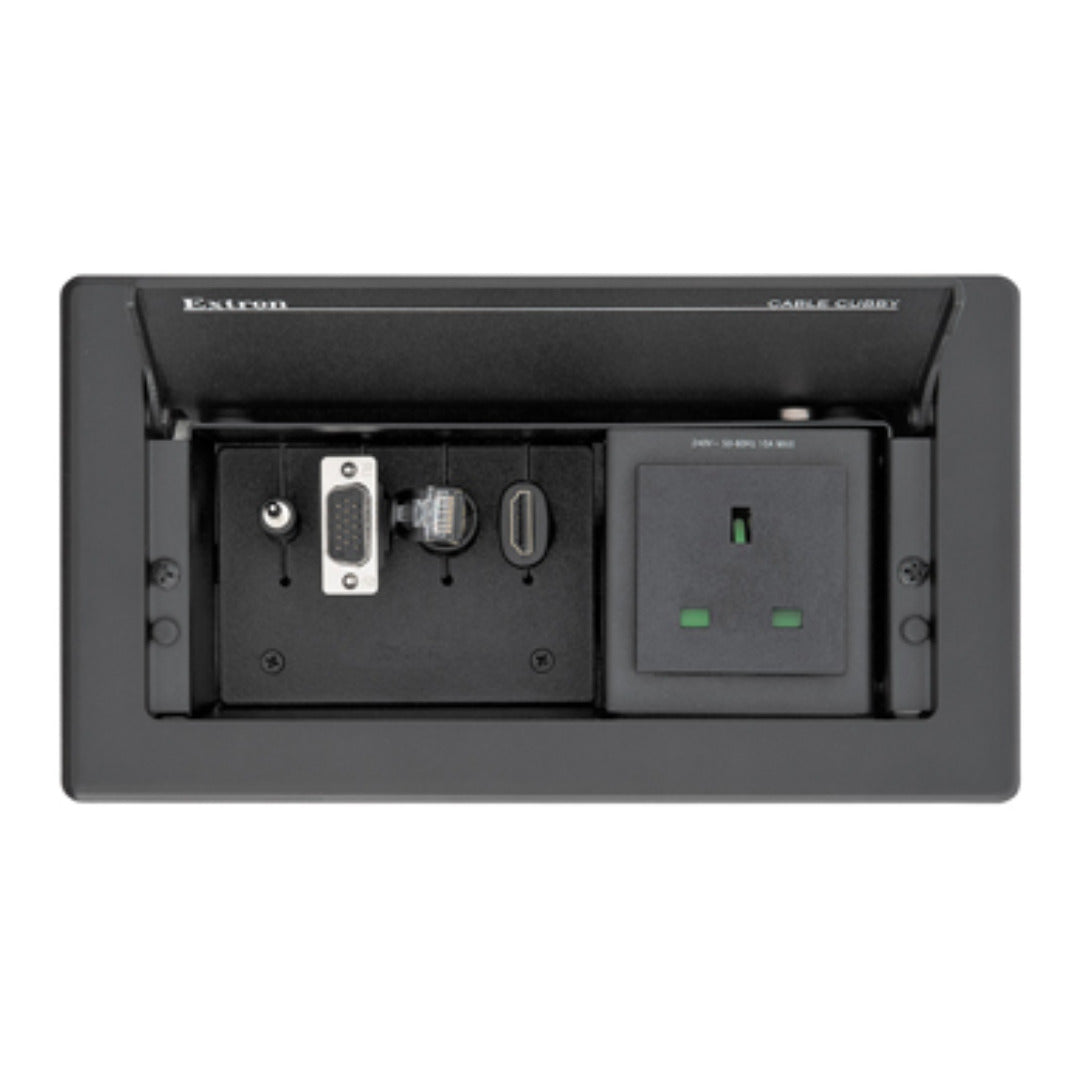

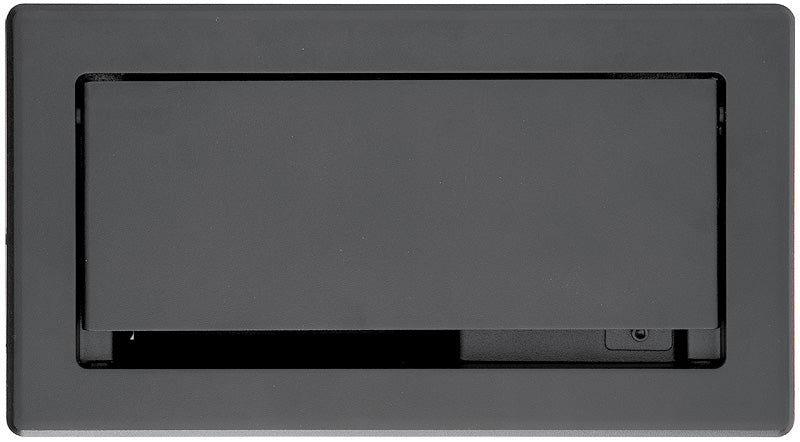

Extron Cable Cubby 202 UK (part number 60-1425-02) — the UK-outlet build of the compact Cable Cubby 202 furniture-mount cable access enclosure.

British installations need a UK-pattern socket at the surface, and the 202 provides one in the smallest enclosure Extron offers with integral power. Next to the outlet, a Cable Pass-Through Bracket routes up to four AV cables through the tabletop. The bracket is split, so a cable with a moulded connector can be laid in from above; nobody has to get under the desk to thread a plug through a hole. The clamp system built into the enclosure holds it in place with common hand tools.

Key Capabilities

• One unswitched UK AC outlet, 240 VAC, 50-60 Hz, 10 A maximum total.
• Cable Pass-Through Bracket routes up to four AV cables.
• Top plate measures 7.99 in W x 4.39 in D (203 mm x 112 mm).
• Split-ring bracket supports installation and service from above.

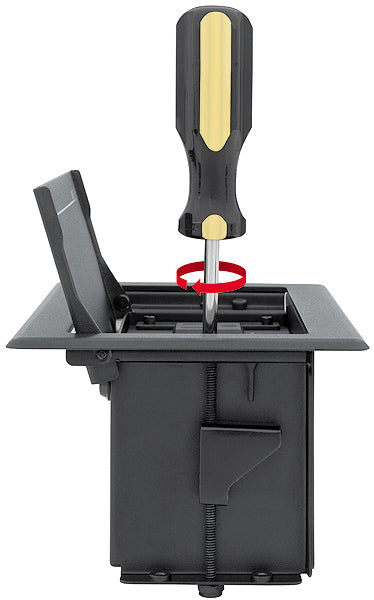

• Integrated clamp system fitted with common hand tools.
• 1.8 lbs (0.8 kg) metal enclosure, 3.20 in (81 mm) deep.

Where It Is Used

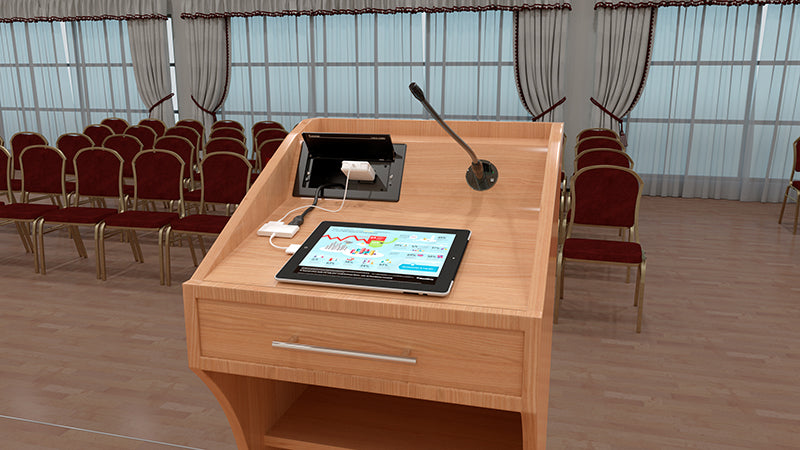

UK boardrooms, further and higher education classrooms, NHS meeting facilities, and public-sector committee tables. The shallow body is particularly useful on thin or veneered desktops where deeper table boxes cannot be accommodated.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max total
• Surface cutout: 7.00 in W x 3.25 in D (178 mm x 82 mm)
• Enclosure depth: 3.20 in H (81 mm)
• Table thickness: 0.25 in to 1.75 in (6 mm to 44 mm)
• Regulatory: CE, NOM, RoHS, WEEE

Optional Retractor and AAP bracket kits are ordered separately. Also referenced as Extron CableCubby202UK, Cable-Cubby-202-UK, part number 60142502.
