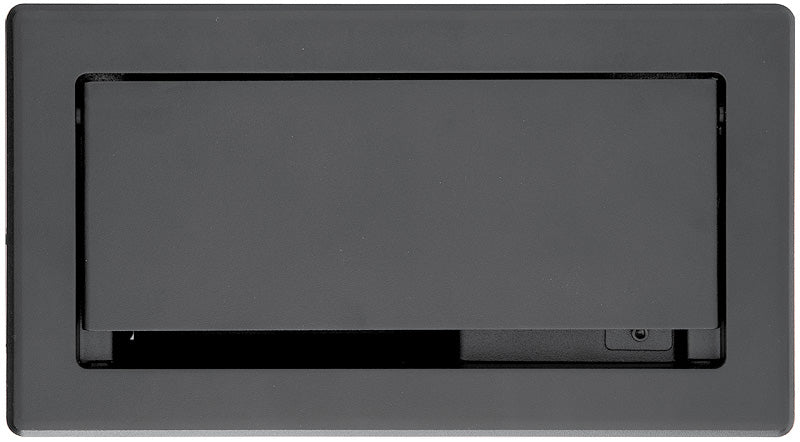

Extron Cable Cubby 202 MULTI (part number 60-1403-02) — the multi-region outlet build of the compact Cable Cubby 202 furniture-mount enclosure.

Organisations that build identical rooms in several countries want one enclosure part number on the drawing, not seven. This version takes a multi-region AC outlet so the same specification can follow a project across markets, with a Cable Pass-Through Bracket alongside it for up to four AV cables. Extron asks that the Multi-Region AC Outlet Setup Guide be reviewed before this part number is ordered, because the outlet has to be configured for the destination country.

Key Capabilities

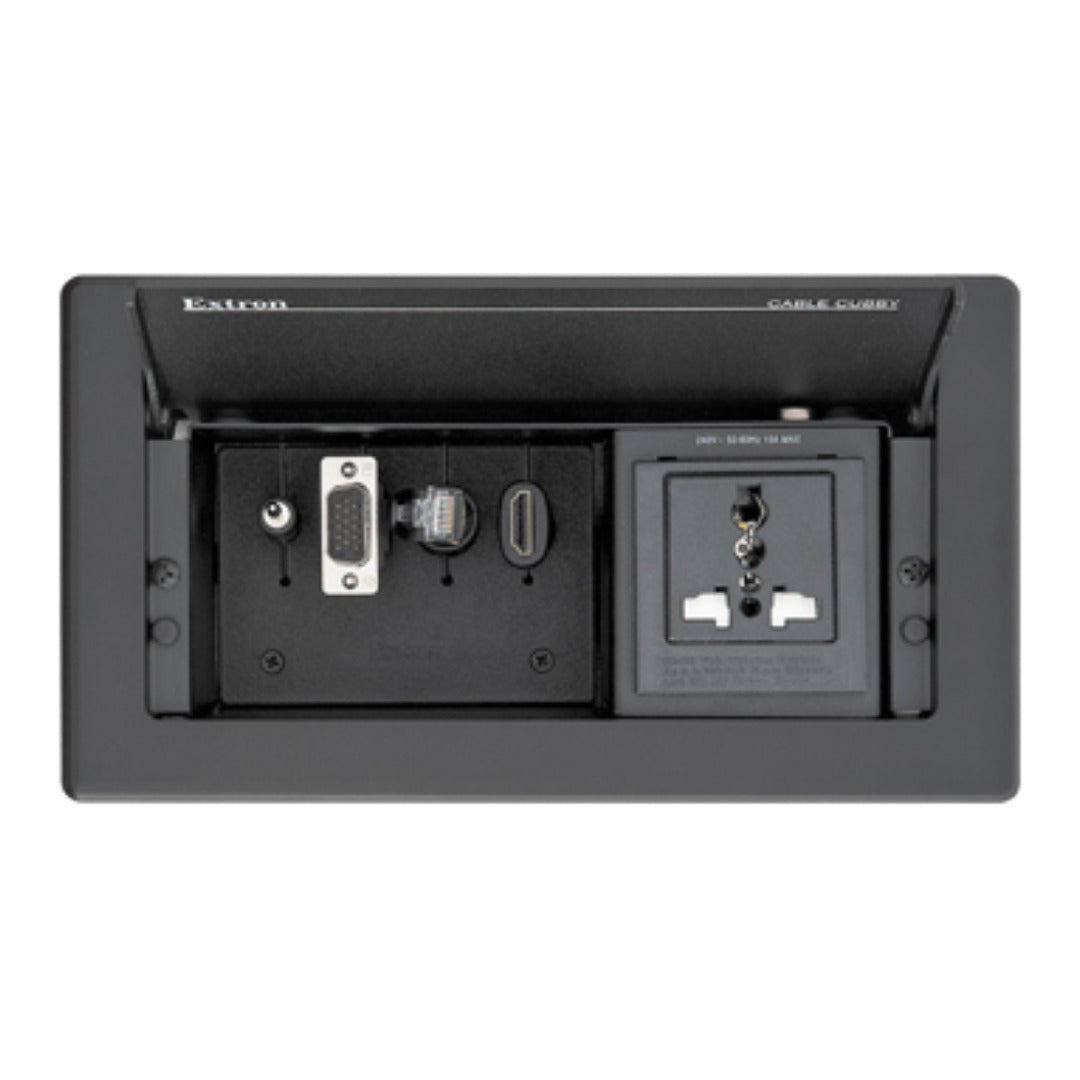

• One unswitched multi-region AC outlet, 240 VAC, 50-60 Hz, 10 A maximum total.
• Consult the Extron Multi-Region AC Outlet Setup Guide before ordering.
• Cable Pass-Through Bracket for up to four AV cables.
• Split-ring bracket allows top-side cable installation and service.

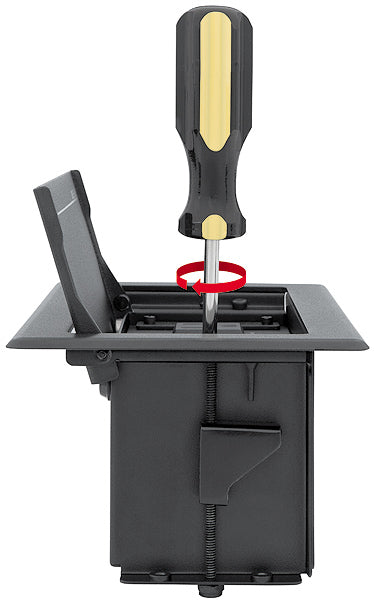

• Integrated clamp system, fitted with common hand tools.
• Compact metal body 3.20 in (81 mm) deep, 1.8 lbs (0.8 kg).

Where It Is Used

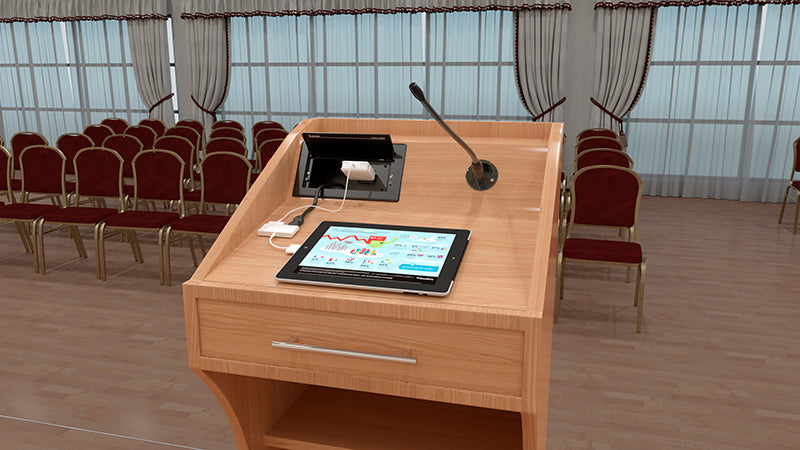

Multinational meeting-room programmes, international conference venues, embassy and NGO offices, and global research or pharmaceutical campuses where a single furniture and AV specification has to be reproduced in several electrical markets.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max total
• Top plate (outer rim): 7.99 in W x 4.39 in D (203 mm x 112 mm)
• Surface cutout: 7.00 in W x 3.25 in D (178 mm x 82 mm)
• Table thickness: 0.25 in to 1.75 in (6 mm to 44 mm)
• Warranty: 3 years parts and labor

Optional Retractor and AAP bracket kits are ordered separately. Also referenced as Extron CableCubby202MULTI, Cable-Cubby-202-MULTI, part number 60140302.
