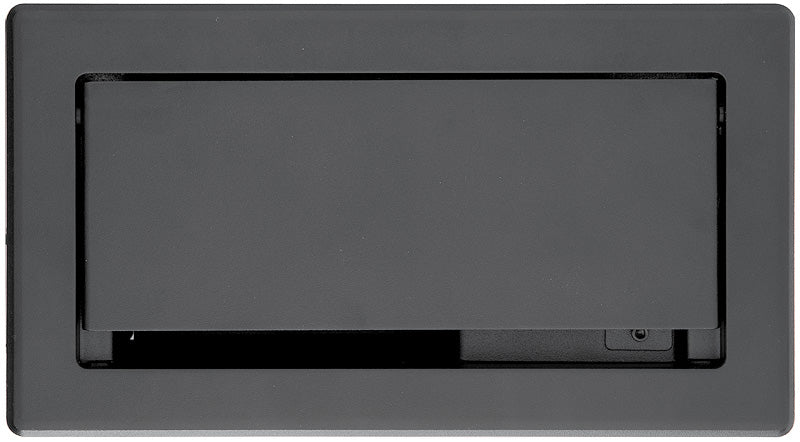

Extron Cable Cubby 202 AUS (part number 60-1402-02) — the Australian-outlet version of the compact Cable Cubby 202 furniture-mount enclosure.

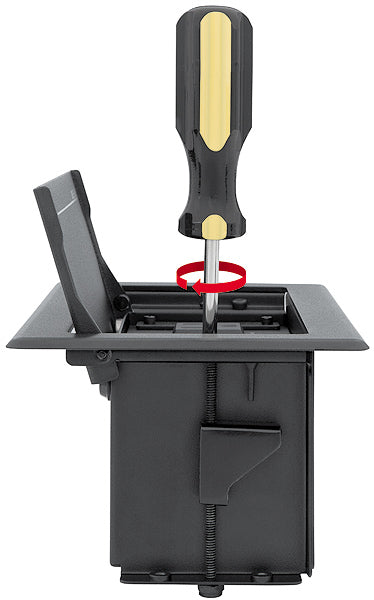

This part number puts the local pin pattern into a table with a minimum of joinery: a single rectangular cut, then the integrated clamp system pulls the enclosure tight against the surface with ordinary hand tools. One unswitched Australian AC outlet is fitted, and the Cable Pass-Through Bracket beside it accepts up to four AV cables. The split-ring bracket means those cables can be added or swapped later from the top of the table rather than from underneath.

Key Capabilities

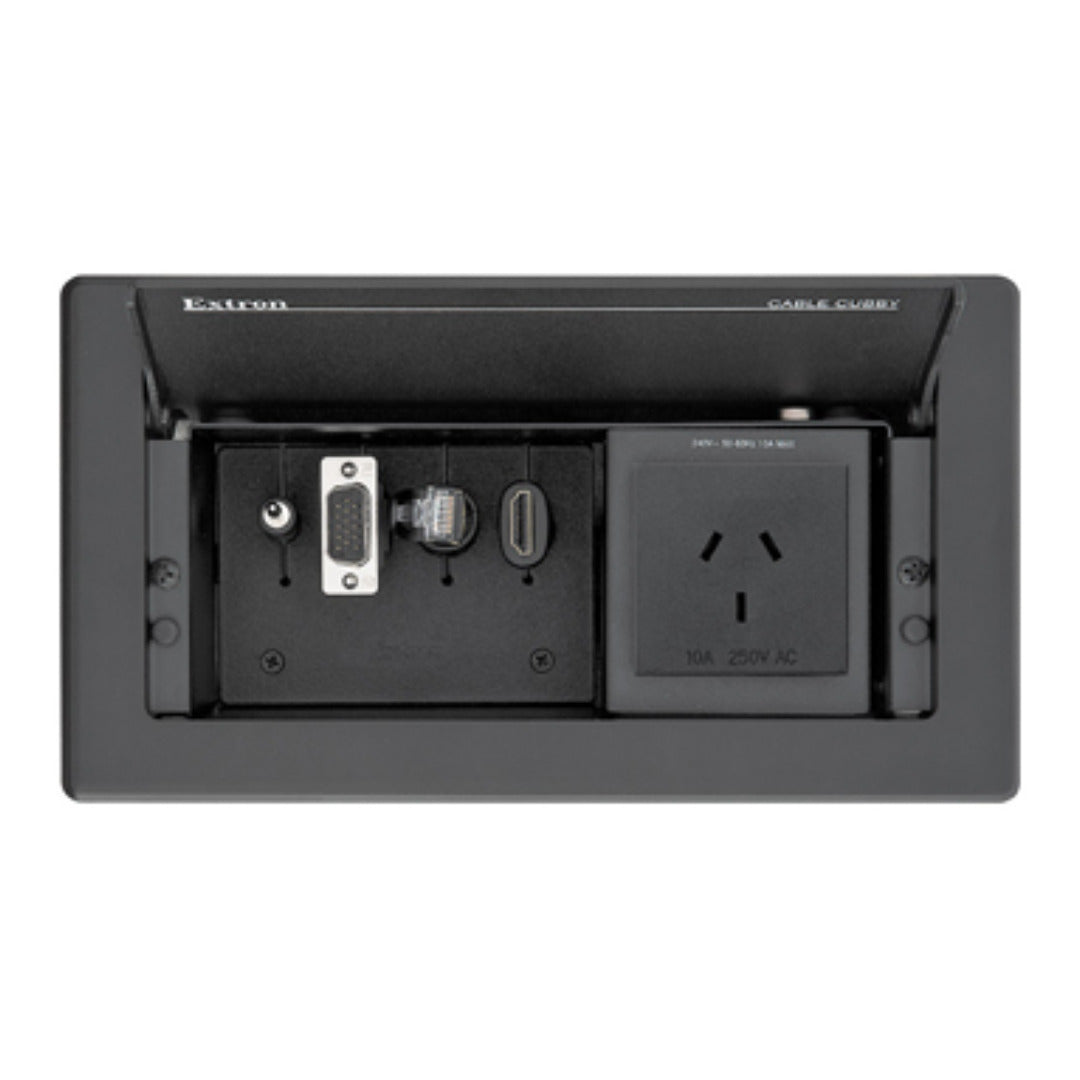

• One unswitched Australian AC outlet, 240 VAC, 50-60 Hz, 10 A maximum total.
• Cable Pass-Through Bracket handling up to four AV cables.
• Cables install and service from the top after the enclosure is fitted.
• Light 1.8 lbs (0.8 kg) metal enclosure.
• Only 3.20 in (81 mm) deep below the surface.
• Fits surfaces 0.25 in to 1.75 in (6 mm to 44 mm) thick.

Where It Is Used

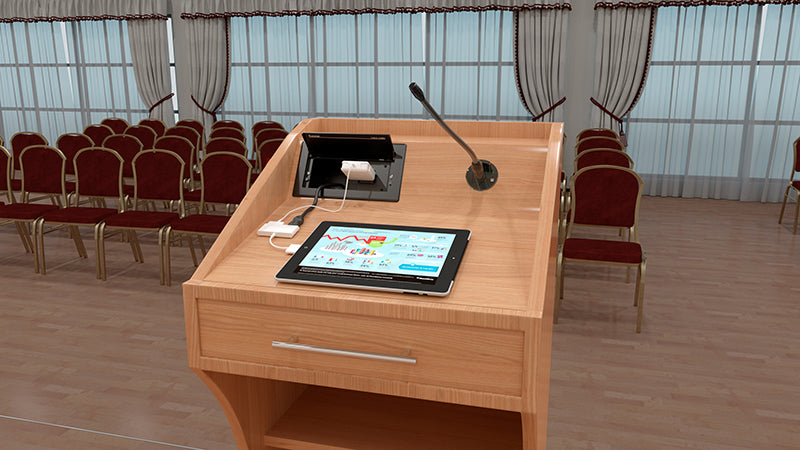

Australian and New Zealand meeting rooms, TAFE and university classrooms, agile-working benches and hospital conference tables where a small, shallow enclosure suits thin desktops better than a full-depth table box.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max total
• Top plate (outer rim): 7.99 in W x 4.39 in D (203 mm x 112 mm)
• Surface cutout: 7.00 in W x 3.25 in D (178 mm x 82 mm)
• Enclosure depth: 3.20 in H (81 mm)
• Regulatory: CE, NOM, RoHS, WEEE

Optional Retractor and AAP bracket kits are ordered separately. Also referenced as Extron CableCubby202AUS, Cable-Cubby-202-AUS, part number 60140202.
