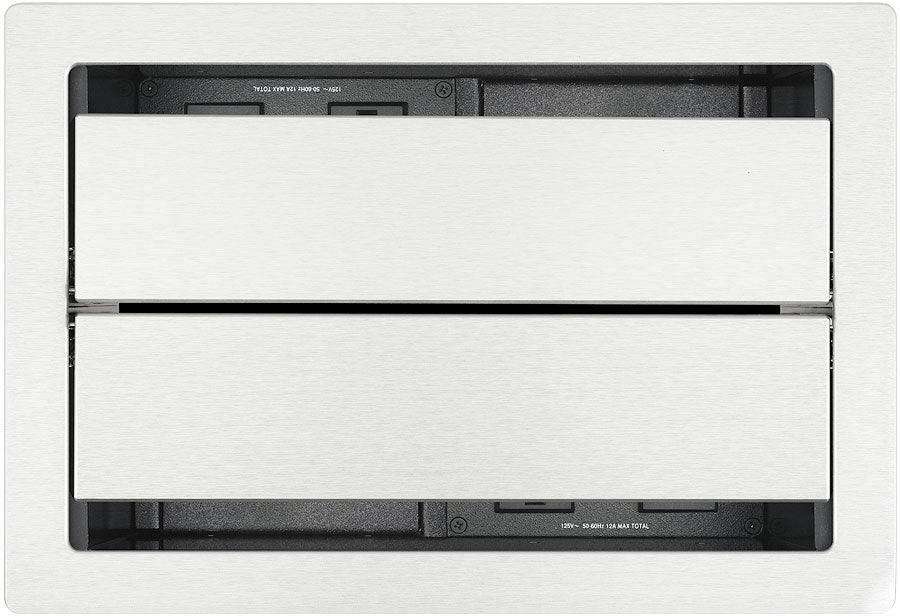

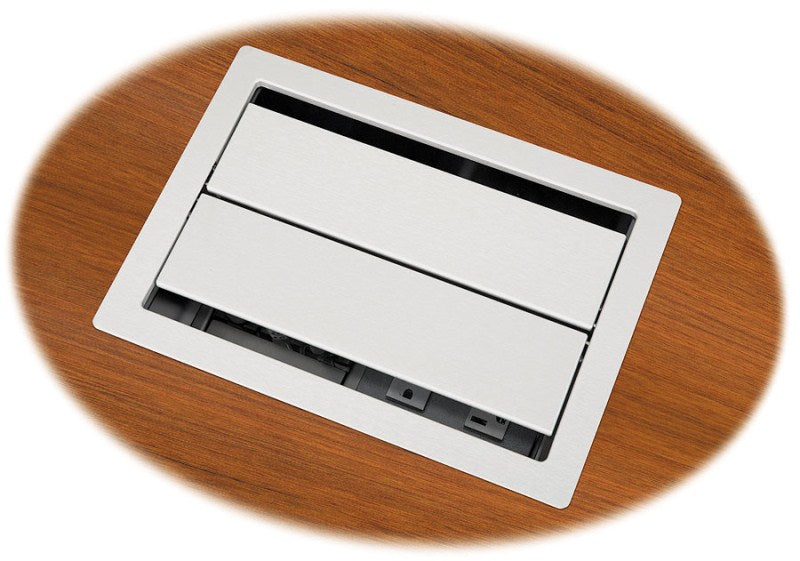

Extron Cable Cubby 1402 (part number 70-1185-08) — the brushed aluminum finish of the double-sided 1402 enclosure, supplied without an AC power module.

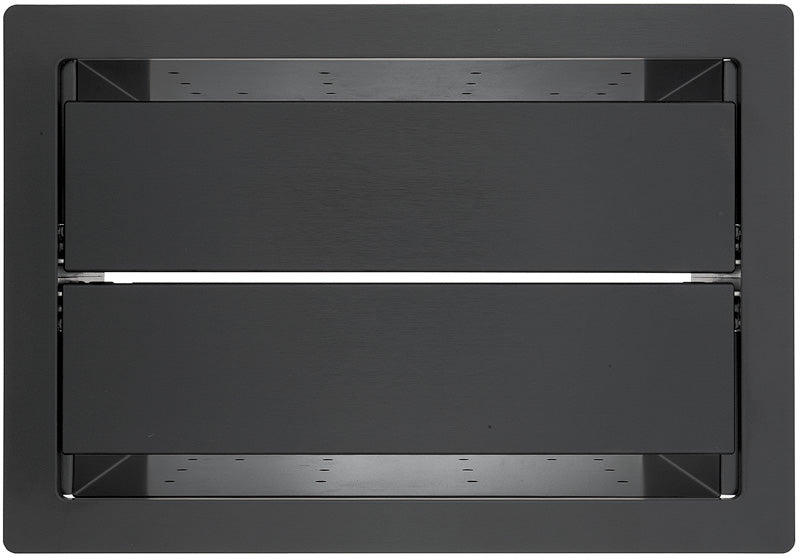

Where the tabletop is pale timber, laminate or metal, a black plate advertises itself; brushed aluminum reads as part of the furniture. That is the only difference from the black version — capacity, dimensions and installation method are identical. Both sides of the enclosure take a power module plus a bracket set for three Retractor modules, eight AV cables, or three single-space AAP AV Connectivity Modules, and everything can be reached from above after the box is fitted.

Key Capabilities

• Brushed aluminum top surface to suit lighter furniture finishes.
• Double-sided enclosure serving both edges of a shared table.

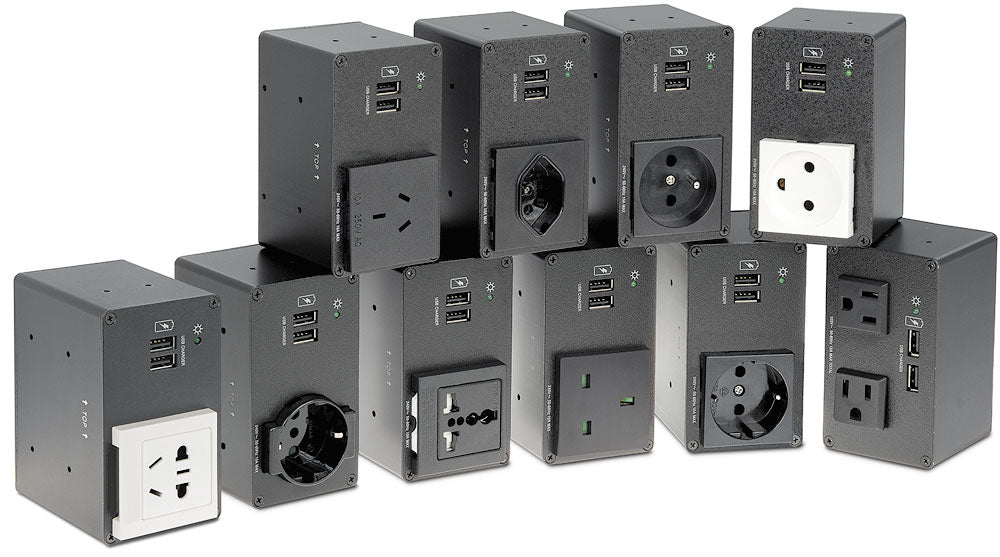

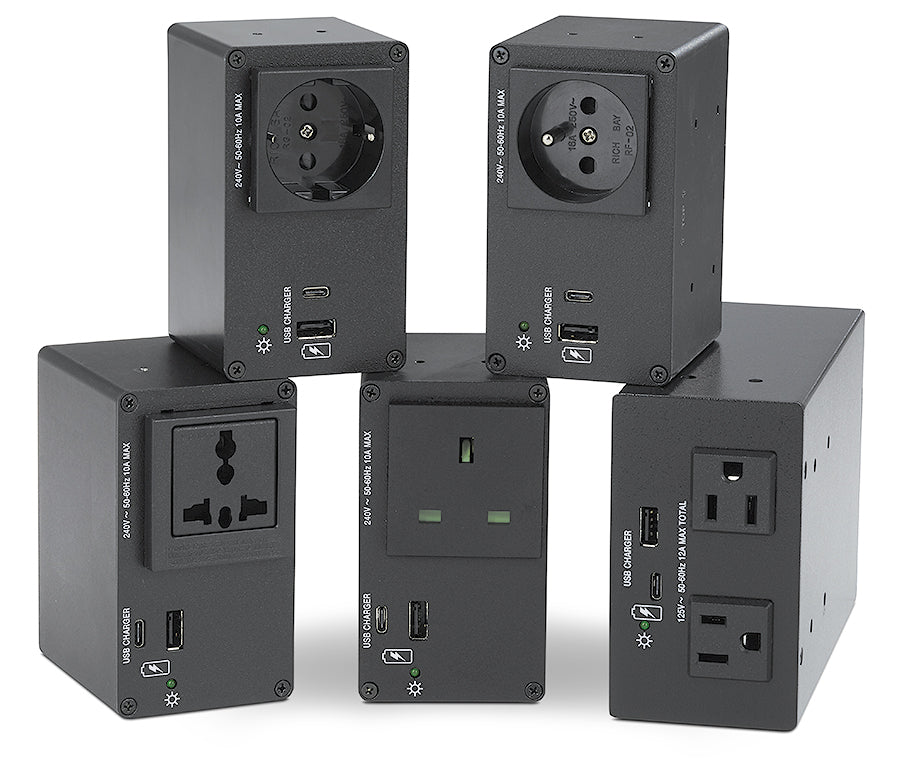

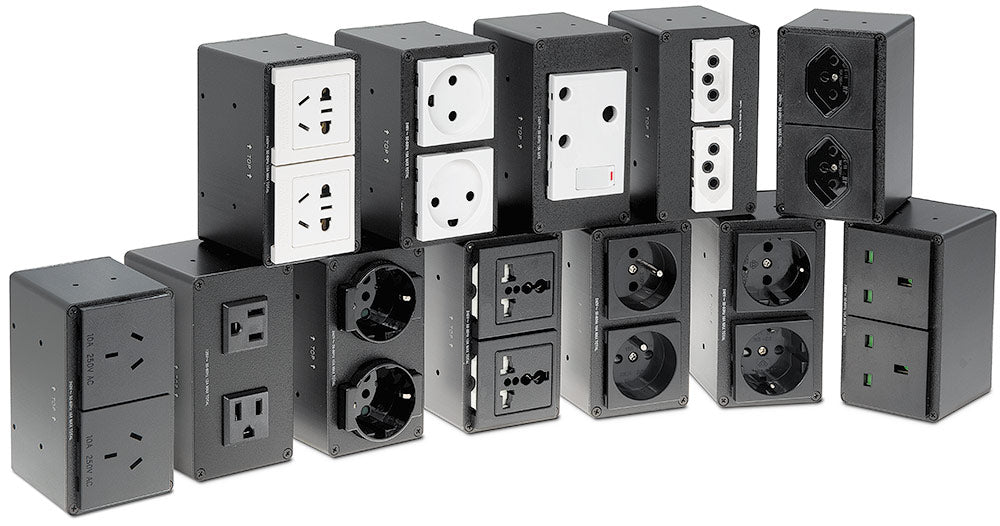

• AC module not included; each side takes one AC or AC+USB module.

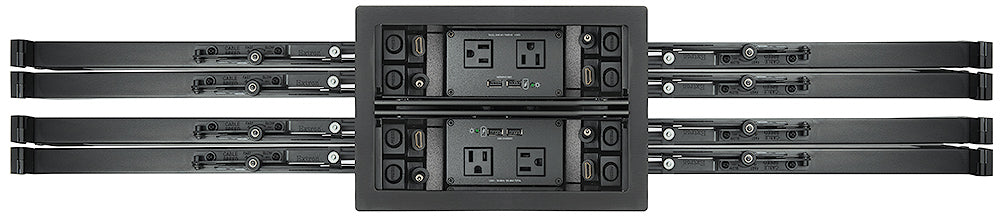

• Three Retractor modules, eight AV cables, or three AAP modules per side.

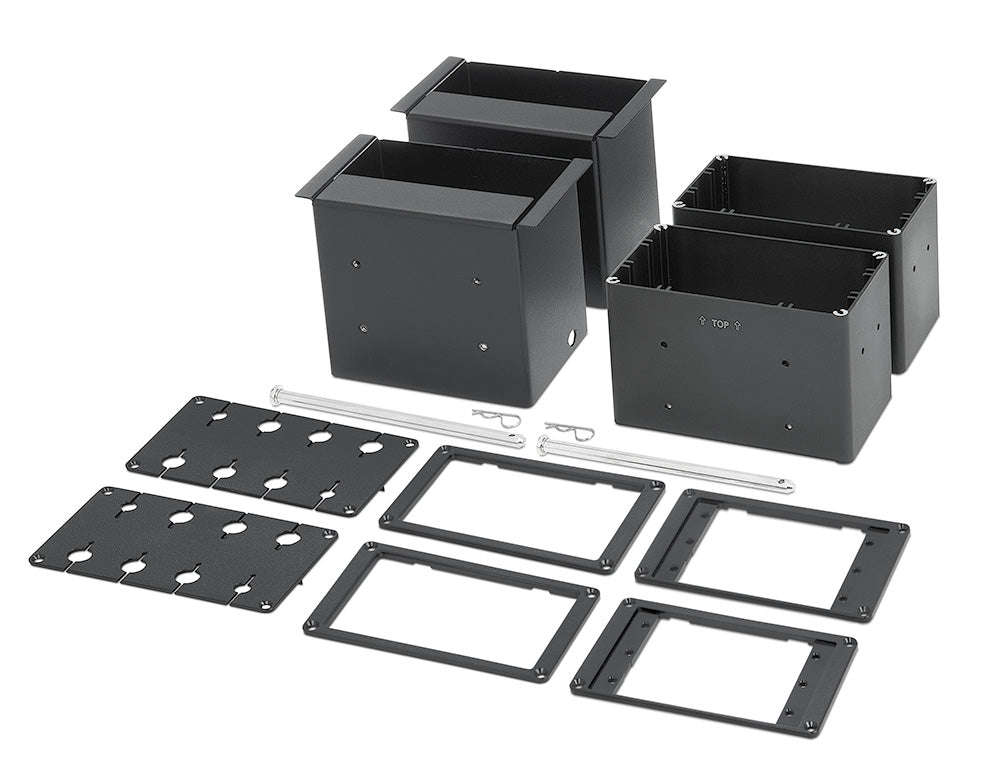

• Patented modular design allows service from the top after installation.
• Only 4.46 in (113 mm) deep beneath the surface.

Where It Is Used

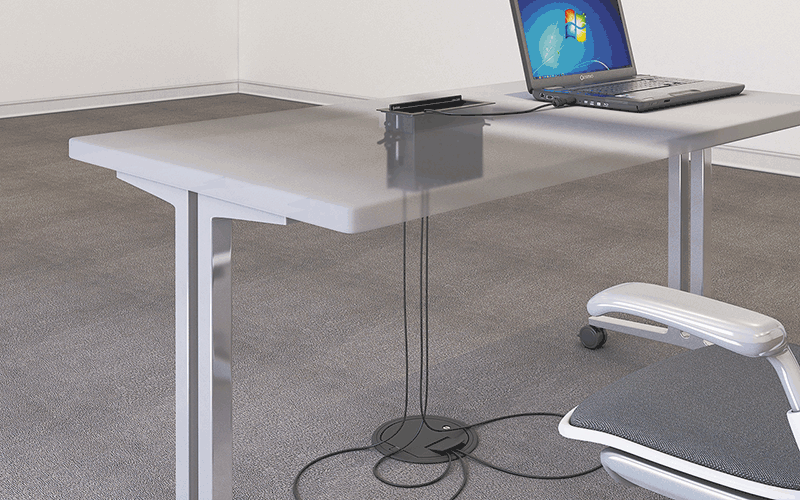

Executive boardrooms with light or metallic tabletops, architectural fit-outs where the furniture schedule dictates the finish, design studios, and conference centres specifying a consistent aluminum look across every table.

Specifications at a Glance

• Top plate (outer rim): 10.57 in W x 7.42 in D (269 mm x 189 mm)
• Surface cutout: 10.00 in W x 6.75 in D (254 mm x 172 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Warranty: 3 years parts and labor

Retractor modules, cables and AAP modules are ordered separately. Also referenced as Extron CableCubby1402, Cable-Cubby-1402, part number 70118508.
