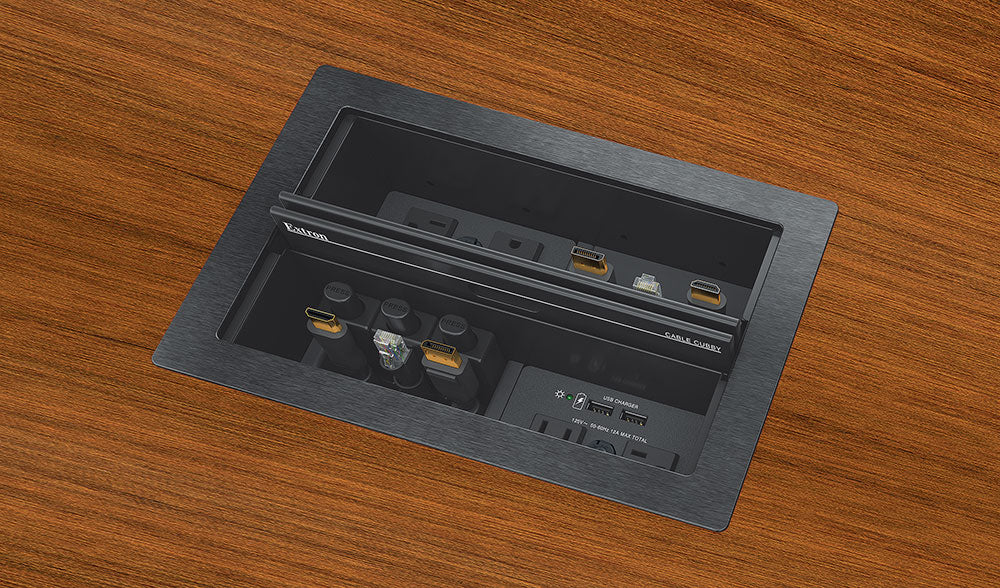

Extron Cable Cubby 1402 (part number 70-1185-02) — the black-finish double-sided enclosure without an AC power module, so the electrical option is specified separately.

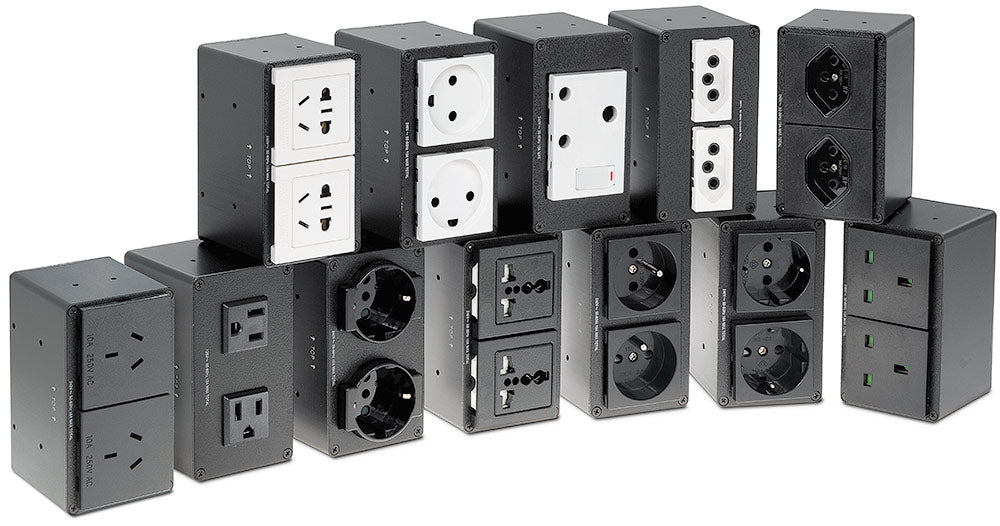

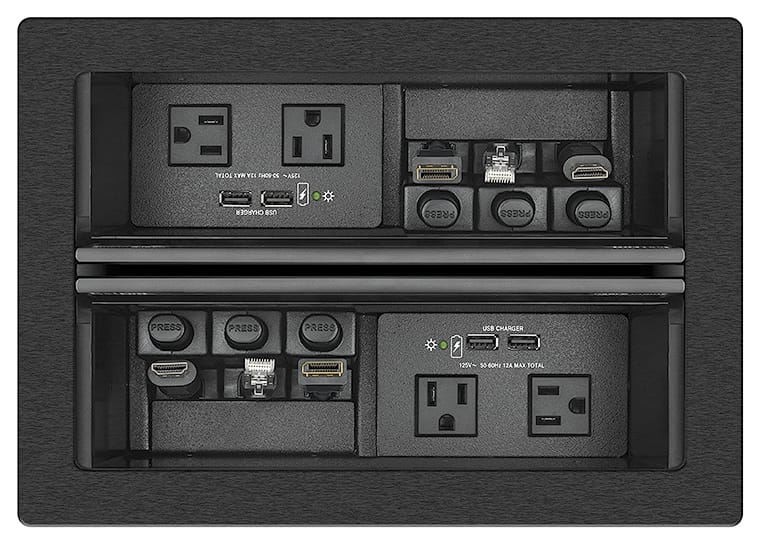

On international rollouts the enclosure and the power module are almost always ordered as separate lines: one body part number everywhere, then the correct AC or AC+USB module per country. This part number covers the black anodized 1402 with all connectivity brackets in the box. Each side takes one power module and its own combination of retraction modules, cables or AAP plates, and the patented modular construction means those parts stay reachable from the tabletop once the furniture is in service.

Key Capabilities

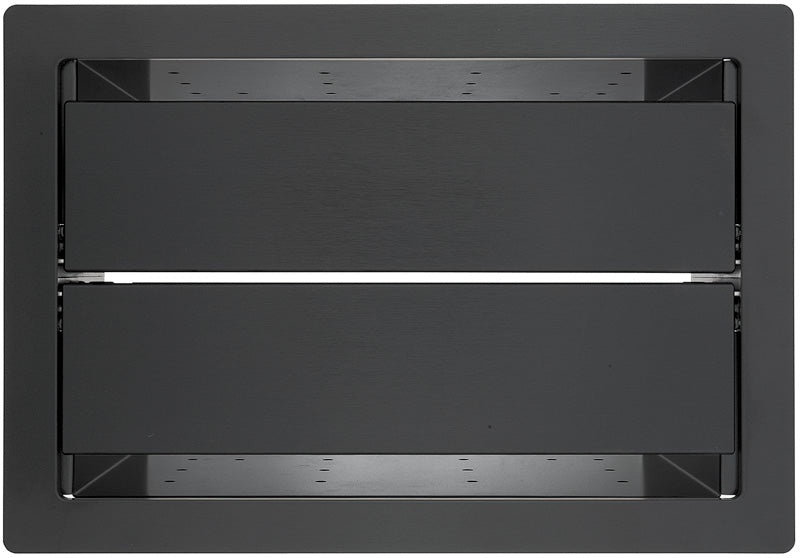

• Black anodized top surface; AC power module is not included.

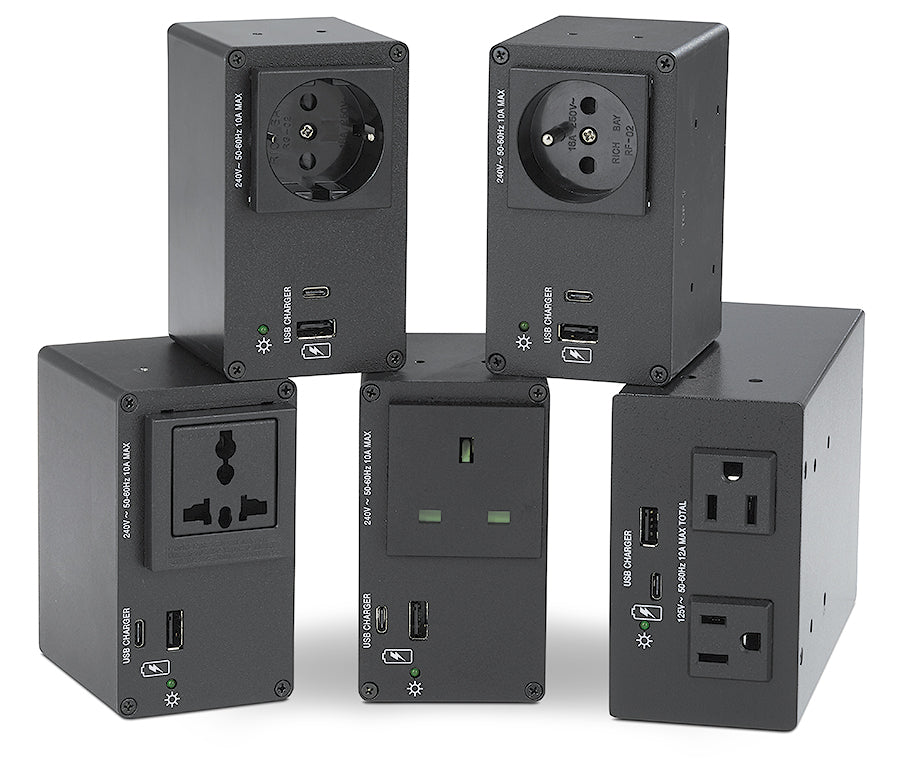

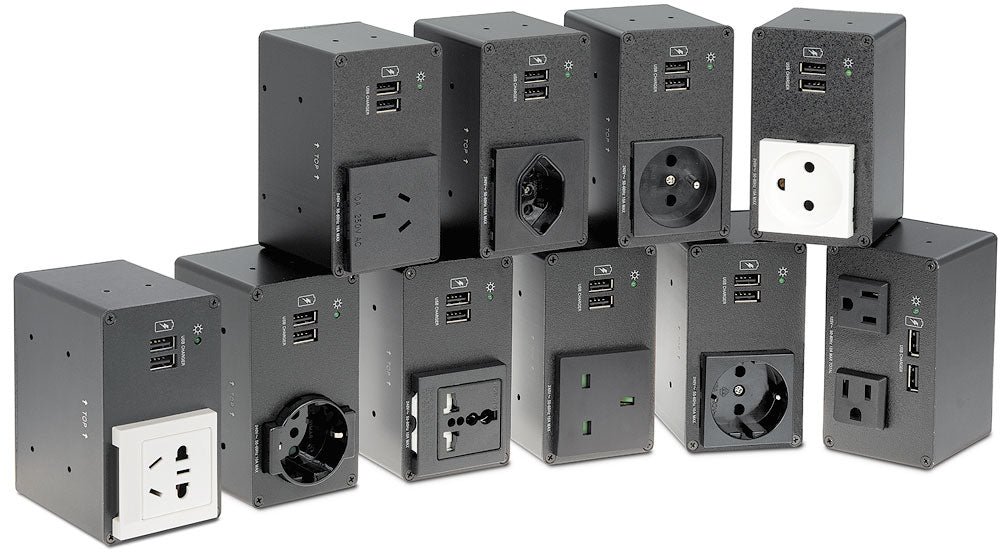

• Each side accepts one AC or AC+USB series power module.

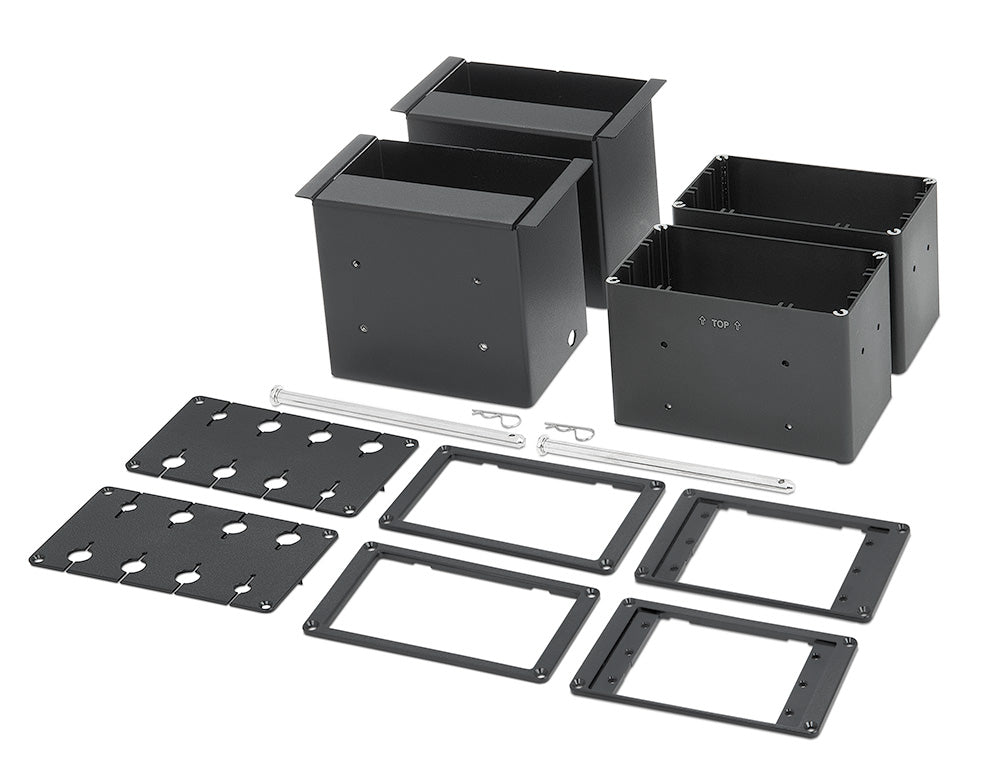

• Retractor Bracket holds three Retractor Series or Retractor Series XL modules.
• Cable Pass-Through Bracket supports up to eight AV cables per side.
• Connectivity Bracket supports three single-space AAP modules per side.

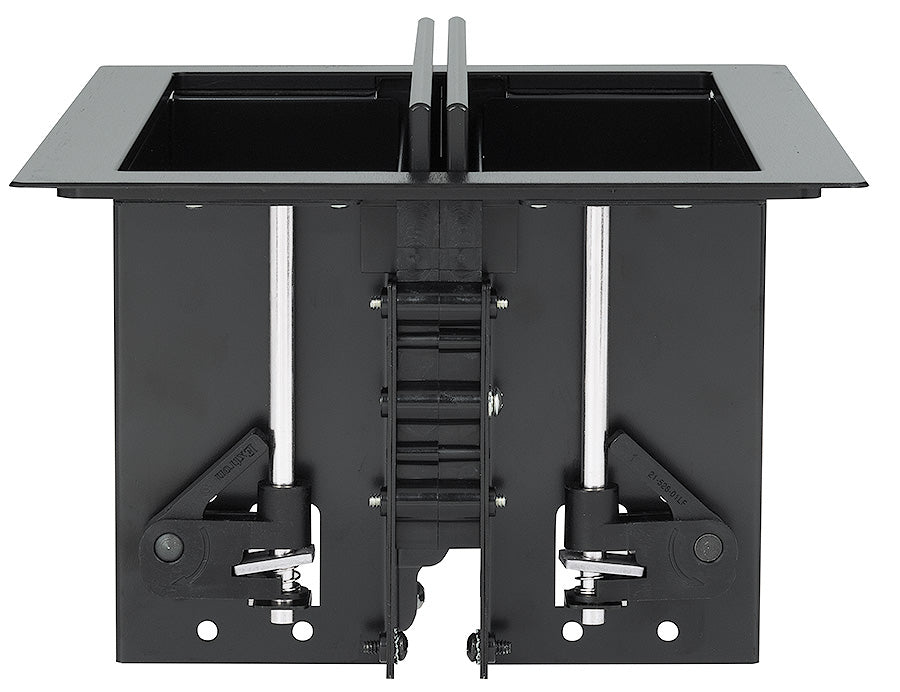

• Integrated clamp system secures the enclosure without parts or tools.

Where It Is Used

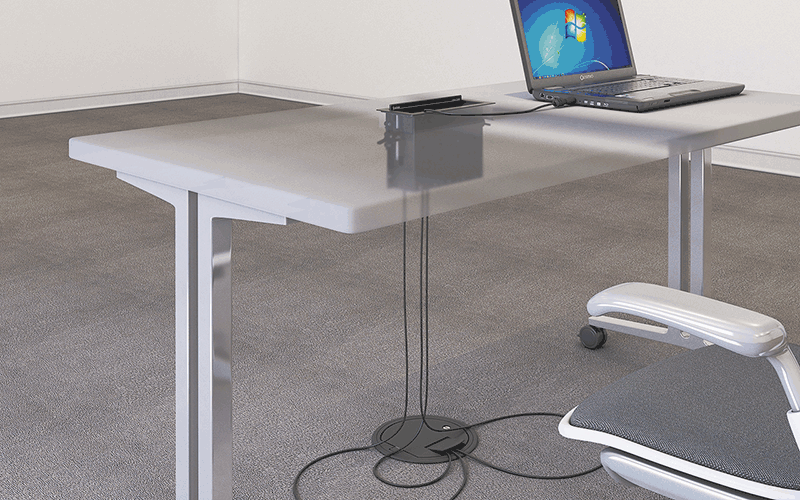

Multi-country boardroom programmes, higher-education seminar rooms, government and legal facilities, and any double-sided table where the AV enclosure is ordered ahead of the electrical specification.

Specifications at a Glance

• Top plate (outer rim): 10.57 in W x 7.42 in D (269 mm x 189 mm)
• Surface cutout: 10.00 in W x 6.75 in D (254 mm x 172 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Regulatory: CE, RoHS, WEEE; enclosure type metal

The Routing Template 70-1042-80 is an optional accessory. Also referenced as Extron CableCubby1402, Cable-Cubby-1402, part number 70118502.
