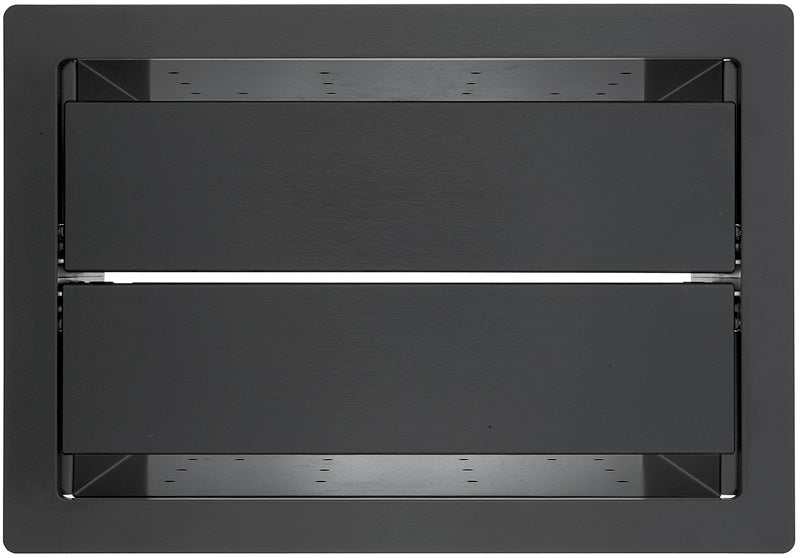

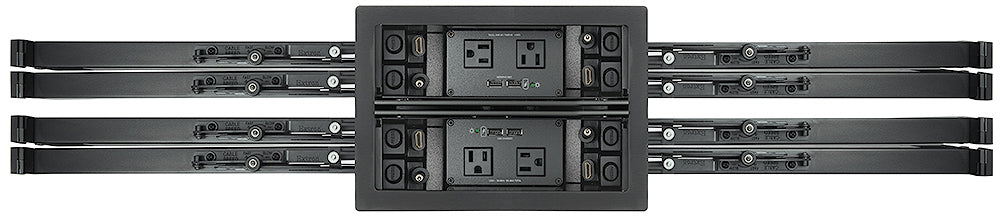

Extron Cable Cubby 1402 (part number 60-1895-02) — the black double-sided enclosure supplied with US AC power modules, four outlets, a 12 A breaker and four outlets underneath.

A table that seats people on both sides needs connectivity on both sides, and running two separate boxes doubles the joinery. The 1402 solves that with one central enclosure that opens either way, and this part number arrives with the US AC modules already fitted. Each side then carries its own bracket set: three Retractor modules, eight AV cables, or three single-space AAP AV Connectivity Modules. The integrated clamp system pulls the body tight to the surface without additional fixings.

Key Capabilities

• Double-sided design serves users on either side of one table opening.

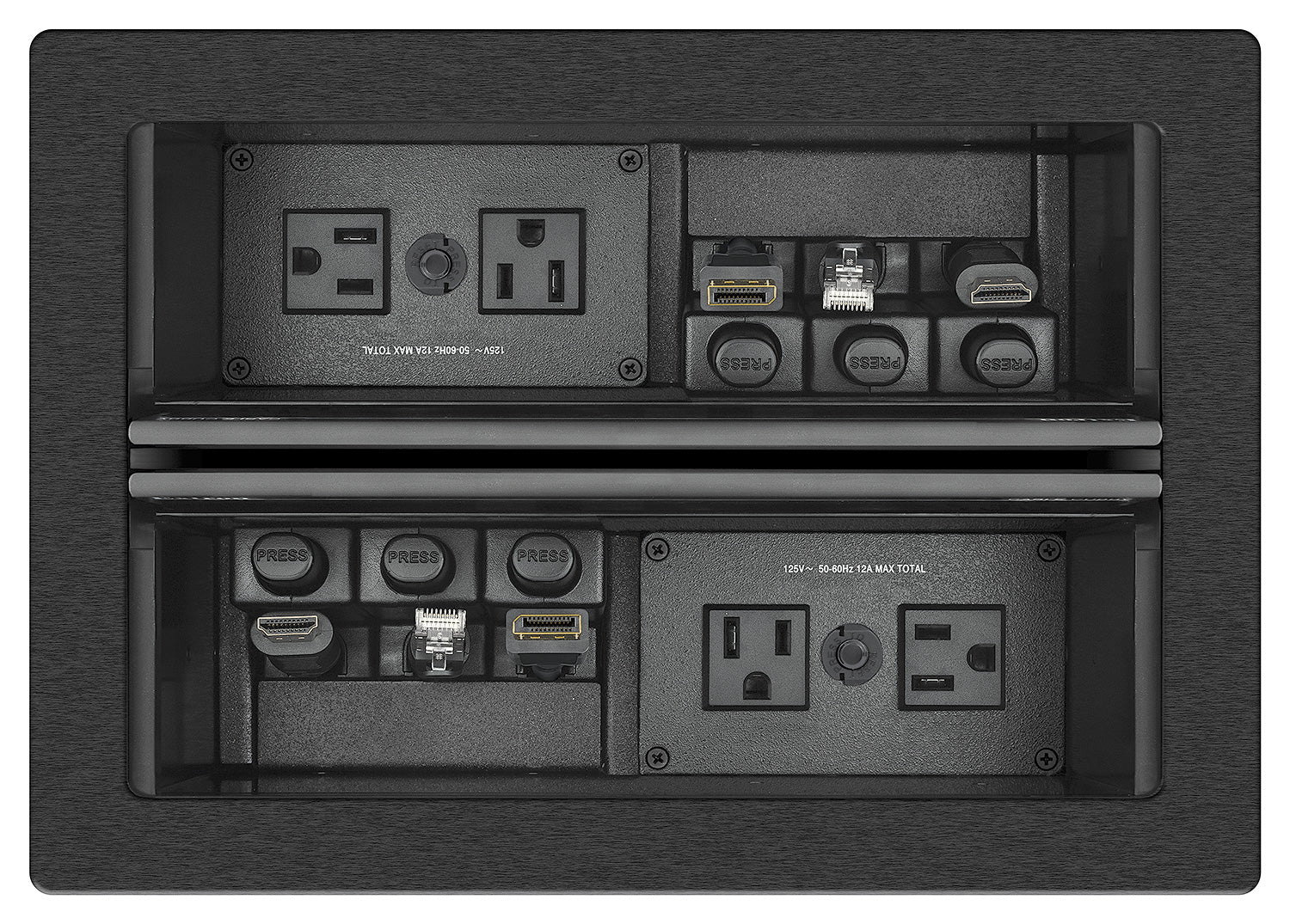

• Four US AC outlets with a 12 A breaker, plus four outlets under the table.
• US AC module rated 125 VAC, 50-60 Hz, 12 A maximum total.
• Per side: three Retractor modules, eight AV cables, or three AAP modules.

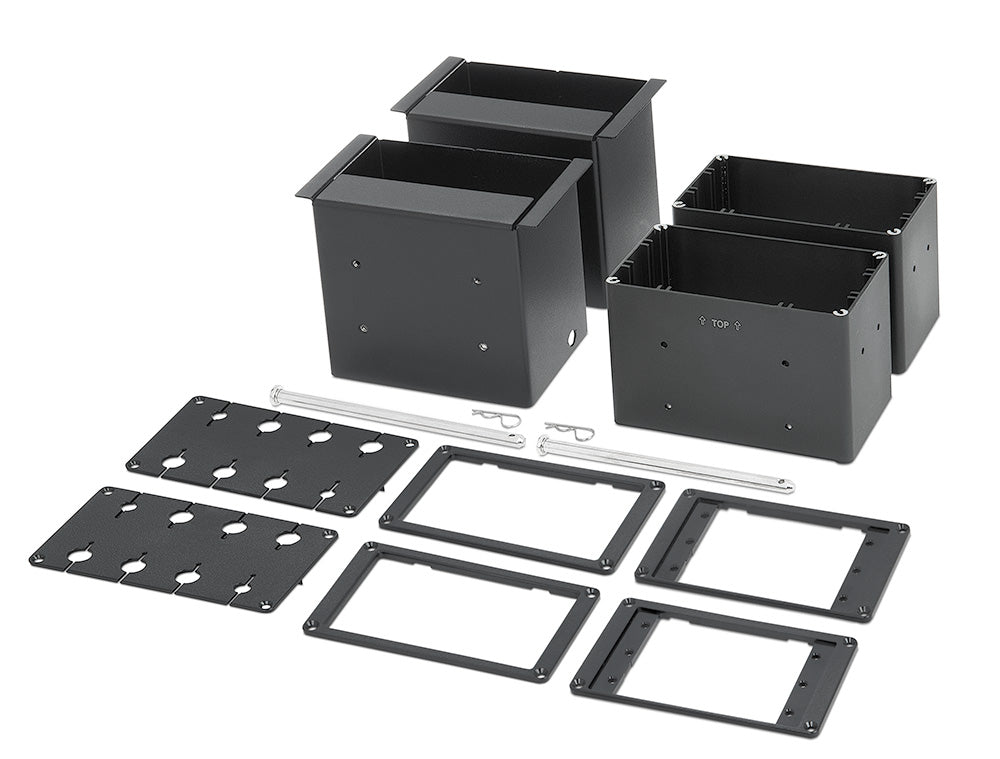

• Retractor, Cable Pass-Through and AAP brackets included for both sides.
• Metal body only 4.46 in (113 mm) deep, with a damped lid action.

Where It Is Used

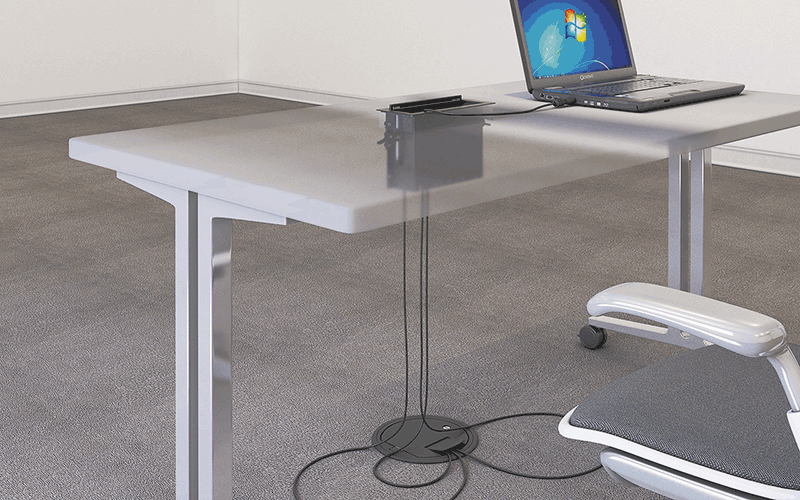

Long boardroom tables, university seminar benches, courtroom counsel tables and training rooms where delegates sit opposite one another. The reduced under-table height also makes it viable on folding tables in reconfigurable spaces.

Specifications at a Glance

• Top plate (outer rim): 10.57 in W x 7.42 in D (269 mm x 189 mm)
• Surface cutout: 10.00 in W x 6.75 in D (254 mm x 172 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Regulatory: CE, RoHS, WEEE; UL and c-UL in the US configuration

Retractor modules, cables and AAP modules are ordered separately. Also referenced as Extron CableCubby1402, Cable-Cubby-1402, part number 60189502.
