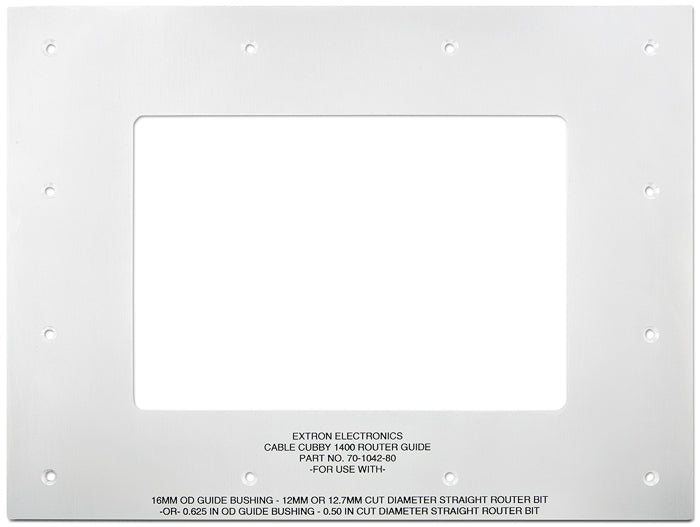

Extron Cable Cubby 1400/1402 Routing Template (part number 70-1042-80) — a reusable aluminum routing guide sized for the double-sided Cable Cubby 1400 and 1402 enclosures.

The 1400-series opening is larger and deeper front to back than the single-sided boxes, which leaves less margin for a hand-marked cut. This template fixes the profile: the router follows the aluminum edge and the resulting aperture accepts the enclosure with the bezel seating flat on the surface. One template serves an entire project, so a fitter working through a set of identical tables does not have to re-measure each one.

Key Capabilities

• Profile matched to Cable Cubby 1400 and 1402 double-sided enclosures.
• Reusable guide for repeat cuts across a whole installation.
• Industrial-grade aluminum stands up to repeated router passes.
• Overall size 12.0 in L x 16.0 in W (304.8 mm x 406.4 mm).
• Product weight 2.9 lbs.
• Backed by Extron's 3-year parts and labor warranty.

Where It Is Used

Joinery shops fabricating boardroom and lecture-hall tables, AV integrators retrofitting existing double-sided furniture, and estates teams standardising meeting rooms across a campus where every cut has to match the same specification.

Specifications at a Glance

• Dimensions: 12.0 in L x 16.0 in W (304.8 mm L x 406.4 mm W)
• Product weight: 2.9 lbs
• Material: aluminum
• Compatible enclosures: Cable Cubby 1400, Cable Cubby 1402
• Warranty: 3 years parts and labor

Enclosures are ordered separately. Also referenced as Extron CableCubby1400-1402RoutingTemplate, part number 70104280.
