Extron Cable Cubby 1202 (part number 70-1184-08) — the brushed aluminum finish of the 1202 enclosure, supplied without an AC power module.

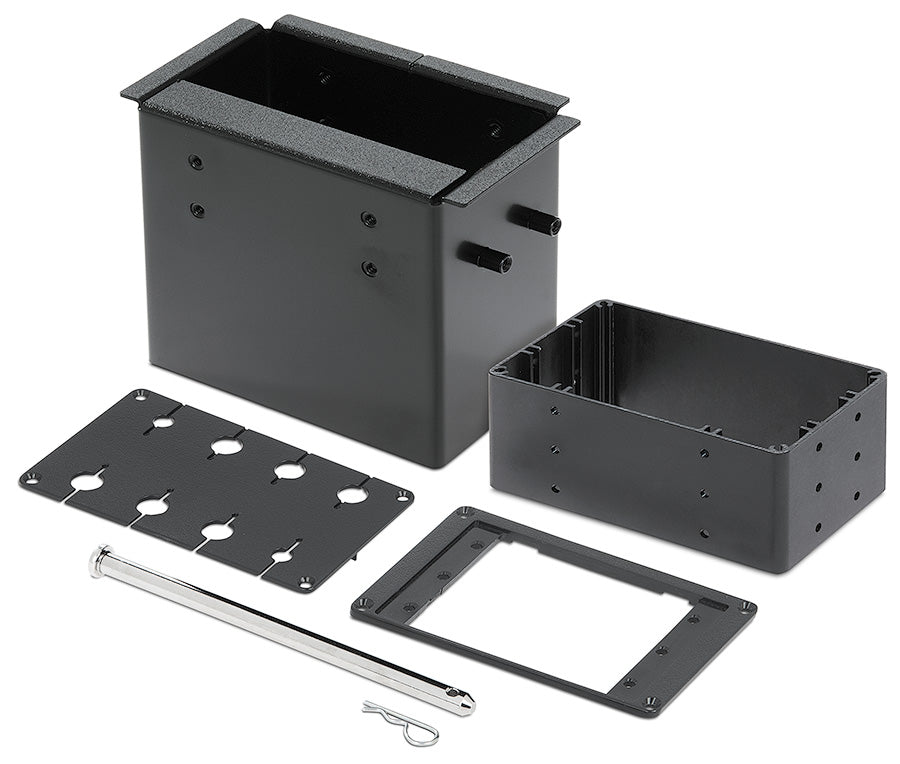

Furniture designers frequently want the table box to read as part of the surface rather than as equipment. The brushed aluminum lid is the finish to choose for pale timber, laminate and metal tabletops where a black plate would stand out. Function is identical to the black version: all three connectivity brackets are included, the enclosure clamps itself to the surface without extra fixings, and the top-service design means an AAP module or cable can be changed later without anyone crawling under the table.

Key Capabilities

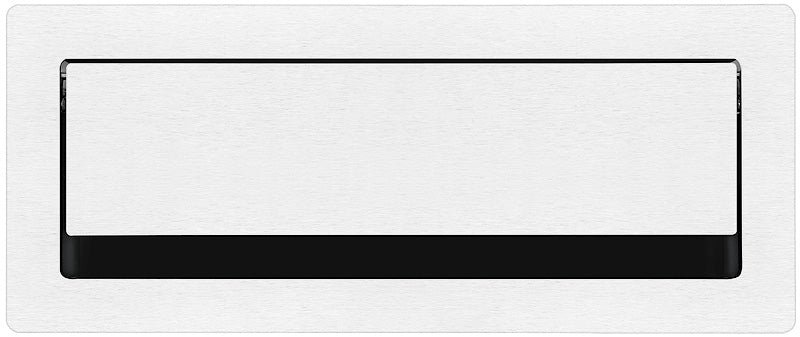

• Brushed aluminum top surface for lighter furniture finishes.
• AC module is not included, so the power option is selected separately.

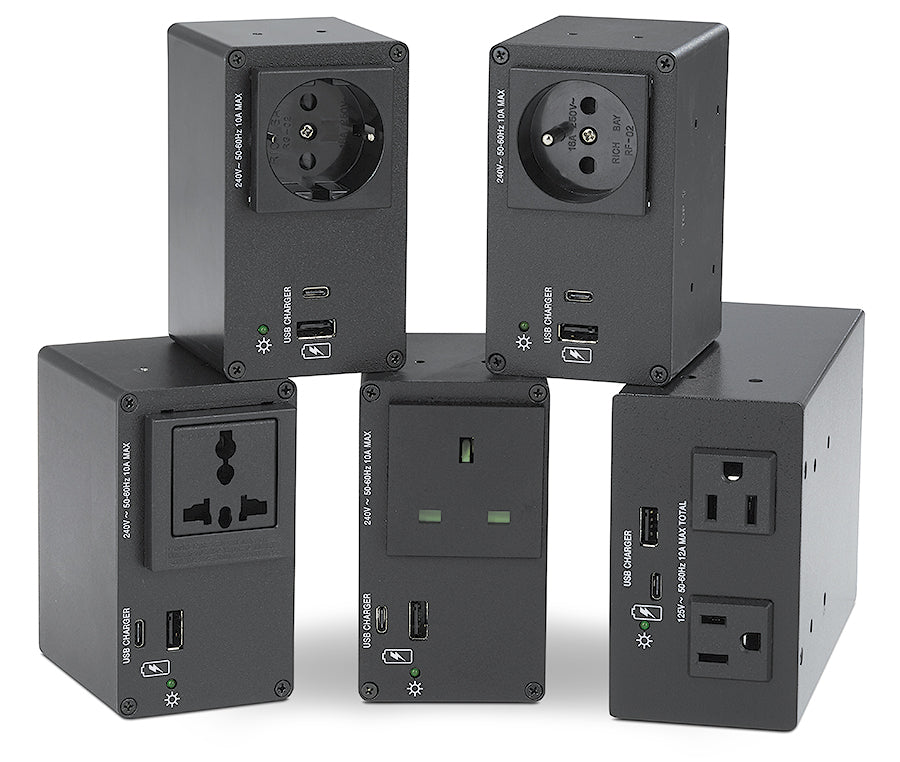

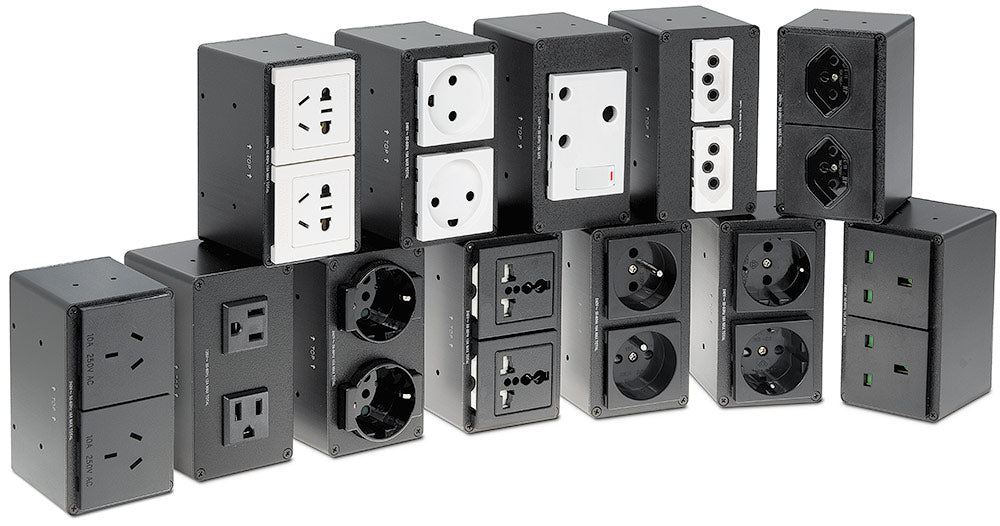

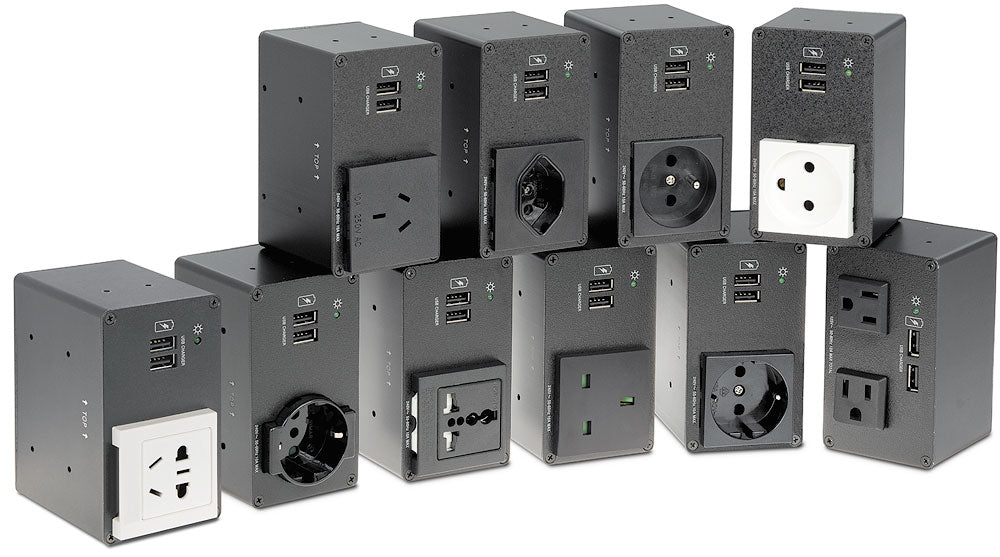

• Takes one AC or AC+USB series power module when fitted.

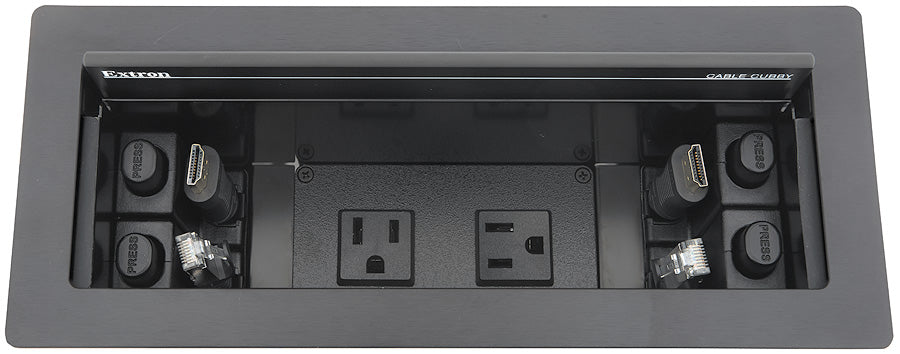

• Three Retractor modules, eight AV cables, or three single-space AAP modules.
• Patented modular design allows service from the top after installation.
• Slim metal body only 4.46 in (113 mm) deep beneath the surface.

Where It Is Used

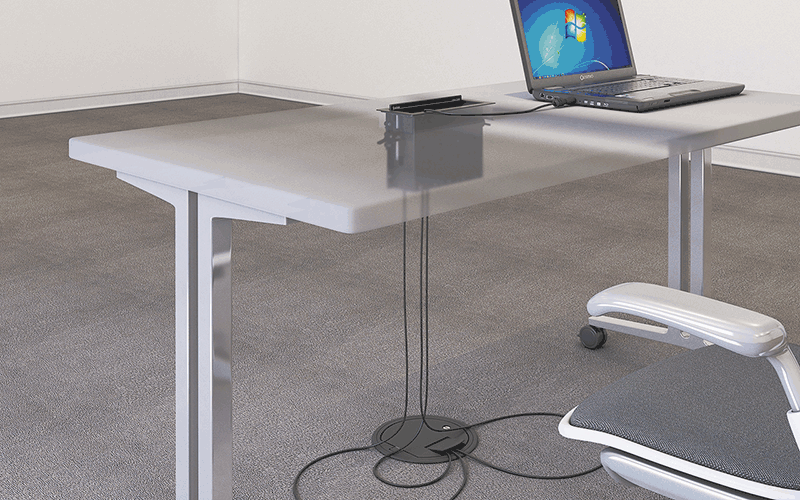

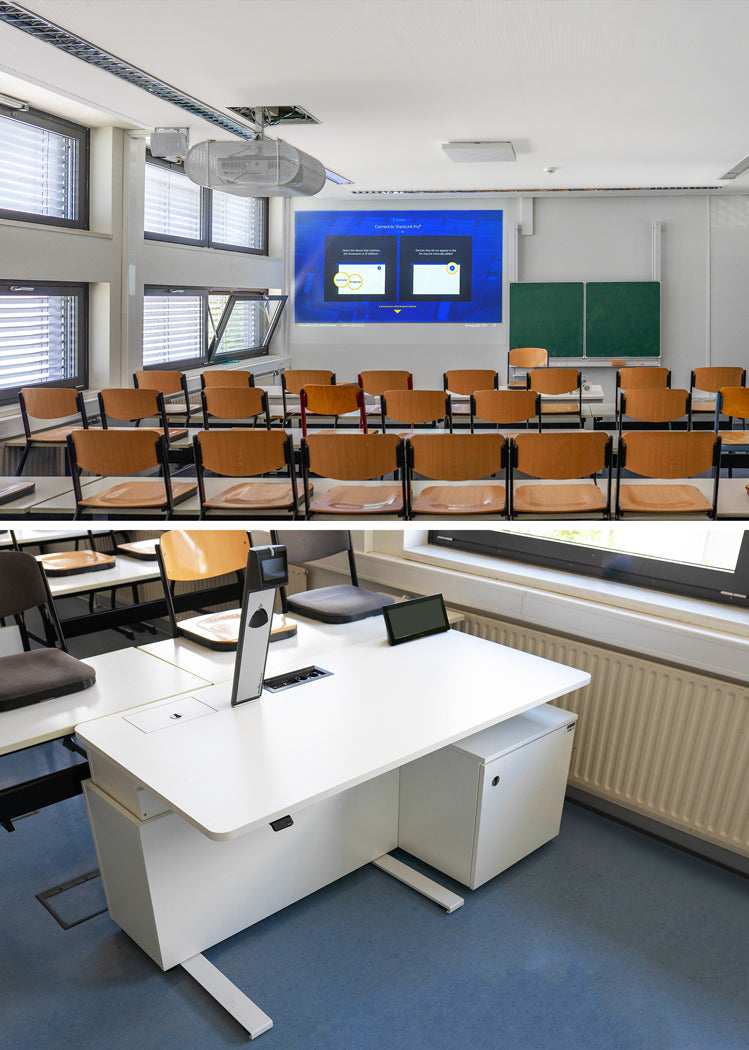

Executive boardrooms with light timber or aluminum tables, design studios, hotel and conference-centre furniture, and university seminar rooms where the specified finish matters as much as the connectivity behind it.

Specifications at a Glance

• Top plate (outer rim): 10.57 in W x 4.58 in D (269 mm x 116 mm)
• Surface cutout: 10.00 in W x 4.00 in D (254 mm x 102 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Warranty: 3 years parts and labor

Retractor modules, cables and AAP modules are ordered separately. Also referenced as Extron CableCubby1202, Cable-Cubby-1202, part number 70118408.
