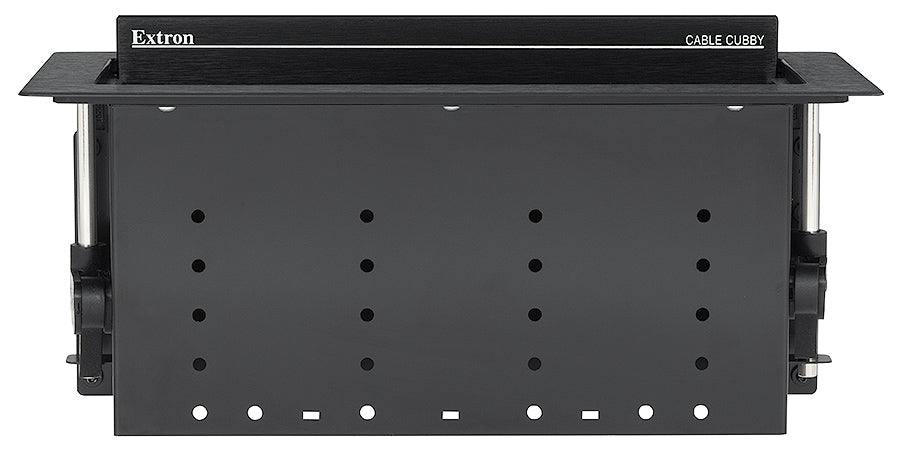

Extron Cable Cubby 1202 (part number 70-1184-02) — the black-finish enclosure supplied without an AC power module, so the power option can be chosen separately.

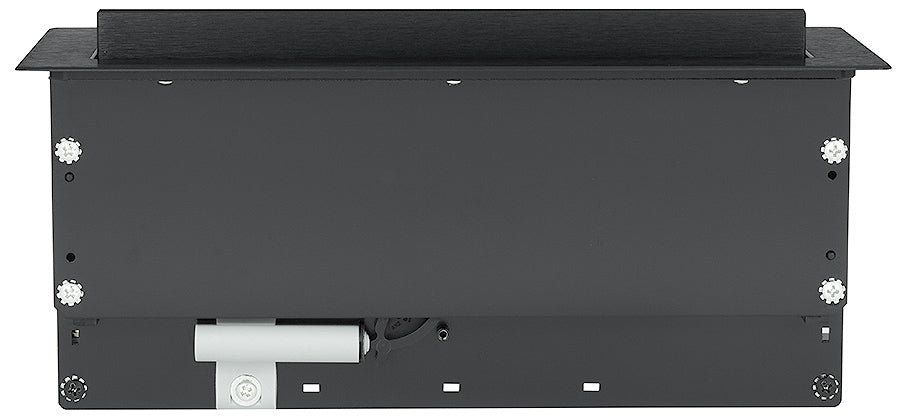

Buying the enclosure and the power module as separate line items is how most multi-region projects are specified: one enclosure part number for the whole estate, then the correct AC or AC+USB module for each country. This part number covers the black-anodized enclosure with all three connectivity brackets already in the box. The clamp system draws the body up against the underside of the surface without additional fixings, and the patented modular construction lets cables and AAP modules be serviced from above once the table is in use.

Key Capabilities

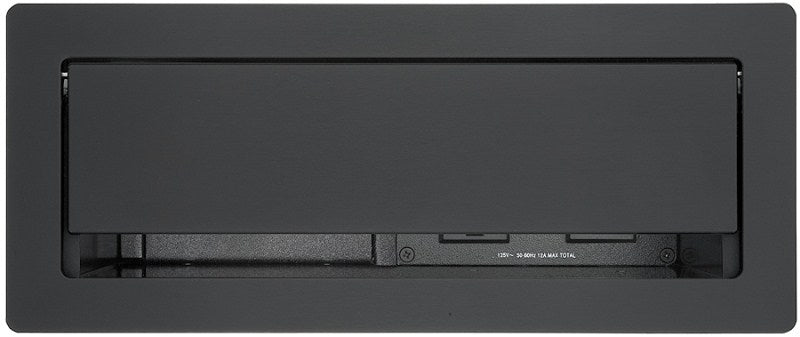

• Black anodized top surface; AC power module is not included with this part.

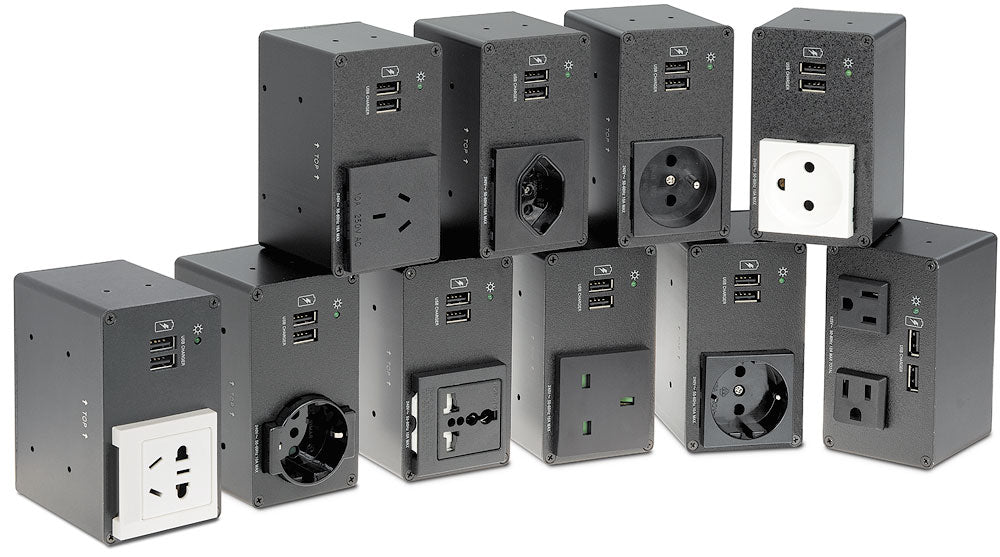

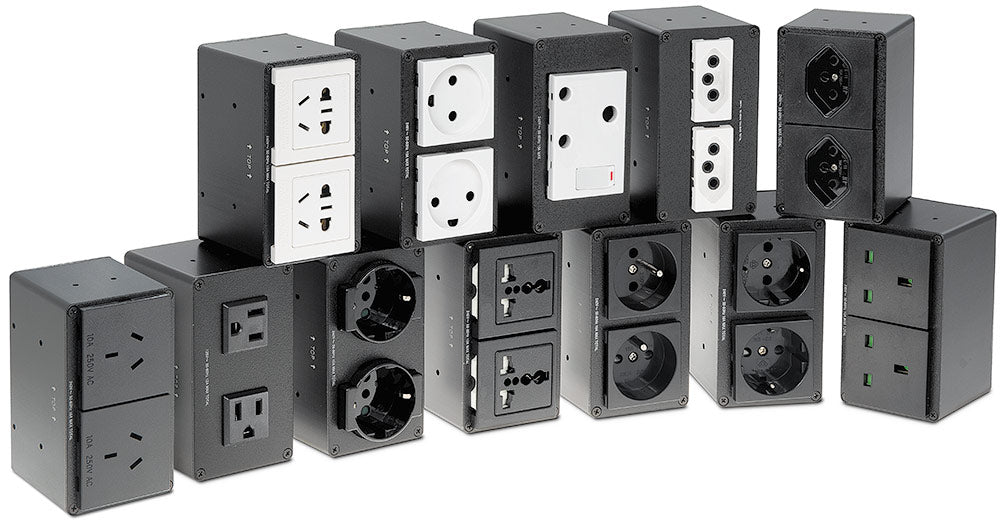

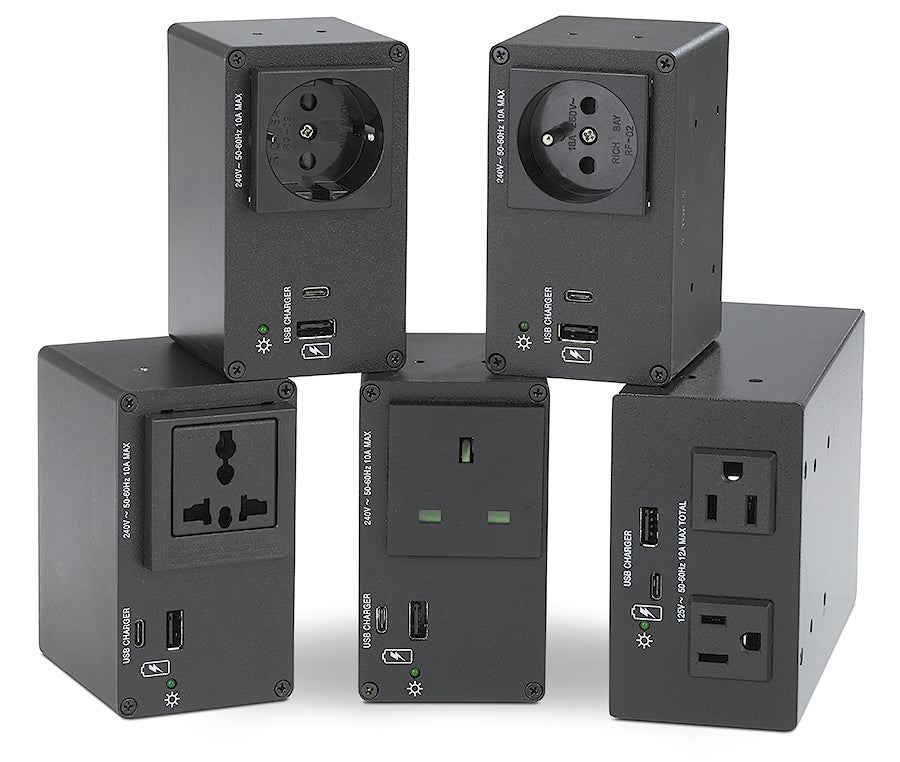

• Accepts one AC or AC+USB series power module when one is added.

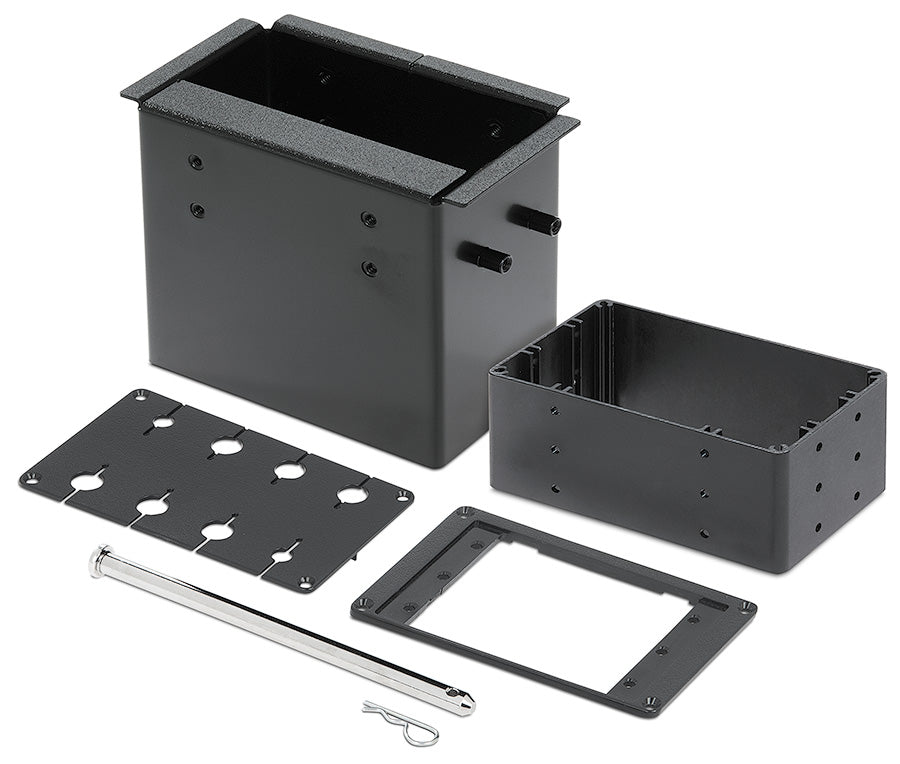

• Retractor Bracket holds three Retractor Series or Retractor Series XL modules.
• Cable Pass-Through Bracket supports up to eight AV cables.
• Connectivity Bracket supports up to three single-space AAP modules.

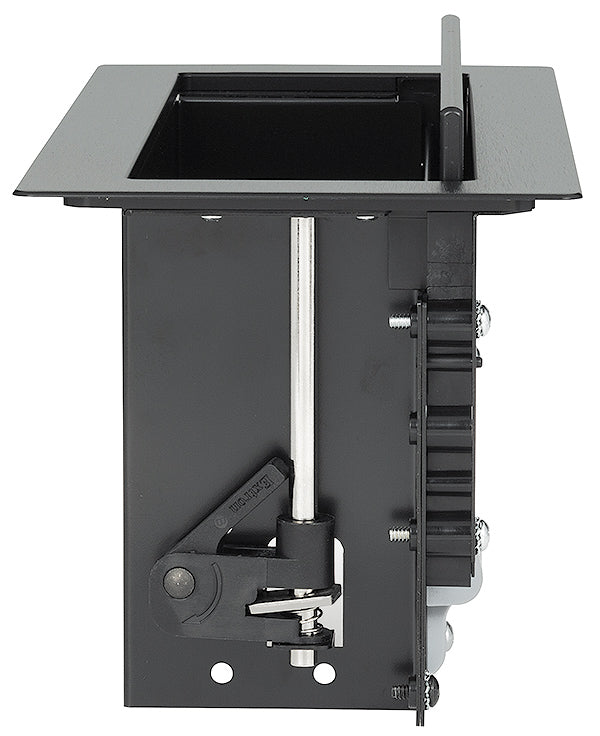

• Integrated clamp system fixes the enclosure without additional parts or tools.

Where It Is Used

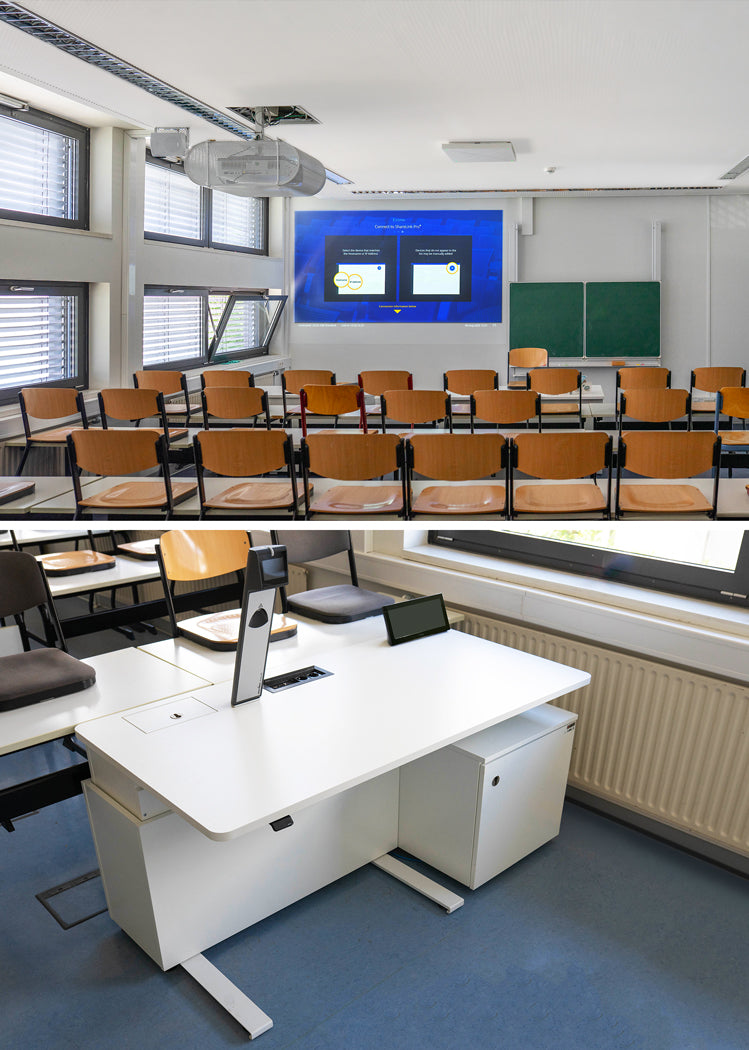

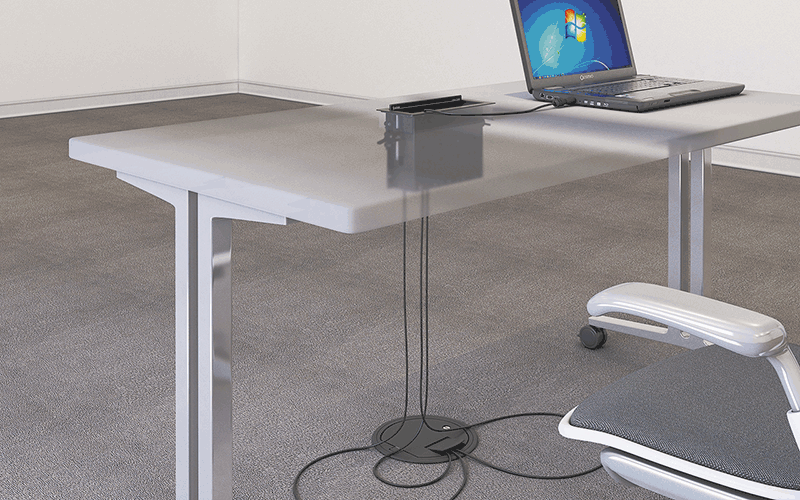

Boardrooms, lecture theatres, huddle tables and training rooms on multi-country rollouts, and any project where the AV enclosure is ordered ahead of the electrical decision. The shallow 4.46 in body also helps on desks with limited clearance below.

Specifications at a Glance

• Top plate (outer rim): 10.57 in W x 4.58 in D (269 mm x 116 mm)
• Surface cutout: 10.00 in W x 4.00 in D (254 mm x 102 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Regulatory: CE, RoHS, WEEE; enclosure type metal

Optional accessories include the Routing Template 70-1041-80. Also referenced as Extron CableCubby1202, Cable-Cubby-1202, part number 70118402.
