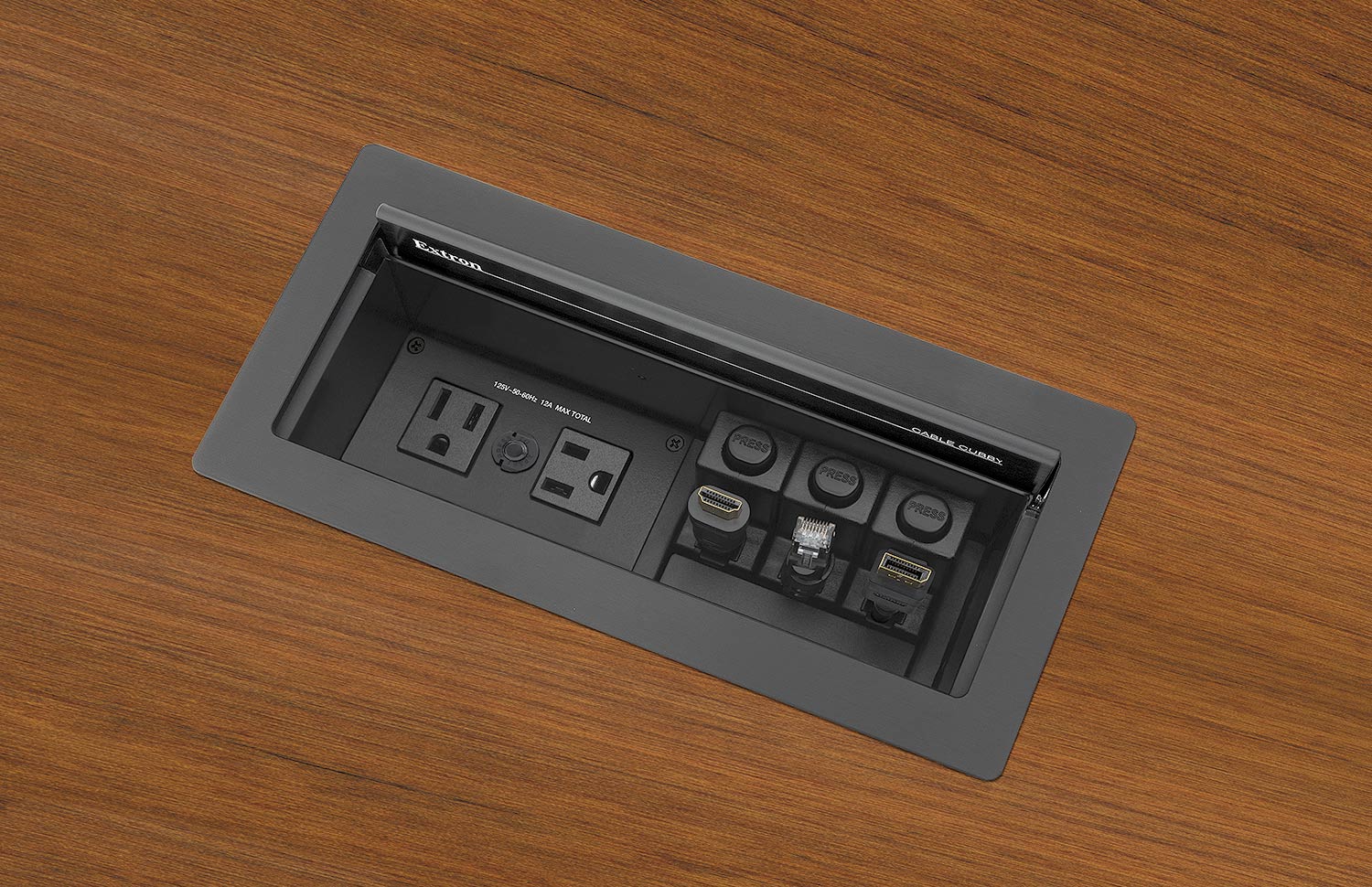

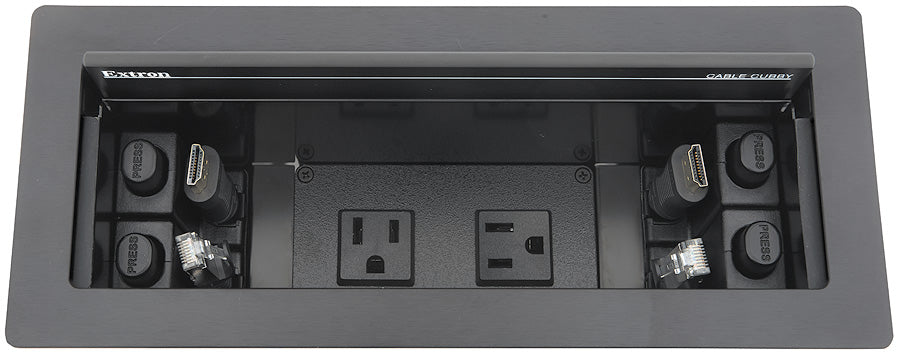

Extron Cable Cubby 1202 (part number 60-1894-02) — the black-finish build supplied with a two-outlet US AC module, a 12 A breaker and two outlets underneath.

This is the version to specify when the table has to provide mains power as well as signal. The US AC module is already fitted, so an installer only cuts the opening, drops the enclosure in and lets the integrated clamp system pull it tight against the surface — no separate hardware and no tools for that step. Inside, the supplied brackets take three Retractor modules, eight AV cables, or three single-space AAP AV Connectivity Modules, and the modular layout means those can be reached from the top of the table after installation rather than from underneath.

Key Capabilities

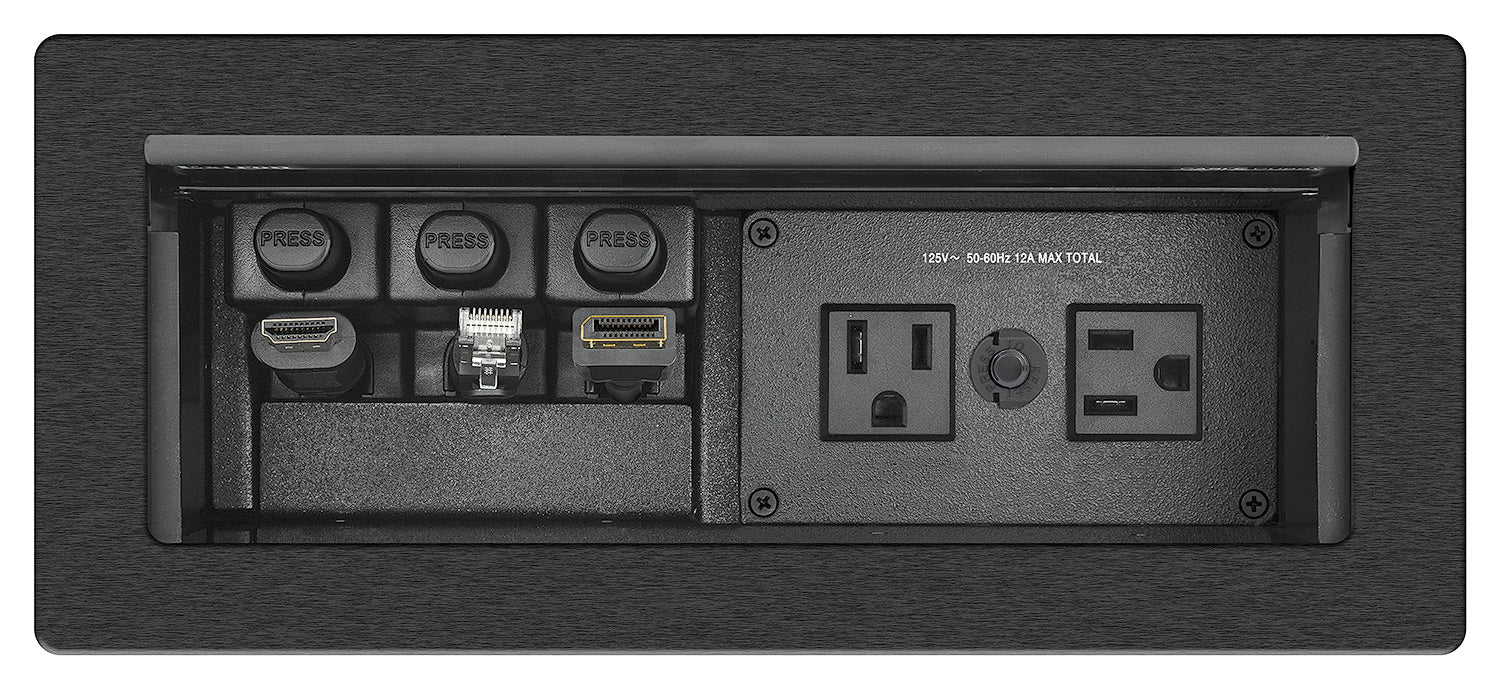

• Two US AC outlets with a 12 A breaker, plus two outlets under the table.
• US AC module rated 125 VAC, 50-60 Hz, 12 A maximum total.

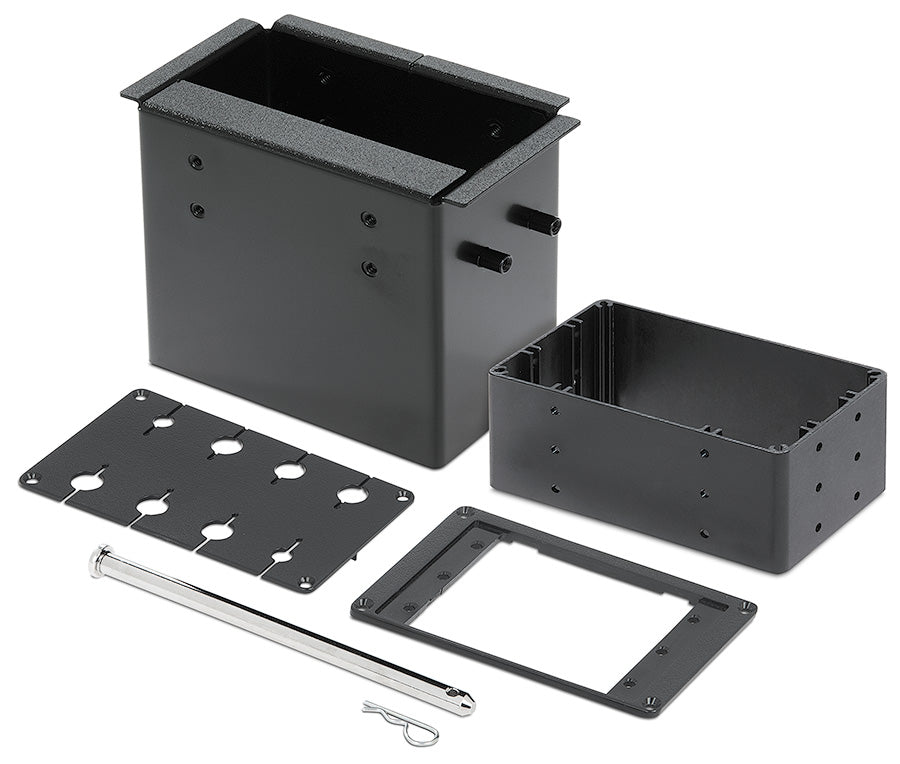

• Retractor, Cable Pass-Through and AAP brackets all included in the box.
• Holds three Retractor modules, eight AV cables, or three single-space AAP modules.
• Integrated clamp system secures the enclosure without extra parts or tools.

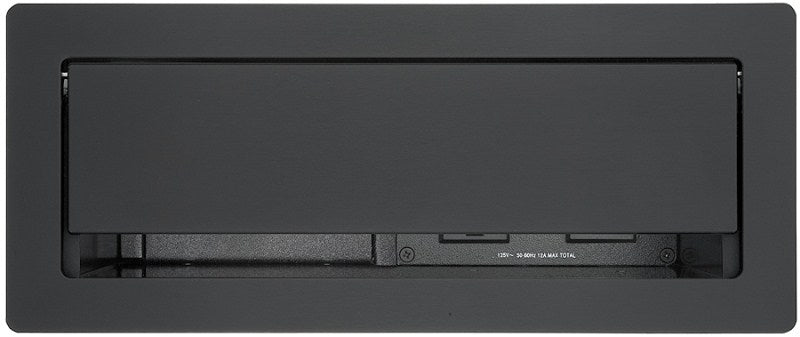

• Lid damper gives a controlled, quiet close; black anodized top surface.

Where It Is Used

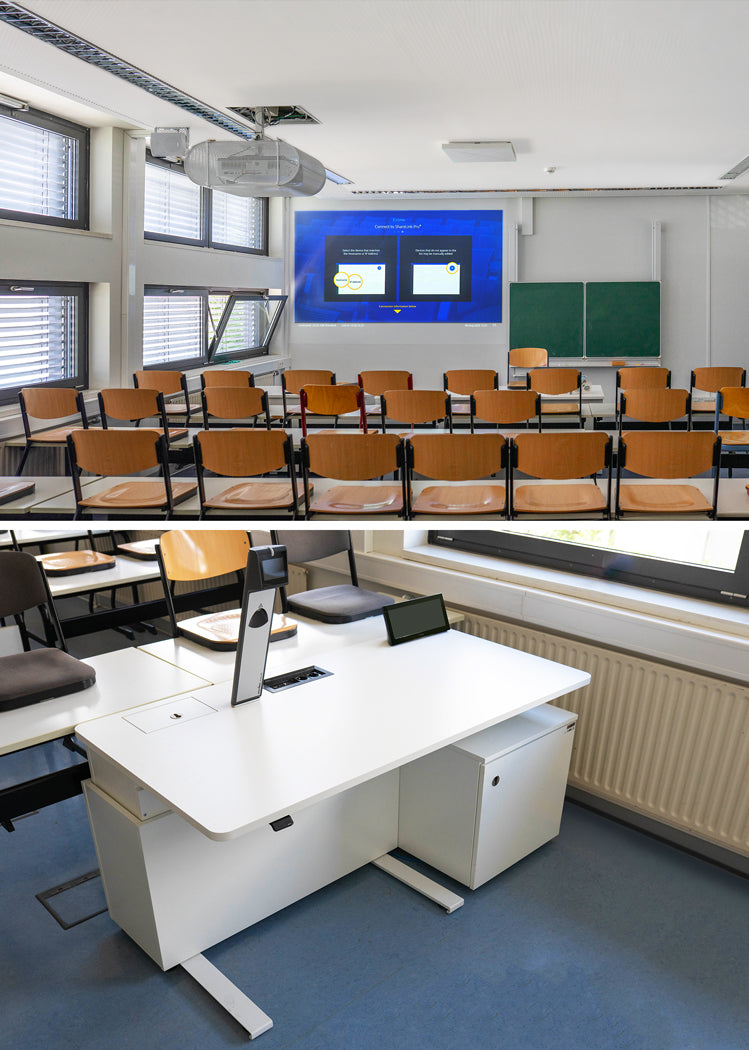

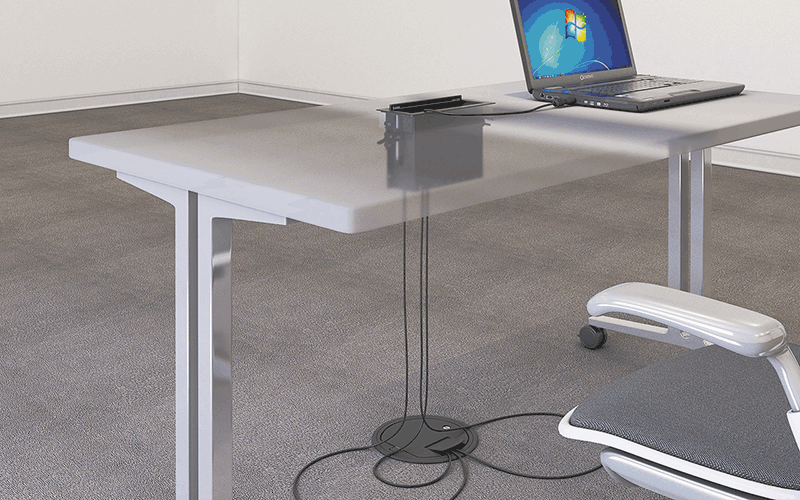

Conference tables, executive desks, lecterns and training-room work surfaces where under-table clearance is tight. The slim body sits 2 in (51 mm) shallower than the model it replaced, which also suits semi-permanent folding tables in modular spaces.

Specifications at a Glance

• Top plate (outer rim): 10.57 in W x 4.58 in D (269 mm x 116 mm)
• Surface cutout: 10.00 in W x 4.00 in D (254 mm x 102 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Regulatory: CE, RoHS, WEEE; UL and c-UL in the US configuration

Retractor modules, cables and AAP modules are ordered separately. Also referenced as Extron CableCubby1202, Cable-Cubby-1202, part number 60189402.
