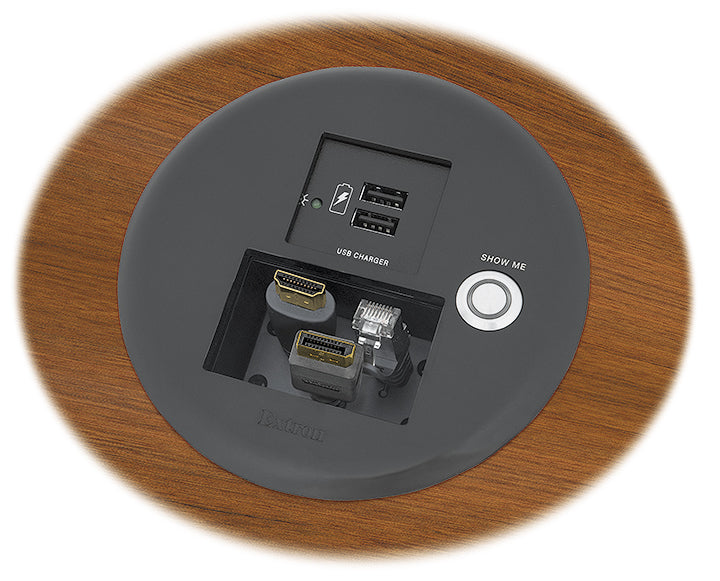

Extron Cable Cubby 100 USB Power (part number 60-1592-12) — the USB charging build of the Cable Cubby 100, offering two DC power ports instead of a mains outlet.

Many meeting spaces no longer need a mains socket at every seat; what people actually want is somewhere to charge a phone or tablet while they present. This configuration puts two USB power ports in the enclosure, driven by an external supply, and keeps room for two MAAP Mini AV Connectivity Modules, one Retractor Series module, or three AV cables. Because the ports are low voltage, the furniture only carries a DC feed to the box rather than mains cabling.

Key Capabilities

• Two USB power outlets at 5 VDC, up to 2.4 A on one port, 3.0 A shared total.
• External supply: 100-240 VAC input, 12 VDC 1.5 A 18 watt output.
• Device draw 17.1 watts; 19.5 watts including the power supply.
• Thermal dissipation of 8.1 BTU/hr for the device, 16.3 BTU/hr with the supply.
• Two MAAP modules, one Retractor module, or three AV cables fit alongside.
• c-UL and UL listed, plus CE, C-tick, FCC Class A, ICES and VCCI Class A.

Where It Is Used

Huddle rooms, collaborative classrooms, library study tables, airport and hotel lounge furniture, and clinic waiting areas where device charging matters more than a full mains outlet and low-voltage wiring simplifies the installation.

Specifications at a Glance

• Power output: 5 VDC, up to 2.4 A single port, 3.0 A total shared
• Surface cutout: 4.00 in (102 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L
• Product weight with USB power module: 1.5 lbs (0.7 kg)
• Everlast power supply warranty: 7 years parts and labor

Also referenced as Extron CableCubby100USBPower, Cable-Cubby-100-USB-Power, part number 60159212.
