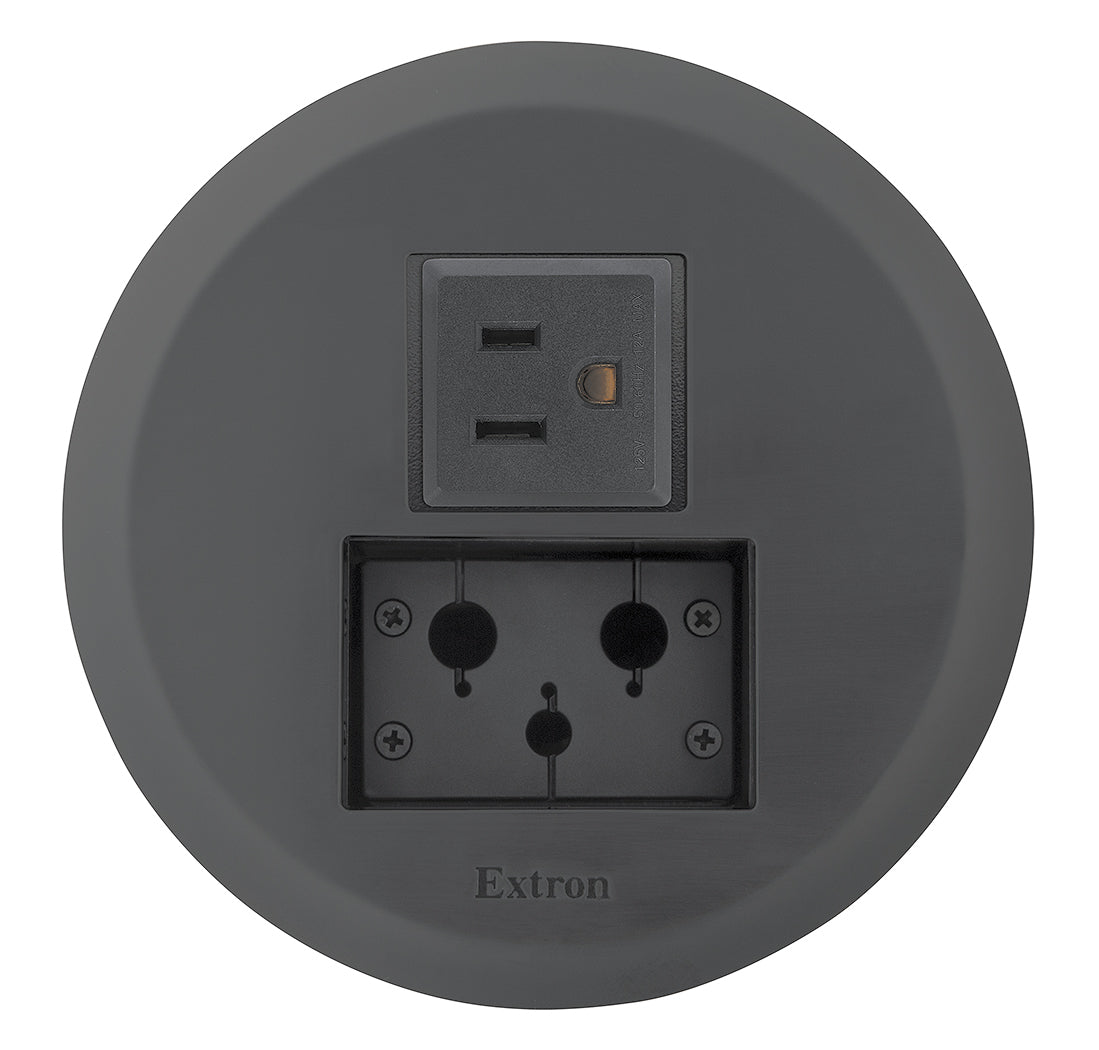

Extron Cable Cubby 100 US AC (part number 60-1933-01) — Extron's current US-outlet build of the Cable Cubby 100 furniture-mount enclosure, listed by Extron as the one-US-outlet version.

The appeal of this enclosure is how little furniture it consumes. One round cut, one small metal body under the surface, and the table gains both mains power and an AV connection point. The AC module occupies part of the interior; what remains accepts two MAAP Mini AV Connectivity Modules, a single Retractor Series module, or three AV cables. Because the bezel uses a split-ring arrangement, a technician can service a cable from the top of the table rather than working underneath it.

Key Capabilities

• One unswitched US AC outlet, 125 VAC at 50-60 Hz, 6 A maximum.
• Remaining space takes two MAAP modules, one Retractor module, or three AV cables.
• Cables can be added or removed from above, before or after the box is installed.
• Requires only a 4.00 in (102 mm) round hole saw cut.
• Metal enclosure, plastic top bezel; 2.0 lbs (0.9 kg) with the AC module.
• c-UL and UL listed; RoHS and WEEE compliant; 3-year warranty.

Where It Is Used

Corporate meeting rooms, higher-education classrooms, council chambers, and medical imaging review rooms across North America, wherever a discreet powered connection point is wanted at each working position on a table.

Specifications at a Glance

• Power output: 125 VAC, 50-60 Hz, 6 A max
• Top bezel plate: 5.20 in (132 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L
• Product weight with US AC module: 2.0 lbs (0.9 kg)
• Regulatory: c-UL, UL, RoHS, WEEE

Also referenced as Extron CableCubby100USAC, Cable-Cubby-100-US-AC, part number 60193301.
