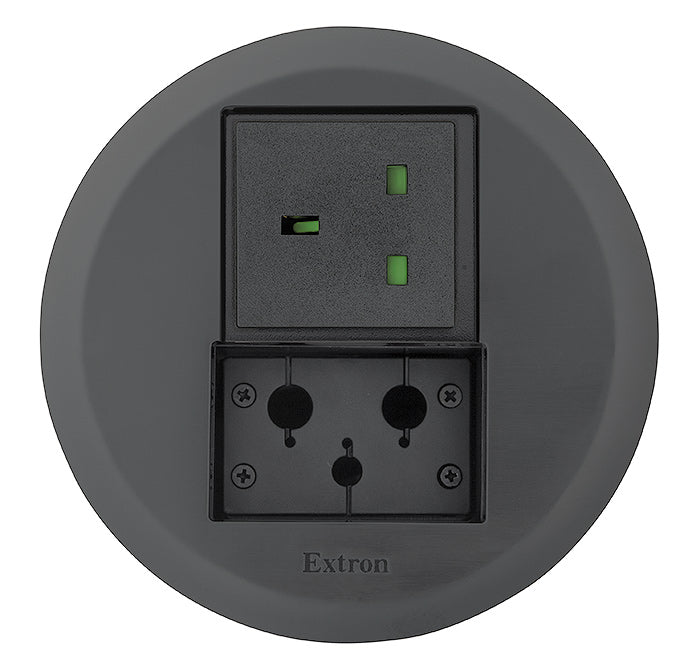

Extron Cable Cubby 100 UK AC (part number 60-1592-02) — the UK-outlet build of the Cable Cubby 100, pairing one mains socket with AV connectivity in a round furniture-mount enclosure.

British and Irish installations need a UK-pattern socket at the table, and this part number provides one inside the same compact body that carries the signal connections. Alongside the AC module the enclosure accepts two MAAP Mini AV Connectivity Modules, one Retractor Series module, or three AV cables. The bezel finishes flush with the tabletop and its split-ring opening allows a lead to be introduced from above at any stage, so late changes do not mean dismantling the furniture.

Key Capabilities

• One unswitched UK AC outlet rated 240 VAC, 50-60 Hz, 10 A maximum.
• Two MAAP modules, one Retractor module, or three AV cables fit alongside the outlet.
• Cut once with a 4.00 in (102 mm) round hole saw to install.
• Plastic top bezel 5.20 in (132 mm) in diameter over a metal enclosure.
• Installed weight of 1.3 lbs (0.6 kg) with the non-US AC module.
• RoHS and WEEE compliant; 3-year parts and labor warranty.

Where It Is Used

UK corporate boardrooms, university seminar rooms, NHS and private hospital meeting facilities, and public-sector committee tables where every position needs a socket and an AV feed from one tidy opening.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max
• Surface cutout: 4.00 in (102 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L
• Product weight with non-US AC module: 1.3 lbs (0.6 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron CableCubby100UKAC, Cable-Cubby-100-UK-AC, part number 60159202.
