Extron Cable Cubby 100 Switch Kit (part number 70-1111-02) — an add-on contact closure and indicator for Cable Cubby 100 enclosures, listed by Extron for the US, USB and non-powered versions.

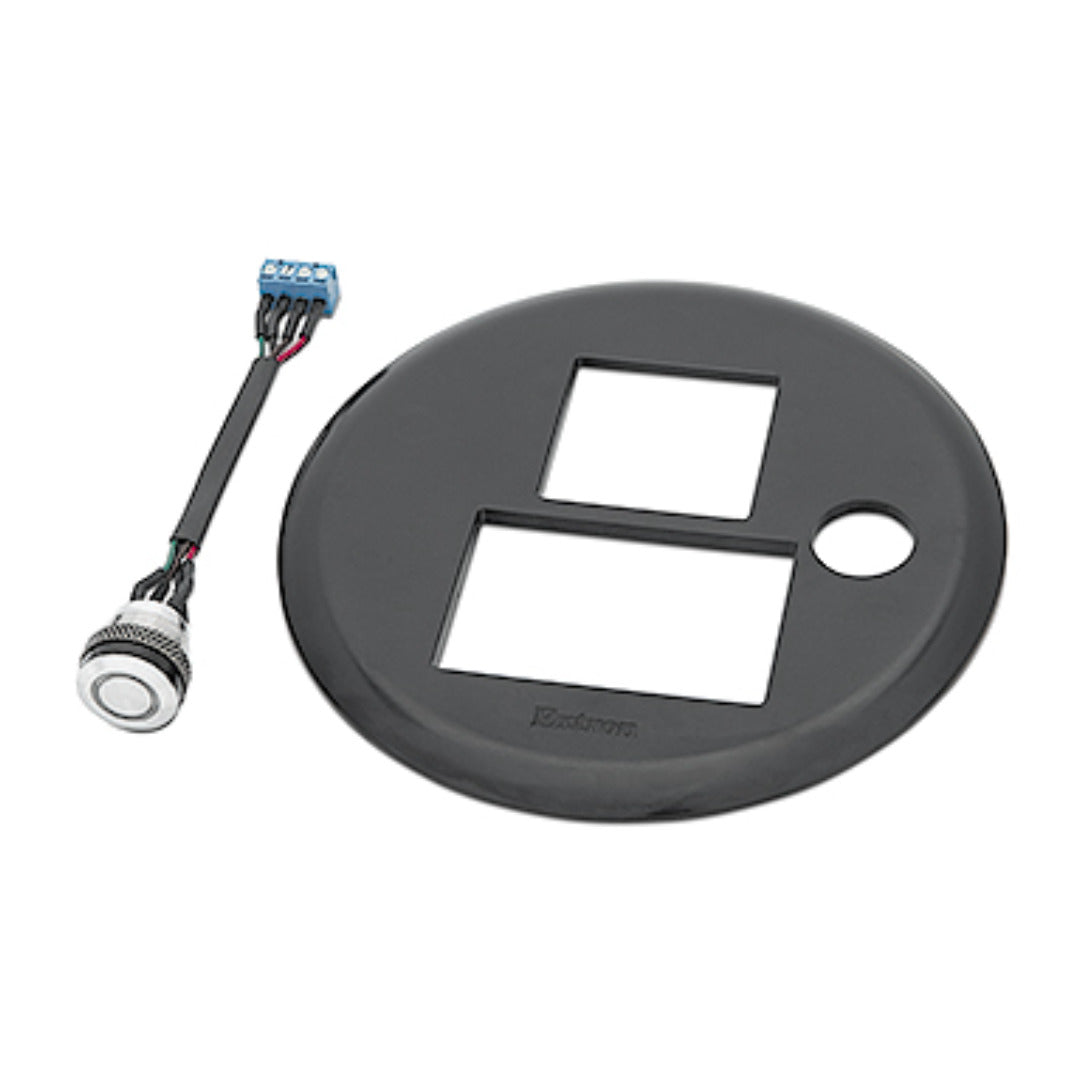

Sometimes the table box needs to do more than pass signal: a single button at the surface can wake a system, recall a preset, or trigger a control macro. This kit fits one normally-open single pole, single throw switch into a Cable Cubby 100, with a blue LED to show state. Wiring leaves the enclosure on a short pigtail terminated in a four-pole 3.5 mm captive screw connector, so it lands directly on a control processor's contact input without an adapter.

Key Capabilities

• One normally-open single pole, single throw switch for contact closure control.
• Blue LED indicator operating from a 5 VDC input.
• Contacts rated 2 A at 36 VDC, or 1 A at 125 VAC.
• Terminates on a 4-pole 3.5 mm captive screw connector on a 4 in (102 mm) pigtail.
• Listed by Extron for Cable Cubby 100 US, USB and non-powered enclosures.
• Light 0.2 lbs (0.1 kg) kit weight; RoHS and WEEE compliant.

Where It Is Used

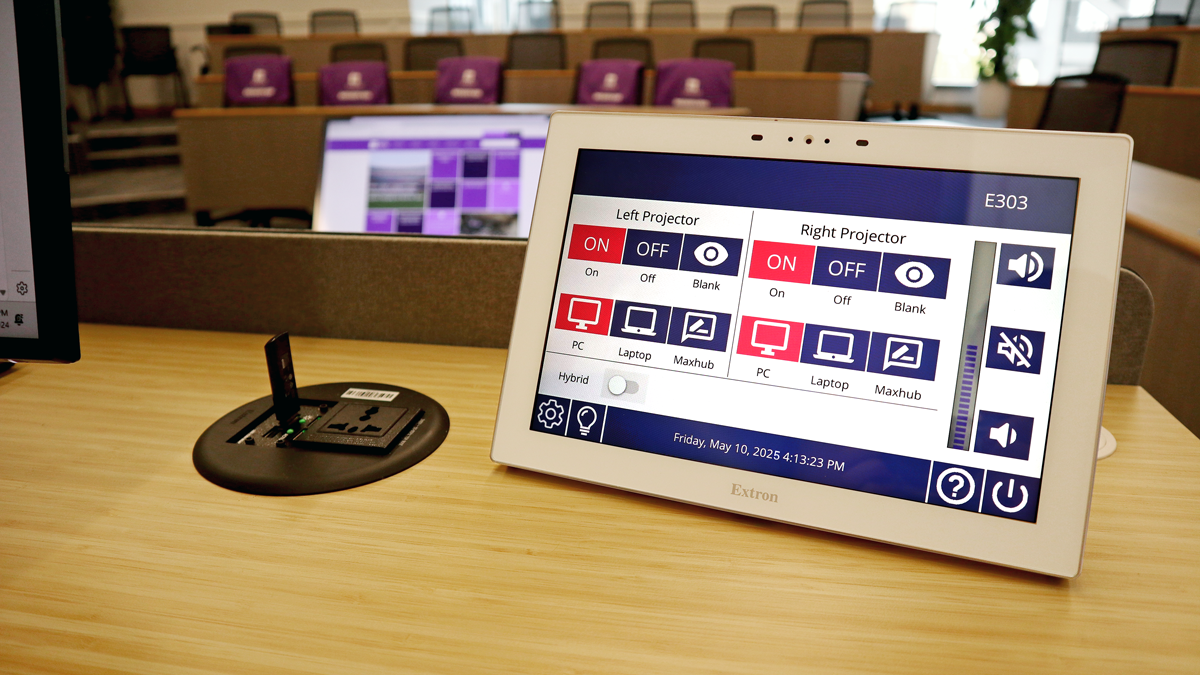

Boardrooms and classrooms with one-touch system start, courtroom and council positions needing a discreet request or mute button, and control rooms where an operator wants a physical trigger at the desk surface rather than on a touch panel.

Specifications at a Glance

• Quantity and type: (1) normally-open SPST switch
• Connector: (1) 4-pole 3.5 mm captive screw on a 4 in (102 mm) pigtail
• Contact rating: 2 A @ 36 VDC, 1 A @ 125 VAC
• LED: blue, 5 VDC input
• Kit weight: 0.2 lbs (0.1 kg)

The Cable Cubby 100 enclosure is ordered separately. Also referenced as Extron CableCubby100SwitchKit, Cable-Cubby-100-Switch-Kit, part number 70111102.
