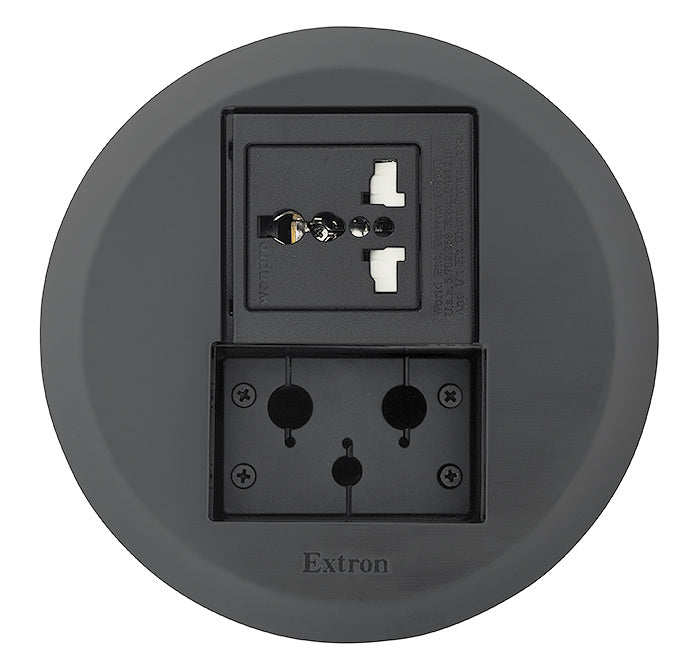

Extron Cable Cubby 100 MULTI AC (part number 60-1592-10) — the multi-region outlet build of the Cable Cubby 100, intended for organisations that specify one table box worldwide.

A global estate is easier to maintain when every room is built from the same drawing. This configuration fits a multi-region AC outlet into the standard Cable Cubby 100 body so the same part number can be specified across territories, with the balance of the interior available for two MAAP Mini AV Connectivity Modules, one Retractor Series module, or three AV cables. Extron advises reviewing the Multi-Region AC Outlet Setup Guide before this part number is ordered, since the outlet must be configured for the destination market.

Key Capabilities

• One unswitched multi-region AC outlet rated 240 VAC, 50-60 Hz, 10 A maximum.
• Two MAAP modules, one Retractor module, or three AV cables fit beside it.
• Consult the Extron Multi-Region AC Outlet Setup Guide before ordering.
• Installs through one 4.00 in (102 mm) round hole saw cut.
• Metal body, plastic top bezel 5.20 in (132 mm) in diameter.
• 1.3 lbs (0.6 kg) installed; RoHS and WEEE compliant.

Where It Is Used

Multinational corporate meeting-room programmes, international conference centres, embassy and NGO facilities, and global pharmaceutical or medical campuses where a single furniture specification has to work in several electrical markets.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max
• Surface cutout: 4.00 in (102 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L
• Product weight with non-US AC module: 1.3 lbs (0.6 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron CableCubby100MULTIAC, Cable-Cubby-100-MULTI-AC, part number 60159210.
