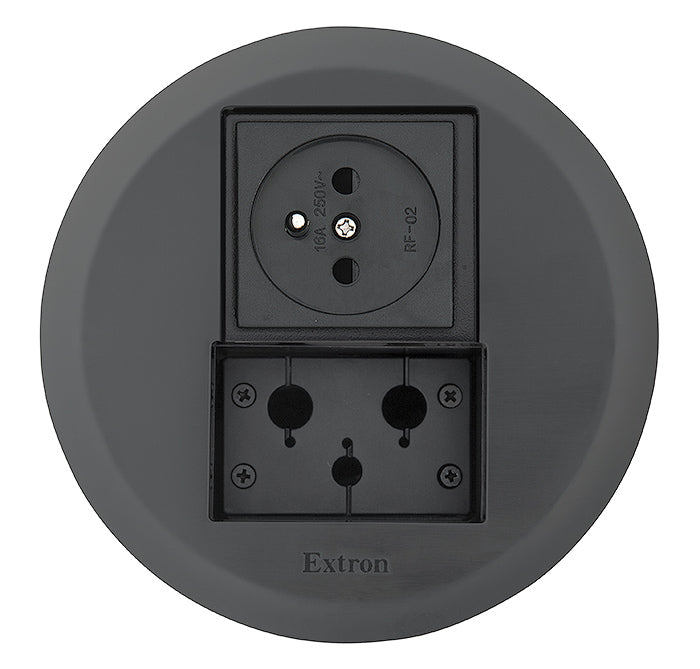

Extron Cable Cubby 100 FR AC (part number 60-1592-06) — the French-outlet build of the Cable Cubby 100 furniture-mount enclosure, delivering mains power and AV connectivity from one small round opening.

French installations use their own socket pattern, and this part number carries it inside the standard Cable Cubby 100 body rather than requiring a second box in the furniture. Beside the AC module the enclosure will hold two MAAP Mini AV Connectivity Modules, one Retractor Series module, or three AV cables. Because the bezel is split, a cable that is already terminated can be laid into the enclosure from the tabletop, which keeps commissioning and later service work above the surface.

Key Capabilities

• One unswitched French AC outlet rated 240 VAC, 50-60 Hz, 10 A maximum.
• Two MAAP modules, one Retractor module, or three AV cables fit alongside.
• Single 4.00 in (102 mm) round hole saw cut completes the furniture work.
• Metal enclosure with a plastic top bezel 5.20 in (132 mm) in diameter.
• Installed weight 1.3 lbs (0.6 kg) with the non-US AC module.
• RoHS and WEEE compliant; 3-year parts and labor warranty.

Where It Is Used

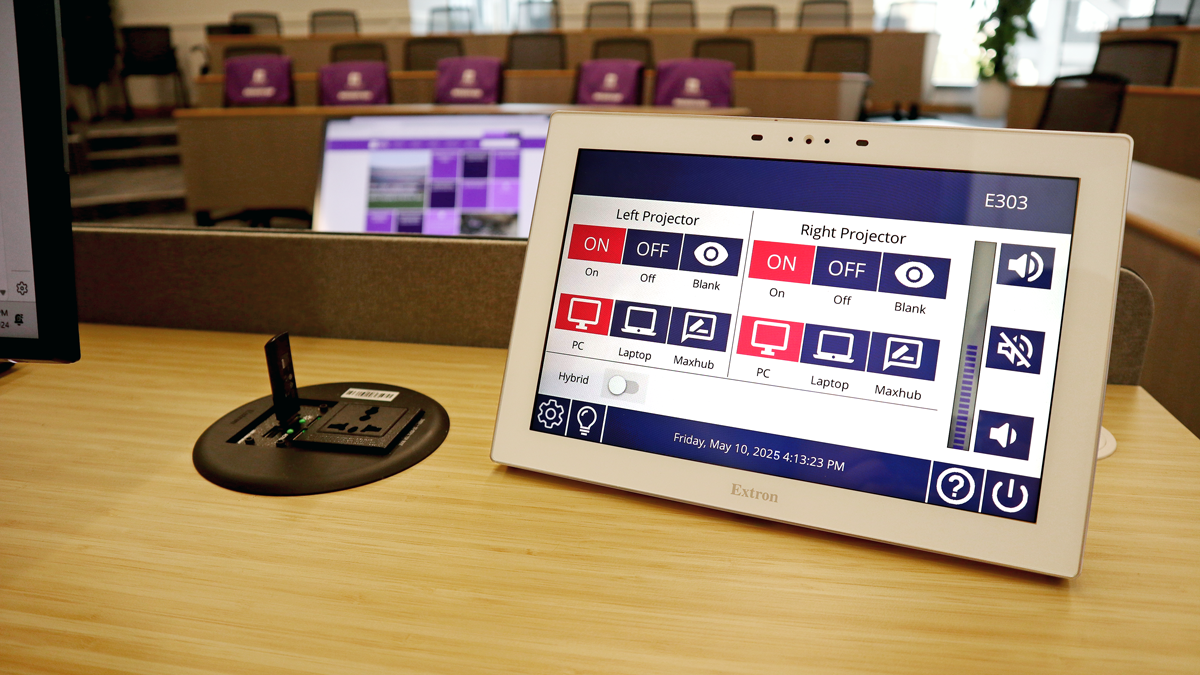

French corporate meeting rooms, grandes ecoles and university lecture spaces, municipal council chambers, and clinical conference rooms where a discreet powered connection is required at each seat around the table.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max
• Surface cutout: 4.00 in (102 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L
• Product weight with non-US AC module: 1.3 lbs (0.6 kg)
• Mounting: furniture mount, on top of the surface

Also referenced as Extron CableCubby100FRAC, Cable-Cubby-100-FR-AC, part number 60159206.
