Extron Cable Cubby 100 EU AC (part number 60-1592-03) — the European-outlet build of the Cable Cubby 100 round furniture-mount enclosure, combining mains power with AV connectivity.

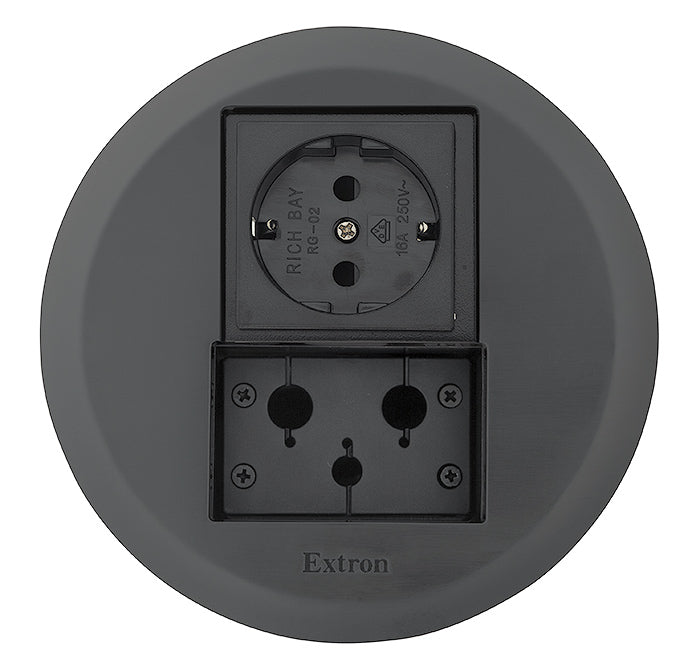

Continental European rooms need a Schuko-region socket at the working surface, and this part number supplies one inside the same small body that carries the signal connections. What remains of the interior takes two MAAP Mini AV Connectivity Modules, one Retractor Series module, or three AV cables. Installation is a single round cut in the tabletop; the plastic bezel then finishes level with the surface and its split-ring opening allows a cable to be introduced or withdrawn from above rather than from underneath.

Key Capabilities

• One unswitched European AC outlet rated 240 VAC, 50-60 Hz, 10 A maximum.
• Two MAAP modules, one Retractor module, or three AV cables fit beside the outlet.
• Fits a 4.00 in (102 mm) round hole cut with a standard hole saw.
• Top bezel plate 5.20 in (132 mm) in diameter; metal enclosure below.
• Weighs 1.3 lbs (0.6 kg) with the non-US AC module installed.
• RoHS and WEEE compliant, with a 3-year parts and labor warranty.

Where It Is Used

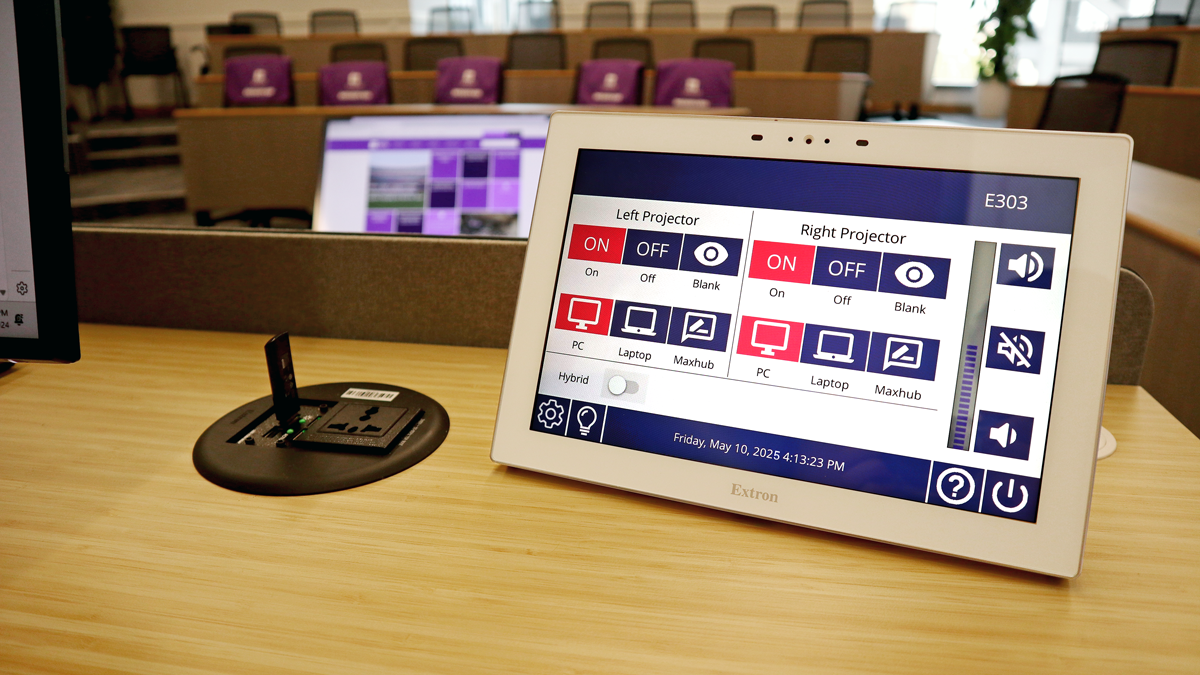

European corporate meeting rooms, technical universities, research institutes, and conference centres where each table position must offer a mains socket and a laptop connection without a bulky pop-up box.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max
• Surface cutout: 4.00 in (102 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L
• Product weight with non-US AC module: 1.3 lbs (0.6 kg)
• Enclosure type: metal enclosure, plastic top bezel

Also referenced as Extron CableCubby100EUAC, Cable-Cubby-100-EU-AC, part number 60159203.
