Extron Cable Cubby 100 AUS AC (part number 60-1592-04) — the Australian-outlet build of the Cable Cubby 100, giving a table both a mains socket and an AV connection point from one round cutout.

Rooms in Australia and New Zealand need the local pin pattern at the working surface. This configuration provides one unswitched Australian AC outlet inside the compact metal body, and leaves the balance of the interior for signal: two MAAP Mini AV Connectivity Modules, a single Retractor Series module, or three AV cables. The bezel sits flush with the tabletop, and its split-ring construction means an installer can drop a terminated cable in from above instead of threading it through from below.

Key Capabilities

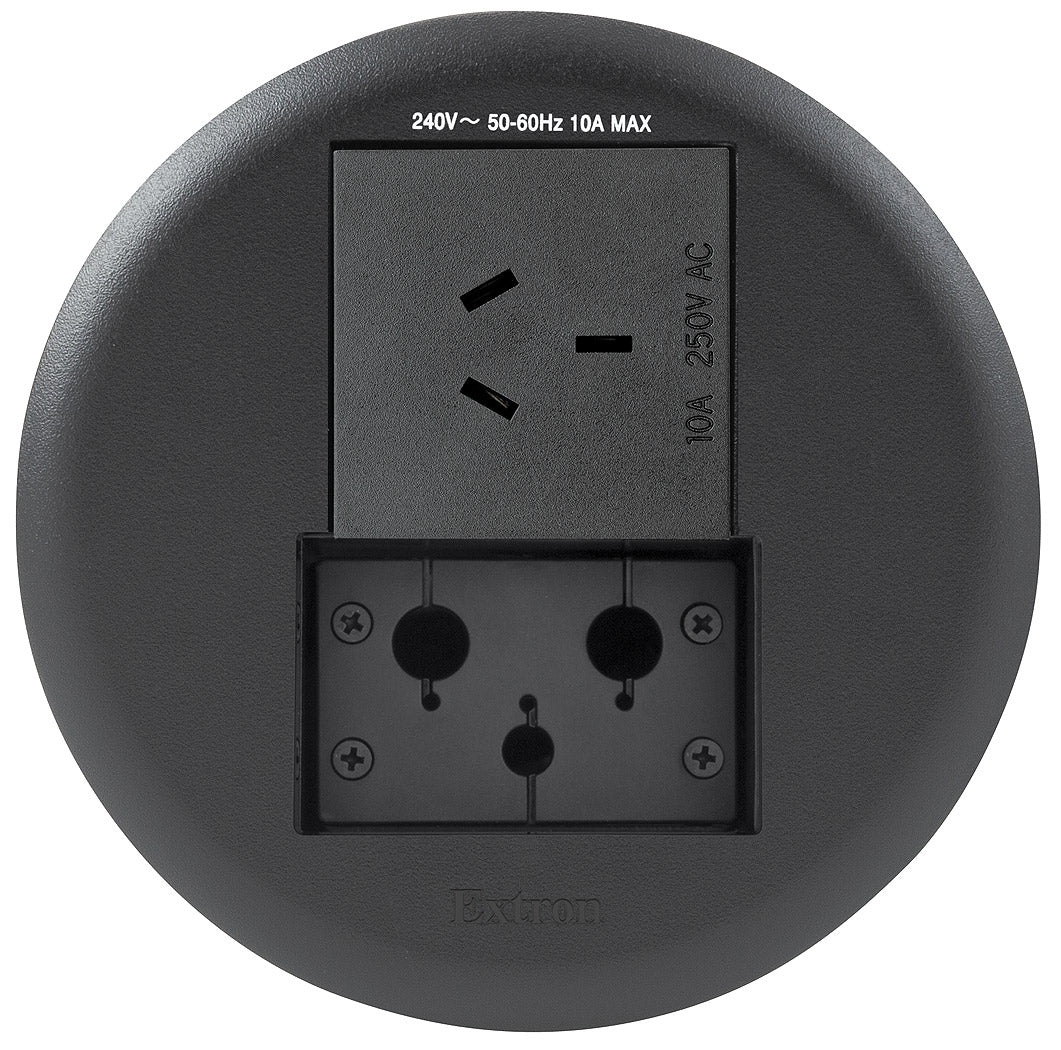

• One unswitched Australian AC outlet rated 240 VAC, 50-60 Hz, 10 A maximum.
• Accepts two MAAP modules, one Retractor module, or three AV cables alongside.
• Installs through a 4.00 in (102 mm) round hole saw cut.
• Metal enclosure under a 5.20 in (132 mm) plastic top bezel.
• Under-surface body only 2.70 in H x 2.80 in W x 3.48 in L.
• 1.3 lbs (0.6 kg) installed; RoHS and WEEE compliant.

Where It Is Used

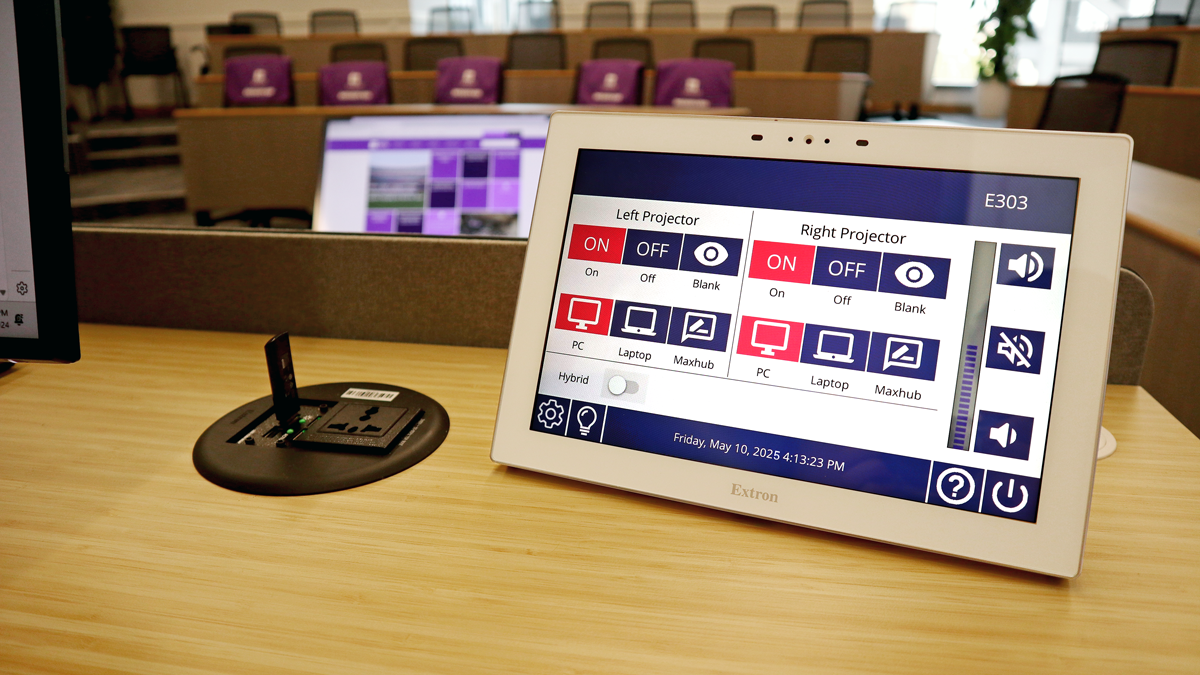

Australian and New Zealand boardrooms, TAFE and university teaching spaces, government committee rooms, and hospital conference facilities where a low-profile powered connection point is preferred over a large tabletop box.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max
• Top bezel plate: 5.20 in (132 mm) diameter circle
• Surface cutout: 4.00 in (102 mm) diameter circle
• Product weight with non-US AC module: 1.3 lbs (0.6 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron CableCubby100AUSAC, Cable-Cubby-100-AUS-AC, part number 60159204.
