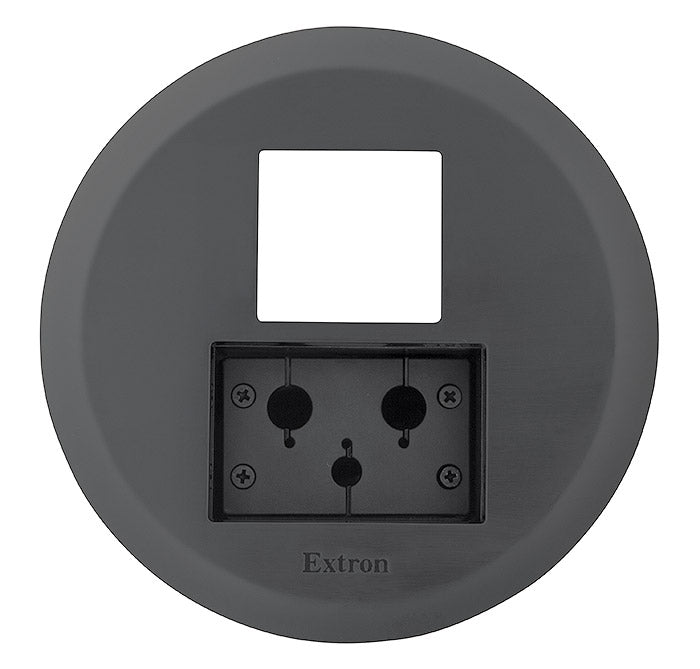

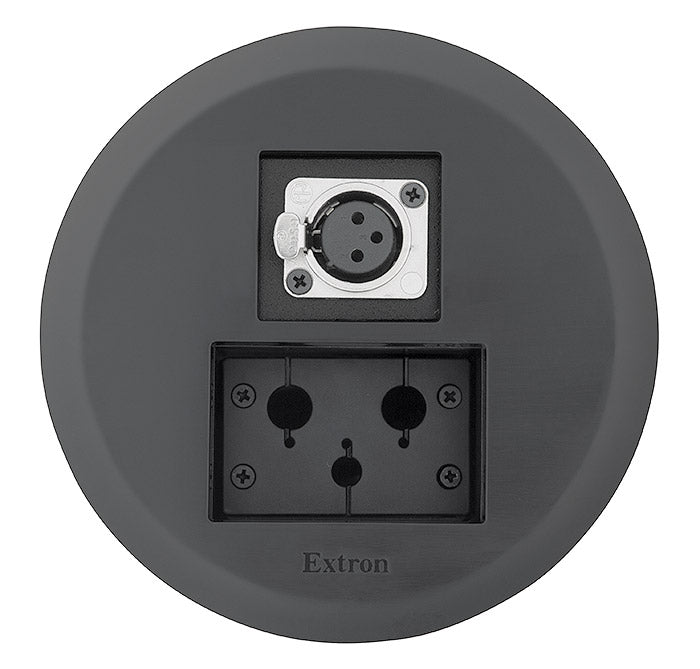

Extron Cable Cubby 100 (part number 70-1109-02) — the non-powered version of Extron's compact round table box, supplied for MAAP modules, AV cables, or a Retractor module.

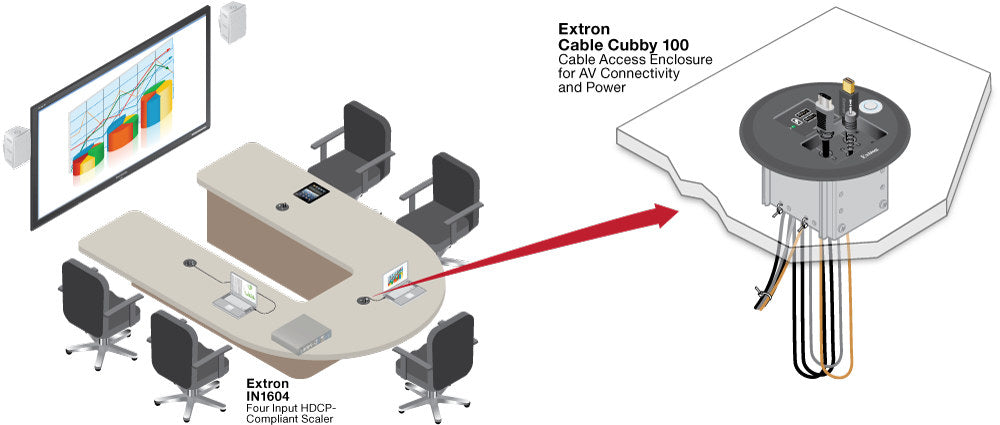

A meeting table needs connectivity without a large cutout or a visible clutter of leads. The Cable Cubby 100 answers that with a small metal body that drops through a single round hole in the furniture and presents a plastic bezel flush with the surface. This part number ships without a power module, so the entire interior is available for signal: up to four single-space MAAP Mini AV Connectivity Modules, or three AV cables together with two single-space MAAP modules, and a Retractor module can also be accommodated.

Key Capabilities

• Non-powered configuration — all internal space is given over to AV connectivity.
• Holds up to four single-space MAAP modules, or three AV cables plus two MAAP modules.
• Split-ring bezel design lets a cable be dropped in or pulled for service from above.
• One 4.00 in (102 mm) round hole saw cut is all the furniture work required.
• Metal enclosure with a plastic top bezel, 5.20 in (132 mm) in diameter.
• Compact under-surface body: 2.70 in H x 2.80 in W x 3.48 in L.

Where It Is Used

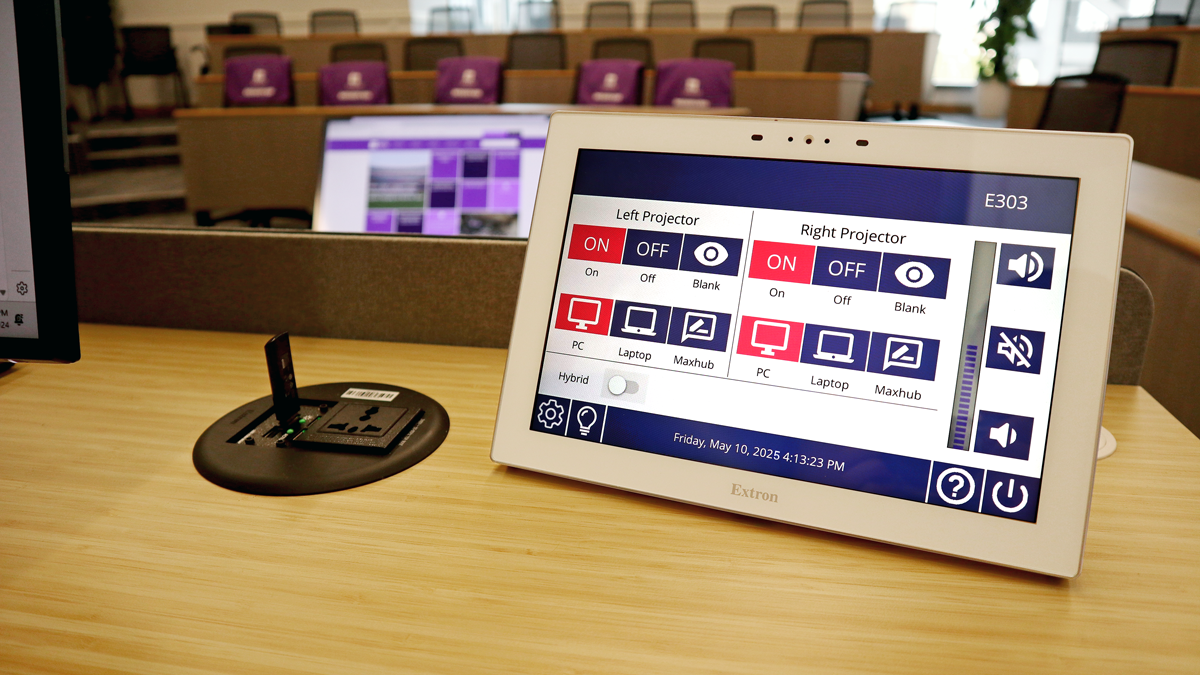

Conference and huddle tables, classroom and lecture-hall desks, courtroom benches, and clinical review workstations where an unobtrusive connection point is needed and mains power is already provided elsewhere on the furniture.

Specifications at a Glance

• Top bezel plate: 5.20 in (132 mm) diameter circle
• Surface cutout: 4.00 in (102 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L (69 x 71 x 88 mm)
• Product weight: 1.0 lbs (0.5 kg)
• Warranty: 3 years parts and labor

The optional Cable Cubby 100 Retractor Bracket (70-1040-06) is ordered separately. Also referenced as Extron CableCubby100, Cable-Cubby-100, part number 70110902.
