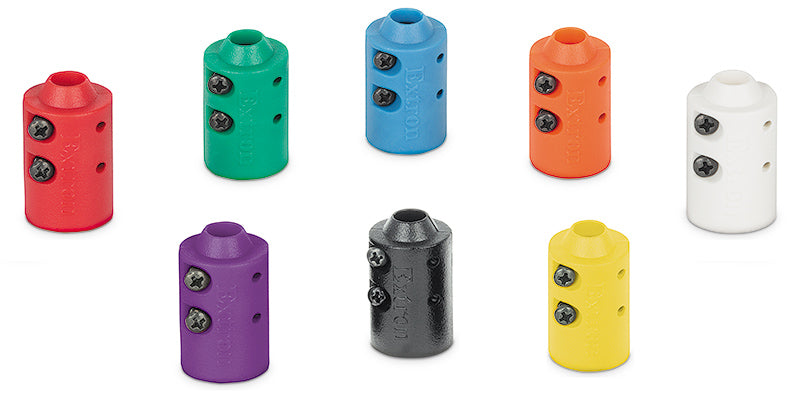

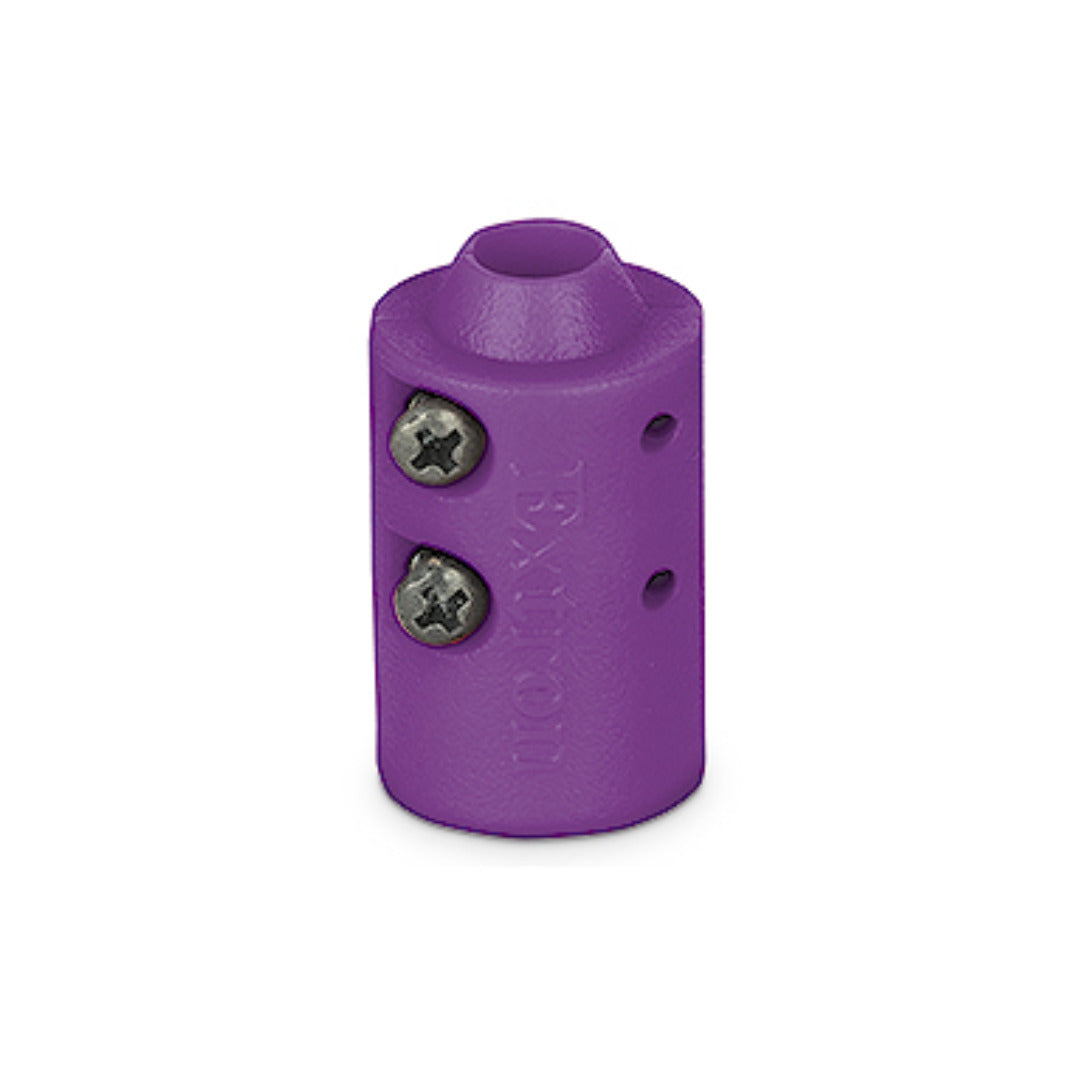

Extron Cable Collar Kit (part number 70-1067-20) — a ten-piece purple cable collar pack for installations that need an additional identification color.

Large rooms often run out of obvious colors long before they run out of cables. Purple gives an integrator one more distinct marker without repeating an existing assignment. The ten collars in this kit each close around a cable using a cover, a base, and four fasteners, holding the cable straight and upright in the well of an Extron Cable Cubby, TouchLink, or AVEdge enclosure so it can be picked up without fishing for it.

Key Capabilities

• Ten purple collars per kit, a single color, extending an existing coding scheme.
• Two-piece construction installs on cable that is already run and terminated.
• Locator pins and four fasteners produce a firm, repeatable clamp on the jacket.
• Base slot allows a breakout cable such as VGA with audio to pass through.
• Each kit weighs 0.1 lbs (0.1 kg); shipping weight is 1 lb (1 kg).
• Molded plastic, compliant with the applicable RoHS and WEEE requirements.

Where It Is Used

Multi-source boardrooms, broadcast and production control positions, and large lecture theatres where six or more cable types share a single table box. Purple also serves well for temporary or event cabling that must be removed after use.

Specifications at a Glance

• Color and quantity: purple, 10 collars
• Collar dimensions: 1.0" L x 0.6" OD x 0.22" ID (25.4 mm L x 15.2 mm OD x 5.6 mm ID)
• Material: plastic
• Product weight 0.1 lbs (0.1 kg); shipping weight 1 lb (1 kg)
• Warranty: 3 years parts and labor

Cables and Retractor Series modules are ordered separately. Also referenced as Extron CableCollarKit, Cable-Collar-Kit, part number 70106720.
