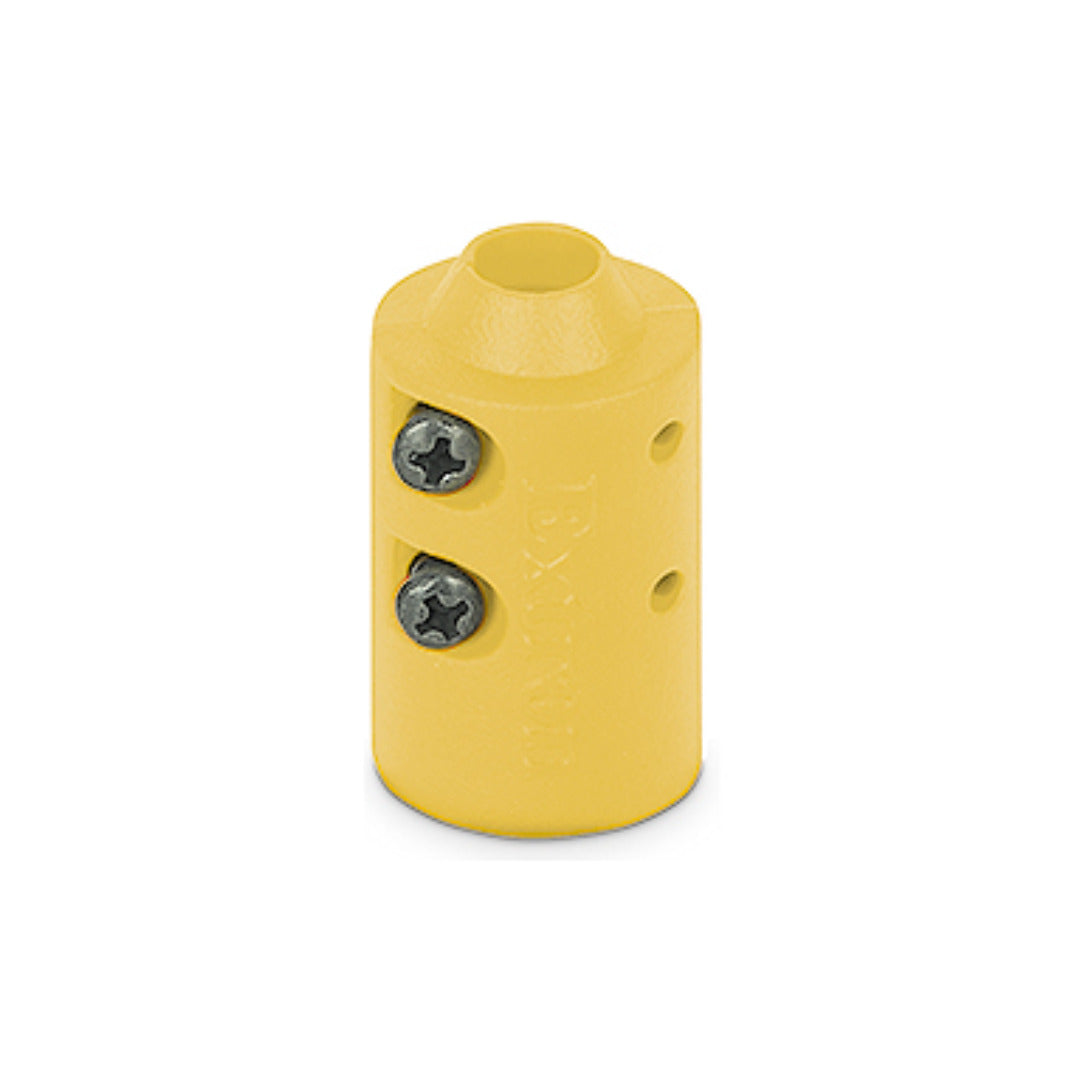

Extron Cable Collar Kit (part number 70-1067-18) — a ten-collar pack in yellow, sized for high-contrast identification of a single cable type.

Yellow is a natural caution color, which makes this kit a good fit for the lead that carries power, or for a cable an operator should check first when a room fails. Ten collars ship in the box, each assembled from a cover and base that capture the cable and hold it standing vertically inside an Extron Cable Cubby, TouchLink, or AVEdge enclosure so the connector never disappears into the bottom of the well.

Key Capabilities

• Ten yellow collars per kit, one color throughout, for a clear caution or priority marker.
• Molded locator pins register the cover to the base for a square, repeatable fit.
• Four fasteners lock the halves together around an already-terminated cable.
• Base slot passes a breakout assembly such as a VGA cable with a separate audio lead.
• 0.6 in outer diameter keeps several collars side by side in a crowded well.
• Rated to ISTA 1A in carton and compliant with RoHS and WEEE requirements.

Where It Is Used

Training rooms, multipurpose halls, and courtroom or council-chamber tables where the same connectivity box serves many operators. Yellow collars are also common in technical operations areas that follow a formal cable-color standard across an entire building.

Specifications at a Glance

• Color and quantity: yellow, 10 collars
• Collar dimensions: 1.0" L x 0.6" OD x 0.22" ID (25.4 mm L x 15.2 mm OD x 5.6 mm ID)
• Material: plastic
• Product weight 0.1 lbs (0.1 kg); shipping weight 1 lb (1 kg)
• Warranty: 3 years parts and labor

Cables and Retractor Series modules are ordered separately. Also referenced as Extron CableCollarKit, Cable-Collar-Kit, part number 70106718.
