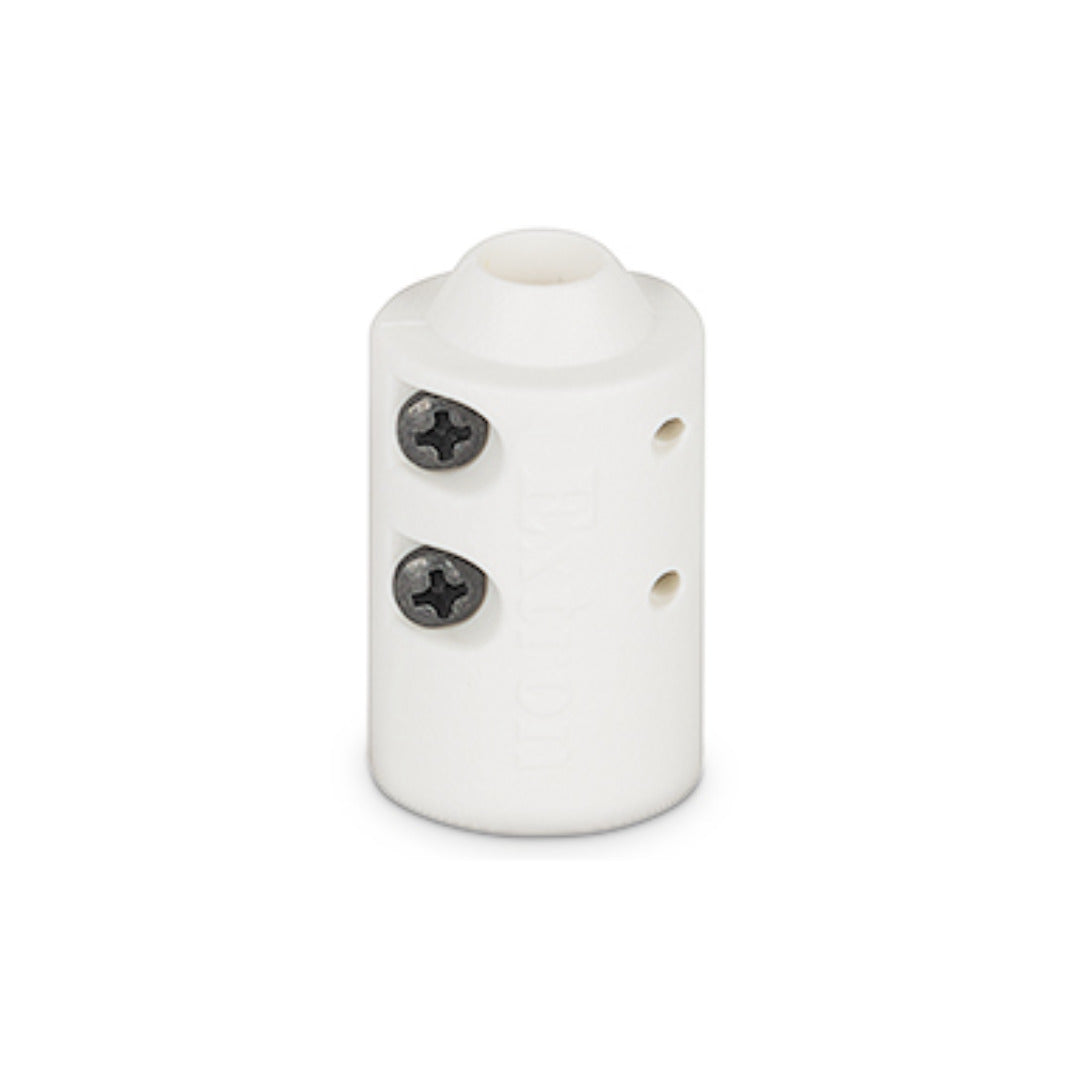

Extron Cable Collar Kit (part number 70-1067-16) — ten white cable collars that stand out against dark enclosure interiors and keep leads upright.

White is the practical choice when the inside of a table box is black or charcoal and a technician needs to find one specific lead under low house lights. This kit contains ten white collars, each formed from a cover and base that close around a cable using molded locator pins and four fasteners. Once fitted, the cable holds a vertical position in the enclosure well so its connector stays visible and easy to reach.

Key Capabilities

• Ten white collars per kit, one color throughout, for a repeatable labeling standard.
• Two-piece cover and base design fits around an already-terminated cable.
• Four fasteners secure the assembly; overtightening strips the threads and must be avoided.
• Collar body is 1.0 in long with a 15.2 mm outer diameter and 5.6 mm inner diameter.
• Compatible with Extron Cable Cubby, TouchLink, and AVEdge enclosures.
• Complies with the applicable RoHS and WEEE requirements.

Where It Is Used

Auditoriums, divisible ballrooms, lecture capture classrooms, and executive briefing centres where the connectivity box sits in a dark tabletop. Also suited to control rooms in which operators identify cables quickly during a shift changeover.

Specifications at a Glance

• Color and quantity: white, 10 collars
• Collar dimensions: 1.0" L x 0.6" OD x 0.22" ID (25.4 mm L x 15.2 mm OD x 5.6 mm ID)
• Material: plastic
• Product weight 0.1 lbs (0.1 kg); shipping weight 1 lb (1 kg)
• Warranty: 3 years parts and labor

Cables and Retractor Series modules are ordered separately. Also referenced as Extron CableCollarKit, Cable-Collar-Kit, part number 70106716.
