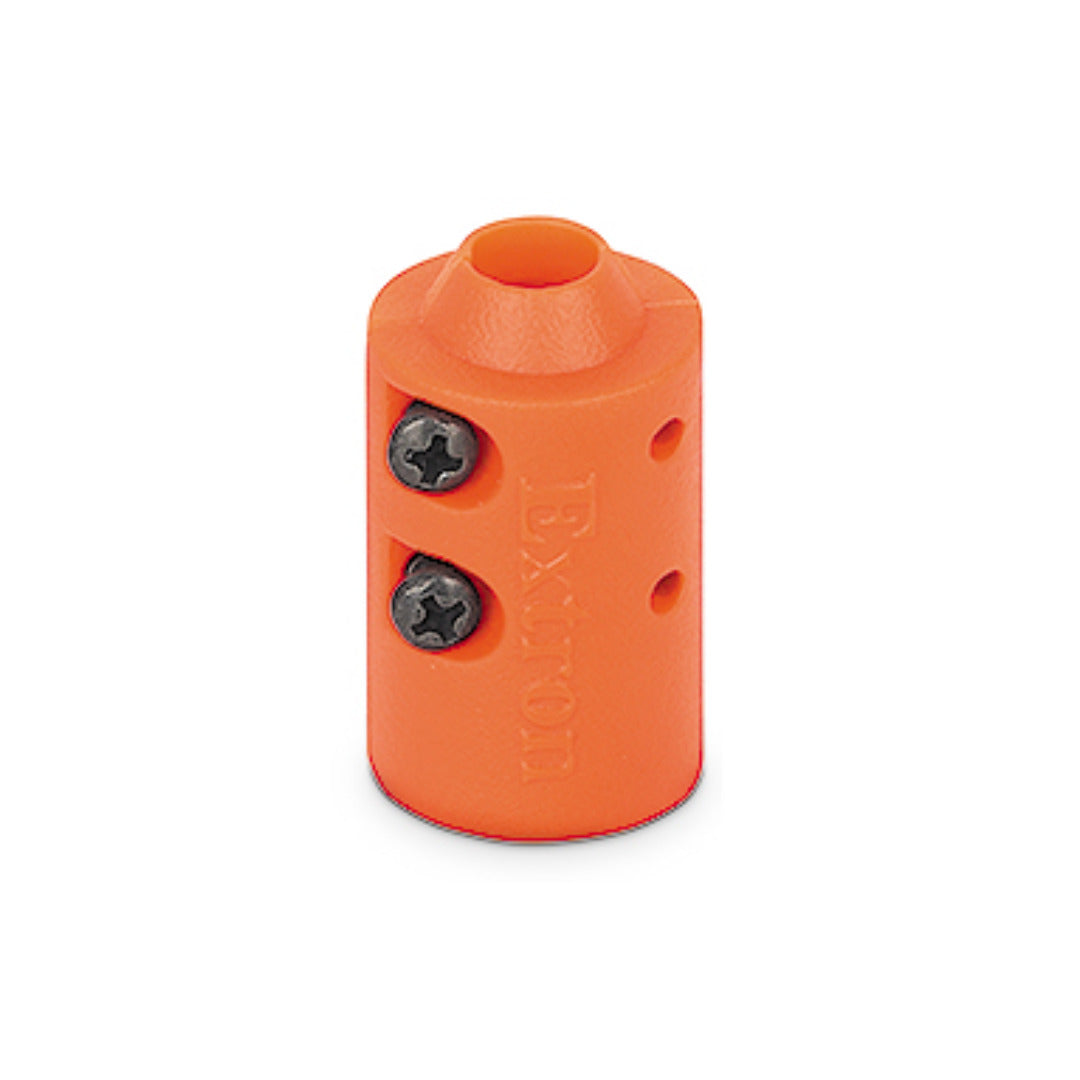

Extron Cable Collar Kit (part number 70-1067-14) — a 10-count pack of orange cable collars for high-visibility identification in shared AV table boxes.

Orange reads instantly against most enclosure interiors, which makes it a useful choice for the one cable a room's users grab most often, or for the lead a technician must never unplug. Each collar in this kit assembles from a cover and a base that capture the cable between them, then hold it standing vertically so the connector remains at the top of the enclosure well instead of falling out of reach.

Key Capabilities

• Ten orange collars per kit, a single color throughout for unambiguous marking.
• Locator pins align the cover to the base before four fasteners are tightened.
• Slot in the base accommodates breakout cable assemblies such as VGA with audio.
• 0.22 in inner diameter and 0.6 in outer diameter keep the collar profile compact.
• Molded plastic build that meets the applicable RoHS and WEEE requirements.
• Fits Extron Cable Cubby, TouchLink, and AVEdge enclosures.

Where It Is Used

Corporate boardrooms, higher-education classrooms, and command and control positions where several people share one connectivity box. Orange also works well as a service marker in medical imaging suites and broadcast fit-outs where a specific feed must stay connected.

Specifications at a Glance

• Color and quantity: orange, 10 collars
• Collar dimensions: 1.0" L x 0.6" OD x 0.22" ID (25.4 mm L x 15.2 mm OD x 5.6 mm ID)
• Material: plastic
• Product weight 0.1 lbs (0.1 kg); shipping weight 1 lb (1 kg)
• Warranty: 3 years parts and labor

Cables and Retractor Series modules are ordered separately. Also referenced as Extron CableCollarKit, Cable-Collar-Kit, part number 70106714.
