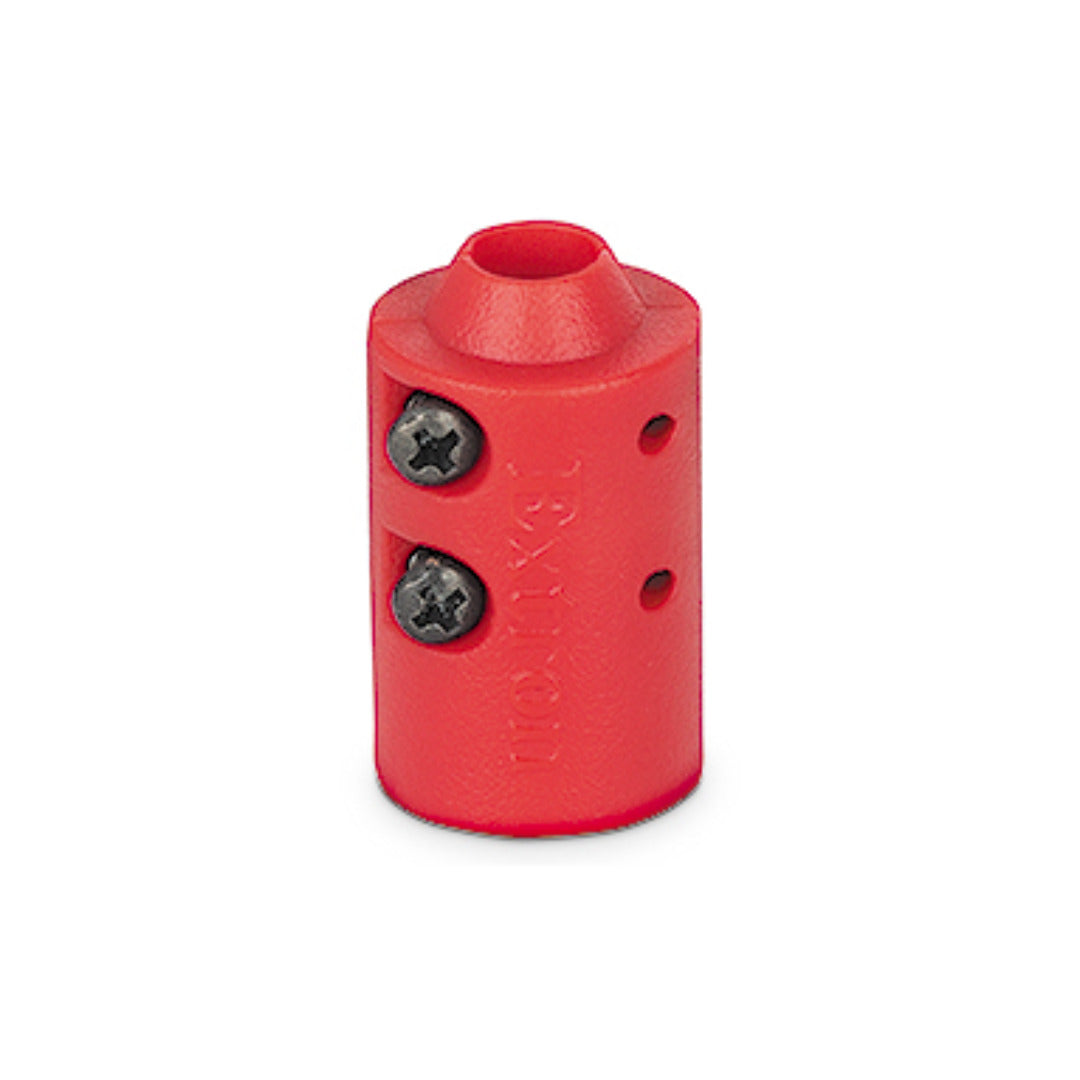

Extron Cable Collar Kit (part number 70-1067-12) — a ten-piece set of red cable collars for color-coded cable management inside Extron architectural enclosures.

Loose cables slumping inside a table box turn a clean installation into a service call. This kit gives an integrator ten identical red collars that clamp around a cable and hold it upright and square in the well of an Extron Cable Cubby, TouchLink, or AVEdge enclosure. Because every collar in the kit shares one color, red can be assigned to a single signal type so a presenter or technician picks the correct lead by sight rather than by trial.

Key Capabilities

• Ten red collars per kit, all one color, supporting a consistent site-wide coding scheme.
• Two-part cover and base assemble around the cable using molded locator pins.
• Four supplied fasteners clamp the halves closed; do not overtighten, or the grip loosens.
• A slot in the base accepts breakout leads such as a VGA cable with a separate audio tail.
• Compact body measuring 1.0 in long, 0.6 in outer diameter, 0.22 in inner diameter.
• Molded plastic construction meeting the applicable RoHS and WEEE requirements.

Where It Is Used

Conference rooms, boardrooms, lecture halls, and classroom lecterns where one shared table box carries several cable types. The kit also suits huddle spaces and training rooms fitted with Retractor Series retraction modules, where standing a cable upright keeps the retraction path clear.

Specifications at a Glance

• Color and quantity: red, 10 collars
• Collar dimensions: 1.0" L x 0.6" OD x 0.22" ID (25.4 mm L x 15.2 mm OD x 5.6 mm ID)
• Material: plastic
• Product weight 0.1 lbs (0.1 kg); shipping weight 1 lb (1 kg)
• Warranty: 3 years parts and labor

Cables and Retractor Series modules are ordered separately. Also referenced as Extron CableCollarKit, Cable-Collar-Kit, part number 70106712.
