Extron CA 43T PT Column Array Speaker
- • White RAL 9003 powder coat on chassis, endcaps and grille
- • 120 watts continuous program from four 3 in. drivers
- • 6.5 ohm direct mode plus 70 V and 100 V power taps
- • Discrete tilt stops at 0, 5, 10 and 15 degrees
- • Pan up to 74 deg left or right at 0 deg tilt
- • IP54 rating and an included secondary tie-off point
- • 5 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron CA 43T PT (part number 42-359-03) — white four-driver column array loudspeaker with the pan and tilt SMK PT CA mounting kit in the box.

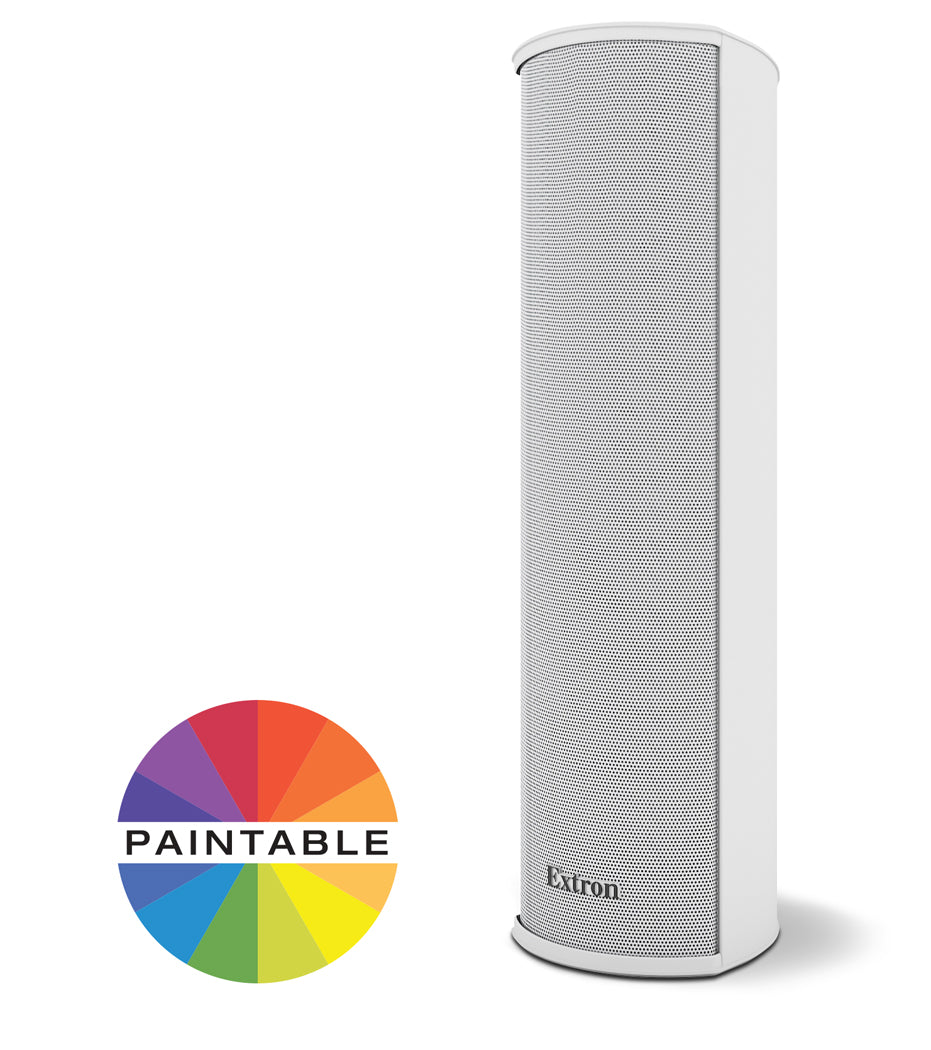

This part is the white-finish, pan-and-tilt version of Extron's 17 inch column array. Stacking four 3 in. (76 mm) full-range drivers narrows vertical coverage as frequency rises — roughly 72° at 1 kHz falling to about 19° at 4 kHz — while horizontal coverage stays wide. That is the behaviour that keeps speech legible in rooms with hard floors and glass. The enclosure is paintable, so it can be matched to a wall colour outside Extron's two standard finishes.
Key Capabilities
- White RAL 9003 powder coat on chassis, endcaps and grille
- 120 watts continuous program from four 3 in. (76 mm) drivers
- Low impedance 6.5 ohm direct mode plus 70 V and 100 V taps
- Discrete tilt stops at 0°, 5°, 10° and 15°, plus continuous adjustment
- Pan up to 74° left or right when tilt is set to 0°
- IP54 rating and an included secondary tie-off point
Where It Is Used
Light-finished meeting rooms, seminar spaces, reception areas and divisible classrooms take the white version. The pan and tilt bracket lets the installer aim the column across a level-floor room after the wall plate is fixed, and the speaker can be repositioned along its T-slot without redrilling.
Specifications at a Glance
- Frequency range 125 Hz to 17.1 kHz, -10 dB, full space
- 60 watts continuous pink noise; 6.5 ohms nominal impedance
- Enclosure 16.93 in. H x 5.0 in. D x 4.5 in. W (430 x 127 x 114 mm)
- Coverage 180° H x 134° V at 500 Hz, 175° H x 19° V at 4 kHz
- Designed to meet UL1480A and CSA C22.2 No. 205; CE, ICES, RoHS, WEEE
Also referenced as Extron CA43TPT, CA-43T-PT, part number 4235903.
