Extron CA 43T PT (part number 42-359-02) — black four-driver column array loudspeaker supplied with the SMK PT CA pan and tilt wall mounting kit.

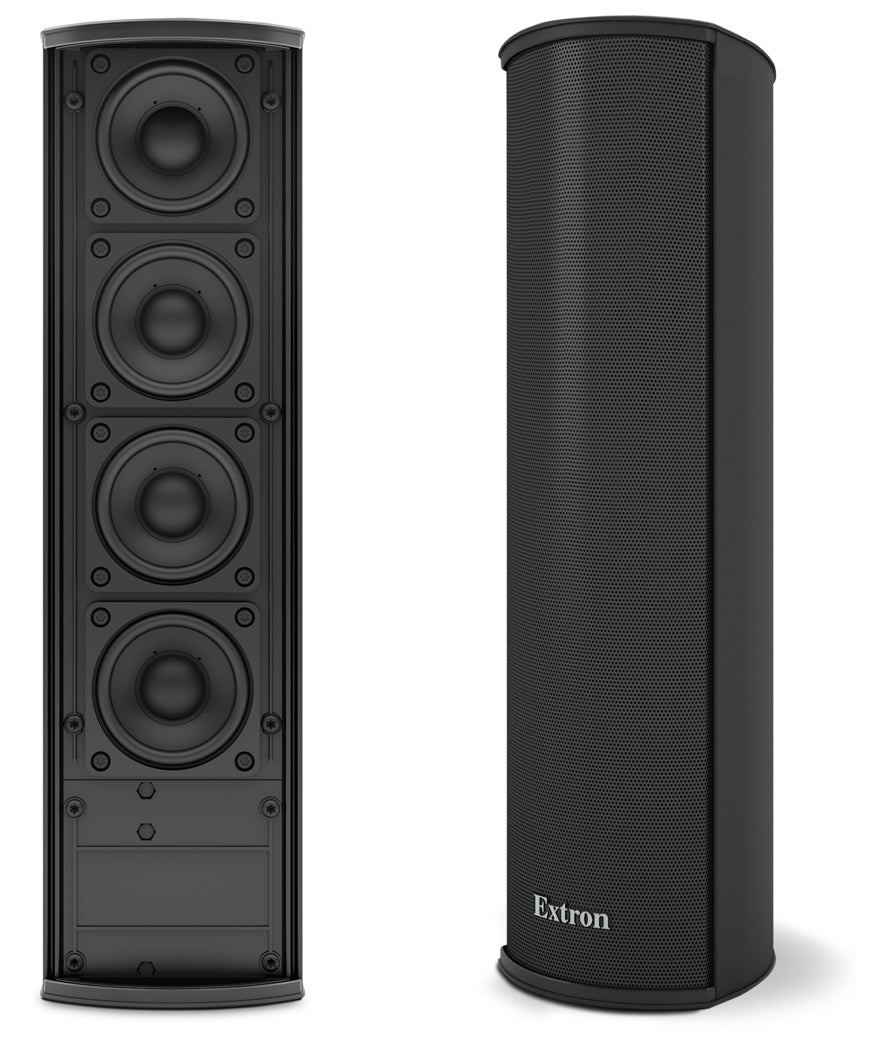

At 16.93 in. tall the CA 43T is the compact member of Extron's CA family, built to serve small and medium rooms on its own or to fill the sides and rear of a larger space fronted by CA 163 columns. Four matched 3 in. (76 mm) full-range drivers sit behind a powder-coated aluminum grille, and a rotary tap selector on the base of the enclosure sets the operating mode without opening anything up. Every CA Series model is voiced to the same target, so mixing sizes in one room does not change the tonal character.

Key Capabilities

• Four matched 3 in. (76 mm) full-range drivers
• 60 watts continuous pink noise, 120 watts continuous program

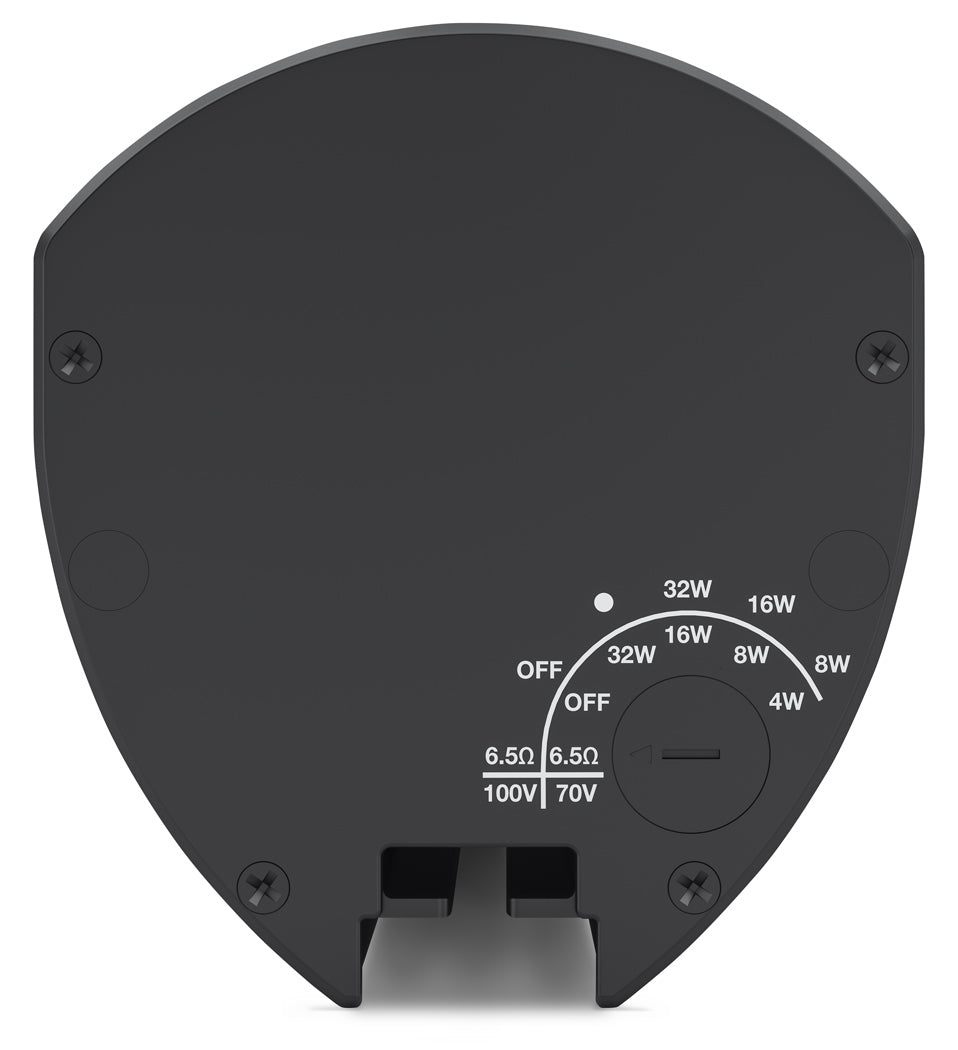

• Rotary tap selector: 6.5 ohm direct, 70 V at 32/16/8/4 W, 100 V at 32/16/8 W
• Frequency range 125 Hz to 17.1 kHz, -10 dB, full space
• Pan and tilt kit gives 15° of tilt and up to 148° of pan
• IP54 rated against dust and water spray

Where It Is Used

Meeting rooms, divisible training suites, lobbies, classrooms and huddle spaces are the intended homes, and Extron's own application diagrams pair the speaker with DMP matrix processors and XPA U amplifiers. IP54 protection also makes it viable in covered exterior areas and back-of-house spaces where dust is a factor.

Specifications at a Glance

• Coverage 180° H x 72° V at 1 kHz and 143° H x 35° V at 2 kHz, measured at 4 m
• Enclosure 16.93 in. H x 5.0 in. D x 4.5 in. W (430 x 127 x 114 mm)

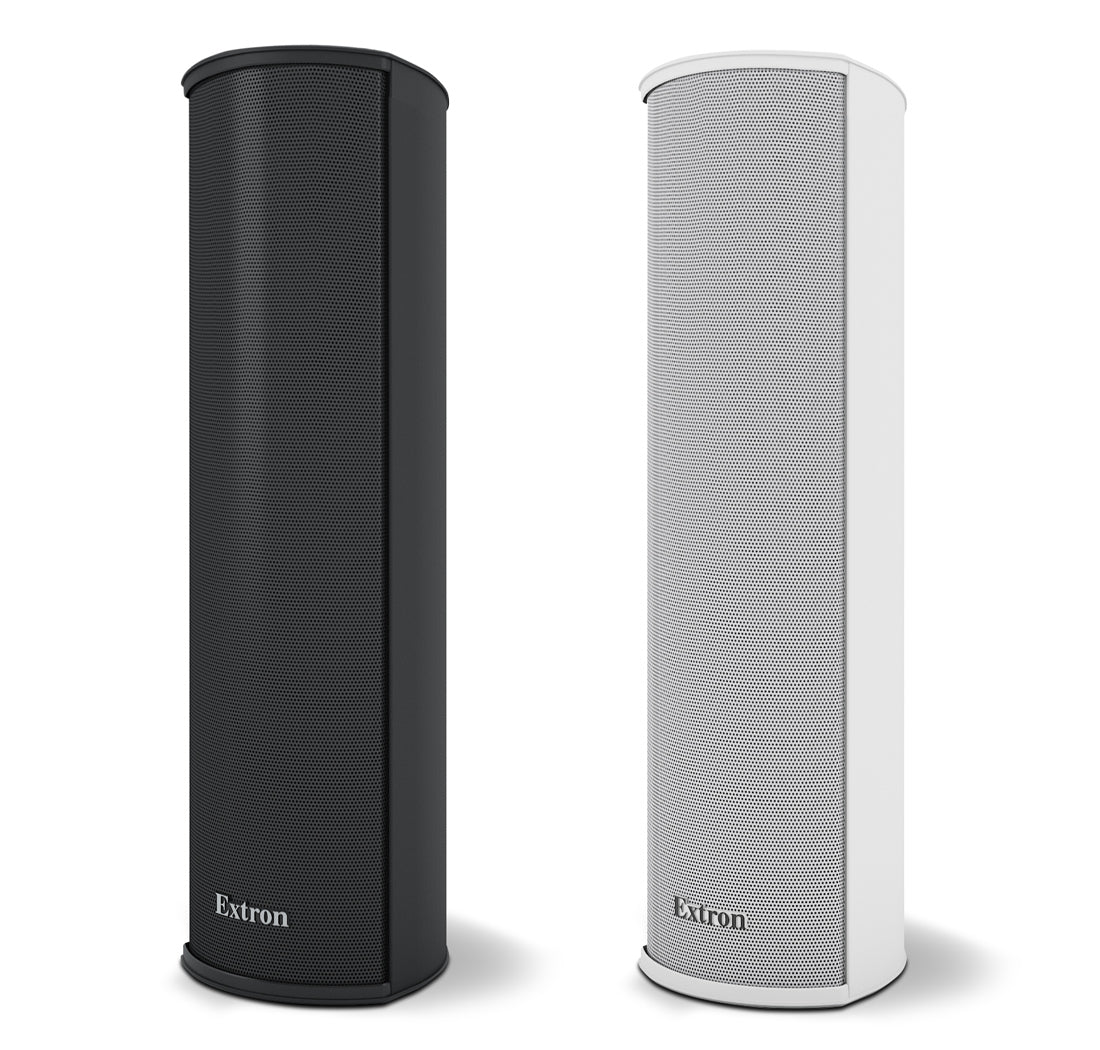

• Black finish: RAL 9011 chassis, RAL 9017 endcaps and grille; paintable
• One 4-pole 5 mm captive screw connector, accepts up to 12 AWG
• 5 year parts and labor warranty; TAA compliant version available

Also referenced as Extron CA43TPT, CA-43T-PT, part number 4235902.
