Extron CA 163 LP Column Array Speaker
- • Low-profile bracket offers +/- 5 deg of vertical tilt against the wall
- • Sixteen 3 in. drivers handle 480 W rms continuous program
- • 118 dB maximum SPL at 1 m, full space, low impedance version
- • 6.5 ohm nominal impedance wires straight to an 8 ohm amplifier
- • Black RAL 9011 column measures 51.9 in. tall by 4.5 in. wide
- • SMK LP CA mount weighs only 1.2 lbs (0.5 kg)
- • 5 year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

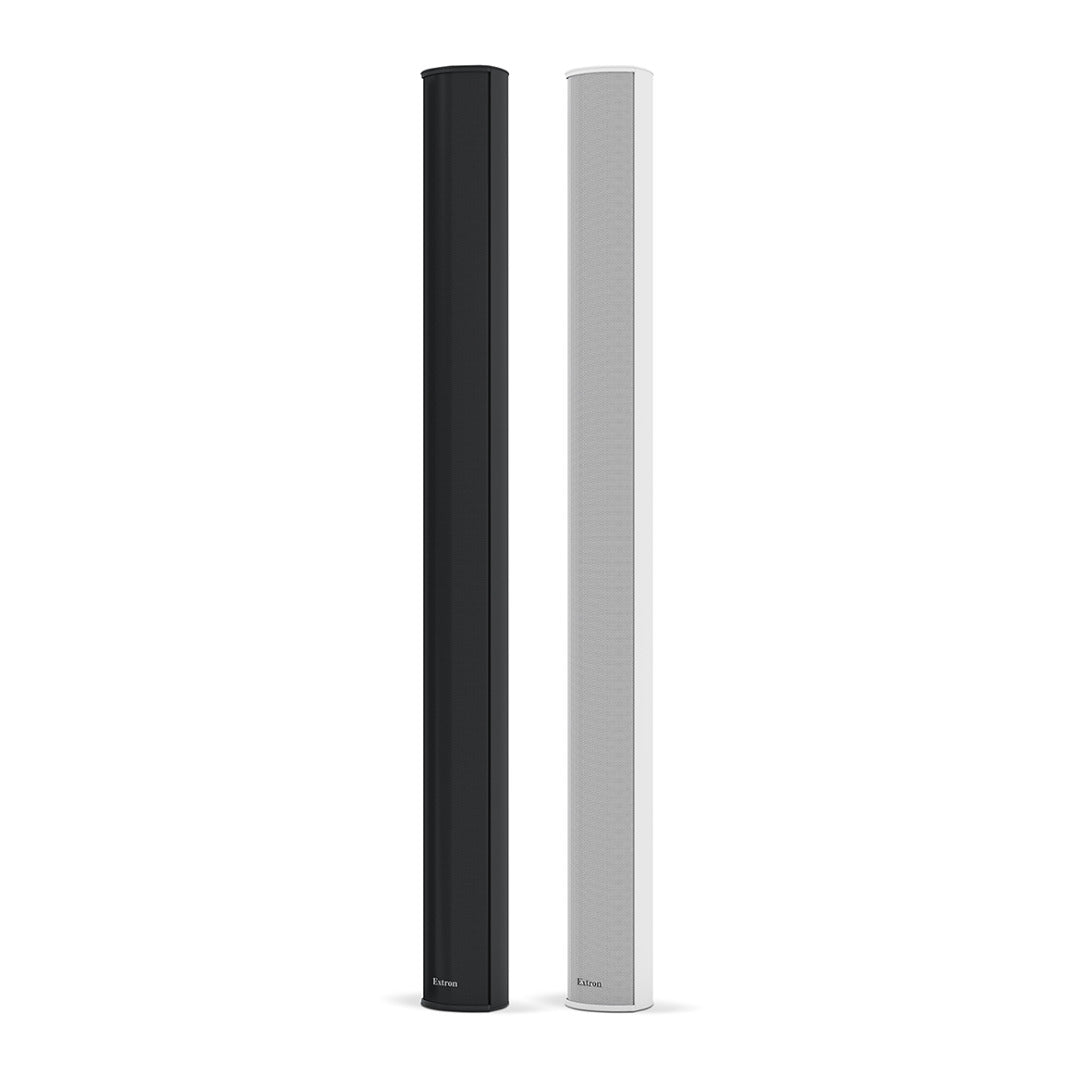

Extron CA 163 LP (part number 42-339-02) — black 8 ohm long throw column array loudspeaker packaged with the two-piece SMK LP CA low-profile wall mount.
The LP build exists for rooms where the speaker has to sit tight against the wall and the seating is raked, so aggressive downward aiming is unnecessary. Sixteen 3 in. (76 mm) paper cone drivers are stacked in a 51.9 in. extruded aluminum column that produces roughly 180° of horizontal coverage but only about 20° vertically at 1 kHz, keeping energy on the audience rather than on hard ceilings and floors. Part 42-339-02 is the single-speaker low impedance configuration in black.
Key Capabilities
- Low-profile mounting bracket with +/- 5° of vertical tilt adjustment
- Sixteen 3 in. (76 mm) paper cone drivers in an aluminum extrusion
- 480 W rms continuous program, 240 W rms continuous pink noise
- 118 dB maximum SPL at 1 m, full space, in the low impedance version
- 6.5 ohm nominal impedance and 93 dB SPL sensitivity at 1 W, 1 m
- Mount weighs only 1.2 lbs (0.5 kg), the lightest of the two SMK CA options
Where It Is Used
Raked lecture theatres, tiered auditoriums, houses of worship with sloped floors and cinemas converted to presentation use all suit the low-profile bracket. Because the assembly protrudes very little, it is also a sensible pick where architectural review limits how far equipment may stand off a finished wall.
Specifications at a Glance
- Frequency range 105 Hz to 20 kHz, -10 dB, full space, per IEC 60268-5
- Coverage 180° H x 38° V at 500 Hz and 178° H x 18° V at 4 kHz
- Enclosure 51.9 in. H x 5.0 in. D x 4.5 in. W (1318 x 127 x 114 mm)
- Speaker weight 27.6 lbs (12.5 kg); finish powder coat RAL 9011 and RAL 9017
- 5 year parts and labor warranty
Also referenced as Extron CA163LP, CA-163-LP, part number 4233902.
