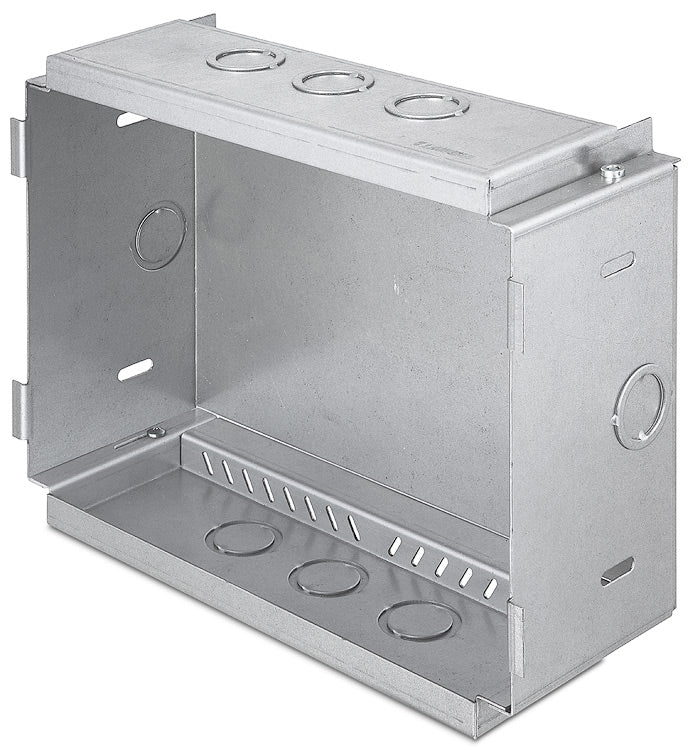

The Extron BB 700M (70-690-01) is an in-wall back box built specifically for the TLP 700MV TouchLink touchpanel. Its metal enclosure provides a recessed, flush mounting point sized to the TLP 700MV footprint.

Without a matched back box, a large-format touchpanel like the TLP 700MV has nowhere secure to anchor its cabling inside a wall cavity, and a generic electrical box rarely lines up with the panel cutout or mounting points. The BB 700M solves this with 8 conduit knockouts and an enclosure shaped precisely for the panel, giving installers a clean, code-ready rough-in point that lines up exactly with the touchpanel surface cutout.

Key Capabilities

• In-wall back box built for the TLP 700MV touchpanel
• Metal construction for a secure, recessed installation
• 7.6" H x 10.1" W x 3.5" D enclosure
• 8 conduit knockouts per unit, 1/2" and 3/4" diameter
• Product weight 2.6 lbs (1.2 kg)

Where It Is Used

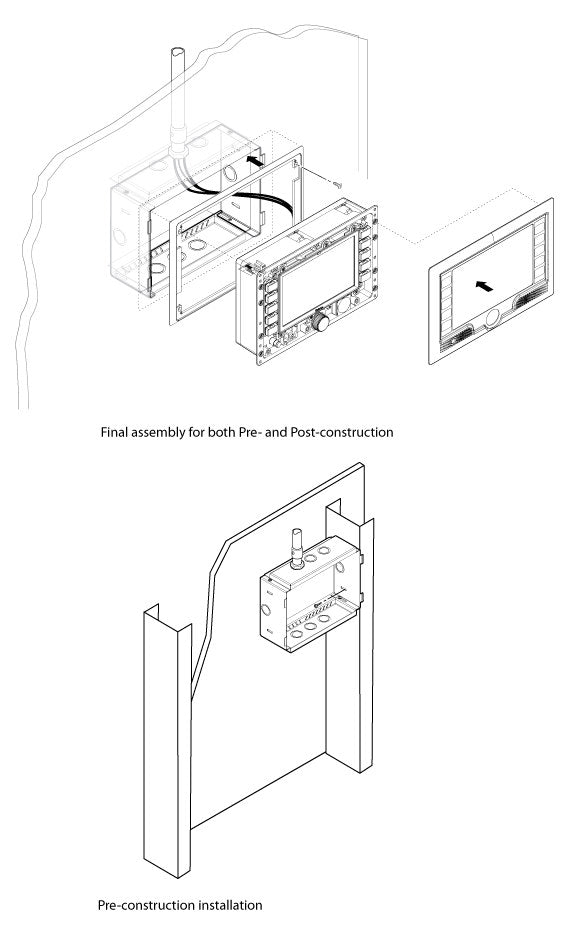

Installers use the BB 700M in boardrooms, control rooms and lecture halls during rough-in, ahead of drywall, wherever a TLP 700MV touchpanel will be flush wall-mounted. Setting the box in place before the wall finish goes up lets the electrical contractor route and terminate cabling through the 8 knockouts, leaving a clean, supported opening for the touchpanel install crew to finish later.

Specifications at a Glance

• Compatible touchpanel: TLP 700MV
• Enclosure: 7.6" H x 10.1" W x 3.5" D, metal
• Conduit knockouts: 8 per unit, 1/2" and 3/4"
• Product weight: 2.6 lbs (1.2 kg)

Also referenced as BB700M, BB-700M, part number 7069001.
