Details

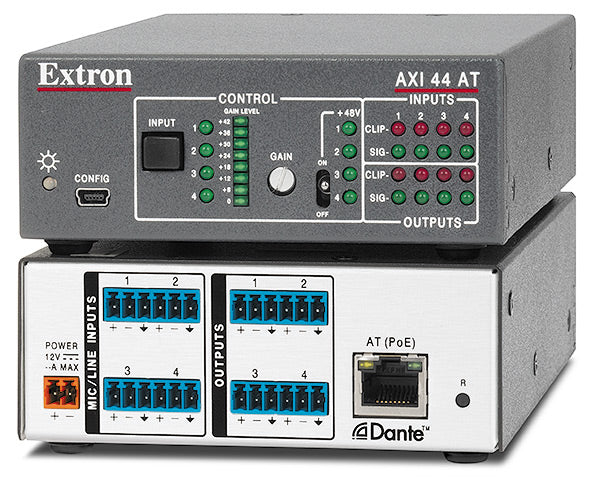

Extron AXI 44 AT (part number 60-1628-11) — the current build of Extron's four in, four out quarter-rack Dante audio interface, with Dante Domain Manager and AES67 support.

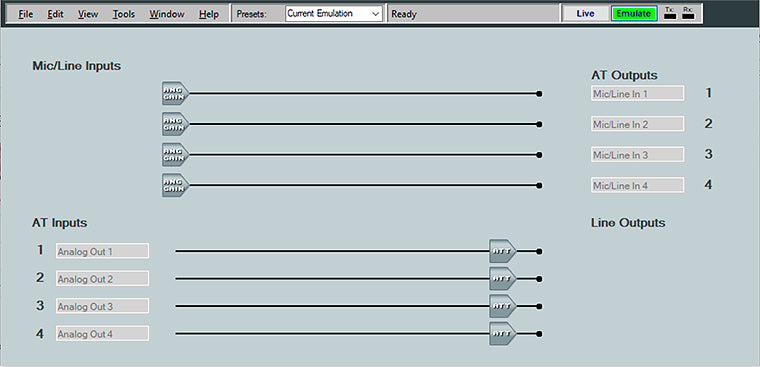

On a managed audio network the -11 is the version that matters. Dante Domain Manager support brings the interface under centralised user authentication, audit logging and cross-subnet routing, and AES67 support lets it work alongside non-Dante AoIP equipment. The audio side is unchanged: four mic or line inputs across two 6-pole captive screw connectors, each with independently switchable 48 V phantom power, converted at 24-bit and up to 96 kHz, plus four line level outputs carrying any four network channels back to local equipment. Front panel controls handle input select, gain and phantom power, and the same parameters are available in DSP Configurator or by SIS command over USB.

Key Capabilities

Dante Domain Manager and AES67 support in addition to standard Dante networking.
Four mono mic/line inputs with per-input 48 VDC phantom power.
Four line level outputs, configurable as four mono or two stereo pairs.
Equivalent input noise below -120 dBV at 40 dB gain, CMRR above 65 dB at 1 kHz.
Deterministic network latency selectable at 1.0 ms default, 2.0 ms or 5.0 ms.
PoE 802.3at powered at 7.0 watts, or 12 VDC from an optional external supply.

Where It Is Used

Enterprise and campus audio networks under Dante Domain Manager, mixed Dante and AES67 broadcast plant, multi-microphone conference rooms and council chambers, and lecture capture systems where four analog sources sit far from the DSP.

Specifications at a Glance

I/O: 4 mic/line in, 4 line out, on (2) 6-pole 3.5 mm captive screw each
Network: 1 RJ-45, Dante/AES-67 selectable, DDM support
Audio: 20 Hz to 20 kHz ±0.3 dB, S/N to 115 dB, crosstalk under -90 dB
Enclosure: metal, 1.66" H x 4.32" W x 6.00" D, 0.65 lbs
Warranty: 3 years parts and labor

Also referenced as Extron AXI44AT, AXI-44-AT, part number 60162811.

Specifications

Part Number: 60-1628-11 (4 In, 4 Out Dante Audio Interface w/ DDM & AES67)

Manufacturer: Extron

Model: AXI 44 AT

Condition: New

Network Features: Dante Domain Manager and AES67 support

Gain: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.3 dB

THD + Noise: <0.02% @ 1 kHz at maximum level

S/N, Analog In to Digital Out: 100 dB, 20 Hz to 20 kHz, at full-scale output (unweighted)

S/N, Digital In to Analog Out: 115 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Output Attenuation: -100 dB to 0 dB (in 1 dB steps)

Audio Input: 4 mono mic/line, balanced/unbalanced

Audio Input Connectors: (2) 3.5 mm captive screw connectors, 6-pole

Audio Input Impedance: >10k ohms, balanced/unbalanced

Audio Input Nominal Level: +4 dBu when level is set to 0 dB gain, adjustable from -60 dBu to +4 dBu

Audio Input Maximum Level: >+21 dBu (at rated THD+N) when input gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB gain

Input Gain Adjustment: 0 dB to +42 dB, 3 dB steps, adjustable per input

CMRR: >65 dB @ 1 kHz

Mic Phantom Power: +48 VDC ±10%, can be switched on or off per input

Audio Output: 4 mono (or 2 stereo), balanced/unbalanced

Audio Output Connectors: (2) 3.5 mm captive screw connectors, 6-pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Nominal Level: -10 dBV (316 mV) or +4 dBu (1.23 V)

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced or >+15 dBu unbalanced

Audio Transport: Dante/AES-67, software selectable

AT Port Connector: 1 RJ-45 connector to Dante interface

Network Inputs: 4 channels Rx (2 flows, unicast or multicast)

Network Outputs: 4 channels Tx (2 flows, unicast or multicast)

Audio Format: Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Power Input Requirements: 12 VDC or Power over Ethernet (PoE 802.3at)

Power Supply (optional): External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1 A, 12 watts

Power Consumption (optional power supply): Device 7.0 watts; device and power supply 9.3 watts

Power Consumption (PoE via XTP PI 100 injector, optional): Device 8.5 watts; device and power injector 11.9 watts

Thermal Dissipation (optional power supply): Device 17.2 BTU/hr; device and power supply 25.1 BTU/hr

Thermal Dissipation (XTP PI 100 injector): Device 22.4 BTU/hr; device and power injector 34.0 BTU/hr

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.66" H x 4.32" W x 6.00" D (1U high, quarter rack wide) (43 mm H x 110 mm W x 153 mm D)

Product Weight: 0.65 lbs (0.3 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A. Complies with the appropriate requirements of RoHS and WEEE.

Product Warranty: 3 years parts and labor
