Extron AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23

Details

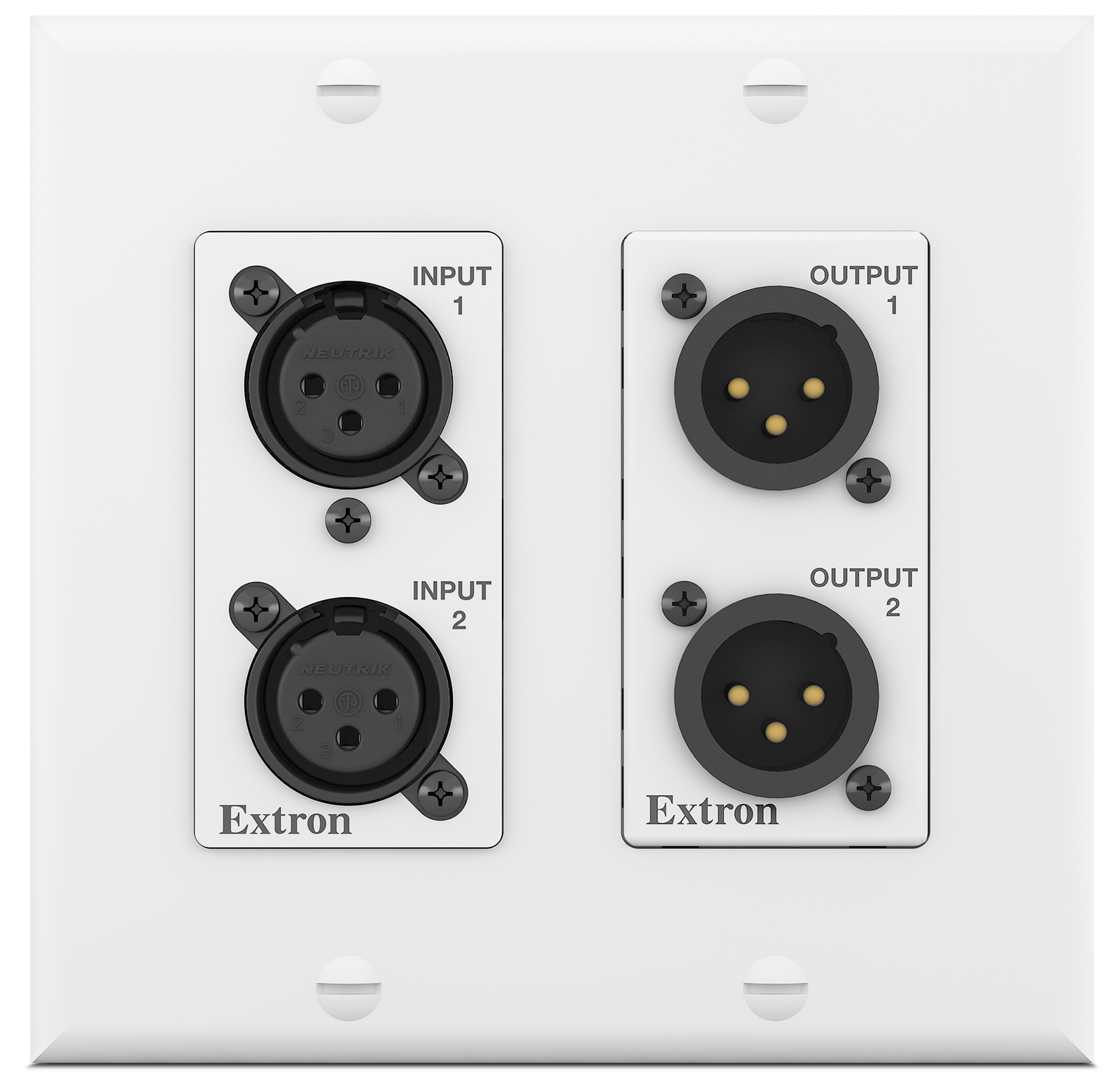

Extron AXI 22 AT D Plus & WPD 102 XLRM (part number 60-1942-23) — the white kit pairing Extron's decorator-style Dante wallplate interface with a matching WPD 102 XLRM output plate.

Identical in function to the black kit; the difference is the finish, which matters when the rest of the wall plates in the room are white. The AXI 22 AT D Plus half of the kit accepts two microphone or line sources on front panel XLR connectors with switchable 48 V phantom power and digitises them at 24-bit for Dante transport. Two rear line outputs feed the WPD 102 XLRM plate, presenting them as XLR outputs suited to recording decks or an assistive listening transmitter. One network cable carries audio both ways, control, and PoE power, so no local outlet or analog multicore is required. Gain, attenuation and phantom power are configured over the network from a DMP Plus Series processor or an IPCP Pro xi.

Key Capabilities

Two mono mic/line inputs on front panel female XLR connectors with switchable phantom power.

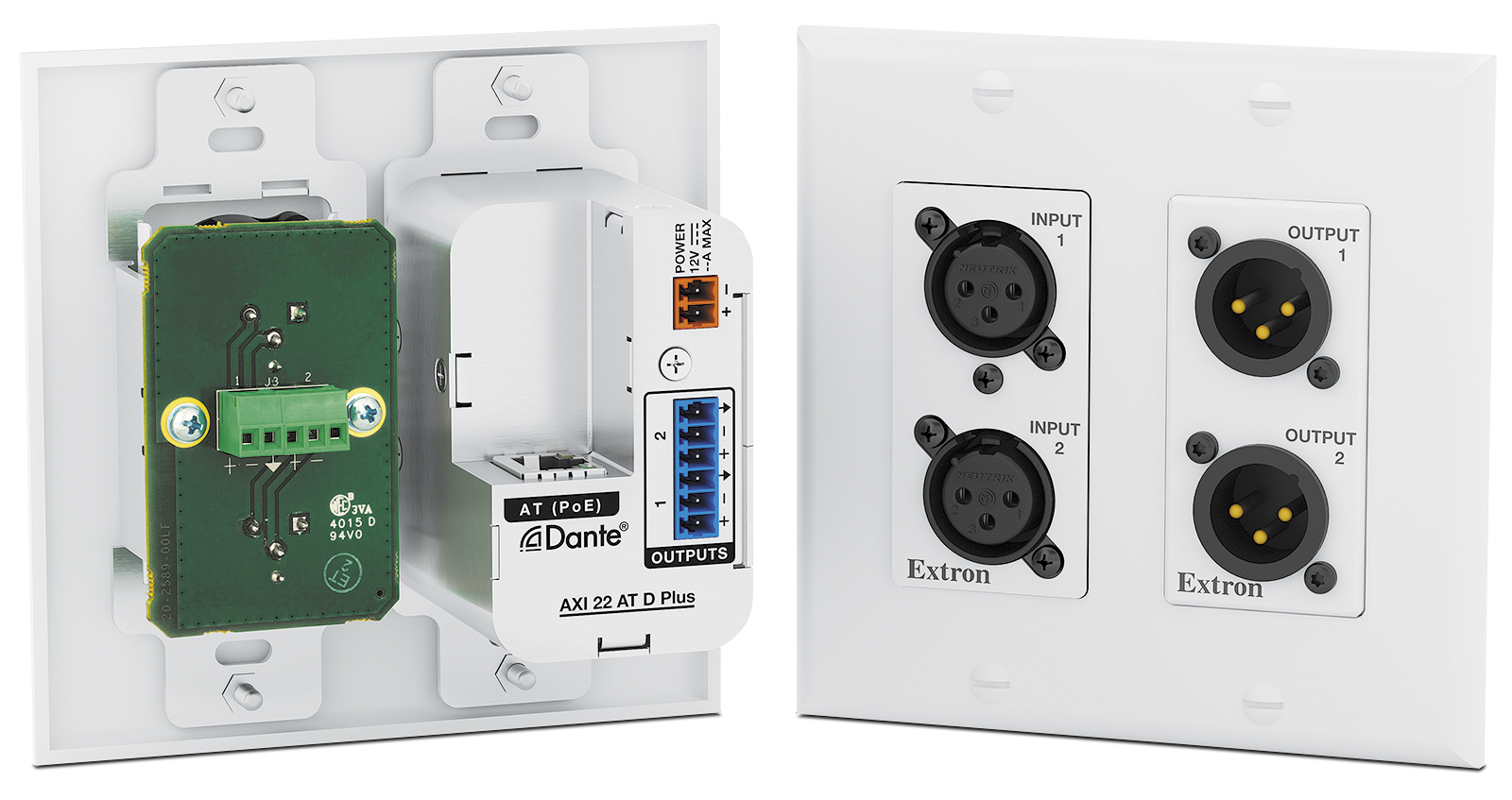

Two line level outputs on a rear 6-pole captive screw connector feeding the XLR output plate.
Input gain adjustable from -18 dB to +60 dB in 1 dB steps, per input.
Uncompressed 24-bit audio at 44.1, 48, 88.2 or 96 kHz, 105 dB signal to noise.
Equivalent input noise below -120 dBV at 40 dB gain; CMRR above 65 dB at 1 kHz.
Powered over PoE 802.3af or 12 VDC, drawing 4.0 watts at the device.

Where It Is Used

Boardrooms and meeting rooms finished in white or light architectural schemes, classrooms and lecture halls that need both a microphone tie-in and an XLR record feed, and campus-wide deployments where each room's plate connects to a single central Dante processor.

Specifications at a Glance

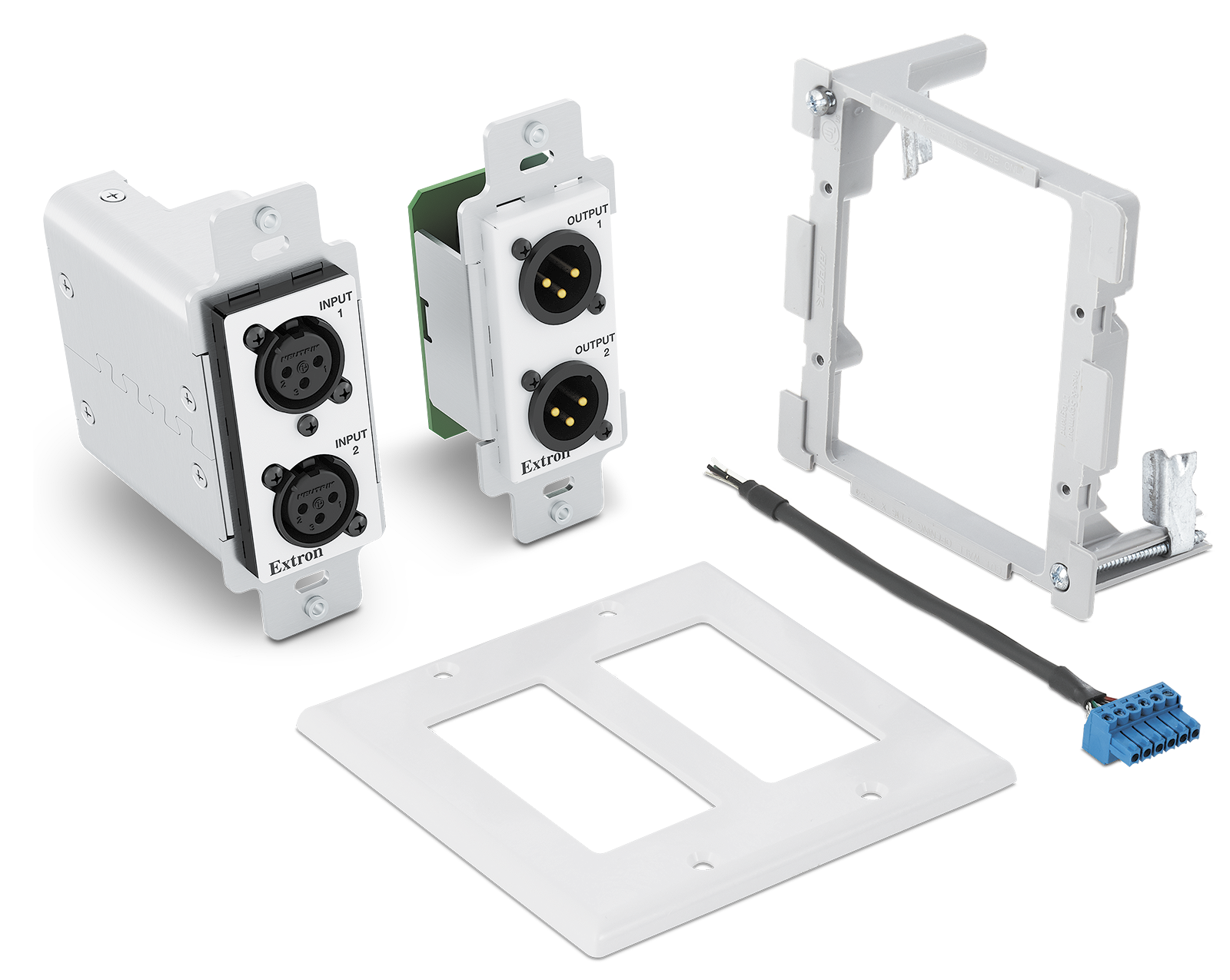

Kit: AXI 22 AT D Plus interface plus WPD 102 XLRM output plate, white
Inputs: 2 mic/line on female XLR, 48 VDC phantom switchable
Network: 1 RJ-45, Dante/AES-67 selectable, 2 Rx and 2 Tx channels
Mounting: 1-gang wall box or mud ring per plate
Warranty: 3 years parts and labor

Also referenced as Extron AXI22ATDPlusWPD102XLRM, AXI-22-AT-D-Plus-WPD-102-XLRM, part number 60194223.

Specifications

Part Number: 60-1942-23 (AXI 22 AT D Plus & WPD 102 XLRM Kit - White)

Manufacturer: Extron

Model: AXI 22 AT D Plus & WPD 102 XLRM

Condition: New

Kit Contents: AXI 22 AT D Plus Dante audio interface plus WPD 102 XLRM secondary wallplate, white. The specifications below are Extron's published figures for the AXI 22 AT D Plus interface.

Gain: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.3 dB

THD + Noise: <0.01% @ 1 kHz at maximum level

S/N, Analog In to Digital Out: 105 dB, 20 Hz to 20 kHz, at maximum input (unweighted)

S/N, Digital In to Analog Out: 105 dB, 20 Hz to 20 kHz, at maximum output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Output Attenuation: -100 dB to 0 dB (in 1 dB steps)

Audio Input: 2 mono mic/line, balanced/unbalanced

Audio Input Connectors: 2 female XLR connectors (front panel)

Audio Input Impedance: >10k ohms, balanced/unbalanced

Audio Input Nominal Level: +4 dBu when level is set to 0 dB gain, adjustable from -60 dBu to +4 dBu

Audio Input Maximum Level: >+21 dBu (at rated THD+N) when input gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB gain

Input Gain Adjustment: -18 dB to +60 dB, 1 dB steps, adjustable per input

CMRR: >65 dB @ 1 kHz

Mic Phantom Power: +48 VDC ±10%, can be switched on or off

Audio Output: 2 mono (or 1 stereo), balanced/unbalanced

Audio Output Connector: (1) 3.5 mm captive screw connector, 6-pole (rear panel)

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Nominal Level: -10 dBV (316 mV) or +4 dBu (1.23 V)

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced or >+15 dBu unbalanced

Audio Transport: Dante/AES-67, software selectable

AT Port Connector: 1 RJ-45 connector to Dante interface

Network Inputs: 2 channels Rx (2 flows, unicast or multicast)

Network Outputs: 2 channels Tx (2 flows, unicast or multicast)

Audio Format: Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Power Input Requirements: 12 VDC or Power over Ethernet (PoE 802.3af)

Power Supply (optional): External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 0.5 A, 6 watts

Power Consumption (optional power supply): Device 4.0 watts; device and power supply 5.1 watts

Power Consumption (PoE via PI 115 injector): Device 4.6 watts; device and power injector 6.4 watts

Thermal Dissipation (optional power supply): Device 7.4 BTU/hr; device and power supply 9.6 BTU/hr

Thermal Dissipation (PI 115 injector): Device 10.0 BTU/hr; device and power injector 13.4 BTU/hr

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Furniture or Wall Mount: Yes, with 1-gang wall box or mud ring

Enclosure Type: Metal

Faceplate Dimensions: 2.61" H x 1.29" W x 0.28" D (67 mm H x 33 mm W x 7.1 mm D). Depth excludes connectors.

Device Dimensions: 2.72" H x 1.68" W x 2.19" D (69 mm H x 43 mm W x 56 mm D). Depth excludes connectors.

Product Weight: 0.35 lbs

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UL, VCCI Class A, WEEE

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23 | AXI 22 AT D Plus

Manual | AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23 | AXI 22 AT D Plus & WPD 102 XLRM Setup Guide

Manual | AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23 | AXI 22 AT D Plus Setup Guide

Manual | AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23 | AXI 22 AT D Plus User Guide

Manual | AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23 | Cleaning Instruction Card

Specifications | AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23 | AXI 22 AT D Plus

Panel Drawing | AXI 22 AT D Plus & WPD 102 XLRM 60-1942-23 | AXI 22 AT D Plus
