Extron AXI 22 AT D Plus Dante Wallplate Interface
- • Two XLR mic inputs on a single-gang decorator wallplate
- • Switchable 48 VDC phantom power for condenser microphones
- • Input gain spans -18 dB to +60 dB in 1 dB steps, per input
- • Two rear line outputs return any two Dante channels to local gear
- • Uncompressed 24-bit audio at 44.1, 48, 88.2 or 96 kHz
- • 105 dB signal to noise in both conversion directions
- • Audio, control and power over one cable using PoE 802.3af
- • Gain, attenuation and phantom set remotely from a DMP Plus processor
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

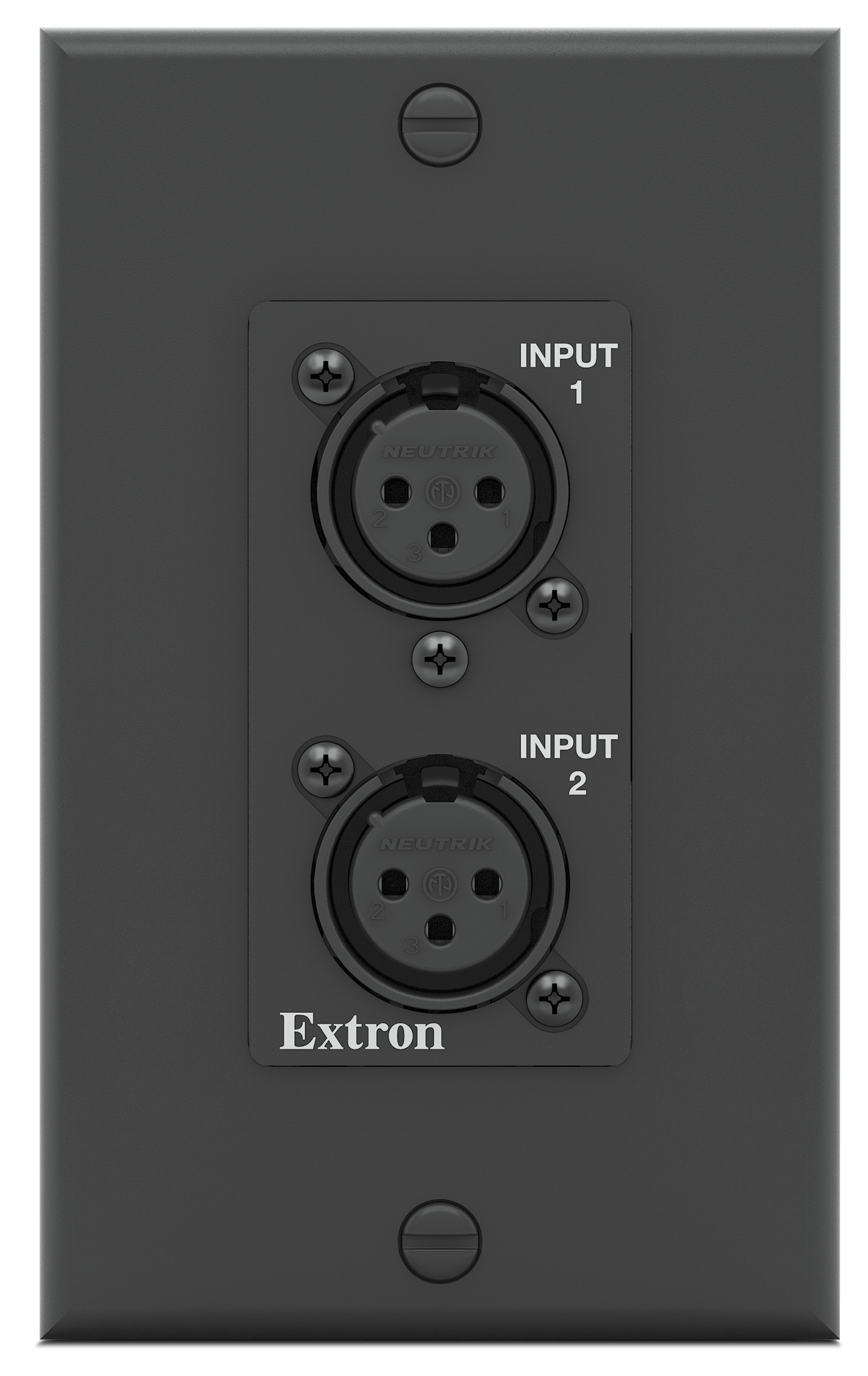

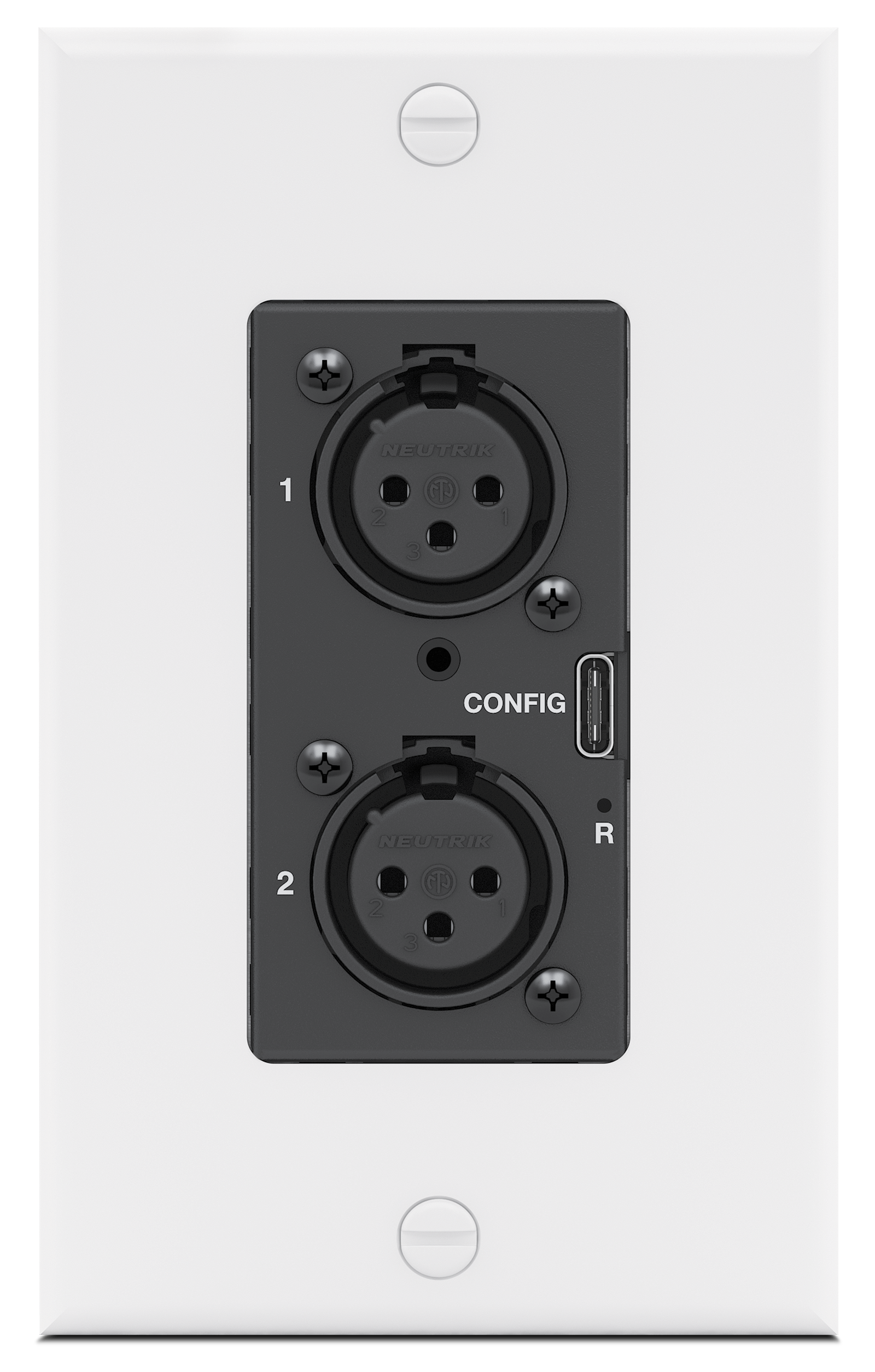

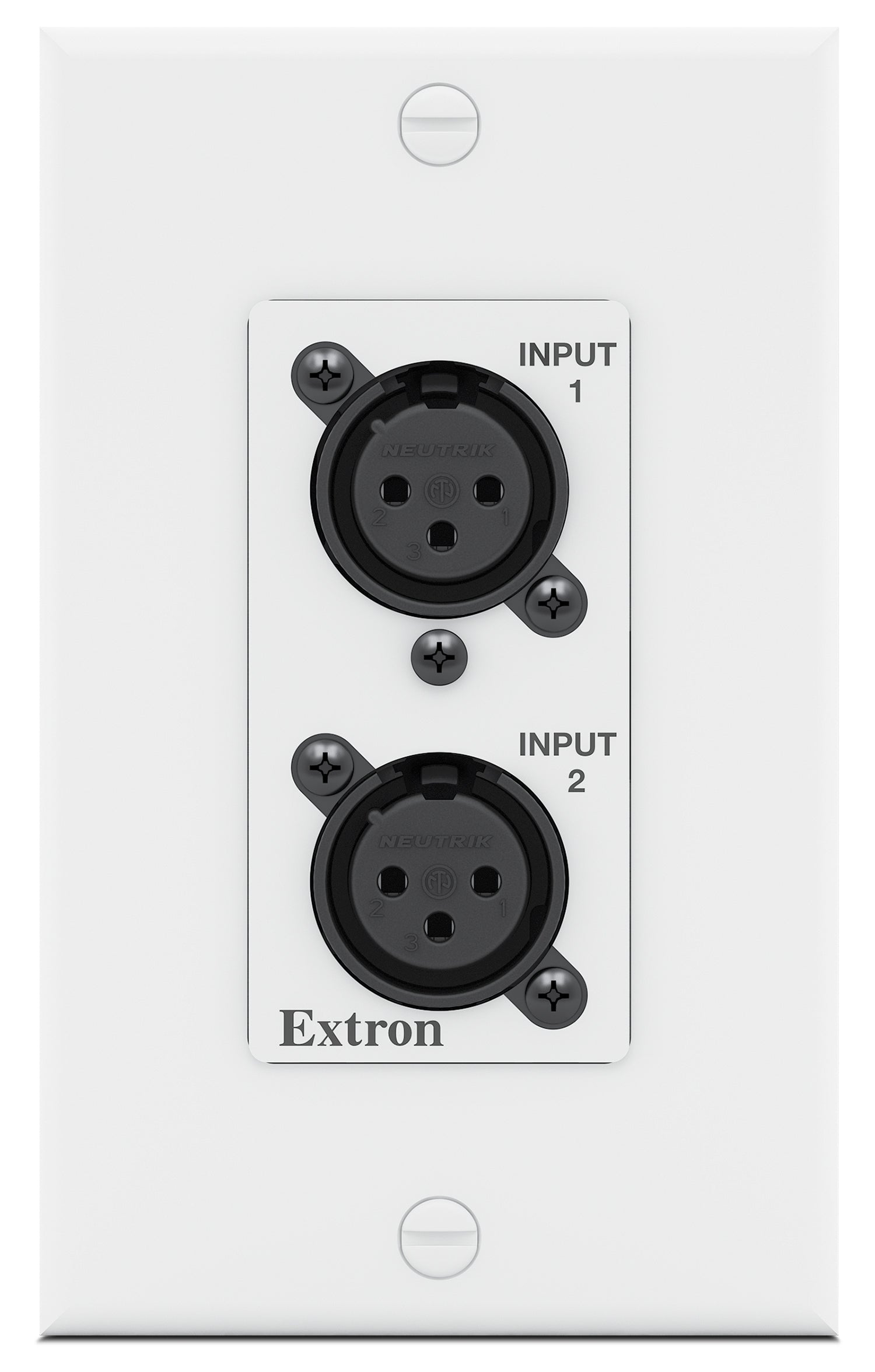

Extron AXI 22 AT D Plus (part number 60-1947-01) — a single-gang decorator-style Dante wallplate with two XLR microphone inputs on the front and two line outputs on the back.
This is the answer to a specific and expensive problem: running long analog microphone cable from every wall, floor box and lectern back to a rack. Instead, the AXI 22 AT D Plus digitises at the wall. Two XLR inputs accept mic or line signals with switchable 48 V phantom for condenser capsules, the audio is converted at 24-bit and up to 96 kHz, and it leaves over the same Ethernet cable that powers the plate. Two line outputs on the rear bring any two Dante channels back out, either straight into an amplifier or into an optional second decorator plate carrying two XLR outputs for recording or an assistive listening feed. Input gain, output attenuation and phantom power are all set remotely from a DMP Plus Series processor or an IPCP Pro xi control processor.
Key Capabilities
- Two mono mic/line inputs on front panel female XLR connectors, balanced or unbalanced.
- Input gain adjustable across a wide -18 dB to +60 dB range in 1 dB steps, per input.

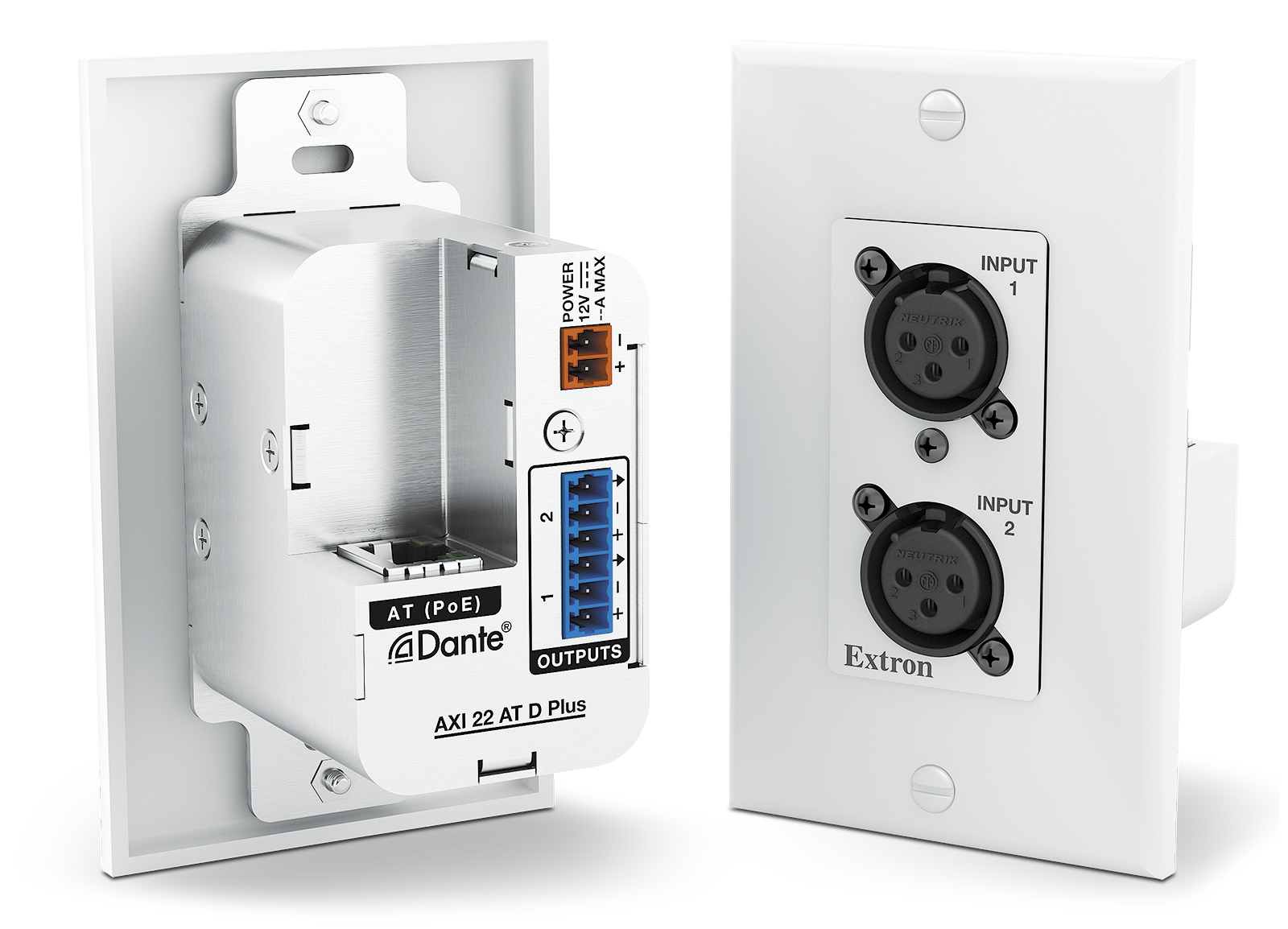

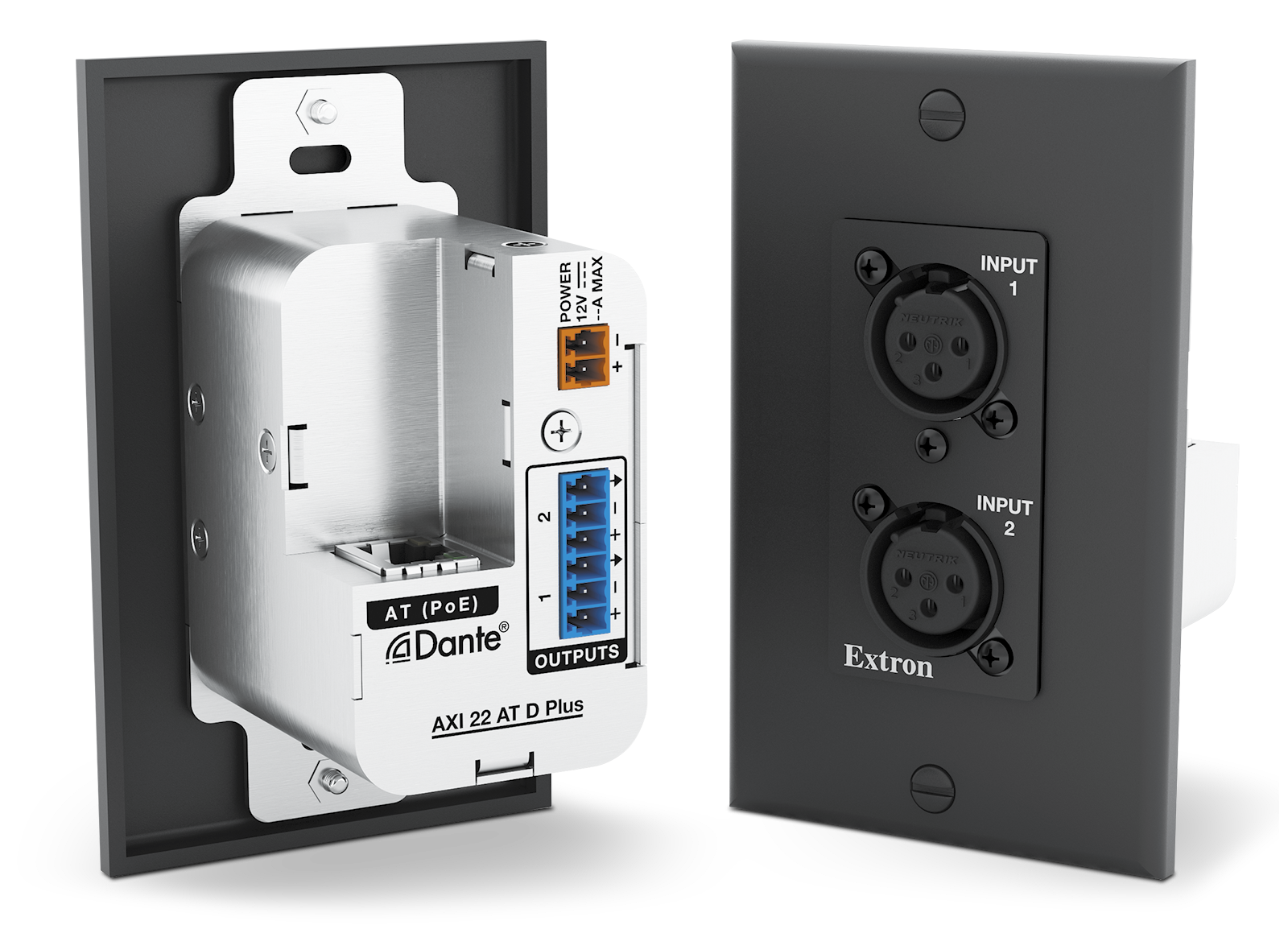

- Two line level outputs on a rear 6-pole captive screw connector.
- Switchable +48 VDC phantom power for condenser microphones.
- Uncompressed 24-bit audio at 44.1, 48, 88.2 or 96 kHz, with 105 dB signal to noise both directions.
- Powered over PoE 802.3af or 12 VDC; 4.0 watts at the device.
Where It Is Used

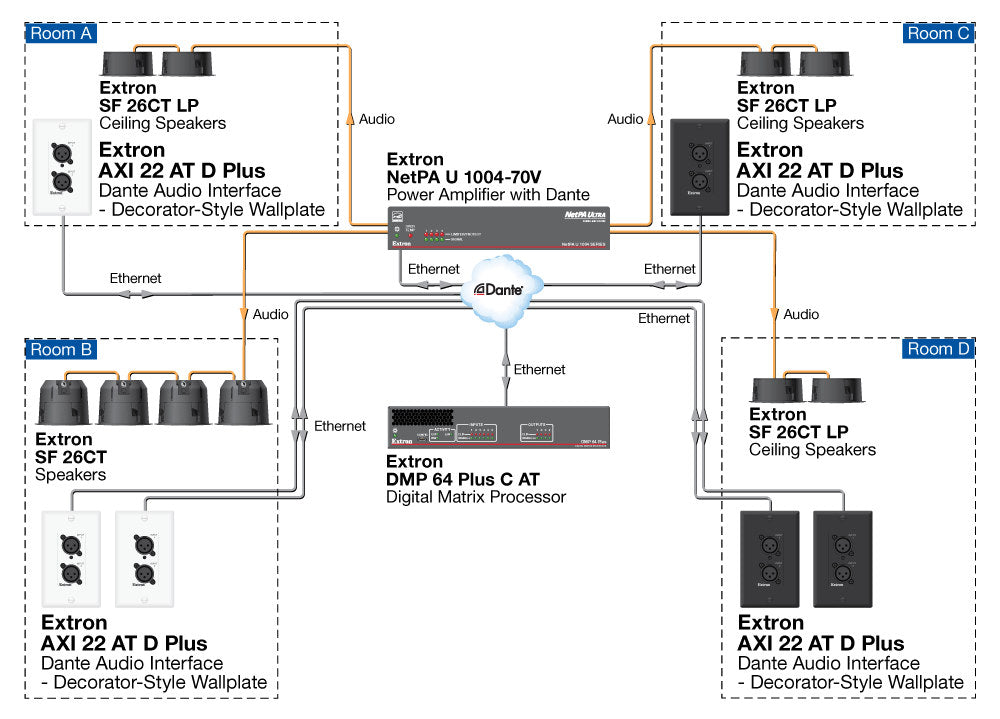

Conference rooms, boardrooms, classrooms and lecture halls where microphone positions are fixed at walls, tables or lecterns; multi-room facilities where each plate connects back to one central DSP over the existing network; and any refit where pulling analog multicore through finished walls is not practical.
Specifications at a Glance
- Inputs: 2 mic/line on female XLR, front panel, phantom switchable
- Outputs: 2 line level on (1) 6-pole 3.5 mm captive screw, rear
- Network: 1 RJ-45, Dante/AES-67 selectable, 2 Rx and 2 Tx channels
- Mounting: 1-gang wall box or mud ring; device 2.72" H x 1.68" W x 2.19" D
- Warranty: 3 years parts and labor
Also referenced as Extron AXI22ATDPlus, AXI-22-AT-D-Plus, part number 60194701.
