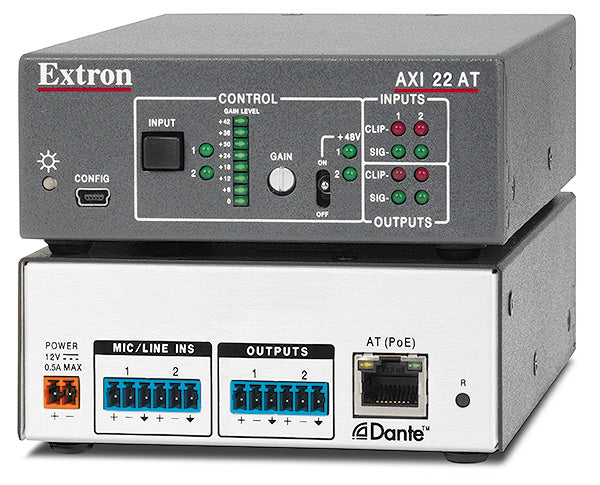

Extron AXI 22 AT (part number 60-1627-11) — the current version of Extron's quarter-rack two in, two out Dante audio interface, adding Dante Domain Manager and AES67 support.

The -11 build is the one to specify on a managed network. Dante Domain Manager support means the interface can be enrolled into a DDM domain with the user authentication, audit logging and subnet routing that comes with it, and AES67 support lets it interoperate with non-Dante AoIP endpoints. Everything else is the familiar AXI 22 AT: two mic or line inputs with switchable 48 V phantom power, 24-bit conversion up to 96 kHz onto the network, and two line level outputs bringing any two Dante channels back to local equipment. Front panel controls cover input select, gain and phantom, and the same settings are reachable from DSP Configurator or by SIS command over USB.

Key Capabilities

Dante Domain Manager and AES67 support in addition to standard Dante networking.
Two mono mic/line inputs with 48 VDC phantom power switchable per input.
Two line level outputs delivering any two channels from the Dante network.
Uncompressed 24-bit audio, selectable at 44.1, 48, 88.2 or 96 kHz.
Equivalent input noise below -120 dBV at 40 dB gain; CMRR above 65 dB at 1 kHz.
Powered by PoE 802.3at or 12 VDC, single Ethernet cable for audio and power.

Where It Is Used

Enterprise and campus AV networks that already run Dante Domain Manager, broadcast and production facilities mixing Dante with AES67 endpoints, conference rooms and lecture theatres feeding a central DSP, and any installation where microphone drops sit a long way from the rack.

Specifications at a Glance

I/O: 2 mic/line in, 2 line out, both on 6-pole 3.5 mm captive screw
Network: 1 RJ-45, Dante/AES-67 software selectable, DDM support
Audio: 20 Hz to 20 kHz ±0.3 dB, THD+N under 0.02%, S/N to 115 dB
Enclosure: metal, 1.66" H x 4.32" W x 6.00" D, 0.65 lbs
Warranty: 3 years parts and labor

Also referenced as Extron AXI22AT, AXI-22-AT, part number 60162711.

Specifications

Part Number: 60-1627-11 (2 In, 2 Out Dante Audio Interface w/ DDM & AES67)

Manufacturer: Extron

Model: AXI 22 AT

Condition: New

Network Features: Dante Domain Manager and AES67 support

Gain: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.3 dB

THD + Noise: <0.02% @ 1 kHz at maximum level

S/N, Analog In to Digital Out: 100 dB, 20 Hz to 20 kHz, at full-scale output (unweighted)

S/N, Digital In to Analog Out: 115 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Output Attenuation: -100 dB to 0 dB (in 1 dB steps)

Audio Input: 2 mono mic/line, balanced/unbalanced

Audio Input Connector: (1) 3.5 mm captive screw connector, 6-pole

Audio Input Impedance: >10k ohms, balanced/unbalanced

Audio Input Nominal Level: +4 dBu when level is set to 0 dB gain, adjustable from -60 dBu to +4 dBu

Audio Input Maximum Level: >+21 dBu (at rated THD+N) when input gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB gain

Input Gain Adjustment: 0 dB to +42 dB, 3 dB steps, adjustable per input

CMRR: >65 dB @ 1 kHz

Mic Phantom Power: +48 VDC ±10%, can be switched on or off per input

Audio Output: 2 mono (or 1 stereo), balanced/unbalanced

Audio Output Connector: (1) 3.5 mm captive screw connector, 6-pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Nominal Level: -10 dBV (316 mV) or +4 dBu (1.23 V)

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced or >+15 dBu unbalanced

Audio Transport: Dante/AES-67, software selectable

AT Port Connector: 1 RJ-45 connector to Dante interface

Network Inputs: 2 channels Rx (2 flows, unicast or multicast)

Network Outputs: 2 channels Tx (2 flows, unicast or multicast)

Audio Format: Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Power Input Requirements: 12 VDC or Power over Ethernet (PoE 802.3at)

Power Supply (optional): External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1 A, 12 watts

Power Consumption (optional power supply): Device 4.4 watts; device and power supply 6.2 watts

Power Consumption (PoE via XTP PI 100 injector, optional): Device 5.0 watts; device and power injector 8.2 watts

Thermal Dissipation (optional power supply): Device 11.6 BTU/hr; device and power supply 35.2 BTU/hr

Thermal Dissipation (XTP PI 100 injector): Device 13.8 BTU/hr; device and power injector 24.7 BTU/hr

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.66" H x 4.32" W x 6.00" D (1U high, quarter rack wide) (43 mm H x 110 mm W x 153 mm D)

Product Weight: 0.65 lbs (0.3 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A. Complies with the appropriate requirements of RoHS and WEEE.

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | AXI 22 AT 60-1627-11 | AXI 22 AT (axi_22_at_revA3.pdf)

Brochure | AXI 22 AT 60-1627-11 | AXI 22 AT (AXI-22-AT_BR_A4_SP_RevA.pdf)

Brochure | AXI 22 AT 60-1627-11 | AXI 22 AT (axi_22_at_REV_A2_jp_ONLINE.pdf)

Manual | AXI 22 AT 60-1627-11 | AXI 22 AT and AXI 44 AT

Manual | AXI 22 AT 60-1627-11 | AXI 22 AT and AXI 44 AT Setup Guide

Manual | AXI 22 AT 60-1627-11 | AXI 22 AT and AXI 44 AT User Guide

Manual | AXI 22 AT 60-1627-11 | Cleaning Instruction Card

Manual | AXI 22 AT 60-1627-11 | Extron Dante FAQ

Specifications | AXI 22 AT 60-1627-11 | AXI 22 AT

Panel Drawing | AXI 22 AT 60-1627-11 | AXI 22 AT
