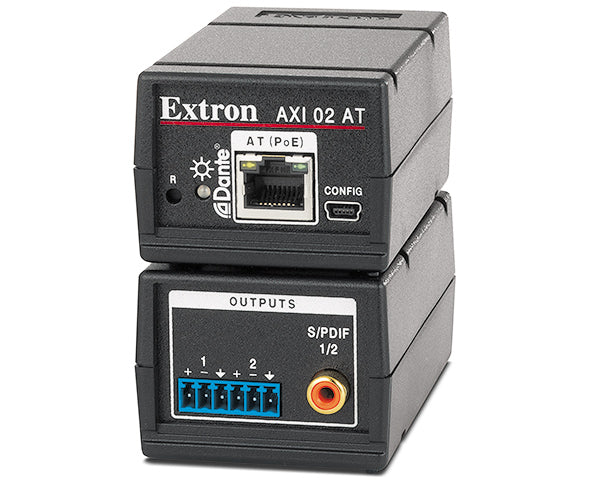

Extron AXI 02 AT (part number 60-1753-01) — an eighth-rack Dante receiver that turns two network audio channels into both analog line level and digital output, powered entirely over PoE.

This is an output-only device, which is the point: it exists to get audio out of a Dante system and into equipment that never spoke Dante in the first place. Two channels arrive from the network and appear twice over, as balanced or unbalanced analog on a 6-pole captive screw connector and simultaneously as digital PCM on a 75 ohm RCA connector, so an amplifier and a recorder can be fed from the same drop. Output attenuation is adjustable in software from -100 dB to 0 dB in 1 dB steps. At one eighth rack width and a quarter of a pound it goes almost anywhere; a ZipClip 100 mounting clip is in the box for under-table or rack-rail mounting.

Key Capabilities

Two Dante channels out as analog line level: 2 mono or 1 stereo, balanced or unbalanced.
Simultaneous digital output, 2 PCM channels or 1 stereo, on a 75 ohm RCA connector.
Uncompressed 24-bit audio, selectable at 44.1, 48, 88.2 or 96 kHz.
Signal to noise above 115 dB, THD+N below 0.01% at 1 kHz, crosstalk under -90 dB.
Deterministic latency selectable at 1.0 ms default, 2.0 ms or 5.0 ms.
Powered solely by PoE 802.3af at 3.2 watts; no local supply needed.

Where It Is Used

Feeding legacy amplifiers, assistive listening transmitters, recorders and overflow displays from a Dante backbone; adding a local audio tap in a huddle room or breakout space; and retrofit work where the audio distribution is already on the network but one endpoint is not.

Specifications at a Glance

Outputs: 2 analog (6-pole captive screw) plus 2 PCM digital (RCA, 75 ohms)
Network: 1 RJ-45, Dante/AES-67 selectable, 2 channels Rx
Power: PoE 802.3af only, 3.2 watts at the device
Enclosure: plastic, 1.62" H x 2.13" W x 4.42" D, 0.25 lbs
Warranty: 3 years parts and labor

Also referenced as Extron AXI02AT, AXI-02-AT, part number 60175301.

Specifications

Part Number: 60-1753-01

Manufacturer: Extron

Model: AXI 02 AT

Condition: New

Gain: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.3 dB

THD + Noise: <0.01% @ 1 kHz at maximum level

S/N, Digital In to Analog Out: >115 dB, 20 Hz to 20 kHz at maximum output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Output Attenuation: -100 dB to 0 dB (in 1 dB steps)

Analog Audio Output: 2 mono (or 1 stereo), balanced/unbalanced

Analog Output Connector: (1) 3.5 mm captive screw connector, 6-pole

Analog Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Analog Output Nominal Level: -10 dBV (316 mV) or +4 dBu (1.23 V)

Analog Output Maximum Level (Hi-Z): >+21 dBu balanced or >+15 dBu unbalanced

Digital Audio Output: 2 PCM (or 1 stereo)

Digital Output Connector: 1 RCA connector

Digital Output Impedance: 75 ohms

Audio Transport: Dante/AES-67, software selectable

AT Port Connector: 1 RJ-45 connector to Dante interface

Network Inputs: 2 channels Rx (2 flows, unicast or multicast)

Audio Format: Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Power Input Requirements: Power over Ethernet (PoE 802.3af)

PoE Power Injector (optional): XTP PI 100

Power Consumption: Device 3.2 watts; device and power injector 5.4 watts

Thermal Dissipation (XTP PI 100 injector): Device 10.9 BTU/hr; device and power injector 18.3 BTU/hr

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Rack Mount: Yes, with optional 1U high rack shelf, with the included ZipClip 100 mounting clip, or by securing to rack rails with tie wraps

Furniture Mount: Yes, with the included ZipClip 100 mounting clip

Enclosure Type: Plastic

Enclosure Dimensions: 1.62" H x 2.13" W x 4.42" D (1U high, one eighth rack wide) (42 mm H x 55 mm W x 113 mm D)

Product Weight: 0.25 lbs (0.1 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UL, VCCI Class A, WEEE

Product Warranty: 3 years parts and labor

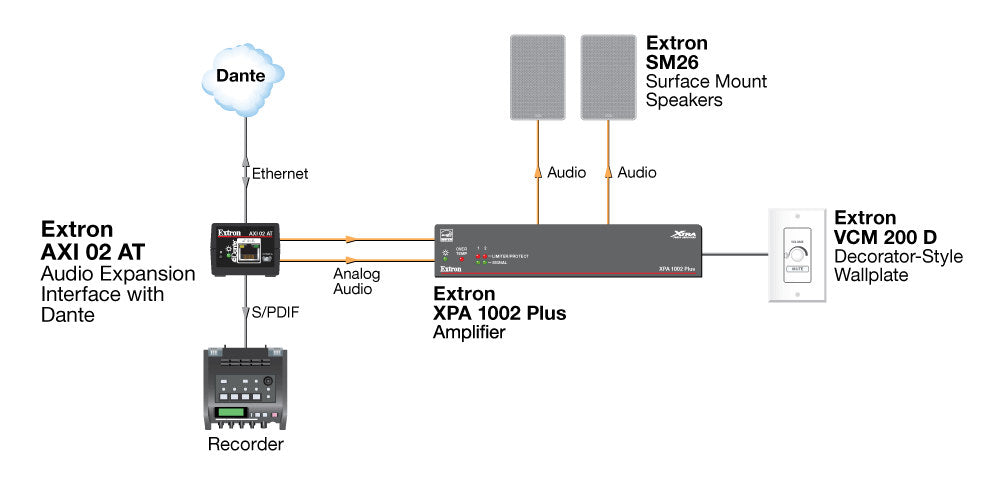

Diagram

Resources

Brochure | AXI 02 AT 60-1753-01 | AXI 02 AT (axi_02_at_revA1.pdf)

Brochure | AXI 02 AT 60-1753-01 | AXI 02 AT (AXI-02-AT_BR_A4_SP_RevA.pdf)

Brochure | AXI 02 AT 60-1753-01 | AXI 02 AT (AXI-02-AT_BR_A4_FR_RevA.pdf)

Brochure | AXI 02 AT 60-1753-01 | AXI 02 AT (axi_02_at_REV_A_cn_ONLINE.pdf)

Brochure | AXI 02 AT 60-1753-01 | AXI 02 AT (axi_02_at_REV_A_jp_ONLINE.pdf)

Manual | AXI 02 AT 60-1753-01 | AXI 02 AT Setup Guide

Manual | AXI 02 AT 60-1753-01 | AXI 02 AT User Guide

Manual | AXI 02 AT 60-1753-01 | Cleaning Instruction Card

Manual | AXI 02 AT 60-1753-01 | Extron Dante FAQ

Specifications | AXI 02 AT 60-1753-01 | AXI 02 AT

Panel Drawing | AXI 02 AT 60-1753-01 | AXI 02 AT

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron AXI 02 AT 2 Output Dante Audio Interface 60-1753-01

Name: Extron AXI 02 AT 2 Output Dante Audio Interface 60-1753-01
Brand: Extron
SKU: EXTRON-AXI02AT-60175301
Availability: InStock

Manufacturer: Extron

Type: DSP, Expansion & Software

Extron AXI 02 AT Dante Audio Interface

• Takes two Dante channels out to analog line level and digital at once
• Digital output is 2 PCM channels on a 75 ohm RCA connector
• Uncompressed 24-bit audio at 44.1, 48, 88.2 or 96 kHz
• Signal to noise above 115 dB, THD plus noise below 0.01% at 1 kHz
• Output attenuation adjustable -100 dB to 0 dB in 1 dB steps
• Runs entirely on PoE 802.3af at 3.2 watts, no local power supply
• One eighth rack width at 0.25 lbs, ZipClip 100 clip included
• 3 year Extron parts and labor warranty
