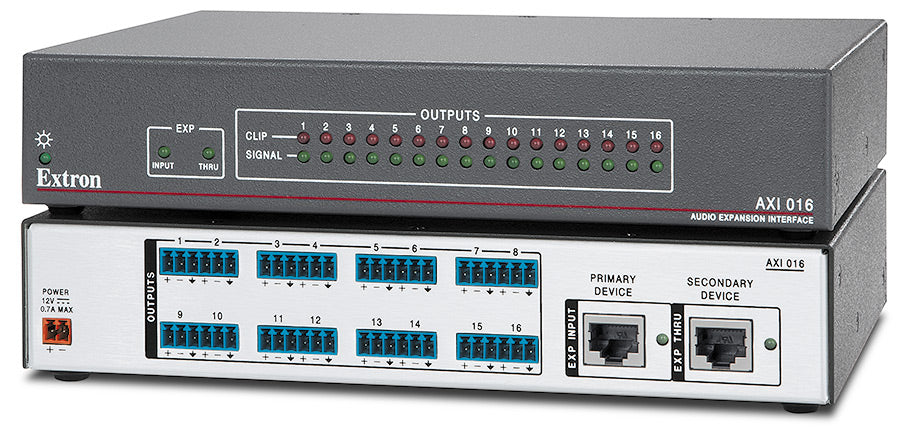

Extron AXI 016 (part number 60-1690-01) — a 1U half-rack expansion interface that bolts sixteen analog line level outputs onto a DMP Plus Series DSP.

When a DSP runs out of physical outputs the usual answer is a second processor, which then has to be configured, clocked and kept in sync. This box sidesteps that. It connects to the host processor's EXP port over a short shielded CAT 6 link and simply appears as sixteen more outputs in the existing DSP configuration. Audio crosses that link uncompressed at 24-bit and 48 kHz on a proprietary transport, so there is no network to design and no latency budget to argue about. The sixteen outputs land on eight 6-pole captive screw connectors and can be used as sixteen mono feeds or eight stereo pairs, balanced or unbalanced.

Key Capabilities

• Sixteen mono outputs, or eight stereo, balanced or unbalanced, on (8) 6-pole captive screw connectors.
• Connects to a DMP Plus Series processor's EXP port; no separate DSP configuration required.
• Uncompressed 24-bit, 48 kHz audio across the expansion link.
• Signal to noise above 115 dB digital in to analog out; THD+N below 0.01% at 1 kHz.
• Frequency response of 20 Hz to 20 kHz within ±0.2 dB, crosstalk under -90 dB fully loaded.
• Runs on an external 12 VDC 1.5 A 18 W supply, drawing 7.2 watts.

Where It Is Used

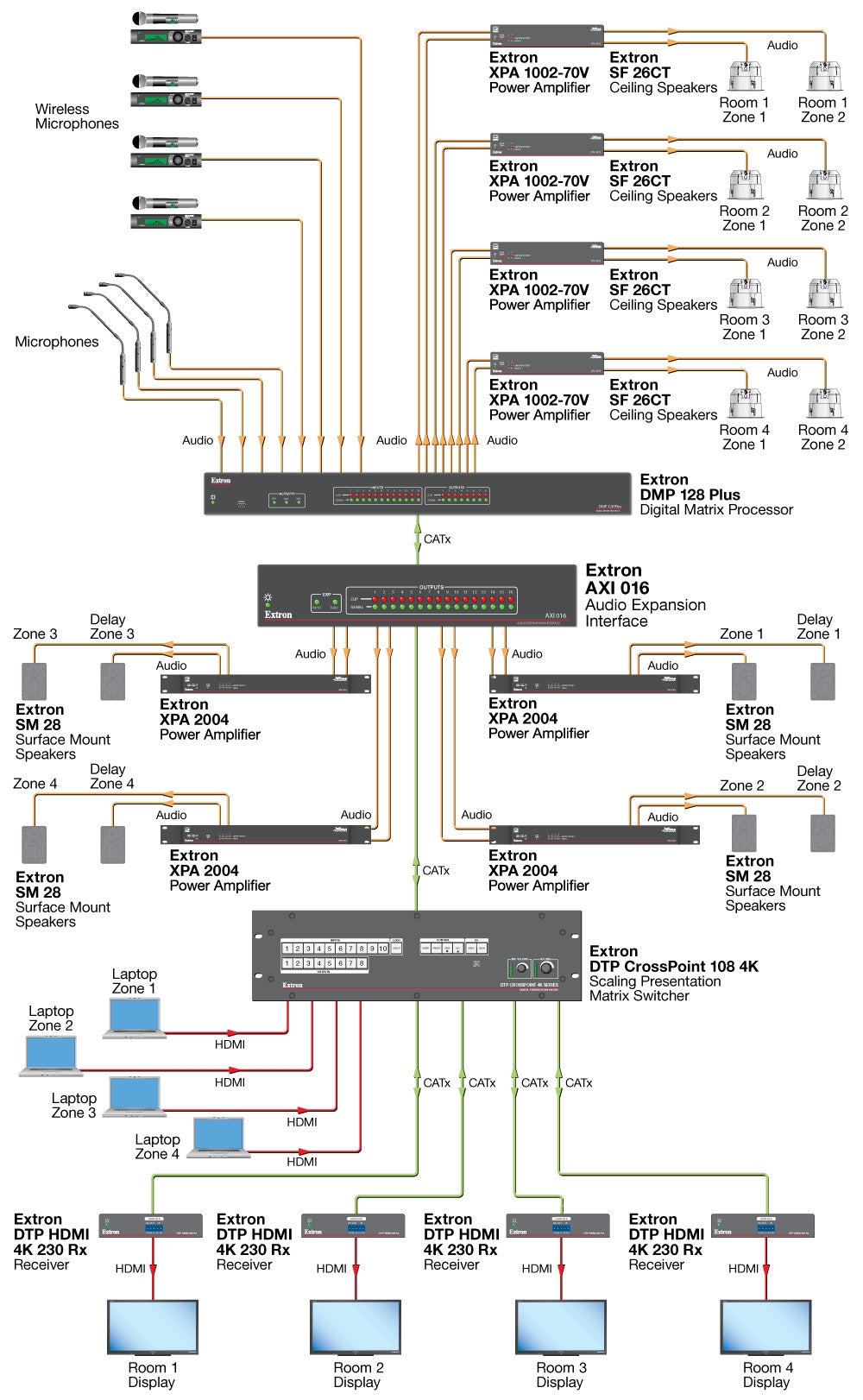

Distributed audio in large venues, campuses and hospitality sites where a single DSP has to reach far more zones than its own rear panel allows; divisible conference facilities; and systems that also carry a DTP CrossPoint matrix switcher and need extra analog outputs from the same processor.

Specifications at a Glance

• Outputs: 16 mono or 8 stereo, 50 ohms unbalanced / 100 ohms balanced
• EXP port: 2 RJ-45, proprietary transport, 16 Rx and 16 Tx channels
• Link: shielded CAT 6 up to 10 metres; a 1 ft cable is included
• Enclosure: metal, 1.66" H x 8.68" W x 6.00" D, 1 lb
• Warranty: 3 years parts and labor

Also referenced as Extron AXI016, AXI-016, part number 60169001.
