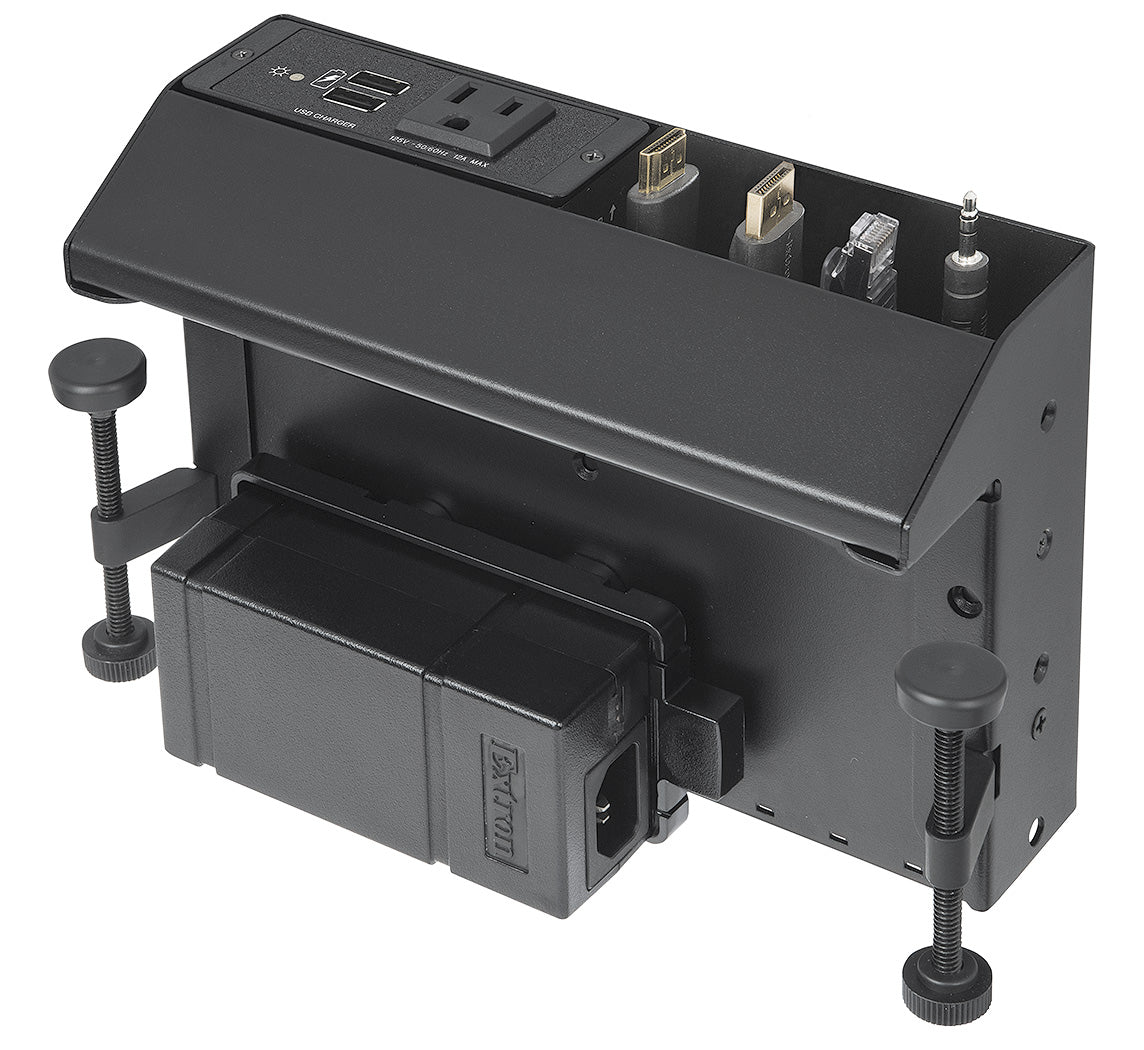

Extron AVEdge 100 (part number 70-1128-02) — a black edge-mount enclosure that brings AV connectivity, data and power to a table without cutting into it.

Not every room can be drilled. Leased offices, listed buildings, heritage furniture and reconfigurable training spaces all rule out a surface cutout, which is exactly the gap the AVEdge 100 fills. An integrated tool-less clamp system grips the edge of the tabletop, so the enclosure installs and moves again without leaving a mark. It accepts table thicknesses from 0.50 in to 2.00 in (12.7 to 50.8 mm) and measures 5.68 in high by 8.56 in long by 3.28 in wide in a metal housing weighing 2.6 lbs (1.2 kg). Extron ships this part without an AC module.

Key Capabilities

• Clamps to the edge of furniture; no surface cutting required

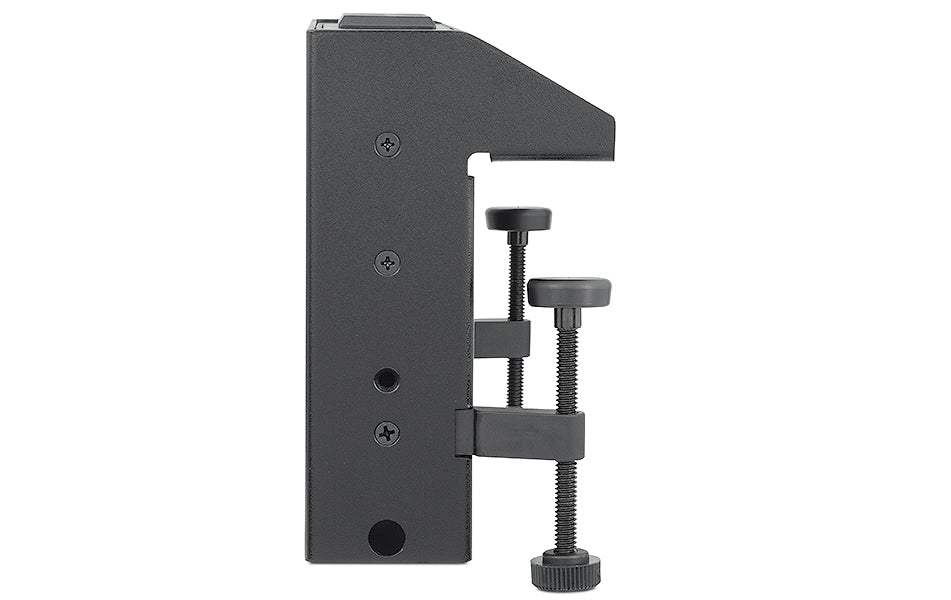

• Integrated tool-less clamp system for fast, reversible fitting
• Fits table thicknesses from 0.50 in to 2.00 in (12.7 to 50.8 mm)
• Metal enclosure, 5.68 x 8.56 x 3.28 in (144.3 x 217.4 x 83.3 mm)
• Weighs 2.6 lbs (1.2 kg); ships at 4 lbs (2 kg)
• UL, c-UL and CE listed for safety; RoHS and WEEE compliant
• Backed by a 3-year parts and labor warranty

Where It Is Used

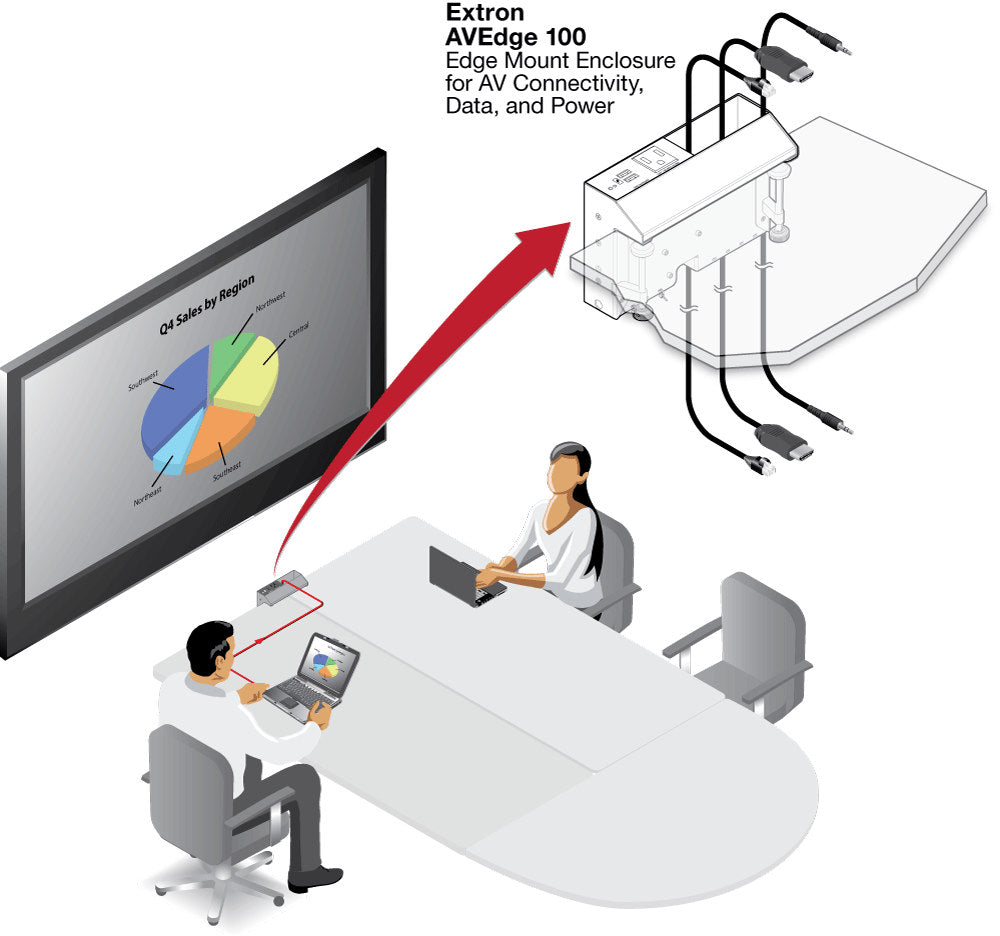

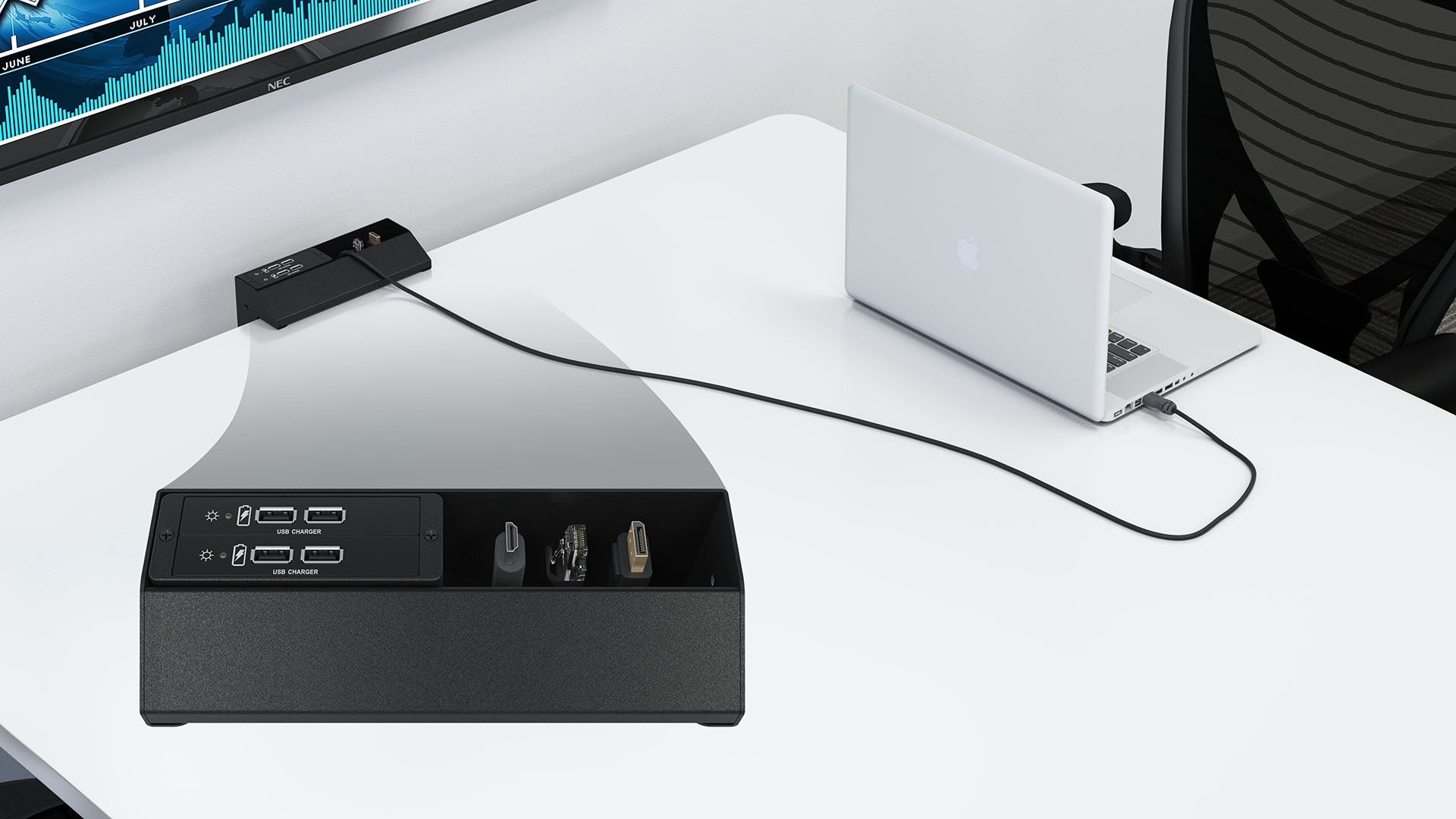

Ideal for configurable meeting rooms and flexible classrooms, leased or heritage spaces where the furniture cannot be modified, temporary collaboration areas, and training rooms whose table layouts change between sessions but still need semi-permanent power and AV connectivity.

Specifications at a Glance

• Mounting: clamps to furniture edge, tool-less
• Table thickness: 0.50 in to 2.00 in (12.7 to 50.8 mm)
• Dimensions: 5.68 x 8.56 x 3.28 in (144.3 x 217.4 x 83.3 mm)
• Weight: 2.6 lbs (1.2 kg)
• Warranty: 3 years parts and labor

Extron lists 70-1128-02 as the black version with the AC module not included; the AC power plate is available for the US region only.

Also referenced as Extron AVEdge100, AVEdge-100, part number 70112802.
