Details

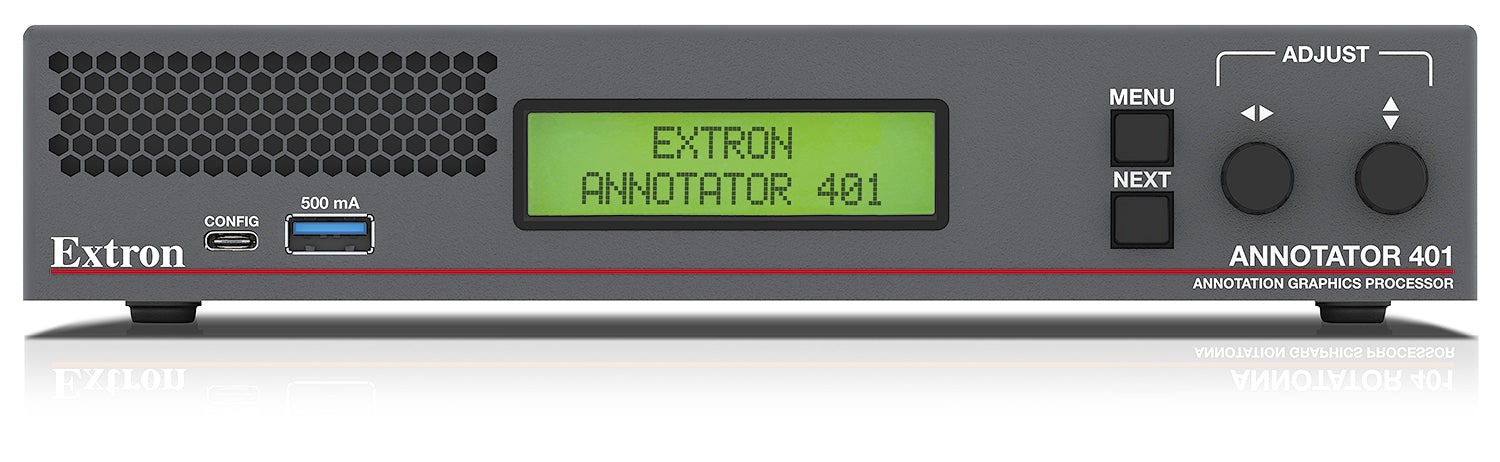

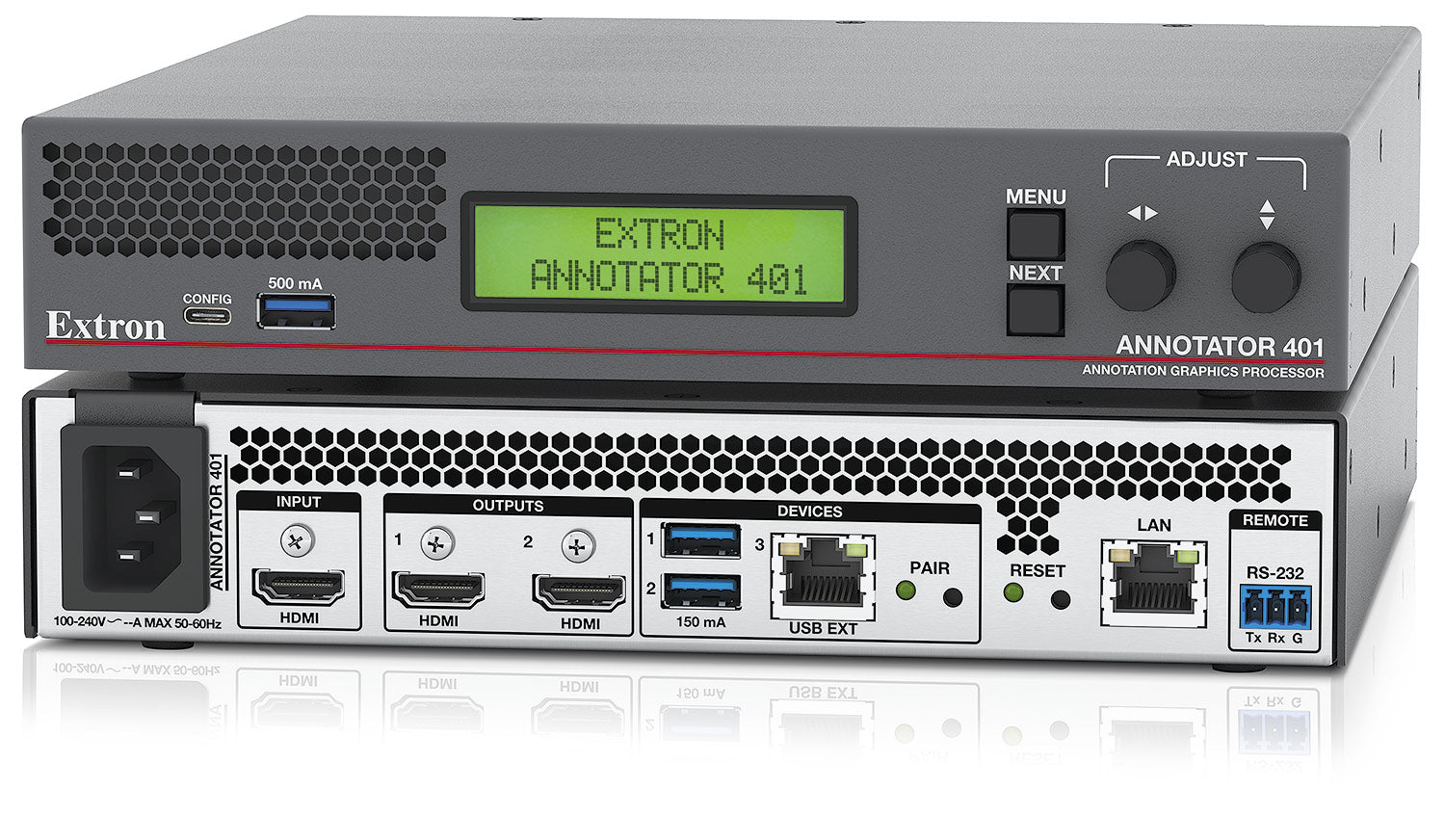

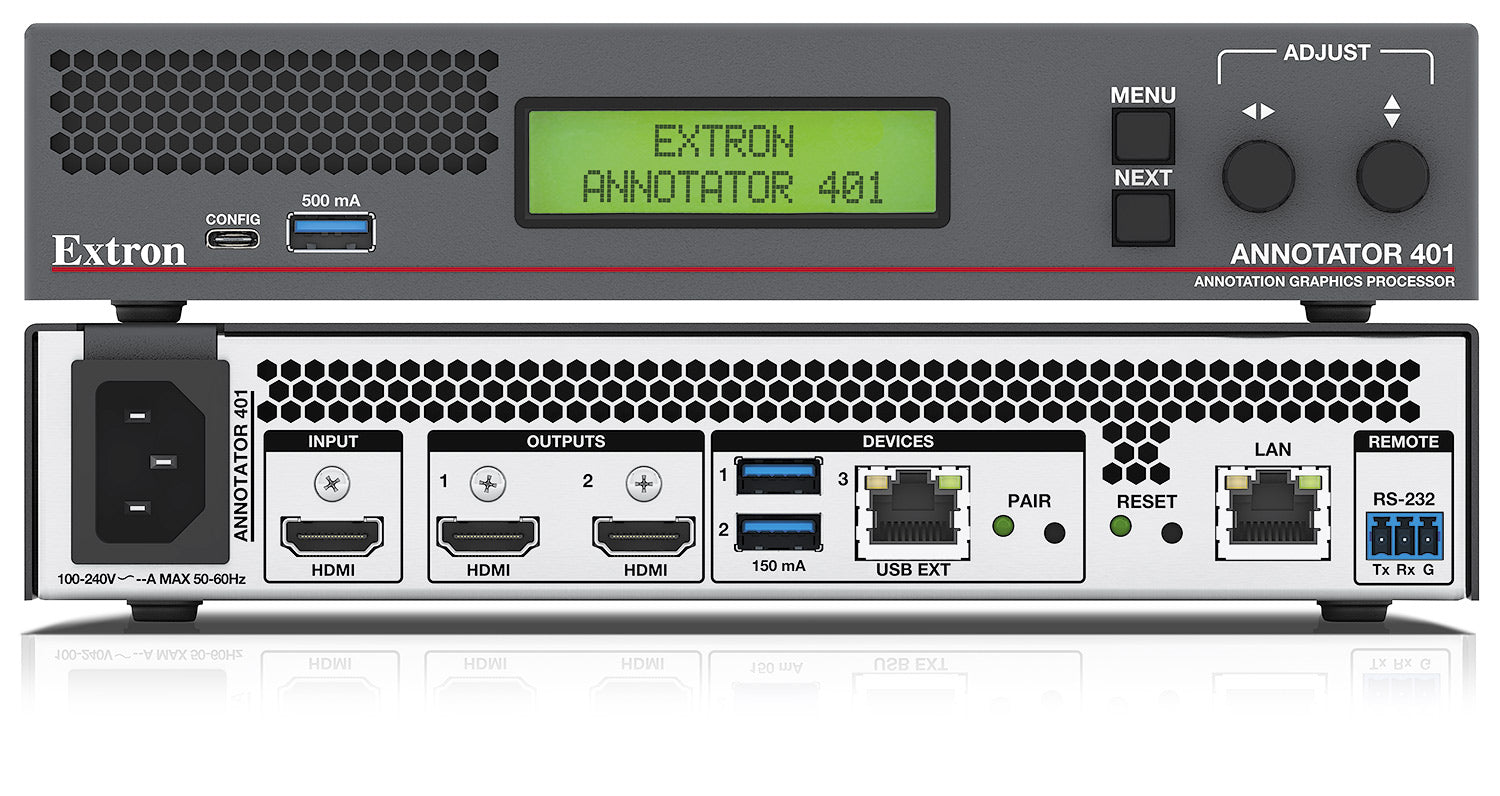

Extron Annotator 401 (part number 60-1731-01) — a 4K/60 annotation processor that lets presenters mark up live HDMI content in real time.

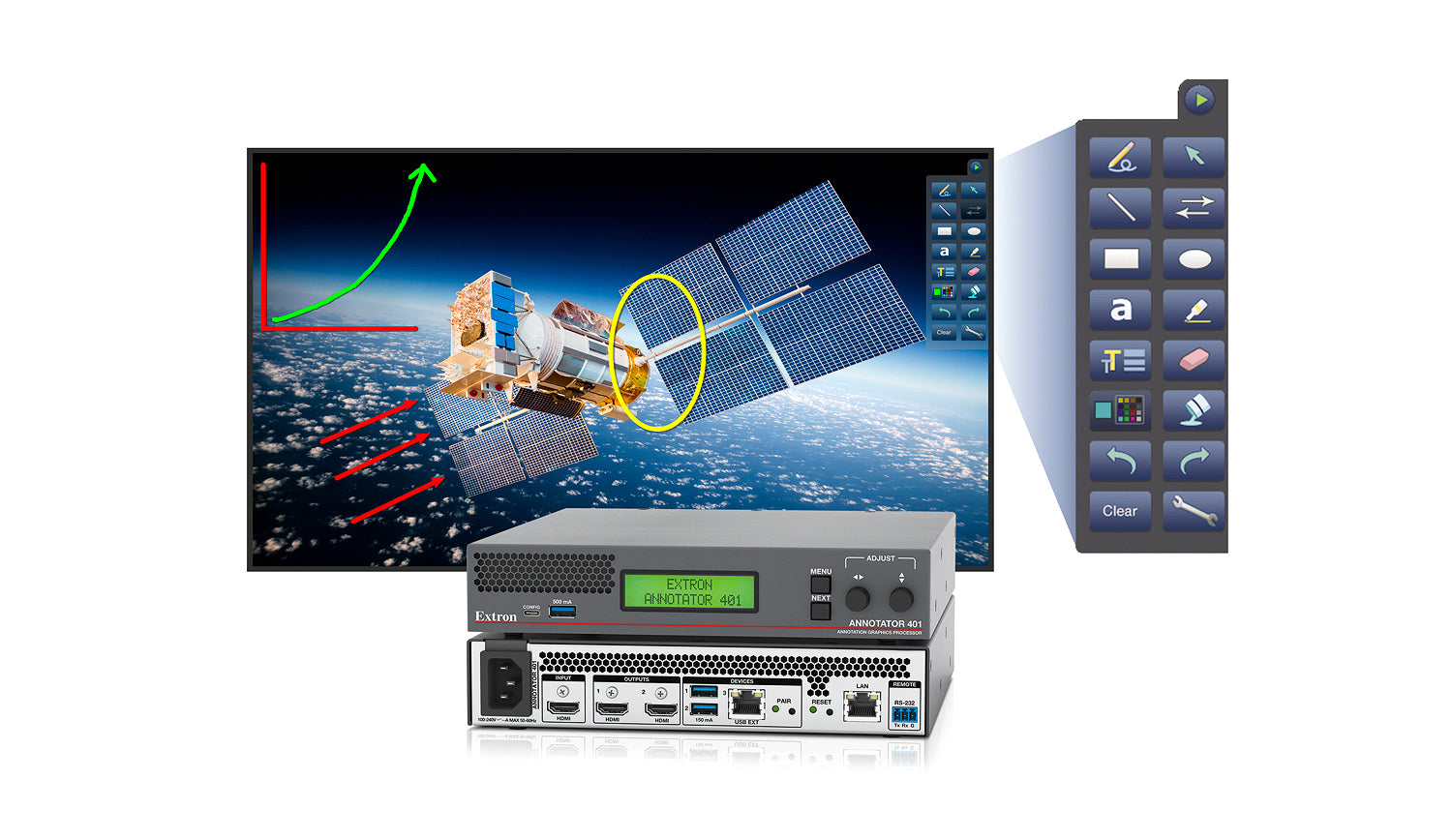

The unit accepts a single HDMI/DVI input up to 4096x2160 at 60 Hz and passes it out to two independently selectable HDMI outputs, each of which can show or hide the annotation layer, on-screen menu, and cursor on its own. Annotations come from a connected touch display, mouse, or keyboard, and captured screens can be saved locally, pushed to a USB drive, sent to a network location, or printed directly — useful for courtroom exhibits, classroom notes, or design reviews that need a record of what was marked up.

Key Capabilities

4096x2160 @ 60 Hz input and output with Vector 4K scaling
Two independent HDMI outputs, each toggling annotation, menu, and cursor separately
Built-in USB Extender Plus transmitter reaches 330 ft over CATx or Gigabit Ethernet
Captures to BMP, JPG, or PNG — saved locally, to USB, or sent to a network printer
HDCP 1.4 and 2.3 compliant for protected-content pass-through

Where It Is Used

Courtrooms, lecture halls, design review rooms, and boardrooms deploy the Annotator 401 wherever a presenter needs to draw on live video and hand off a saved copy of the marked-up frame afterward.

Specifications at a Glance

1 HDMI/DVI input, 2 HDMI/DVI outputs, HDCP 1.4/2.3
Max video data rate 18 Gbps (6 Gbps per color)
1U half-rack metal enclosure 1.66" H x 8.68" W x 9.5" D, 2.4 lbs
Everlast power supply warranty: 7 years parts and labor

Also referenced as Extron Annotator401, Annotator-401, part number 60173101.

Specifications

Part Number: 60-1731-01

Manufacturer: Extron

Model: Annotator 401

Condition: New

Video input: 1 female HDMI, resolution range 640x480 through 4096x2160 (up to 60 Hz)

Horizontal frequency: 15 kHz to 270 kHz

Vertical frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Video output: 2 female HDMI

Signal type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Max. video data rate: 18 Gbps (6 Gbps per color)

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0 (4:2:0 input only)

Color bit depth: 8 or 10 bits per color

Digital sampling: 8 or 10 bits per color; 600 MHz pixel clock maximum

Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)

Power for active cables: 2.2 W total for all HDMI ports, 1.1 W max. per port

Peripheral device power: 250 mA per HDMI output

Audio: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby legacy, DTS-X, DTS-HD Master Audio, DTS 96/24, DTS legacy

Image capture formats: BMP, JPG, PNG

Storage: 4 GB user memory

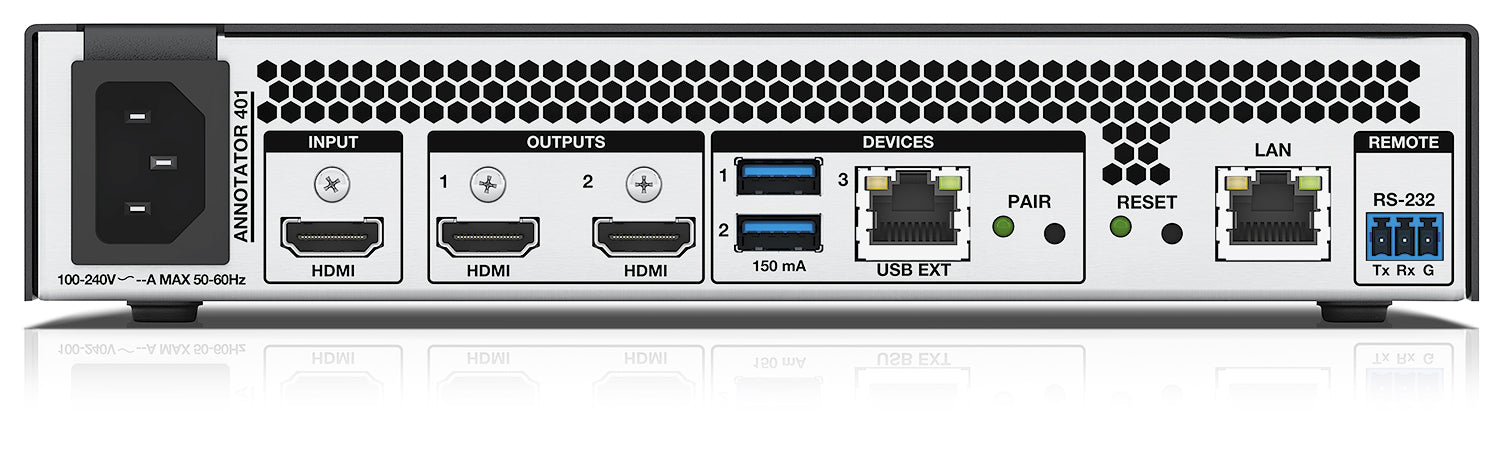

Serial control port: 1 RS-232 on captive screw connector, back panel

Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity

USB control port: 1 female USB-C, front panel, Ethernet over USB (RNDIS)

USB device ports: 2 female USB 3.2 type A (rear), 1 female USB 3.2 type A (front); up to 32 USB 2.0 or 5 USB 3.0 devices via hubs

Available USB power: 500 mA front, 150 mA per port rear

USB Extender Plus transmission distance: Direct connection 330 ft (100 m); up to 5 network switches between Tx and Rx for a total of 1980 ft (600 m)

Ethernet port: 1 RJ-45 female connector, 10/100/1000 Base-T

Ethernet protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Program control: Extron configuration program for Windows; Extron Simple Instruction Set (SIS)

Power supply: Internal, 100-240 VAC ~50-60 Hz

Power consumption: 36.6 watts

Ambient temperature/humidity: Storage -40 to +158°F (-40 to +70°C) / 10-90% noncondensing; Operating +32 to +113°F (0 to +45°C) / 10-90% noncondensing

Rack mount: Yes, with optional shelf

Enclosure type: Metal

Enclosure dimensions: 1.66" H x 8.68" W x 9.5" D, 1U high, half rack wide (43 mm H x 221 mm W x 242 mm D); depth excludes connectors and knobs

Product weight: 2.4 lbs (1.1 kg)

Regulatory compliance: UL, c-UL, CE, FCC Class A, VCCI, AS/NZS, ICES, RoHS

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

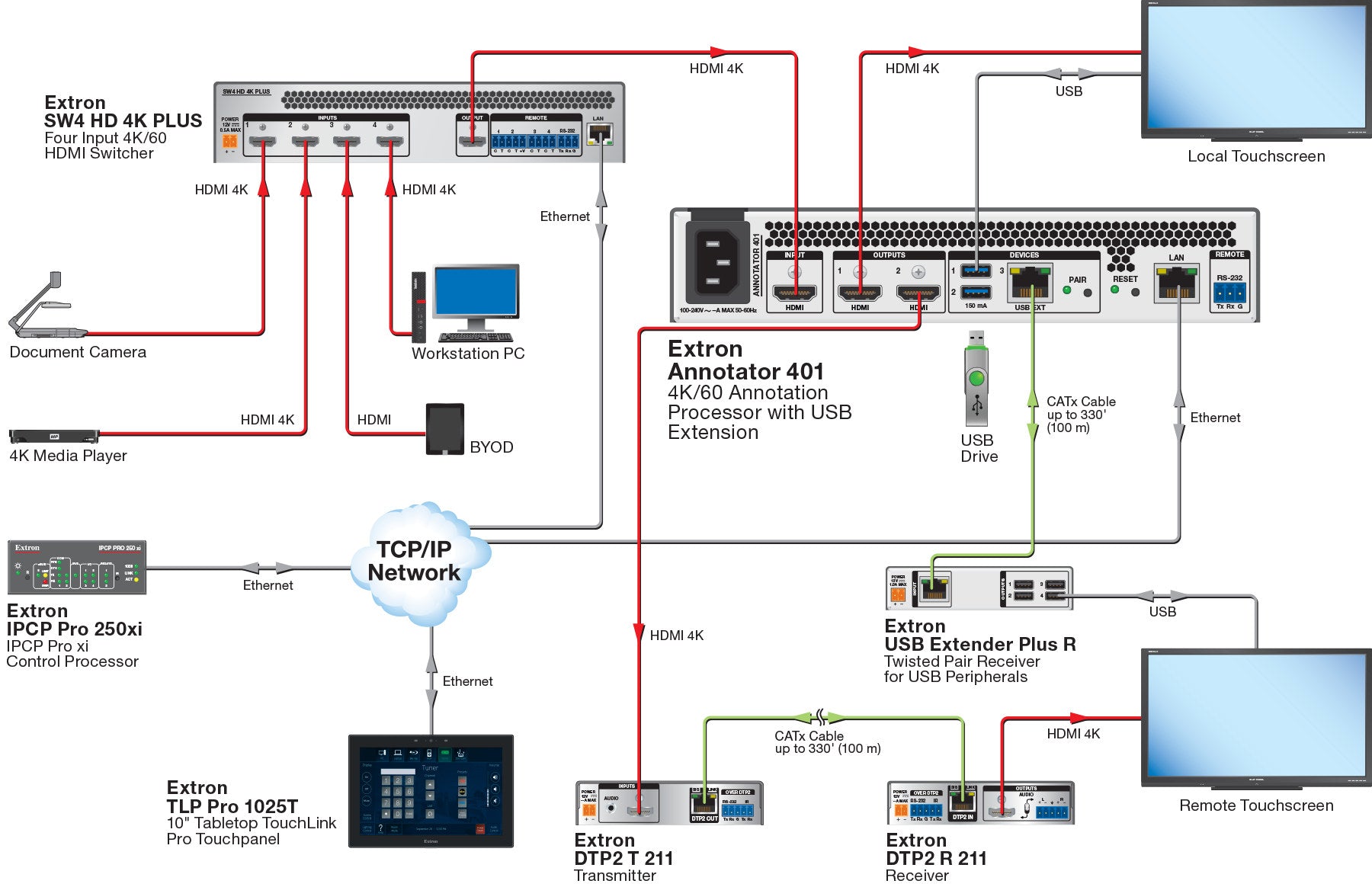

Diagram

Resources

Brochure | Annotator 401 60-1731-01 | Annotator 401 (annotator-401-brochure-revA2.pdf)

Brochure | Annotator 401 60-1731-01 | Courtroom AV Systems

Brochure | Annotator 401 60-1731-01 | Annotator 401 (Annotator-401_BR_A4_IT_RevA2.pdf)

Brochure | Annotator 401 60-1731-01 | Annotator 401 (Annotator-401_BR_A4_SP_RevA2.pdf)

Brochure | Annotator 401 60-1731-01 | Annotator 401 (Annotator-401_BR_A4_FR_RevA2.pdf)

Brochure | Annotator 401 60-1731-01 | Annotator 401 (Annotator-401_BR_A4_GE_RevA2.pdf)

Brochure | Annotator 401 60-1731-01 | AV-Systeme für Gerichtssäle

Brochure | Annotator 401 60-1731-01 | Sistemas AV en salas de tribunal

Brochure | Annotator 401 60-1731-01 | Sistemi AV nelle aule giudiziarie

Brochure | Annotator 401 60-1731-01 | Systèmes audiovisuels pour salles d'audience

Manual | Annotator 401 60-1731-01 | Annotator 401 Compatibility List

Manual | Annotator 401 60-1731-01 | Annotator 401 Setup Guide

Manual | Annotator 401 60-1731-01 | Annotator 401 User Guide

Specifications | Annotator 401 60-1731-01 | Annotator 401

Panel Drawing | Annotator 401 60-1731-01 | Annotator 401
