Extron ACP VC1 EU Audio Control Panel
- • Flex55 and EU form factor for installations outside North America
- • Rotary volume knob gives a full level change in one gesture
- • Five bright LEDs show the current system volume at a glance
- • One backlit soft-touch mute button, legend fully customizable
- • Connects straight to a DMP Plus processor, no control system needed
- • Two ACP ports allow chaining of up to eight panels per processor
- • Draws only 1.0 watt at 12 VDC and dissipates 2.5 BTU/hr
- • Compact 1.8 x 1.8 inch device body fits a 1-gang EU junction box
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron ACP VC1 EU (part number 60-1861-31) — the Flex55 and EU version of Extron's volume and mute audio control panel, sized for European junction boxes.

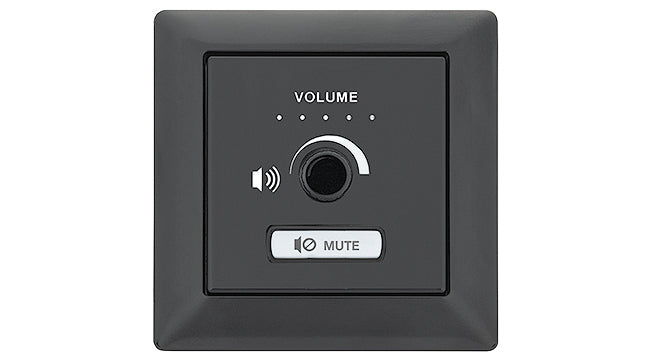

Functionally this is the same panel as its US decorator-style sibling; the difference is the form factor. It fits Extron Flex55 modules, mounting kits and enclosures, and drops into a standard 1-gang EU junction box, which makes it the right choice anywhere outside the North American wallplate ecosystem. The controls are deliberately minimal: a rotary knob for volume, giving smooth precise adjustment in a single movement, and one backlit soft-touch button for mute. Five bright LEDs sit alongside to show the current level. It plugs into the ACP port on a DMP Plus Series digital matrix processor and is configured in Extron DSP Configurator, with no control system in the signal path.
Key Capabilities
- Rotary volume knob plus one backlit soft-touch mute button.
- Five LEDs give at-a-glance indication of the system volume level.
- Compatible with Flex55 modules, mounting kits and enclosures as well as EU junction boxes.

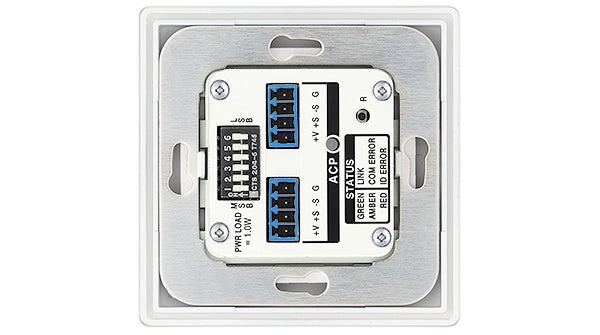

- Two ACP ports on 4-pole 3.5 mm captive screw connectors for chaining and expansion.
- Up to eight ACP Series panels can be connected to a single DMP Plus processor.
- Draws 1.0 watt at 12 VDC and dissipates 2.5 BTU/hr.
Where It Is Used
European and international meeting rooms, lecture theatres and huddle spaces built on Extron Flex55 architectural connectivity, divisible conference facilities needing per-zone level control, and lecterns where a presenter needs a single obvious volume control. Works with EBDB distribution hubs to keep cable runs short in larger buildings.
Specifications at a Glance
- Controls: rotary volume knob, 1 backlit mute button, 5 level LEDs
- Ports: (2) 3.5 mm captive screw, 4 pole; +12 VDC, +S, -S, ground
- Power: 1.0 watt at 12 VDC from the processor
- Mounting: 1-gang EU junction box; device 1.8" H x 1.8" W x 0.9" D
- Warranty: 3 years parts and labor
Also referenced as Extron ACPVC1EU, ACP-VC1-EU, part number 60186131.
Specifications
Specifications

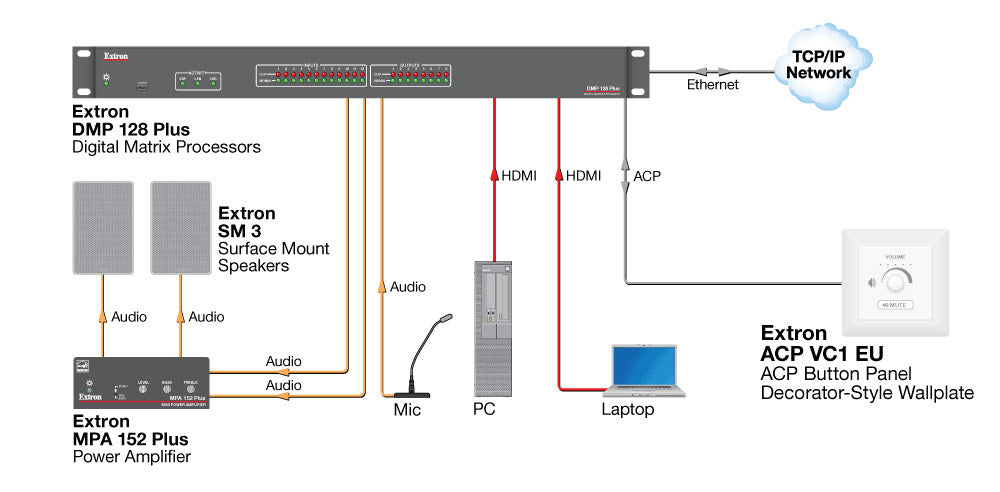

Diagram
