Extron ACP VC1 D Audio Control Panel
- • Rotary volume knob gives a full level change in one gesture
- • Five bright LEDs show the current system volume at a glance
- • One backlit soft-touch mute button, legend fully customizable
- • Connects straight to a DMP Plus processor, no control system needed
- • Two ACP ports allow chaining of up to eight panels per processor
- • Draws 1.5 watts at 12 VDC and dissipates only 2.5 BTU/hr
- • Fits a US 1-gang box; decorator wallplates and mud ring included
- • Section 508 accessibility compliant, 3 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

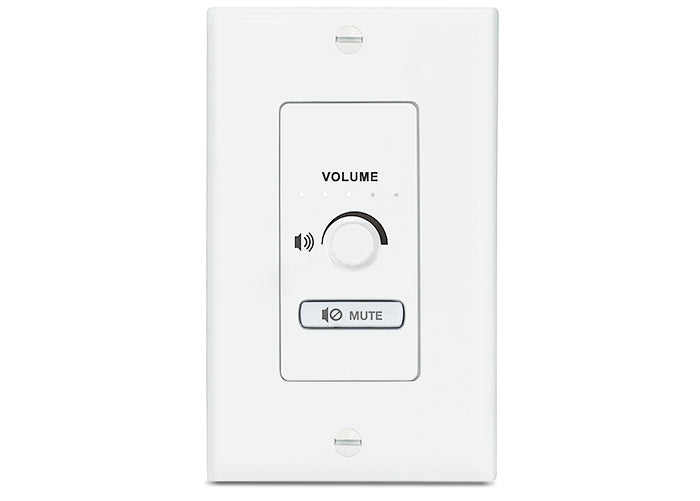

Extron ACP VC1 D (part number 60-1861-01) — a decorator-style wall panel giving a room exactly two controls: a rotary volume knob and a mute button.

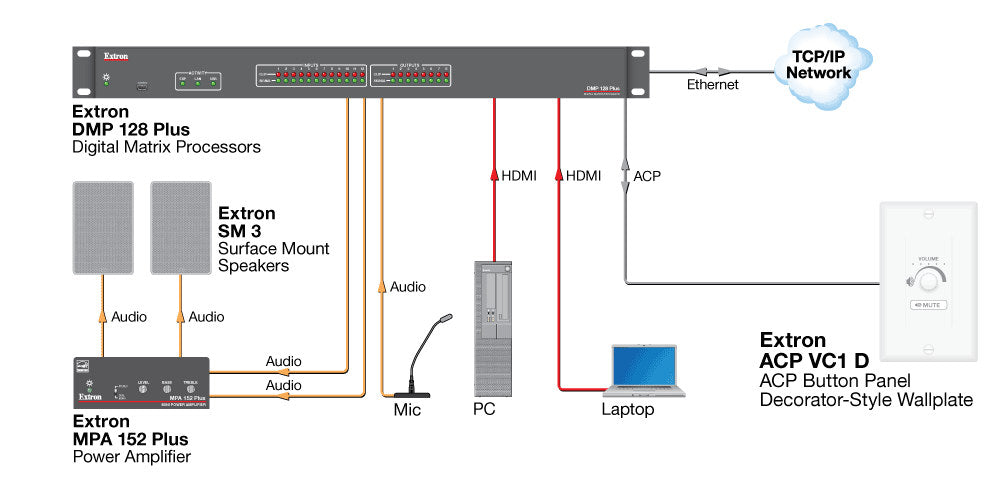

There is a reason simple panels keep getting specified. Most rooms do not need source selection or preset recall on the wall; they need someone to be able to turn it down. The ACP VC1 D does that with a real rotary encoder rather than up and down buttons, so a large level change takes one gesture, and five bright LEDs beside it show where the level currently sits without anyone having to look at a display. The single soft-touch button is backlit and mutes the system, and its legend is produced in Extron's Custom Button Builder or Button Label Generator. It connects to the ACP port of a DMP Plus Series digital matrix processor and is configured in DSP Configurator; no control processor is involved.
Key Capabilities
- Rotary volume knob with five LEDs for at-a-glance level indication.
- One backlit soft-touch mute button, customizable via Extron's Custom Button Builder.

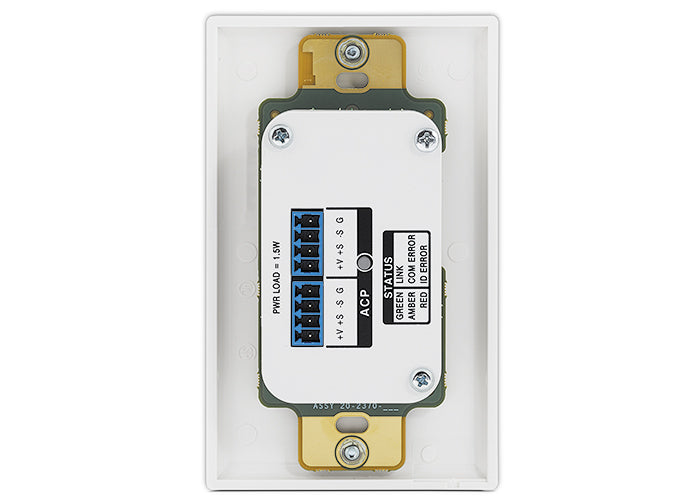

- Two ACP ports on 4-pole 3.5 mm captive screw connectors for expansion.
- Up to eight ACP Series panels can be connected to a single DMP Plus processor.
- Draws 1.5 watts at 12 VDC and dissipates 2.5 BTU/hr.

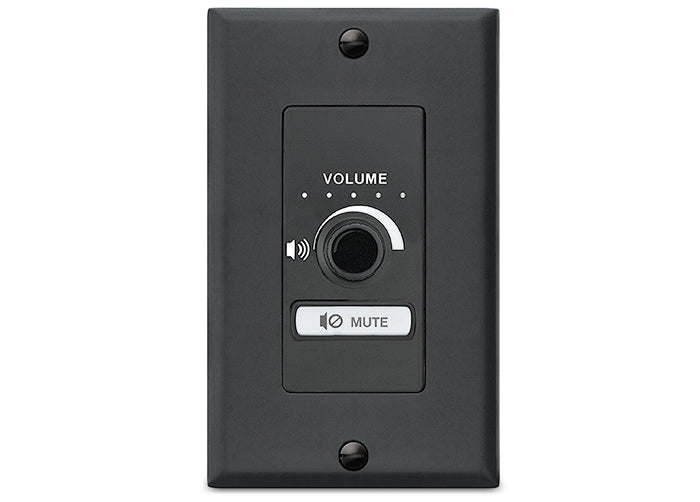

- Ships with black and white decorator-style wallplates and a mud ring.
Where It Is Used
Meeting rooms and boardrooms where wall control should be obvious to a first-time user, classrooms and lecture theatres needing a single level control near the door, and divisible spaces where each zone gets its own panel and all of them act together once the partition opens. Compatible with EBDB distribution hubs where cable runs would otherwise be long.
Specifications at a Glance
- Controls: rotary volume knob, 1 backlit mute button, 5 level LEDs
- Ports: (2) 3.5 mm captive screw, 4 pole; +12 VDC, +S, -S, ground
- Power: 1.5 watts at 12 VDC from the processor
- Mounting: US 1-gang junction box or mud ring, decorator-style
- Warranty: 3 years parts and labor
Also referenced as Extron ACPVC1D, ACP-VC1-D, part number 60186101.
