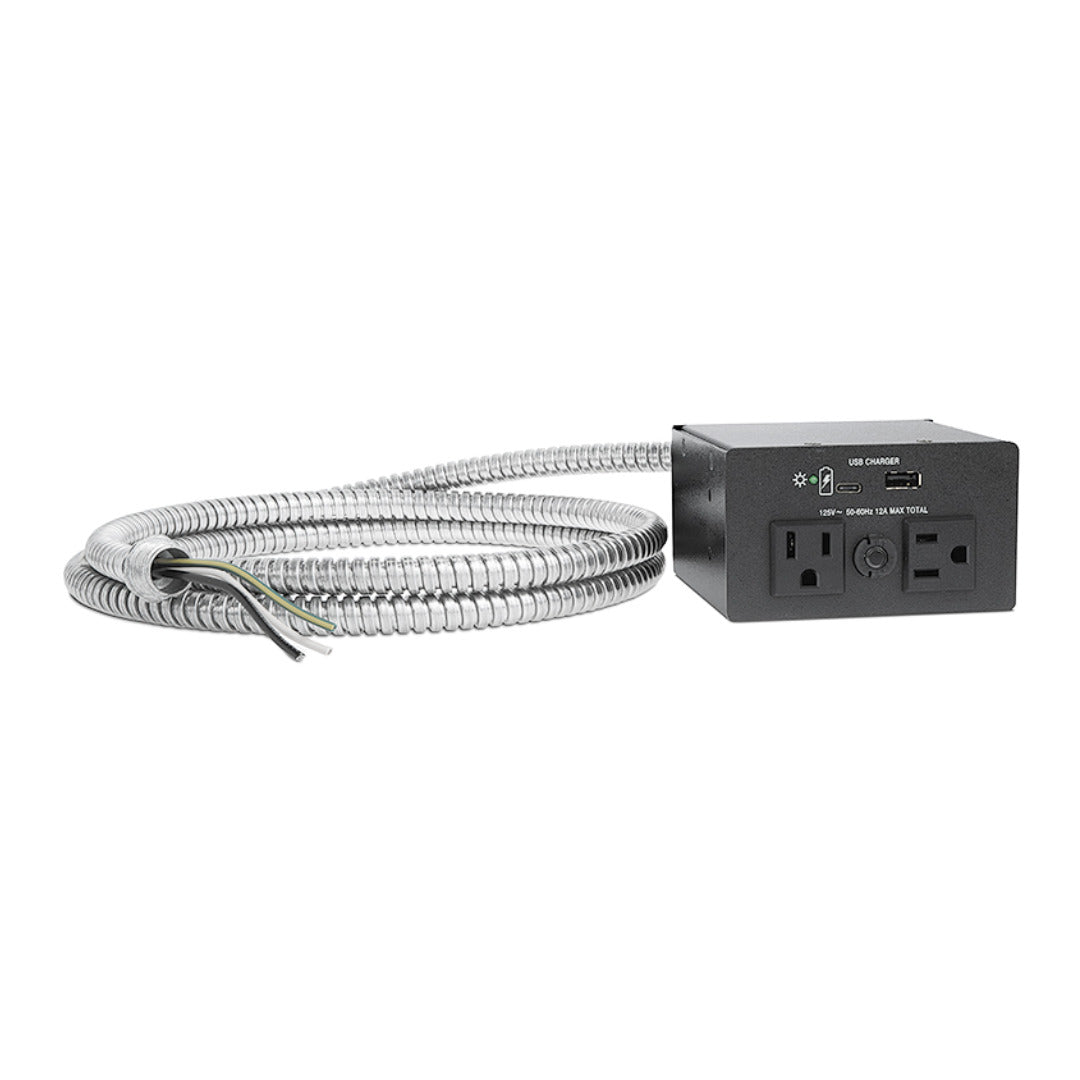

Extron AC+USB 314 US, Conduit (part number 60-1891-20) — the hard-wired version of Extron's top-specification US AC and USB-C Cable Cubby module.

Extron lists this part with two US AC outlets, one USB Type-C and one USB Type-A outlet, an integrated power supply, a 12 A breaker and a conduit feed. The conduit is the reason to choose it: where a consultant's specification or local code requires furniture power to be wired permanently into a UL listed junction box, the cord version is not an option. Electrical performance is unchanged — 125 VAC at 50-60 Hz with a 12 A total maximum, USB Type-C supplying up to 45 watts across five negotiated voltages, and USB Type-A providing 10 watts. Allow 5.00 in of extra depth behind the panel for the conduit bend radius.

Key Capabilities

• Two US AC outlets plus USB Type-C and USB Type-A charging
• Conduit feed for permanent hard-wired installation
• On-board 12 A breaker for local overload protection
• Integrated power supply built into the module
• USB Type-C up to 45 W, USB Type-A up to 10 W
• Allow 5.00 in of extra depth for the conduit bend radius
• Aluminium body at 2.3 lbs (1.0 kg), UL and c-UL listed

Where It Is Used

Built for permanent installations: courtroom and council-chamber joinery, hospital and clinical meeting rooms, university lecture furniture, secure command centres and corporate headquarters, wherever code or specification rules out a cord-and-plug connection.

Specifications at a Glance

• Outlets: two US AC, one USB Type-C, one USB Type-A
• Protection: 12 A breaker
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB: 45 W on Type-C, 10 W on Type-A
• Weight: 2.3 lbs (1.0 kg)

Also referenced as Extron ACUSB314US, AC-USB-314-US, part number 60189120.
